Bosch Rexroth SHAFT WITH SUPPORT WM-30-AFE1-H7-
Bosch Rexroth R101003001 - Linear Motion & Guides - Weight (Kg): 0; Dimension h [mm]: 42.0; Dimension A (profiled rail systems) [mm]: 69.
The Bosch Rexroth R101003001 is part of the Linear Motion & Guides range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0 and Dimension h [mm]: 42.0.
Published specifications for this part include Dimension A (profiled rail systems) [mm]: 69; Shaft diameter d [mm]: 30.0; Dimension E [mm]: 51; Mass m (kg/m) [kg/m]: 7.6; Material of precision steel shafts: Heat-treated steel Cf53; Tolerance grade shaft: h7; Dimension V [mm]: 7; Material shaft support rails: Aluminum; Dimension M [mm]: 11; Dimension O1 thread x lead [mm]: M10x35; Dimension O2 thread diameter: M8x25; Dimension t [mm]: 7.5. The complete technical table is shown in the Specifications tab on this page.
| Dimension A (profiled rail systems) [mm] | 69 |
|---|---|
| Dimension E [mm] | 51 |
| Dimension h [mm] | 42.0 |
| Dimension M [mm] | 11 |
| Dimension N [mm] | 17 |
| Dimension O1 thread x lead [mm] | M10x35 |
| Dimension O2 thread diameter | M8x25 |
| Dimension t [mm] | 7.5 |
| Dimension V [mm] | 7 |
| Mass m (kg/m) [kg/m] | 7.6 |
| Material of precision steel shafts | Heat-treated steel Cf53 |
| Material shaft support rails | Aluminum |
| Shaft diameter d [mm] | 30.0 |
| Tolerance grade shaft | h7 |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R101003001?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R101003001?
R101003001 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R101003001?
Key specifications include Dimension A (profiled rail systems) [mm]: 69; Dimension E [mm]: 51; Dimension h [mm]: 42.0; Dimension M [mm]: 11. The full specification table on this page lists every published attribute for this part.
How quickly can R101003001 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-40H6-CR
Bosch Rexroth Bosch Rexroth SHAFT WITH SUPPORT WM-80-AF1-H7-
Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-40H6
Bosch Rexroth Bosch Rexroth SHAFT WITH SUPPORT WM-20-AS1-H6-

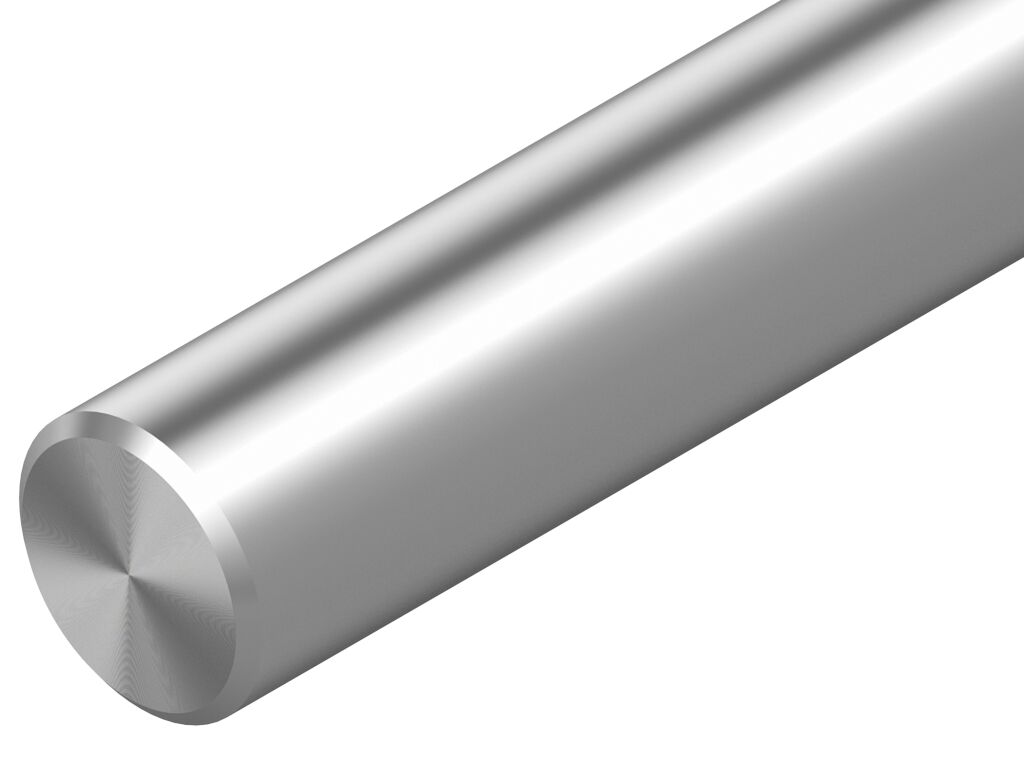

Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-30H7-CR
