Bosch Rexroth HOLLOW SHAFT WO-30H7-CR
Bosch Rexroth R100103041 - Linear Motion & Guides - Series: Precision steel shaft; Weight (Kg): 0; Outer diameter D [mm]: 30.
The R100103041 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Series: Precision steel shaft and Weight (Kg): 0.
Published specifications for this part include Outer diameter D [mm]: 30; Shaft diameter d [mm]: 30.0; Mass m (kg/m) [kg/m]: 3.3; Material of precision steel shafts: Heat-treated steel Cf53 hard chrome plated; Tolerance grade shaft: h7; Version of precision steel shaft: Hollow shaft; Hardness [HRC]: min. 60; Straightness tolerance t3 footnote: The smallest possible value is 40 µm for lengths under 1 m. Straightness is measured based on ISO 13012.; Footnote length L: Regarding geometry and hardness; Cylindricity tolerance t2 footnote: Measurement of differences in diameter; Inner diameter d [mm]: 19. See the Specifications tab on this page for the full technical table.
| Cylindricity tolerance t2 footnote | Measurement of differences in diameter |
|---|---|
| Footnote length L | Regarding geometry and hardness |
| Hardness [HRC] | min. 60 |
| Inner diameter d [mm] | 19 |
| Mass m (kg/m) [kg/m] | 3.3 |
| Material of precision steel shafts | Heat-treated steel Cf53 hard chrome plated |
| Outer diameter D [mm] | 30 |
| Series | Precision steel shaft |
| Shaft diameter d [mm] | 30.0 |
| Straightness tolerance t3 footnote | The smallest possible value is 40 µm for lengths under 1 m. Straightness is measured based on ISO 13012. |
| Tolerance grade shaft | h7 |
| Version of precision steel shaft | Hollow shaft |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R100103041?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R100103041?
R100103041 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R100103041?
Key specifications include Cylindricity tolerance t2 footnote: Measurement of differences in diameter; Footnote length L: Regarding geometry and hardness; Hardness [HRC]: min. 60; Inner diameter d [mm]: 19. The full specification table on this page lists every published attribute for this part.
How quickly can R100103041 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-16H7-CR
Bosch Rexroth Bosch Rexroth HOLLOW SHAFT WO-50H7
Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-16H6
Bosch Rexroth Bosch Rexroth SHAFT WITH SUPPORT WM-25-AF1-H7-

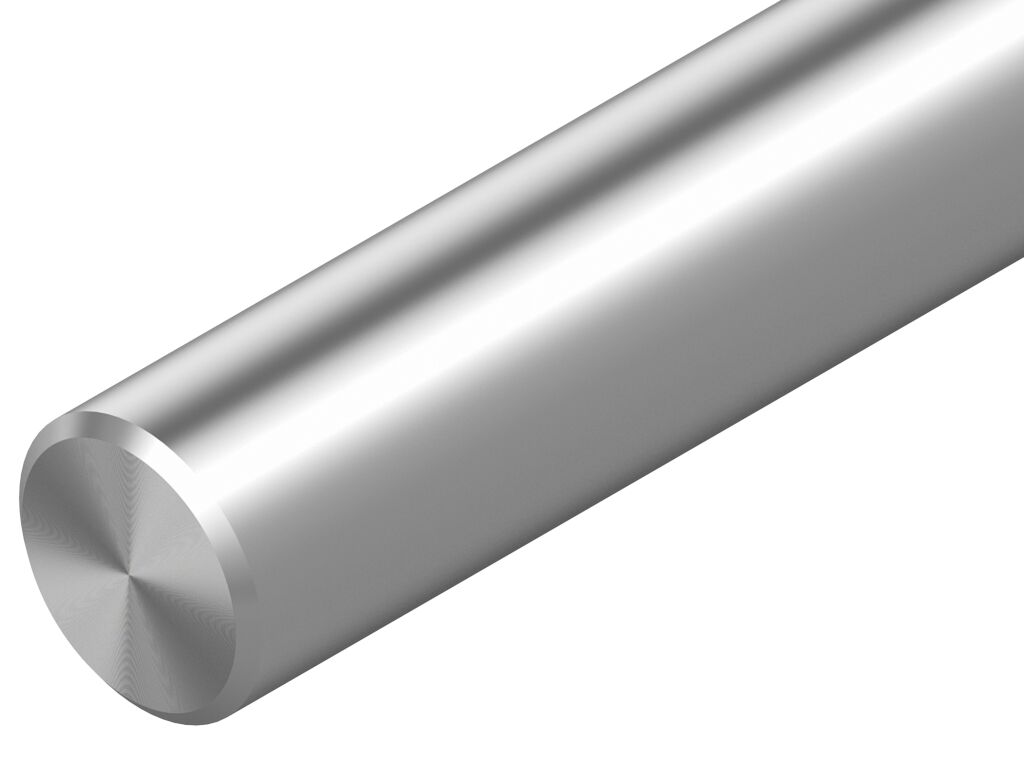

Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-8H6-X46
