Bosch Rexroth FLANGE LINEAR BUSHING KBMFT-20-DD-NR
Bosch Rexroth R074122030 - Linear Motion & Guides - Series: Standard (metal); Type: Linear bushing; Version: Corrosion-resistant.
Bosch Rexroth R074122030 is a Linear Motion & Guides catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Series: Standard (metal) and Type: Linear bushing.
Published specifications for this part include Version: Corrosion-resistant; Weight (Kg): 0.24; Seal: 2 integrated wiper seals; Dimension [d] [mm]: 32; Dimension [l1] [mm]: 8; Maximum acceleration rate amax [m/s²]: 100.0; Maximum permissible linear speed vmax [m/s]: 2.5; Dimension D1 [mm]: 54; Dimension D2 [mm]: 43; Outer diameter D [mm]: 32.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C. The complete technical table is shown in the Specifications tab on this page.
| Breakaway force [N] | 12 |
|---|---|
| Dimension [d] [mm] | 32 |
| Dimension [l1] [mm] | 8 |
| Dimension B (profiled rail systems) [mm] | 42 |
| Dimension D1 [mm] | 54 |
| Dimension D2 [mm] | 43 |
| Dimension L [mm] | 80 |
| Dimension L tolerance [mm] | ±0.3 |
| Dimension S [mm] | 5.5 |
| Dimension V [mm] | 5.1 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote shaft radial clearance h6 | Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7. |
| Format of linear bushings | FT - Flanged, tandem |
| Length of linear bushing [mm] | 80.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum dynamic load capacity Cmax [N] | 1300.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Note: permissible ambient temperature (min. ... max.) | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Outer diameter D [mm] | 32.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | 2 integrated wiper seals |
| Series | Standard (metal) |
| Shaft diameter d [mm] | 20.0 |
| Static longitudinal moment load capacity ML0 [Nm] | 26 |
| Type | Linear bushing |
| Version | Corrosion-resistant |
| Weight (Kg) | 0.24 |
Frequently Asked Questions
How do I get pricing for R074122030?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R074122030?
R074122030 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R074122030?
Key specifications include Breakaway force [N]: 12; Dimension [d] [mm]: 32; Dimension [l1] [mm]: 8; Dimension B (profiled rail systems) [mm]: 42. The full specification table on this page lists every published attribute for this part.
How quickly can R074122030 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth FLANGE LINEAR BUSHING KBMFT-16-DD-NR

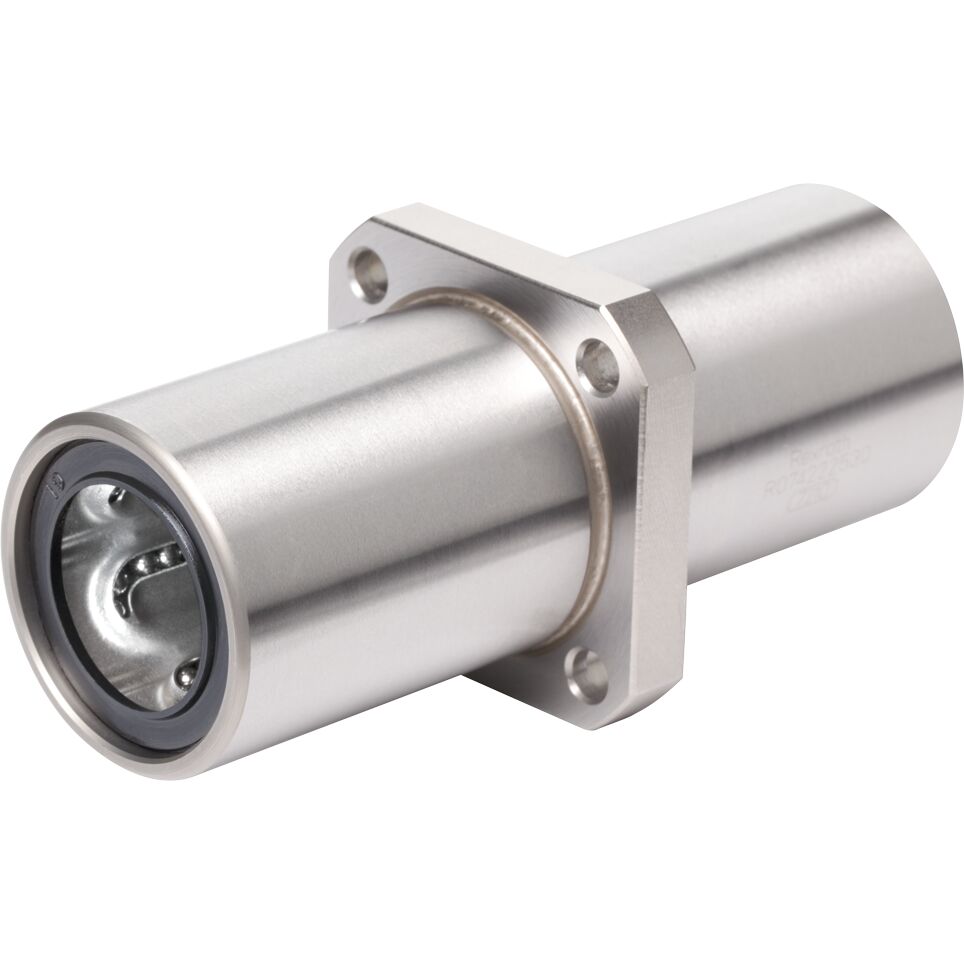

Bosch Rexroth Bosch Rexroth FLANGE LINEAR BUSHING KBMM-40-DD-NR

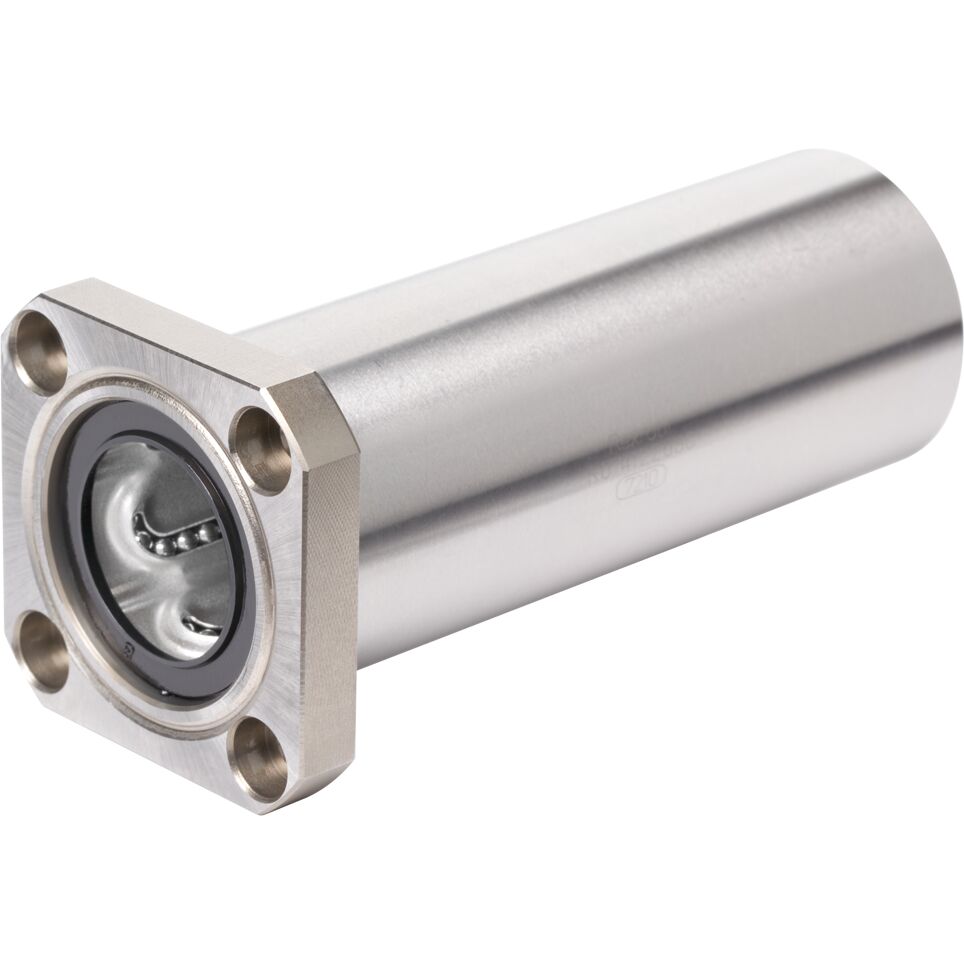

Bosch Rexroth Bosch Rexroth FLANGE LINEAR BUSHING KBMFT-8-DD-NR
Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-8H6

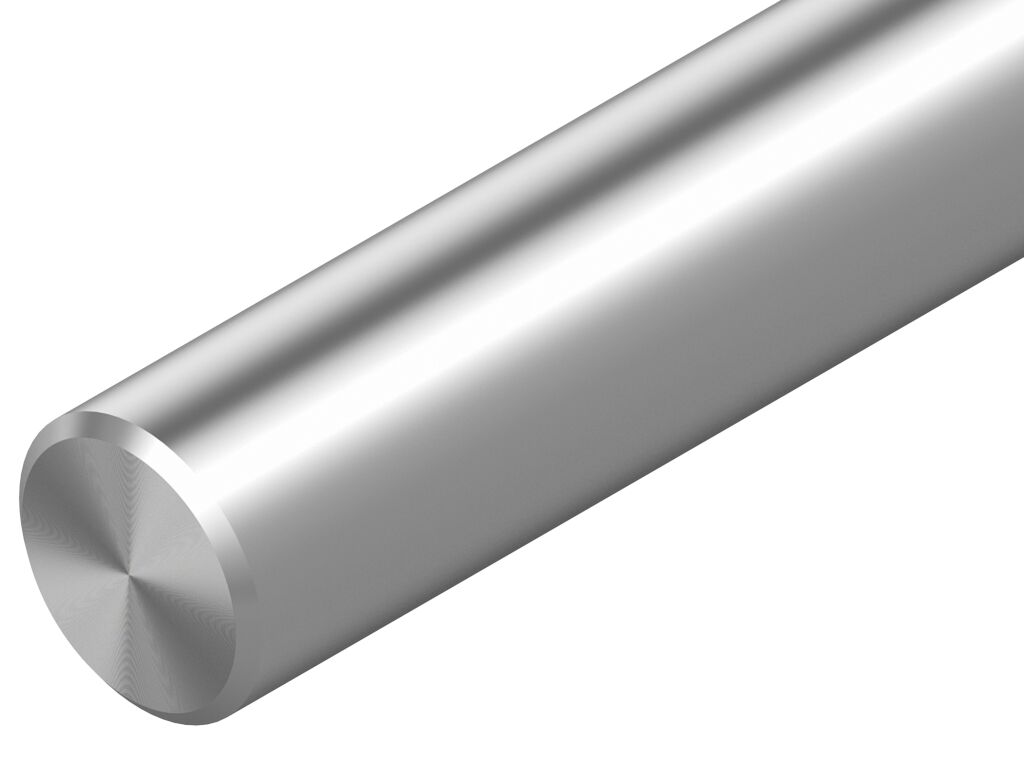

Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-16H6-X46
