Bosch Rexroth FLANGE LINEAR BUSHING KBMF-40-DD
Flange linear bushing. Standard (metal). Flange. Shaft diameter d = 40. With two seals. Version: Standard
| Breakaway force [N] | 24 |
|---|---|
| Dimension [d] [mm] | 62 |
| Dimension [l1] [mm] | 13 |
| Dimension B (profiled rail systems) [mm] | 75 |
| Dimension D1 [mm] | 98 |
| Dimension D2 [mm] | 80 |
| Dimension L [mm] | 80 |
| Dimension L tolerance [mm] | ±0.3 |
| Dimension S [mm] | 9 |
| Dimension V [mm] | 8.1 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote shaft radial clearance h6 | Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7. |
| Format of linear bushings | F - Flange |
| Length of linear bushing [mm] | 80.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum dynamic load capacity Cmax [N] | 1820.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Note: permissible ambient temperature (min. ... max.) | Higher temperatures are only admissible at linear bushings without wiper seals with ball retainers made of steel. Make allowance for reductions in load capacity. |
| Outer diameter D [mm] | 62.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | 2 integrated wiper seals |
| Series | Standard (metal) |
| Shaft diameter d [mm] | 40.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.97 |
Frequently Asked Questions
How do I get pricing for R074054000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R074054000?
R074054000 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R074054000?
Key specifications include Breakaway force [N]: 24; Dimension [d] [mm]: 62; Dimension [l1] [mm]: 13; Dimension B (profiled rail systems) [mm]: 75. The full specification table on this page lists every published attribute for this part.
How quickly can R074054000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBH-50
Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBSH-25-DD
Bosch Rexroth Bosch Rexroth SOLID SHAFT WV-5H6-X46
Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU12-AF2-600

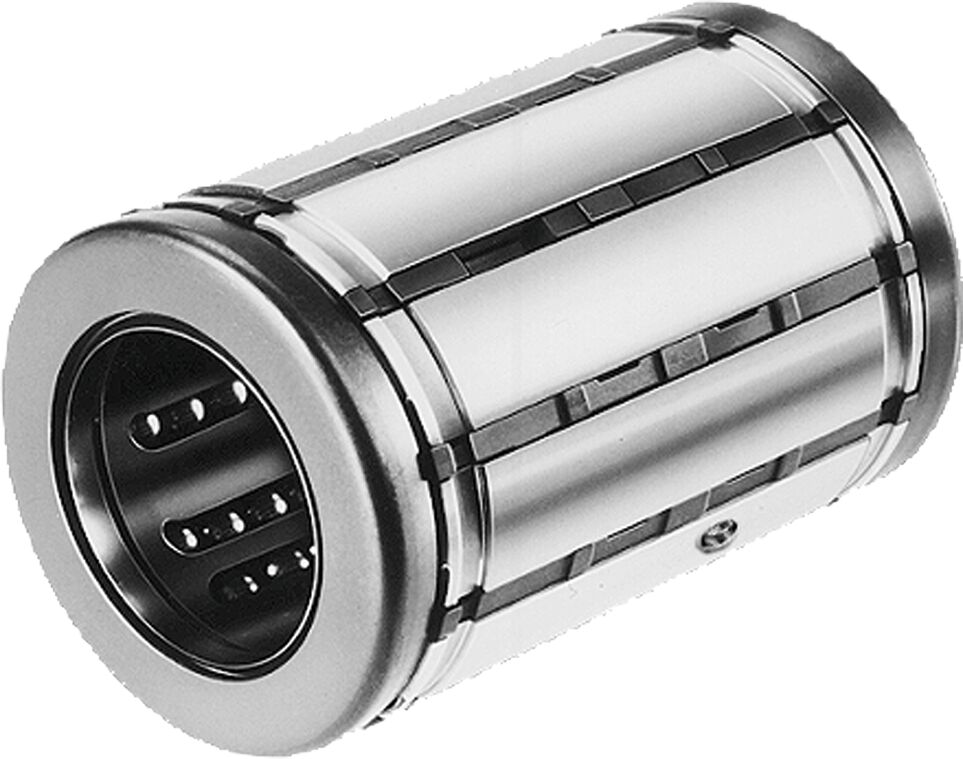

Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBSH-20
