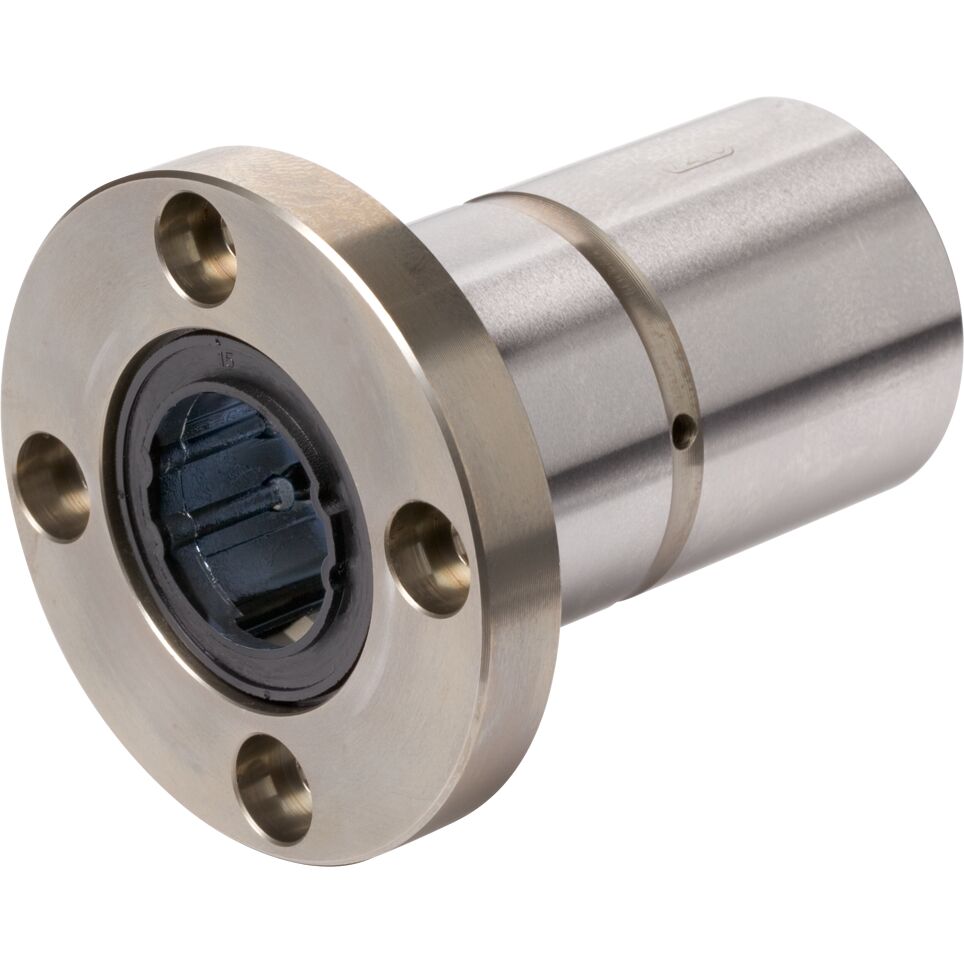

Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-F-40DD
Bosch Rexroth R072524000 - Linear Motion & Guides - Series: Torque; Type: Linear bushing; Version: Normal.
The Bosch Rexroth R072524000 is part of the Linear Motion & Guides range in our industrial catalog. The manufacturer's published data for this part number specifies Series: Torque and Type: Linear bushing.
The specification set recorded for this part number covers Version: Normal; Weight (Kg): 1.22; Seal: 2 integrated wiper seals; Dimension [d] [mm]: 60; Dimension [l1] [mm]: 14; Dimension [L2] [mm]: 36; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 3.0; Dynamic torsional moment load capacity Mt [Nm]: 500.0; Dimension D1 [mm]: 90; Dimension D2 [mm]: 72; Lubrication: Not lubricated. The complete technical table is shown in the Specifications tab on this page.
| Dimension [d] [mm] | 60 |
|---|---|
| Dimension [l1] [mm] | 14 |
| Dimension [L2] [mm] | 36 |
| Dimension D h6 [mm] | 60 |
| Dimension D1 [mm] | 90 |
| Dimension D2 [mm] | 72 |
| Dimension L [mm] | 100 |
| Dimension L tolerance [mm] | -0.3 |
| Dimension S [mm] | 9 |
| Dimension V [mm] | 8.6 |
| Dynamic load capacity C [N] | 24400.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 500.0 |
| Footnote diameter d | Actual shaft diameter varies |
| Format of linear bushings | F - Flange |
| Length of linear bushing [mm] | 100.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Raceway grooves | 4 |
| Seal | 2 integrated wiper seals |
| Series | Torque |
| Shaft diameter d [mm] | 40.0 |
| Shaft diameter, detailed [mm] | 37.4 |
| Static load capacity C0 [N] | 37500.0 |
| Static torsional moment load capacity Mt0 [Nm] | 882 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 1.22 |
Frequently Asked Questions
How do I get pricing for R072524000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R072524000?
R072524000 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R072524000?
Key specifications include Dimension [d] [mm]: 60; Dimension [l1] [mm]: 14; Dimension [L2] [mm]: 36; Dimension D h6 [mm]: 60. The full specification table on this page lists every published attribute for this part.
How quickly can R072524000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-F-20DD
Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBSH-30
Bosch Rexroth Bosch Rexroth SOLID SHAFT WVD4-6

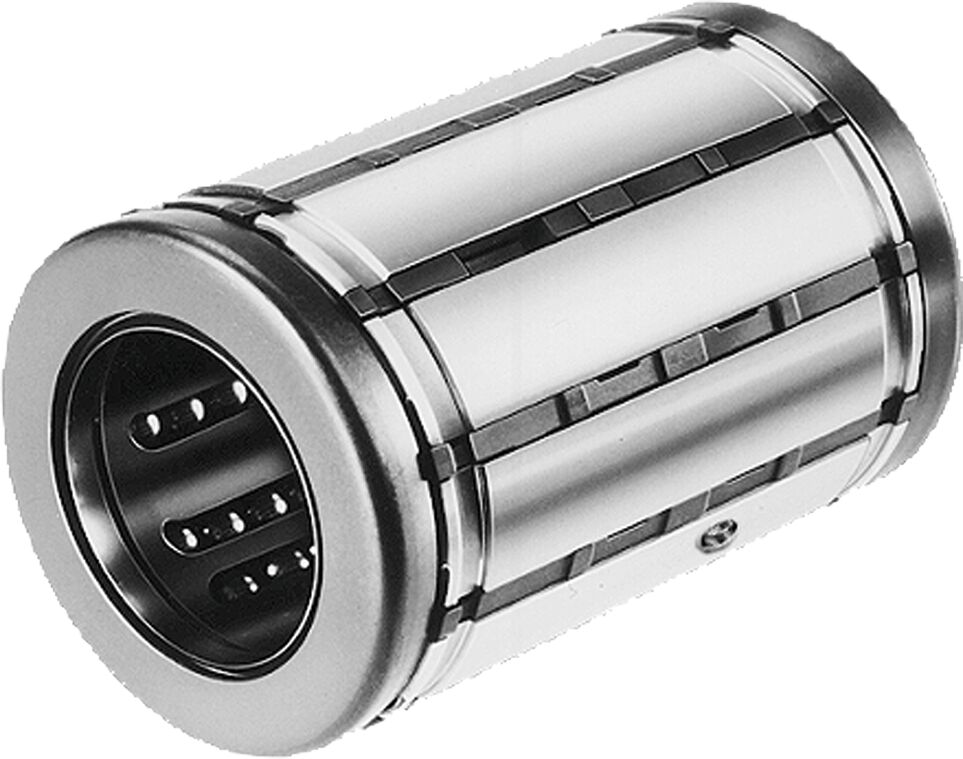

Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBSH-50-DD

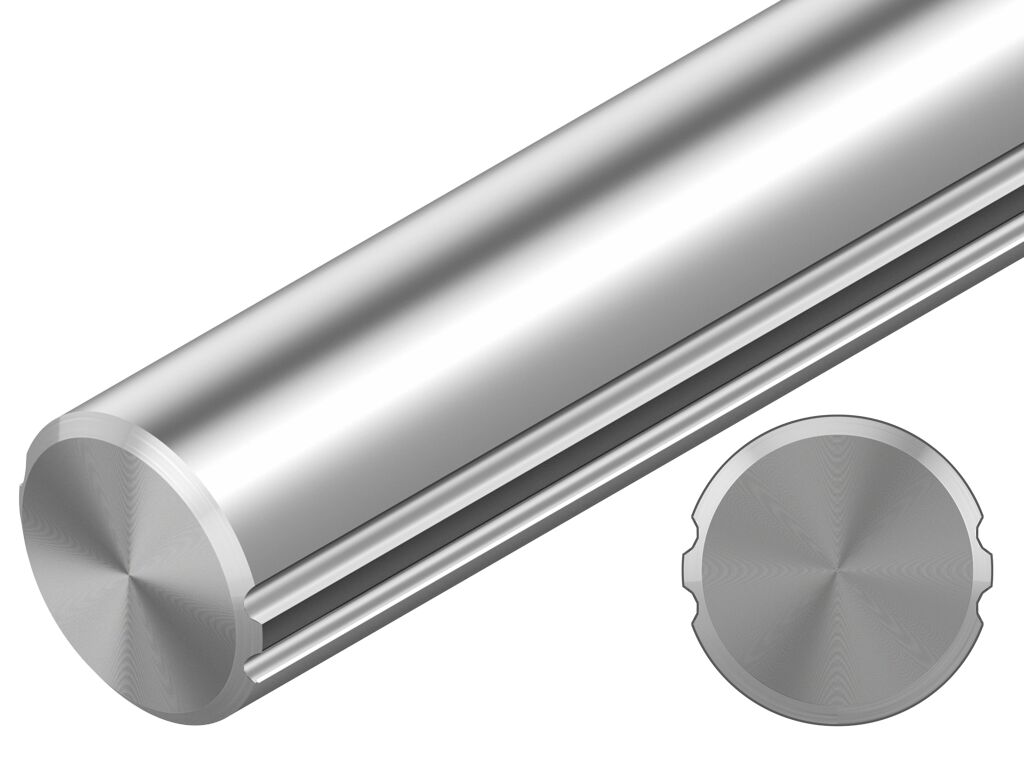

Bosch Rexroth Bosch Rexroth SOLID SHAFT WVD4-4-300 &
