Bosch Rexroth RADIAL LINEAR BUSHING KBR-60 &
Bosch Rexroth R067806000 - Linear Motion & Guides - Series: Radial; Type: Linear bushing; Version: Normal.
The R067806000 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Series: Radial and Type: Linear bushing.
Friction coefficients of unsealed radial linear bushings when lubricated with oil.
The specification set recorded for this part number covers Version: Normal; Weight (Kg): 4.85; Seal: Without wiper seals; Dimension [d] [mm]: 110; Maximum acceleration rate amax [m/s²]: 50.0; Maximum permissible linear speed vmax [m/s]: 2.0; Outer diameter D [mm]: 110.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -20 °C ... +100 °C; Static load capacity C0 [N]: 34100.0; Note: static load capacity C0: The stated load capacities apply for the main direction of loading ρ = 0°.; Shaft diameter d [mm]: 60.0. See the Specifications tab on this page for the full technical table.
| Breakaway force [N] | 48 |
|---|---|
| Dimension [d] [mm] | 110 |
| Dimension C h11 [mm] | 150 |
| Dimension S1 (profiled rail systems) [mm] | 4 |
| Dimension W [mm] | 29 |
| Dynamic load capacity C [N] | 29500.0 |
| Footnote friction force FR | Frictional drag for linear bushings with separate wiper seals |
| Footnote shaft radial clearance h6/bore JS6 | Observe the reduction in service life owing to high preload |
| Footnote shaft radial clearance h6/bore K6 | Observe the reduction in service life owing to high preload |
| Format of linear bushings | O - Open |
| Friction coefficient μ | 0.001 ... 0.002 |
| Length of linear bushing [mm] | 150.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum permissible linear speed vmax [m/s] | 2.0 |
| Note: dynamic load capacity C | The stated load capacities apply for the main direction of loading ρ = 0°. |
| Note: friction coefficient μ | Friction coefficients of unsealed radial linear bushings when lubricated with oil. |
| Note: static load capacity C0 | The stated load capacities apply for the main direction of loading ρ = 0°. |
| Outer diameter D [mm] | 110.0 |
| Permissible ambient temperature (min. ... max.) | -20 °C ... +100 °C |
| Seal | Without wiper seals |
| Series | Radial |
| Shaft diameter d [mm] | 60.0 |
| Static load capacity C0 [N] | 34100.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 4.85 |
Frequently Asked Questions
How do I get pricing for R067806000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R067806000?
R067806000 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R067806000?
Key specifications include Breakaway force [N]: 48; Dimension [d] [mm]: 110; Dimension C h11 [mm]: 150; Dimension S1 (profiled rail systems) [mm]: 4. The full specification table on this page lists every published attribute for this part.
How quickly can R067806000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

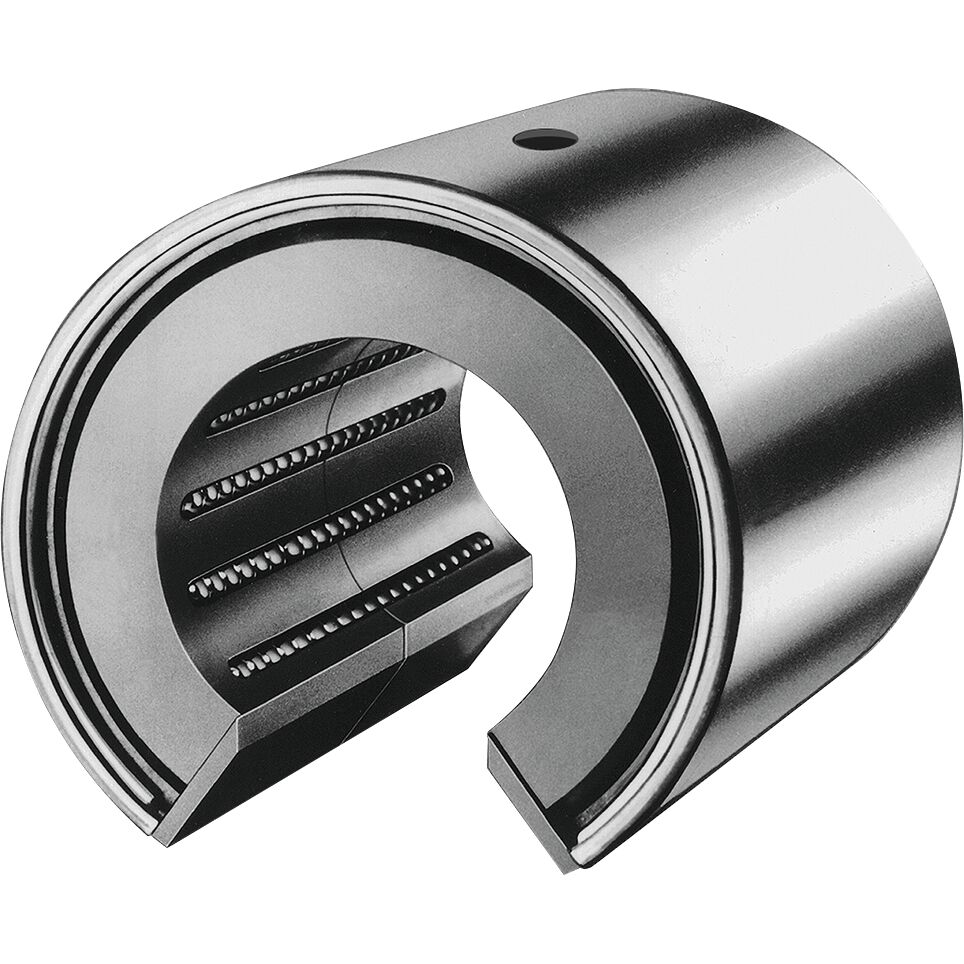

Bosch Rexroth Bosch Rexroth RADIAL LINEAR BUSHING KBR-30 &

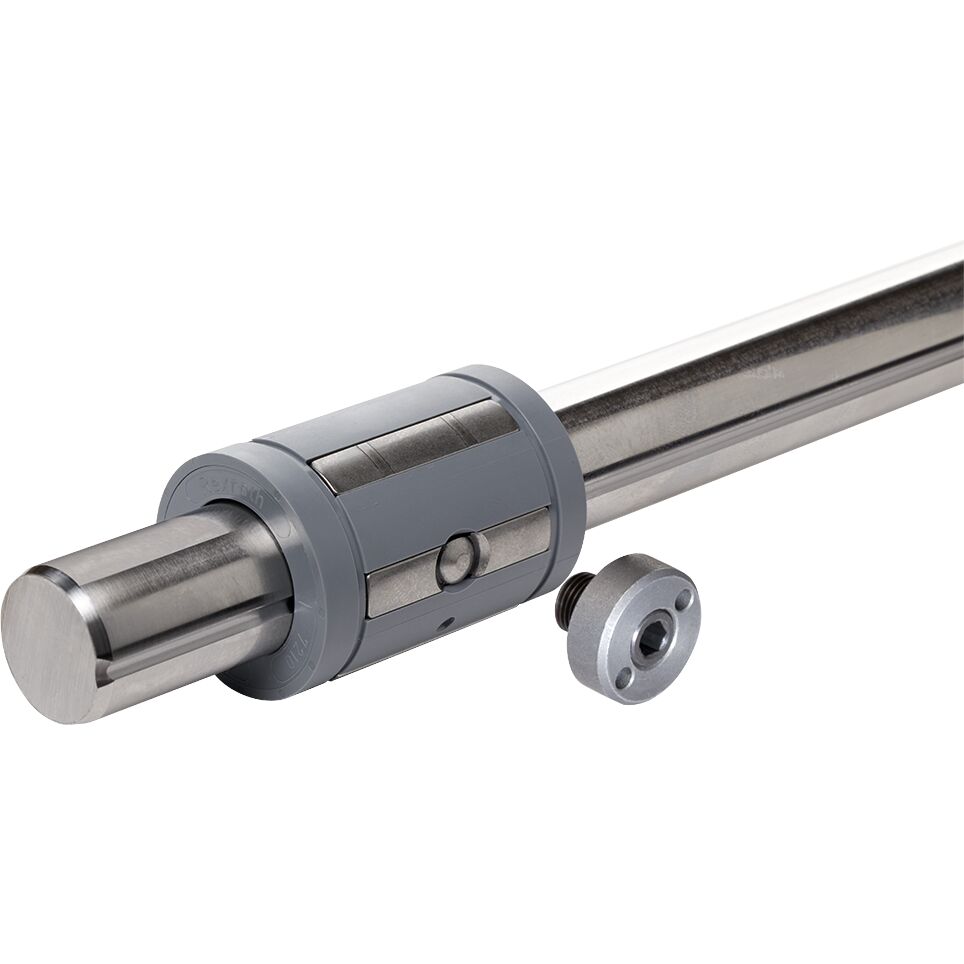

Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR1-12

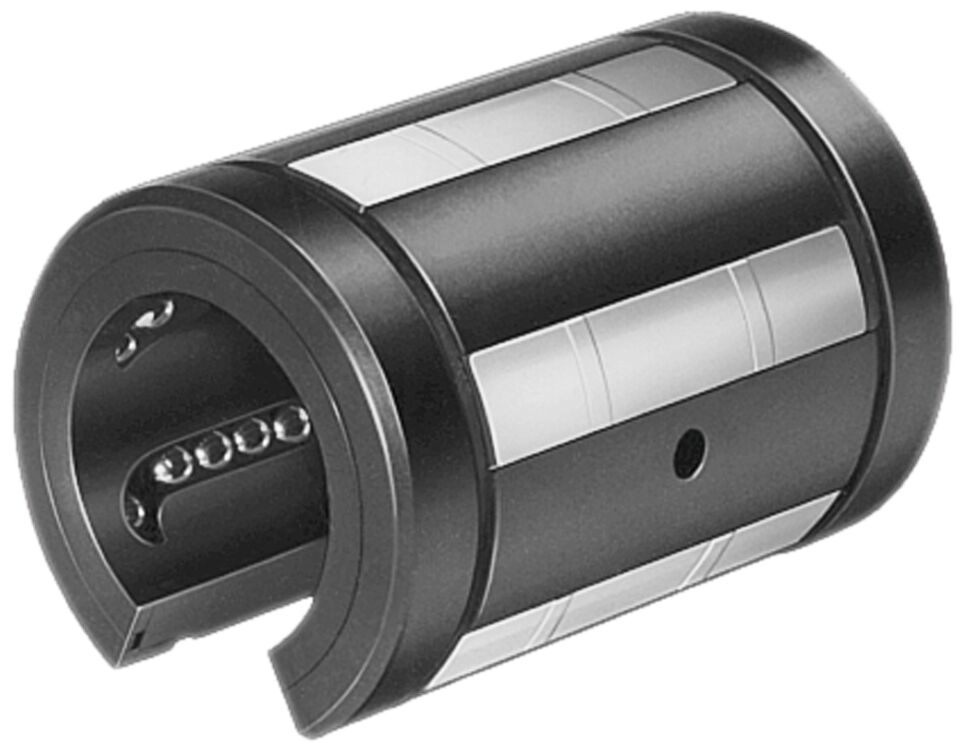

Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBB-O-40-VD
