Bosch Rexroth SUPER LINEAR BUSHING KBB-O-30-D
Bosch Rexroth R067313040 - Linear Motion & Guides - Series: Super B (no self-alignment feature); Type: Linear bushing; Version: Normal.
The Bosch Rexroth R067313040 is part of the Linear Motion & Guides range in our industrial catalog. The manufacturer's published data for this part number specifies Series: Super B (no self-alignment feature) and Type: Linear bushing.
Published specifications for this part include Version: Normal; Weight (Kg): 0.18; Seal: 1 integrated wiper seal; Dimension [d] [mm]: 47; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 3.0; Outer diameter D [mm]: 47.0; Lubrication: Not lubricated; Note: maximum permissible speed vmax: Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Static load capacity C0 [N]: 2880.0; Note: static load capacity C0: The load capacities apply for the main direction of loading.. See the Specifications tab on this page for the full technical table.
| Angle β [°] | 57 |
|---|---|
| Breakaway force [N] | 6 |
| Dimension [d] [mm] | 47 |
| Dimension C h13 [mm] | 68 |
| Dimension C1 H13 [mm] | 51.7 |
| Dimension C2 [mm] | 1.85 |
| Dimension E [mm] | 14 |
| Dynamic load capacity C [N] | 5020.0 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote Dimension E | Lower limit relative to Ø d. |
| Footnote friction force FR | 1. One wiper seal: Multiply value with factor 0.5 2. Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Format of linear bushings | O - Open |
| Friction coefficient μ | 0.001 ... 0.0025 |
| Length of linear bushing [mm] | 68.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Note: maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure. |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Outer diameter D [mm] | 47.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | 1 integrated wiper seal |
| Series | Super B (no self-alignment feature) |
| Shaft diameter d [mm] | 30.0 |
| Static load capacity C0 [N] | 2880.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.18 |
Frequently Asked Questions
How do I get pricing for R067313040?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R067313040?
R067313040 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R067313040?
Key specifications include Angle β [°]: 57; Breakaway force [N]: 6; Dimension [d] [mm]: 47; Dimension C h13 [mm]: 68. The full specification table on this page lists every published attribute for this part.
How quickly can R067313040 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBB-O-16-D

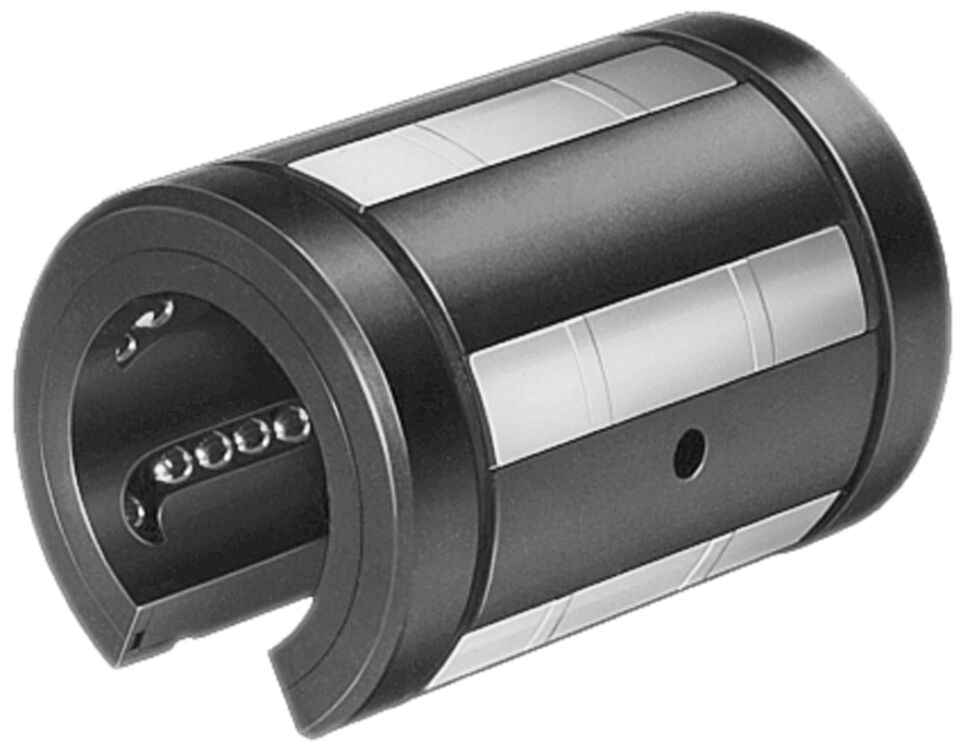

Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBB-O-30-DD

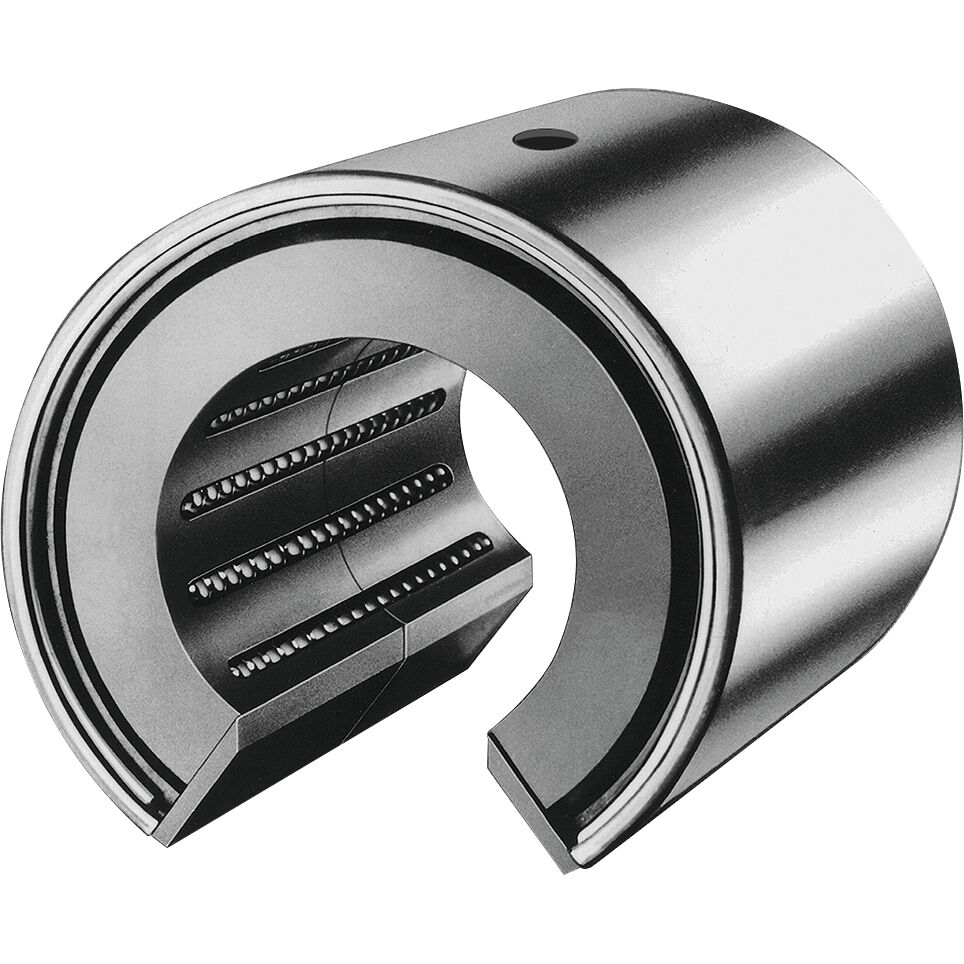

Bosch Rexroth Bosch Rexroth RADIAL LINEAR BUSHING KBR-50-VD &
Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBB-O-30

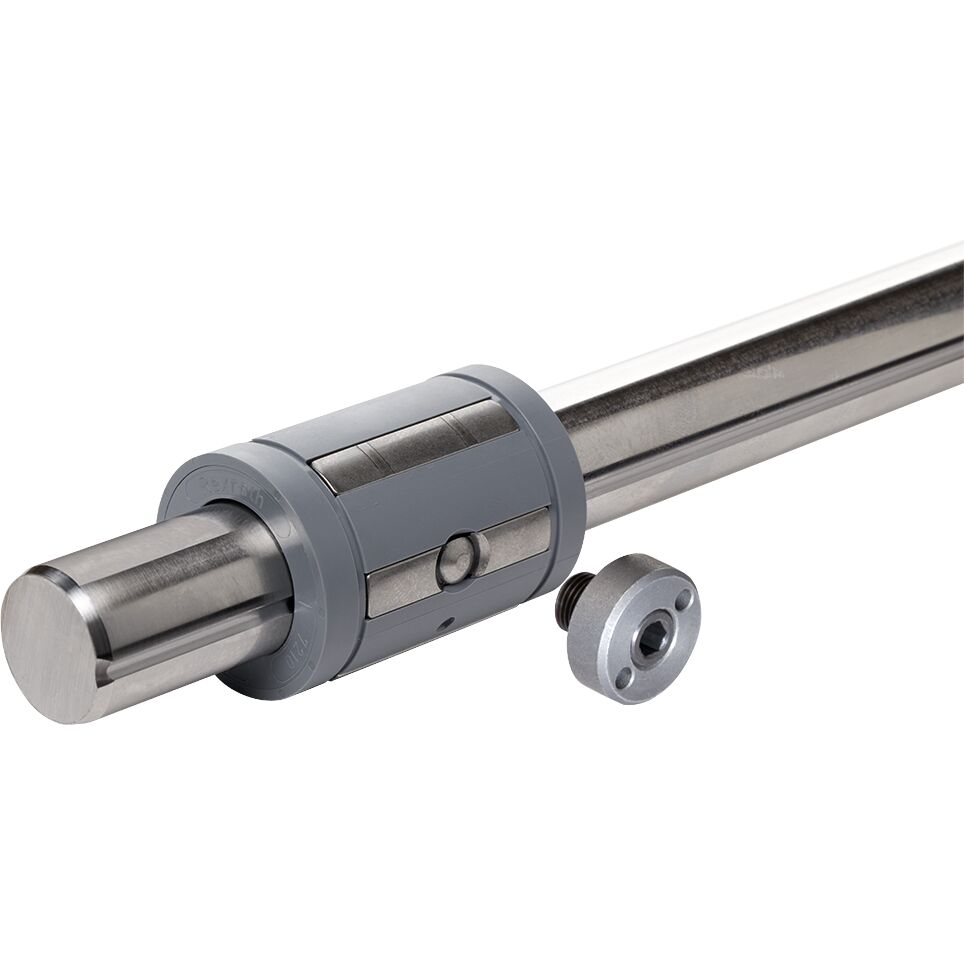

Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR1-12-WV-K
