Bosch Rexroth ROTARY LINEAR BUSHING KBRON-8
Bosch Rexroth R066500800 - Linear Motion & Guides - Series: Combined linear and rotary motion (rotation); Type: Linear bushing; Version: Normal.
Bosch Rexroth R066500800 is a Linear Motion & Guides catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Series: Combined linear and rotary motion (rotation) and Type: Linear bushing.
The specification set recorded for this part number covers Version: Normal; Weight (Kg): 0.04; Seal: Without wiper seals; Dimension b [mm]: 13; Dimension [d] [mm]: 24; Maximum acceleration rate amax [m/s²]: 100.0; Maximum permissible linear speed vmax [m/s]: 2.5; Dimension A (profiled rail systems) [mm]: 14.1; Dimension D1 [mm]: 16; Dimension D2 [mm]: 19.3; Outer diameter D [mm]: 24.0; Lubrication: Not lubricated. The complete technical table is shown in the Specifications tab on this page.
| Dimension [d] [mm] | 24 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 14.1 |
| Dimension B (profiled rail systems) [mm] | 25 |
| Dimension b [mm] | 13 |
| Dimension C3 H12 [mm] | 16.5 |
| Dimension C4 H13 [mm] | 1.3 |
| Dimension D1 [mm] | 16 |
| Dimension D2 [mm] | 19.3 |
| Dimension D3 [mm] | 23 |
| Dynamic load capacity C [N] | 320.0 |
| Format of linear bushings | N - With needle bearing |
| Length of linear bushing [mm] | 25.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Outer diameter D [mm] | 24.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Retaining ring footnote | Seeger-Orbis GmbH |
| Seal | Without wiper seals |
| Series | Combined linear and rotary motion (rotation) |
| Shaft diameter d [mm] | 8.0 |
| Static load capacity C0 [N] | 240.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.04 |
Frequently Asked Questions
How do I get pricing for R066500800?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R066500800?
R066500800 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R066500800?
Key specifications include Dimension [d] [mm]: 24; Dimension A (profiled rail systems) [mm]: 14.1; Dimension B (profiled rail systems) [mm]: 25; Dimension b [mm]: 13. The full specification table on this page lists every published attribute for this part.
How quickly can R066500800 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

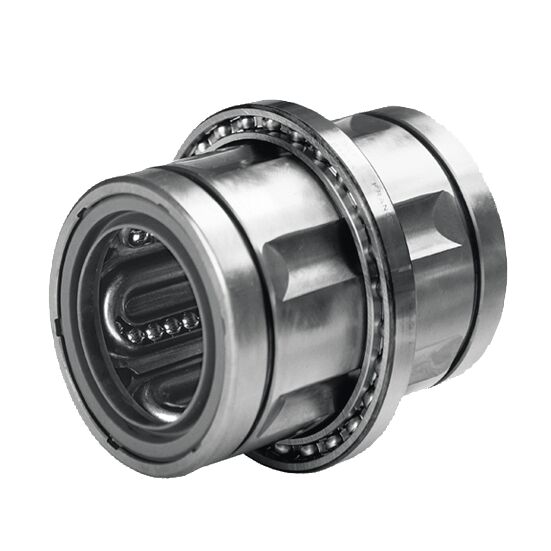

Bosch Rexroth Bosch Rexroth ROTARY LINEAR BUSHING KBROR-60-DD
Bosch Rexroth Bosch Rexroth ROTARY LINEAR BUSHING KBRON-30

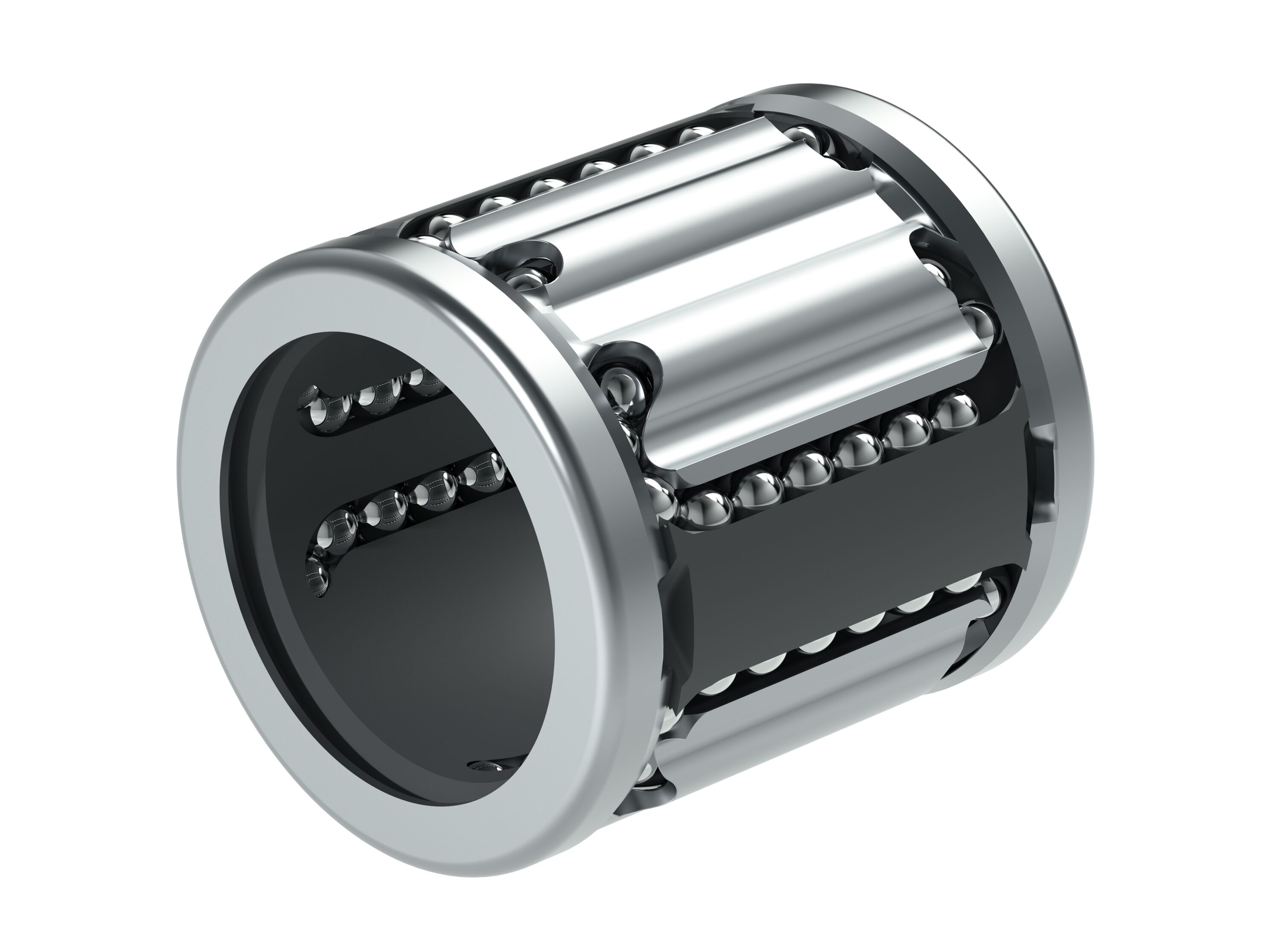

Bosch Rexroth Bosch Rexroth ELINE LINEAR BUSHING KBC-30-DD-RT-NR-G

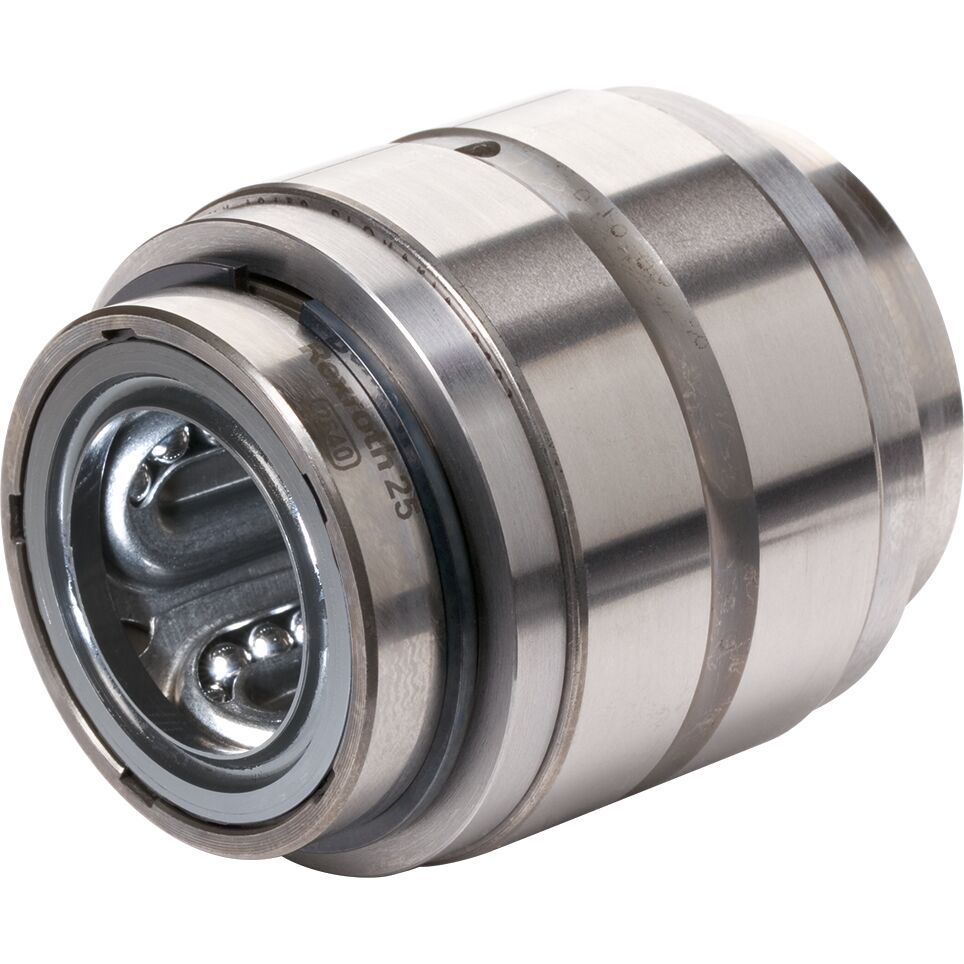

Bosch Rexroth Bosch Rexroth ROTARY LINEAR BUSHING KBRON-60
