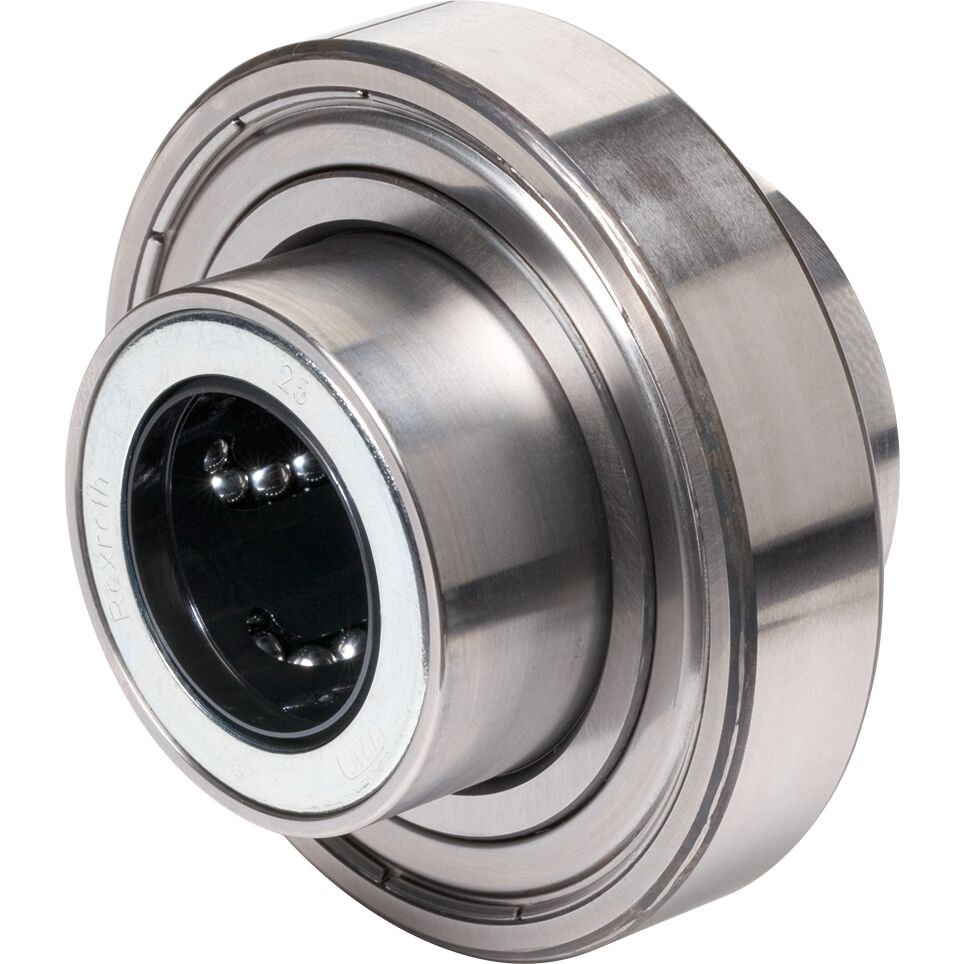

Bosch Rexroth ROTARY LINEAR BUSHING KBRORD-50-DD
Bosch Rexroth R066425000 - Linear Motion & Guides - Series: Combined linear and rotary motion (rotation); Type: Linear bushing; Version: Normal.
The R066425000 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Series: Combined linear and rotary motion (rotation) and Type: Linear bushing.
The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Key manufacturer data on file for this item includes Version: Normal; Weight (Kg): 1.85; Seal: 2 integrated wiper seals; Dimension [d] [mm]: 115; Maximum acceleration rate amax [m/s²]: 50.0; Maximum permissible linear speed vmax [m/s]: 2.0; Dimension A (profiled rail systems) [mm]: 20; Dimension D1 [mm]: 75; Outer diameter D [mm]: 115.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Static load capacity C0 [N]: 6470.0. See the Specifications tab on this page for the full technical table.
| Dimension [d] [mm] | 115 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 20 |
| Dimension B (profiled rail systems) [mm] | 100 |
| Dimension D1 [mm] | 75 |
| Dynamic load capacity C [N] | 8260.0 |
| Format of linear bushings | RD - With deep-groove ball bearing, shields (series 60) |
| Length of linear bushing [mm] | 100.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum permissible linear speed vmax [m/s] | 2.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Outer diameter D [mm] | 115.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | 2 integrated wiper seals |
| Series | Combined linear and rotary motion (rotation) |
| Shaft diameter d [mm] | 50.0 |
| Static load capacity C0 [N] | 6470.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 1.85 |
Frequently Asked Questions
How do I get pricing for R066425000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R066425000?
R066425000 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R066425000?
Key specifications include Dimension [d] [mm]: 115; Dimension A (profiled rail systems) [mm]: 20; Dimension B (profiled rail systems) [mm]: 100; Dimension D1 [mm]: 75. The full specification table on this page lists every published attribute for this part.
How quickly can R066425000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
