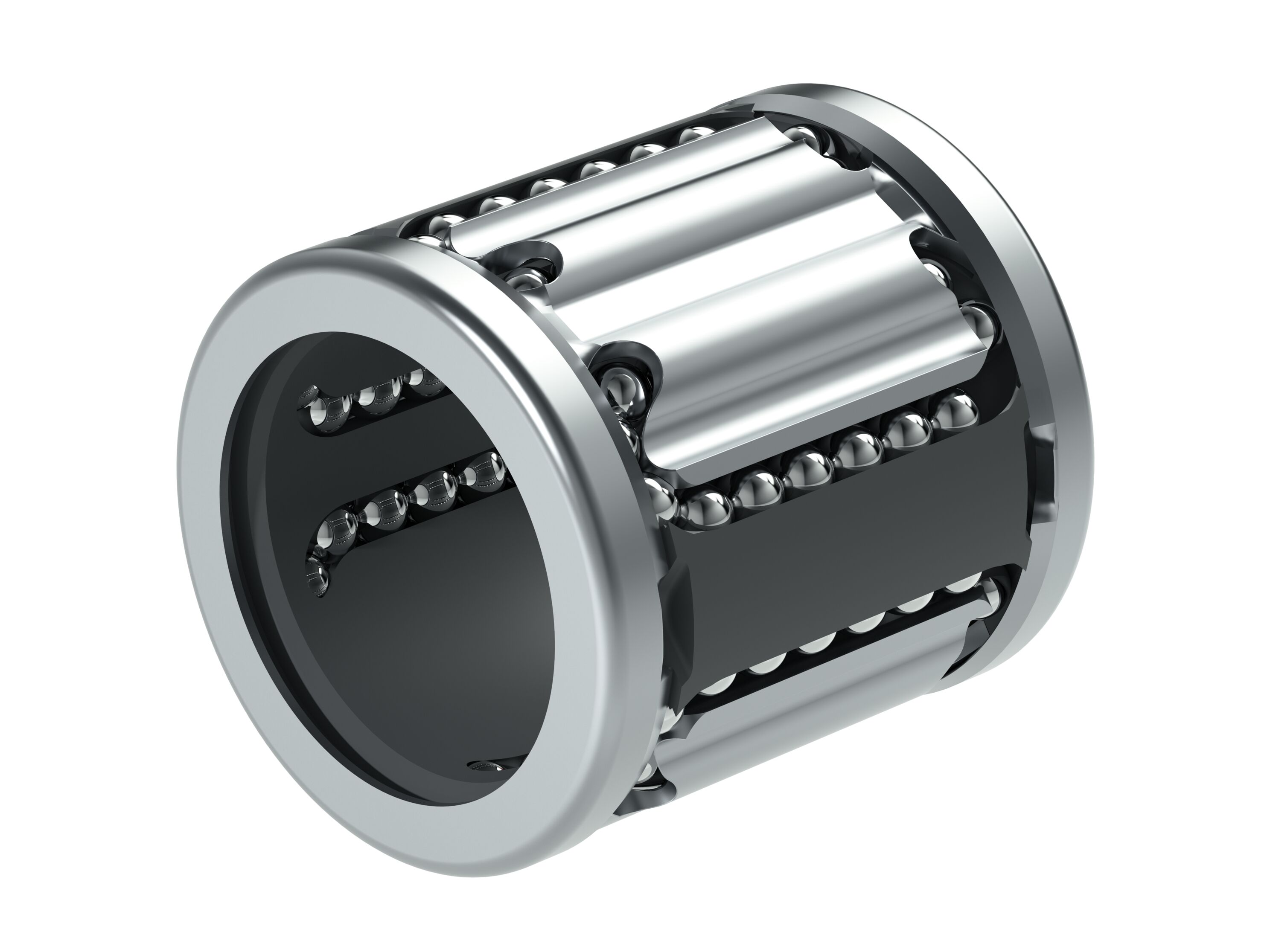

Bosch Rexroth COMPACT LINEAR BUSHING KBC-12-DD
Bosch Rexroth R065821240 - Linear Motion & Guides - Series: Compact; Version: Normal; Weight (Kg): 0.02.
The Bosch Rexroth R065821240 is part of the Linear Motion & Guides range in our industrial catalog. The manufacturer's published data for this part number specifies Series: Compact and Version: Normal.
The specification set recorded for this part number covers Weight (Kg): 0.02; Radial Clearance: Normal radial clearance; Seal: 2 integrated wiper seals; Dimension [c] [mm]: 28; Dimension [d] [mm]: 19; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 5.0; Outer diameter D [mm]: 19.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Shaft diameter d [mm]: 12.0; Format of linear bushings: – Closed. See the Specifications tab on this page for the full technical table.
| Breakaway force [N] | 1.5 |
|---|---|
| Dimension [c] [mm] | 28 |
| Dimension [d] [mm] | 19 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Format of linear bushings | – Closed |
| Friction coefficient μ | 0.001 ... 0.004 |
| Length of linear bushing [mm] | 28.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum dynamic load capacity Cmax [N] | 870.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Outer diameter D [mm] | 19.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Radial Clearance | Normal radial clearance |
| Seal | 2 integrated wiper seals |
| Series | Compact |
| Shaft diameter d [mm] | 12.0 |
| Version | Normal |
| Weight (Kg) | 0.02 |
Frequently Asked Questions
How do I get pricing for R065821240?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R065821240?
R065821240 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R065821240?
Key specifications include Breakaway force [N]: 1.5; Dimension [c] [mm]: 28; Dimension [d] [mm]: 19; Footnote breakaway force: One wiper seal: Multiply value with factor 0.5. The full specification table on this page lists every published attribute for this part.
How quickly can R065821240 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
