Bosch Rexroth COMPACT LINEAR BUSHING KBC-30-D-NR
Bosch Rexroth R065813030 - Linear Motion & Guides - Series: Compact; Version: Corrosion-resistant; Weight (Kg): 0.09.
Bosch Rexroth R065813030 is a Linear Motion & Guides catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Series: Compact and Version: Corrosion-resistant.
Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Key manufacturer data on file for this item includes Weight (Kg): 0.09; Seal: 1 integrated wiper seal; Dimension [c] [mm]: 50; Dimension [d] [mm]: 40; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 5.0; Outer diameter D [mm]: 40.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Shaft diameter d [mm]: 30.0; Format of linear bushings: – Closed; Maximum dynamic load capacity Cmax [N]: 2700.0. The complete technical table is shown in the Specifications tab on this page.
| Breakaway force [N] | 6 |
|---|---|
| Dimension [c] [mm] | 50 |
| Dimension [d] [mm] | 40 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Format of linear bushings | – Closed |
| Friction coefficient μ | 0.001 ... 0.004 |
| Length of linear bushing [mm] | 50.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum dynamic load capacity Cmax [N] | 2700.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Outer diameter D [mm] | 40.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | 1 integrated wiper seal |
| Series | Compact |
| Shaft diameter d [mm] | 30.0 |
| Version | Corrosion-resistant |
| Weight (Kg) | 0.09 |
Frequently Asked Questions
How do I get pricing for R065813030?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R065813030?
R065813030 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R065813030?
Key specifications include Breakaway force [N]: 6; Dimension [c] [mm]: 50; Dimension [d] [mm]: 40; Footnote breakaway force: One wiper seal: Multiply value with factor 0.5. The full specification table on this page lists every published attribute for this part.
How quickly can R065813030 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth COMPACT LINEAR BUSHING KBC-30-NR
Bosch Rexroth Bosch Rexroth COMPACT LINEAR BUSHING KBC-50-DD

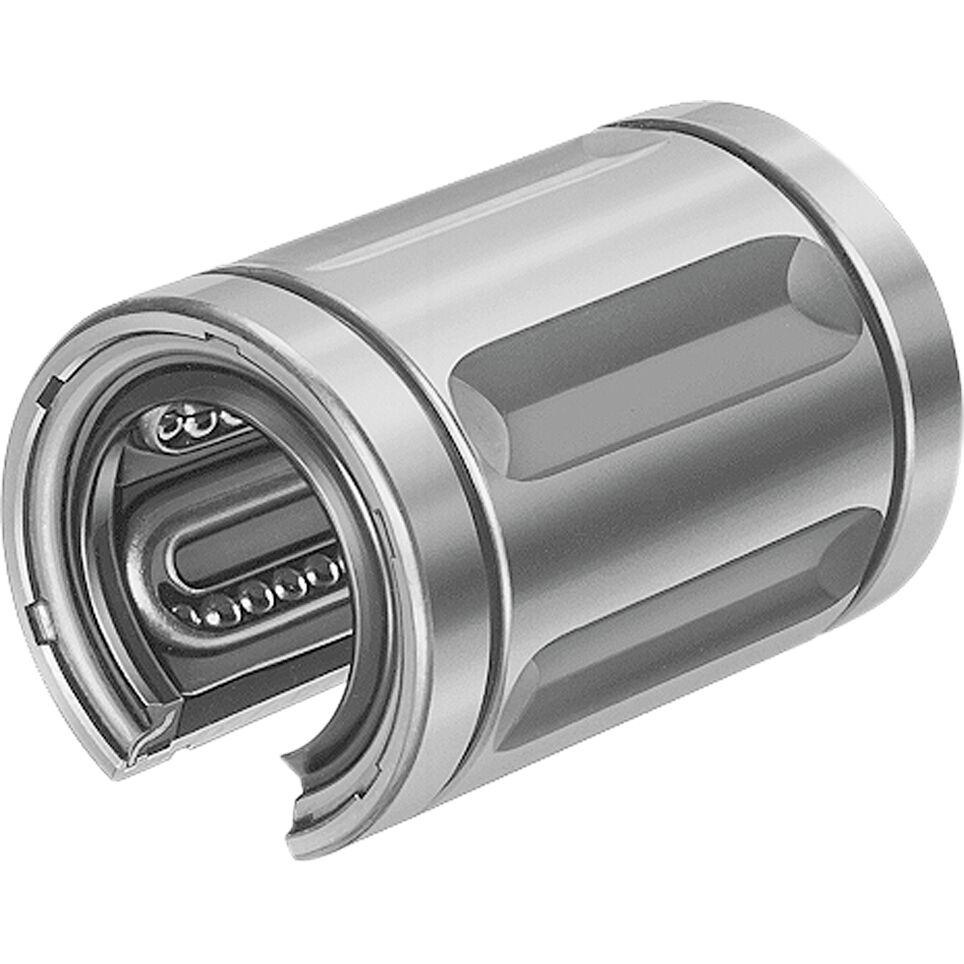

Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-O-16-DD
