Bosch Rexroth STANDARD LINEAR BUSHING KBMT-30-DD-NR
Bosch Rexroth R065023030 - Linear Motion & Guides - Series: Standard (metal); Type: Linear bushing; Version: Corrosion-resistant.
The R065023030 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Series: Standard (metal) and Type: Linear bushing.
Key manufacturer data on file for this item includes Version: Corrosion-resistant; Weight (Kg): 0.65; Seal: 2 integrated wiper seals; Dimension [c] [mm]: 123; Dimension [d] [mm]: 47; Maximum acceleration rate amax [m/s²]: 100.0; Maximum permissible linear speed vmax [m/s]: 2.5; Dimension D1 [mm]: 44.5; Outer diameter D [mm]: 47.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Note: permissible ambient temperature (min. ... max.): Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.. See the Specifications tab on this page for the full technical table.
| Breakaway force [N] | 18 |
|---|---|
| Dimension [c] [mm] | 123 |
| Dimension [d] [mm] | 47 |
| Dimension C1 [mm] | 104.2 |
| Dimension C2 [mm] | 1.85 |
| Dimension D1 [mm] | 44.5 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote shaft radial clearance h6 | Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7 |
| Format of linear bushings | T - Tandem |
| Length of linear bushing [mm] | 123.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum dynamic load capacity Cmax [N] | 2150.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Note: permissible ambient temperature (min. ... max.) | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Outer diameter D [mm] | 47.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | 2 integrated wiper seals |
| Series | Standard (metal) |
| Shaft diameter d [mm] | 30.0 |
| Static longitudinal moment load capacity ML0 [Nm] | 82 |
| Tolerance C1 [mm] | -0.4 |
| Type | Linear bushing |
| Version | Corrosion-resistant |
| Weight (Kg) | 0.65 |
Frequently Asked Questions
How do I get pricing for R065023030?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R065023030?
R065023030 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R065023030?
Key specifications include Breakaway force [N]: 18; Dimension [c] [mm]: 123; Dimension [d] [mm]: 47; Dimension C1 [mm]: 104.2. The full specification table on this page lists every published attribute for this part.
How quickly can R065023030 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

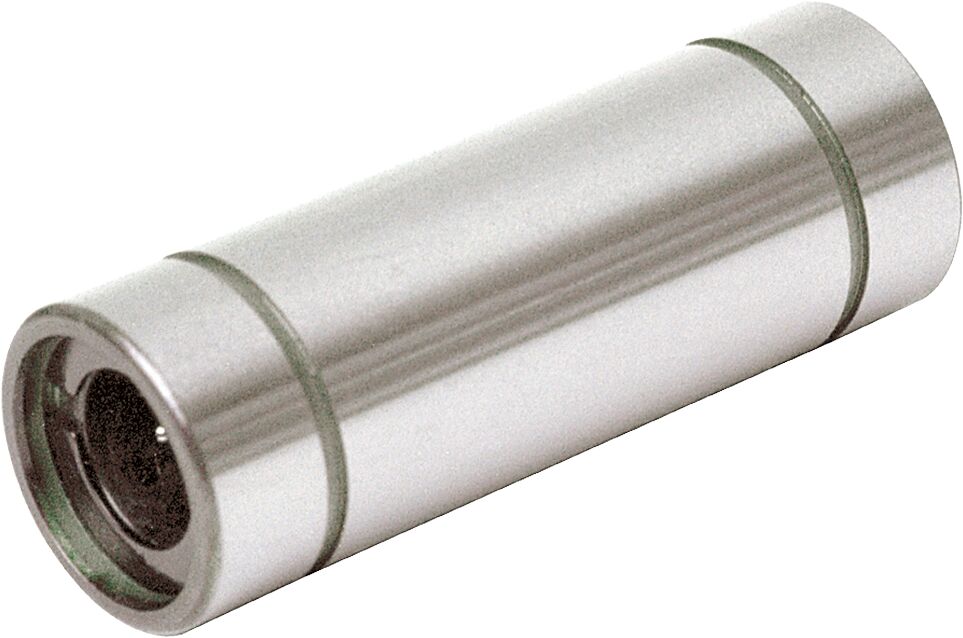

Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBMT-25-DD-NR
Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBMT-40-DD

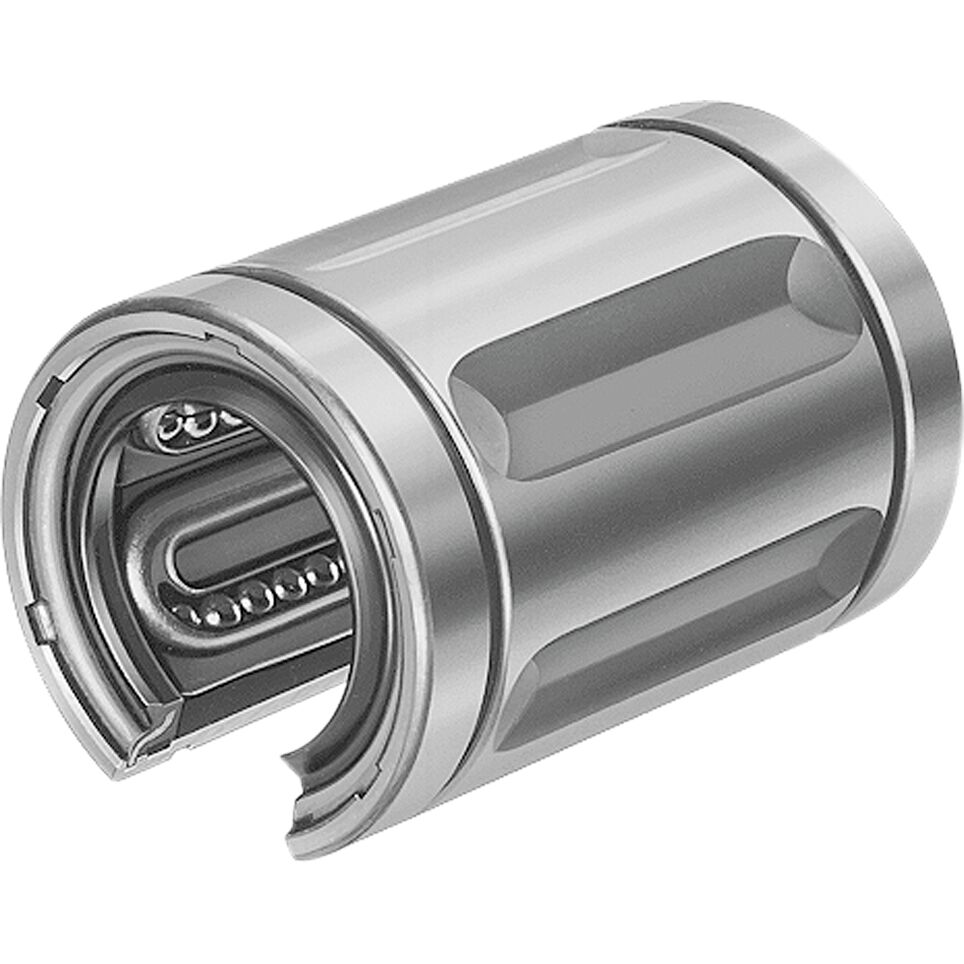

Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-O-25-DD
