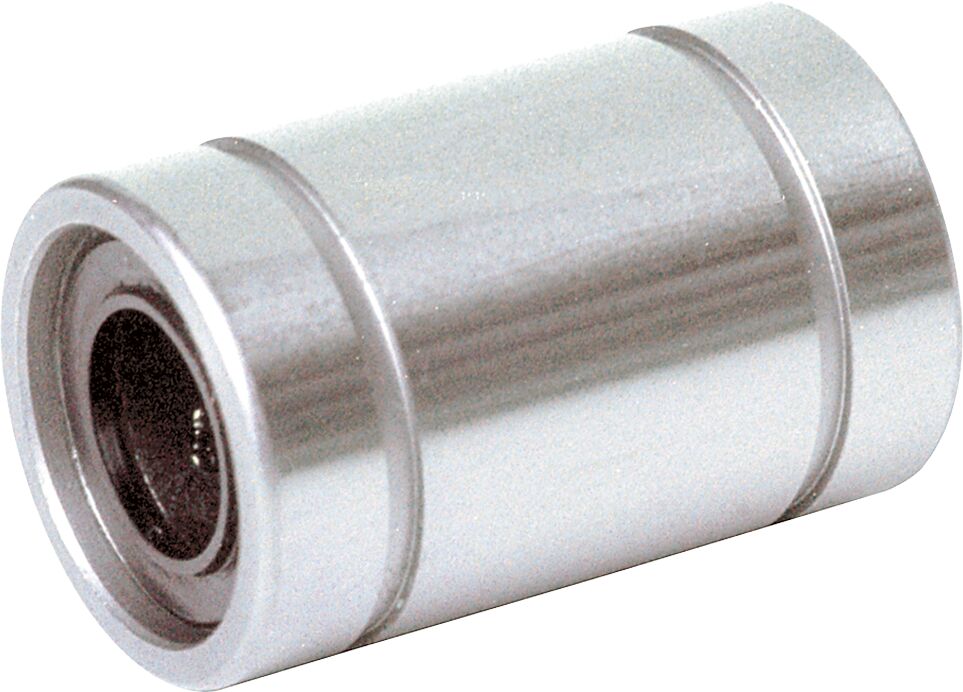

Bosch Rexroth STANDARD LINEAR BUSHING KBM-3-NR &
Bosch Rexroth R060000330 - Linear Motion & Guides - Series: Standard (metal); Type: Linear bushing; Version: Corrosion-resistant.
The Bosch Rexroth R060000330 is part of the Linear Motion & Guides range in our industrial catalog. The manufacturer's published data for this part number specifies Series: Standard (metal) and Type: Linear bushing.
Published specifications for this part include Version: Corrosion-resistant; Weight (Kg): 0.01; Seal: Without wiper seals; Dimension [d] [mm]: 7; Maximum acceleration rate amax [m/s²]: 100.0; Maximum permissible linear speed vmax [m/s]: 2.5; Outer diameter D [mm]: 7.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Note: permissible ambient temperature (min. ... max.): Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.; Shaft diameter d [mm]: 3.0; Format of linear bushings: – Closed. The complete technical table is shown in the Specifications tab on this page.
| Dimension [d] [mm] | 7 |
|---|---|
| Dimension C h12 [mm] | 10 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote shaft radial clearance h6 | Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7. |
| Format of linear bushings | – Closed |
| Friction coefficient μ | 0.001 ... 0.004 |
| Length of linear bushing [mm] | 10.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum dynamic load capacity Cmax [N] | 65.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Note: permissible ambient temperature (min. ... max.) | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Outer diameter D [mm] | 7.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | Without wiper seals |
| Series | Standard (metal) |
| Shaft diameter d [mm] | 3.0 |
| Type | Linear bushing |
| Version | Corrosion-resistant |
| Weight (Kg) | 0.01 |
Frequently Asked Questions
How do I get pricing for R060000330?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R060000330?
R060000330 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R060000330?
Key specifications include Dimension [d] [mm]: 7; Dimension C h12 [mm]: 10; Footnote breakaway force: One wiper seal: Multiply value with factor 0.5; Footnote friction force FR: One wiper seal: Multiply value with factor 0.5. The full specification table on this page lists every published attribute for this part.
How quickly can R060000330 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

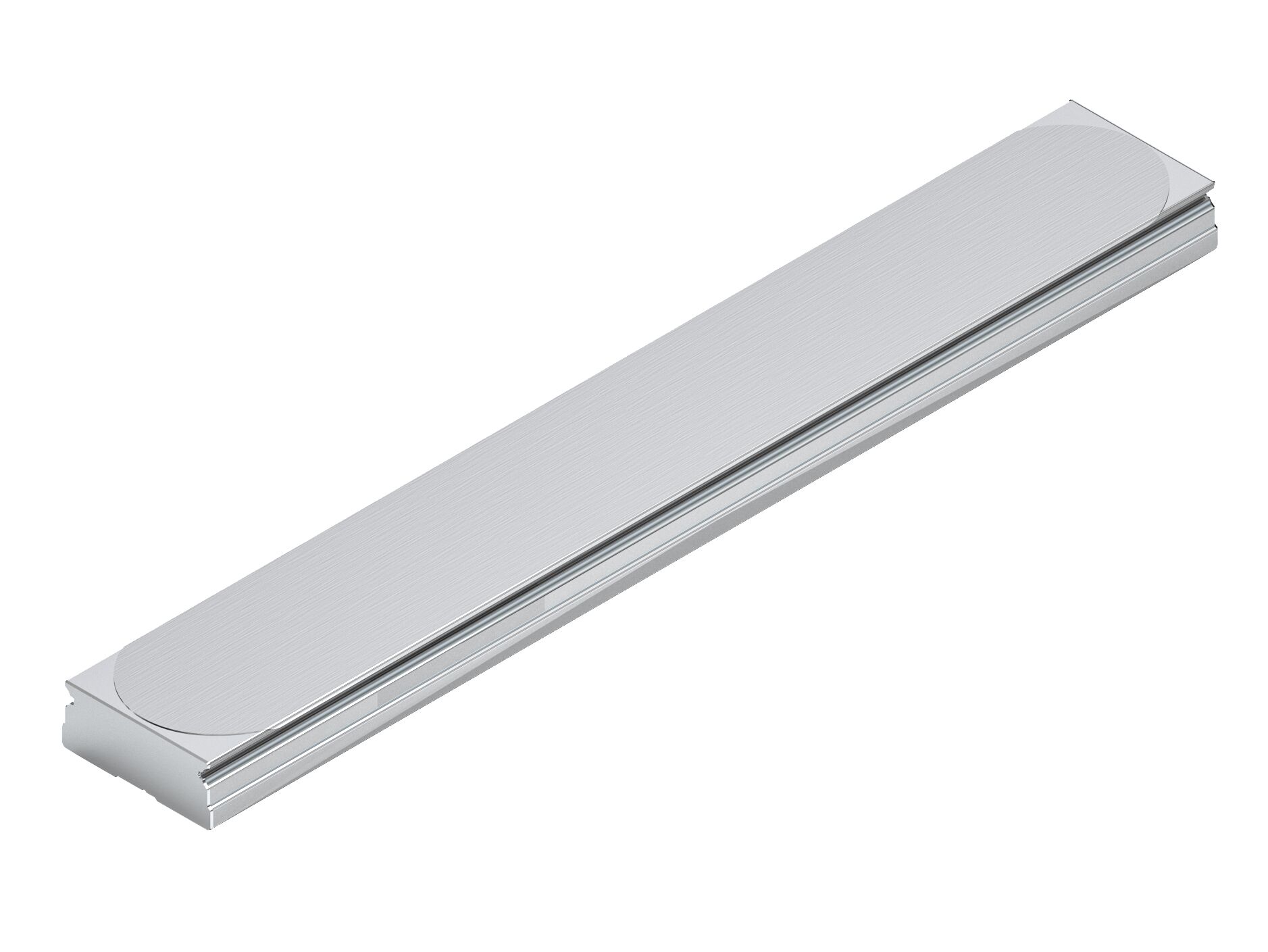

Bosch Rexroth Bosch Rexroth MINIATURE GUIDE RAIL RESIST NRII MSA-012-BNS-N-MA-AB
Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-30
Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-O-16-DD

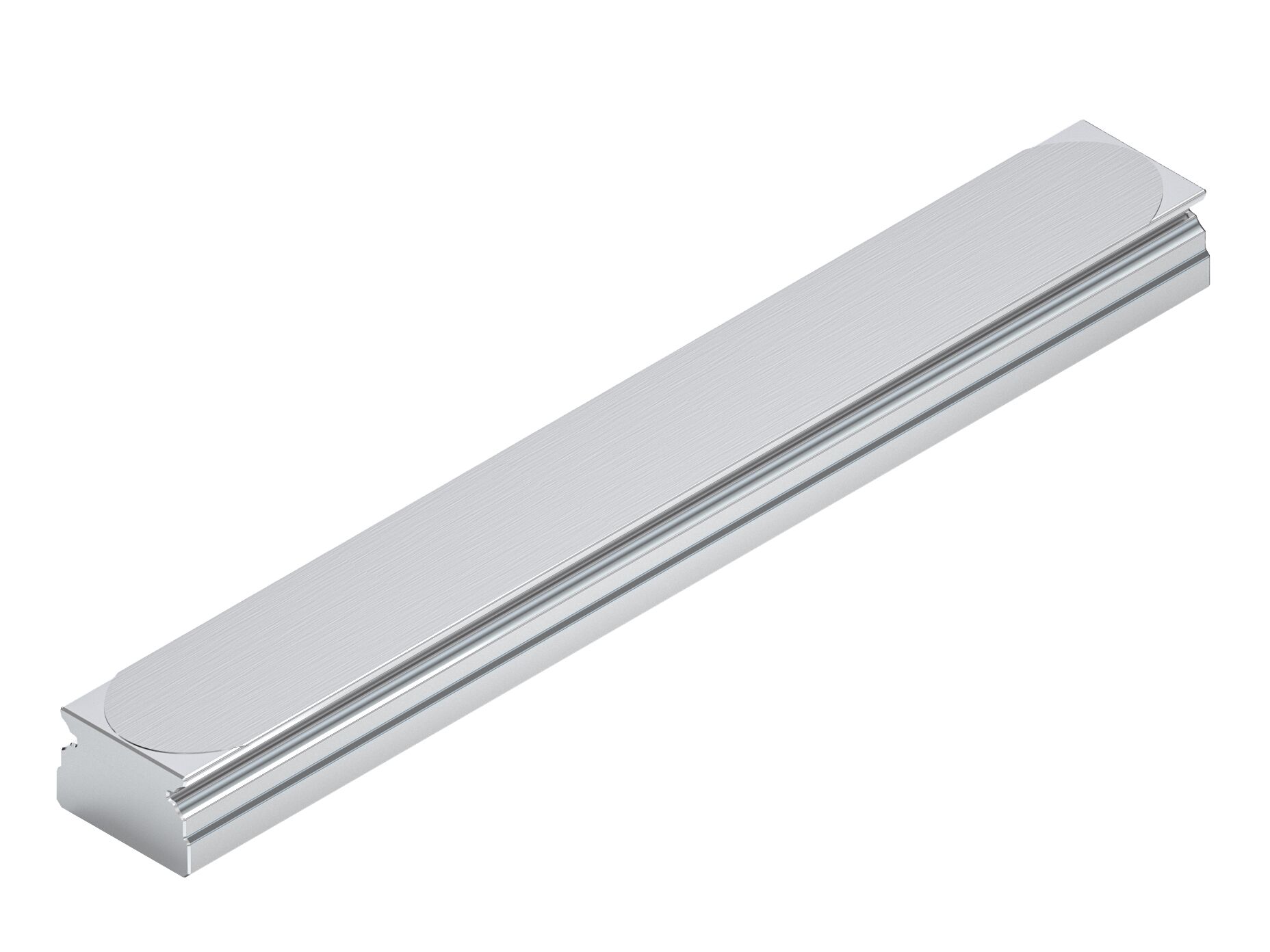

Bosch Rexroth Bosch Rexroth MINIATURE GUIDE RAIL RESIST NRII MSA-015-SNS-H-MA-AB
