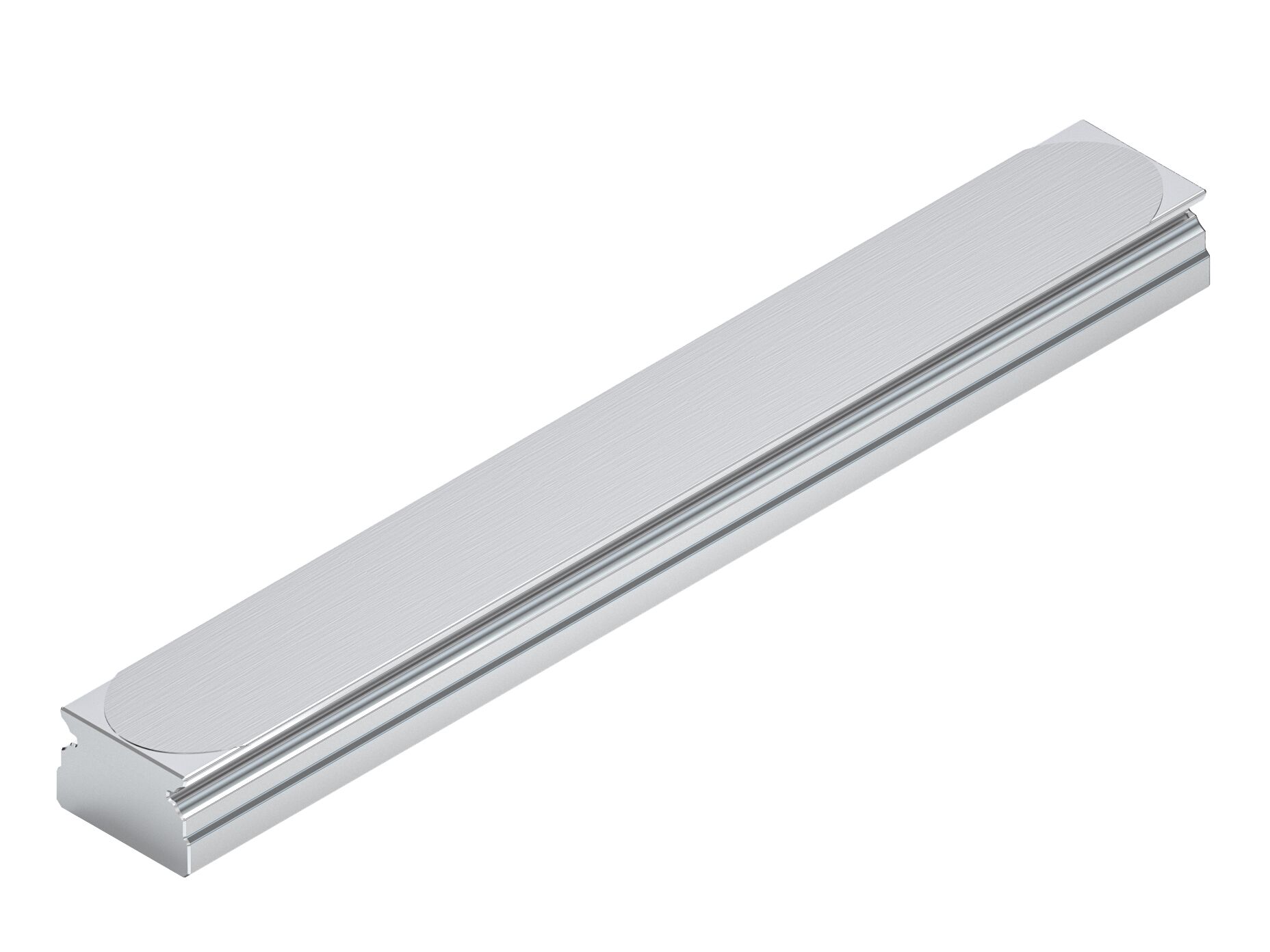

Bosch Rexroth MINIATURE GUIDE RAIL RESIST NRII MSA-015-SNS-N-MA-AB
The miniature version of the ball guide rail is characterized by the following product features:. Size 15. Format SNS: Width = slimline, length = normal, height = standard. Guide rail made of corrosion-resistant, martensitic steel. Fastener MA: Bolting from above. Cover AB: Cover strip. Accuracy class standard. Number of partial sections: one-piece. Rail in standard version
| Accuracy class | N - Normal |
|---|---|
| Dimension [d] [mm] | 6 |
| Dimension A2 (profiled rail systems) [mm] | 15 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 9.6 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 9.5 |
| Dimension N6 (profiled rail systems) [mm] | 4.7 |
| Dimension S5 (profiled rail system) [mm] | 3.5 |
| Dimension t [mm] | 40 |
| Dimension T1 max (profiled rail systems) [mm] | 35.5 |
| Dimension T1 min [mm] | 6 |
| Format | SNS - Standard guide rail |
| Guide rail cover | With cover strip |
| Guide rail mounting | For bolting from above |
| Mass g/m [g/m] | 970 |
| Mass m (kg/m) [kg/m] | 970 |
| Material (profiled rail systems) | Corrosion-resistant, martensitic steel |
| Max. length Lmax [mm] | 2000.0 |
| Minimum length Lmin [mm] | 49.0 |
| Nominal size [mm] | 15 |
| Note: Lmax | In the case of rail lengths above L<sub>max,</sub> factory-coordinated partial sections are put together. |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for a short time. |
| Number of sections | 1-piece |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 40 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Size footnote | Also available with screw fastening from below (please ask). |
| Version | Ball rail system |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R044556431?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R044556431?
R044556431 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R044556431?
Key specifications include Accuracy class: N - Normal; Dimension [d] [mm]: 6; Dimension A2 (profiled rail systems) [mm]: 15; Dimension H2 with cover strip (profiled rail systems) [mm]: 9.6. The full specification table on this page lists every published attribute for this part.
How quickly can R044556431 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

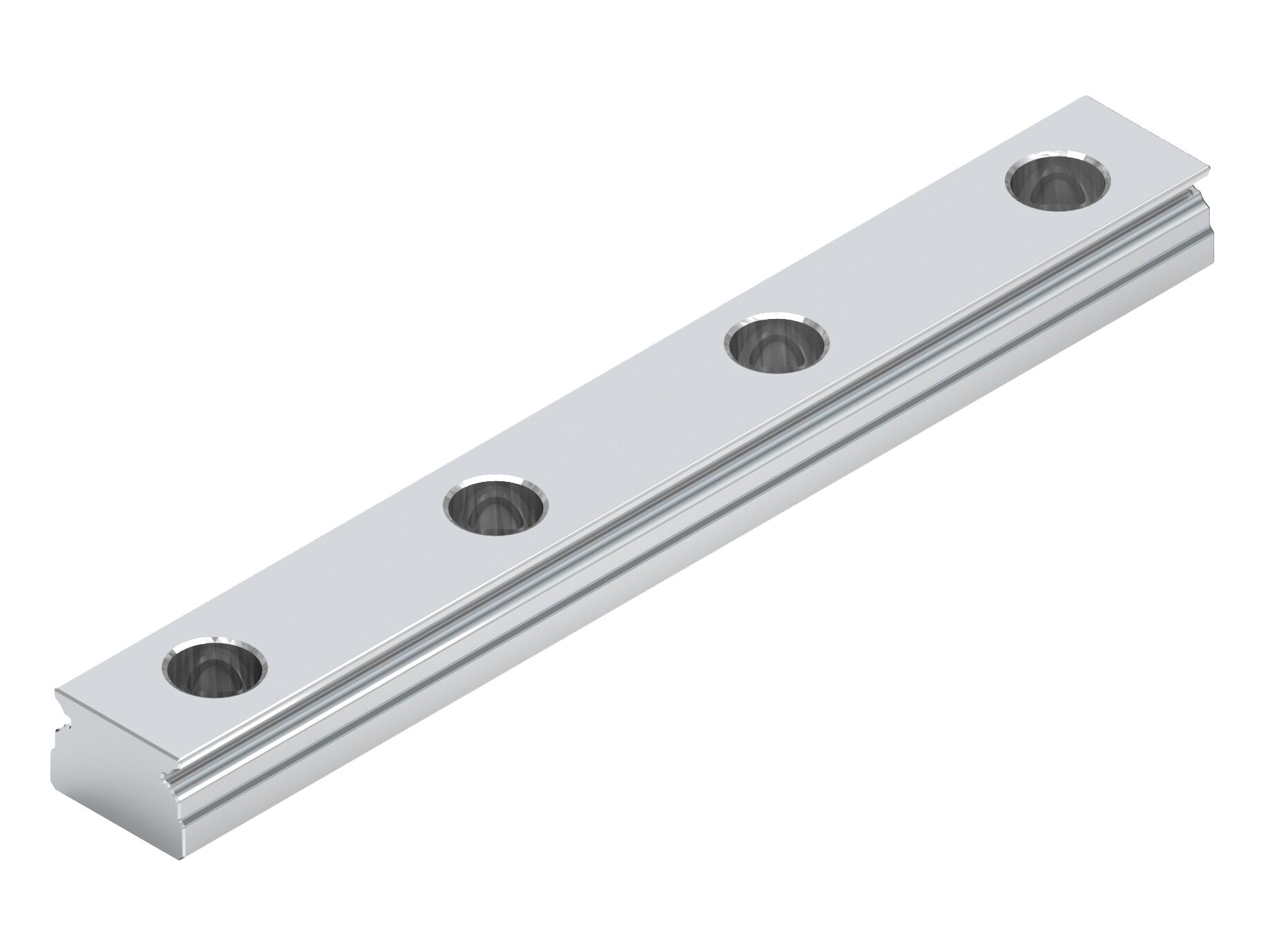

Bosch Rexroth Bosch Rexroth MINIATURE GUIDE RAIL RESIST NRII MSA-012-SNS-H-MA-00
Bosch Rexroth Bosch Rexroth MINIATURE GUIDE RAIL RESIST NRII MSA-007-SNS-P-MA-00
Bosch Rexroth Bosch Rexroth MINIATURE GUIDE RAIL RESIST NRII MSA-020-SNS-P-MA-00
Bosch Rexroth Bosch Rexroth MINIATURE GUIDE RAIL RESIST NRII MSA-007-SNS-H-MA-00

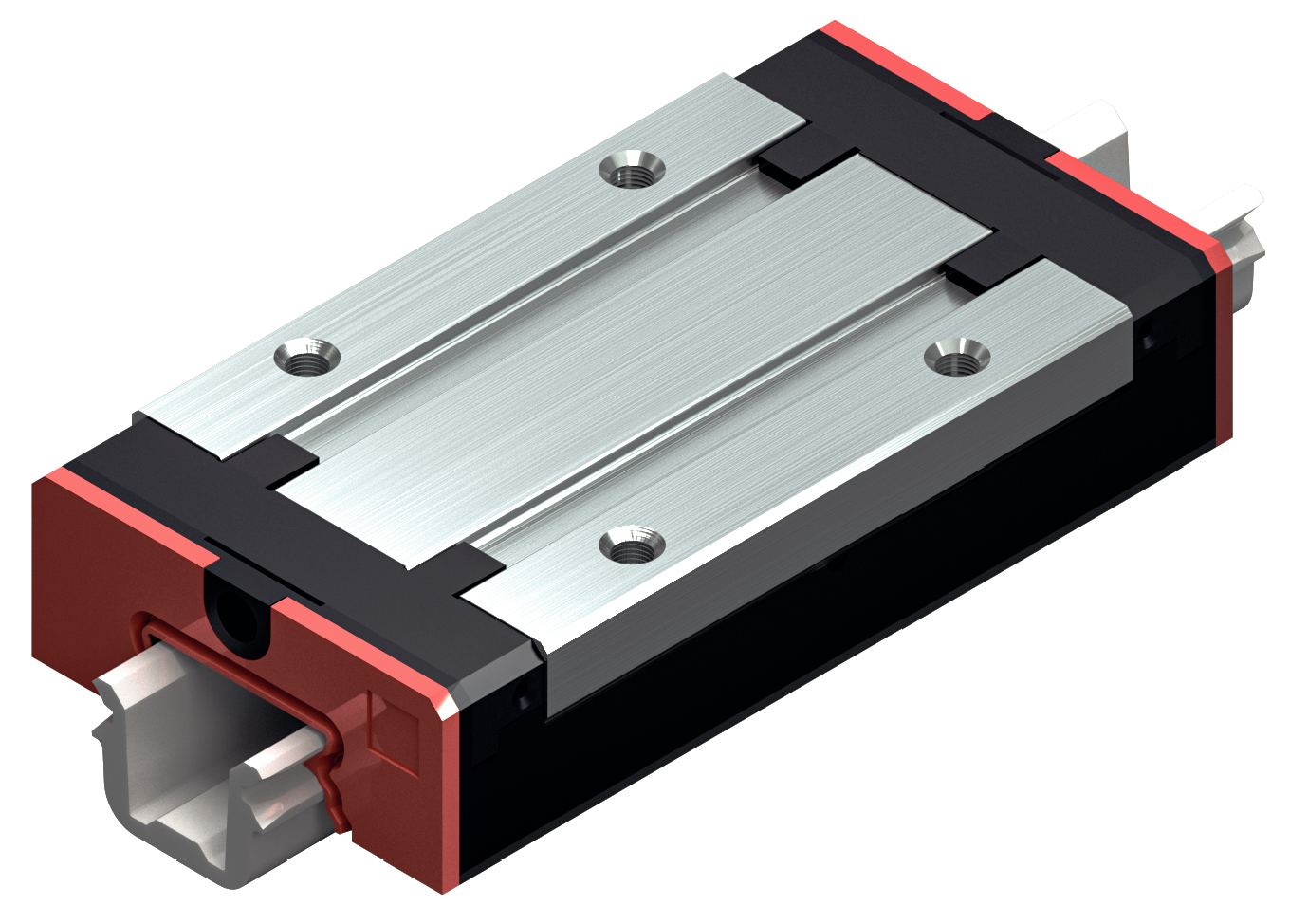

Bosch Rexroth Bosch Rexroth MINIATURE RUNNER BLOCK RESIST NRII MWA-009-SLS-C1-H-3
