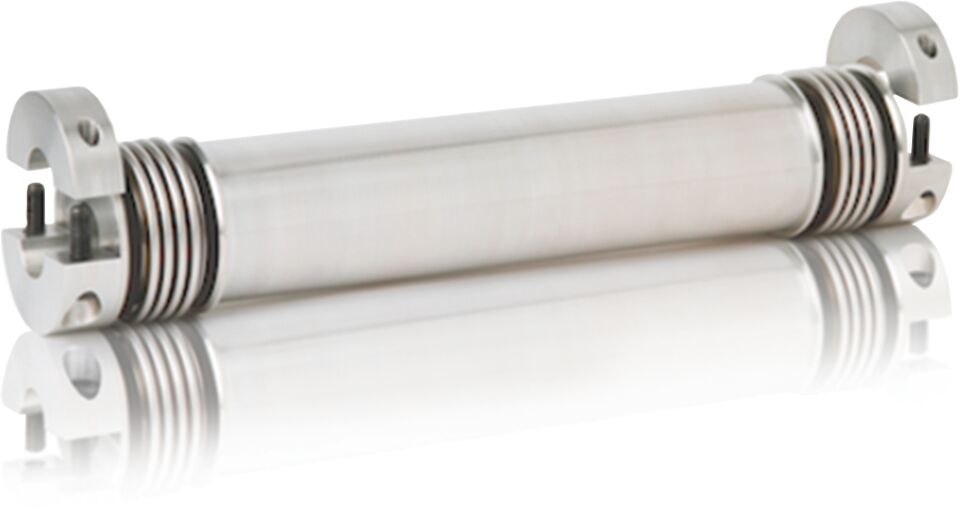

Bosch Rexroth CONNECTING SHAFT CKR 20-145
Bosch Rexroth R039151018 - Linear Motion & Guides - Weight (Kg): 1.2; Dimension [d] [mm]: 19; Nominal size [mm]: 145.
This listing covers the Bosch Rexroth R039151018, a part number in the Linear Motion & Guides category. The manufacturer's published data for this part number specifies Weight (Kg): 1.2 and Dimension [d] [mm]: 19.
Key manufacturer data on file for this item includes Nominal size [mm]: 145; Mechanical accessories for linear axes: Connecting shafts; Dimension A (profiled rail systems) [mm]: 55; Outer diameter D [mm]: 19.0; Mass m: 0.0012 · (Lcs (mm) - 118) + 0.62; Mass moment of inertia: 0.67 · (Lcs (mm) - 118) + 246; Dimension Lcs max. [mm]: 3000; Dimension Lcs min. [mm]: 150; Tightening torque [Nm]: 15; Rated torque of connecting shaft Mcs [Nm]: 30; Peak torque of connecting shaft Ms [Nm]: 45; Dimension thread M: M6. The complete technical table is shown in the Specifications tab on this page.
| Dimension [d] [mm] | 19 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 55 |
| Dimension LB [mm] | 32 |
| Dimension Lcs max. [mm] | 3000 |
| Dimension Lcs min. [mm] | 150 |
| Dimension thread M | M6 |
| Mass m | 0.0012 · (L<sub>cs</sub> (mm) - 118) + 0.62 |
| Mass moment of inertia | 0.67 · (L<sub>cs</sub> (mm) - 118) + 246 |
| Mechanical accessories for linear axes | Connecting shafts |
| Nominal size [mm] | 145 |
| Outer diameter D [mm] | 19.0 |
| Peak torque of connecting shaft Ms [Nm] | 45 |
| Rated torque of connecting shaft Mcs [Nm] | 30 |
| Tightening torque [Nm] | 15 |
| Weight (Kg) | 1.2 |
Frequently Asked Questions
How do I get pricing for R039151018?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R039151018?
R039151018 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R039151018?
Key specifications include Dimension [d] [mm]: 19; Dimension A (profiled rail systems) [mm]: 55; Dimension LB [mm]: 32; Dimension Lcs max. [mm]: 3000. The full specification table on this page lists every published attribute for this part.
How quickly can R039151018 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

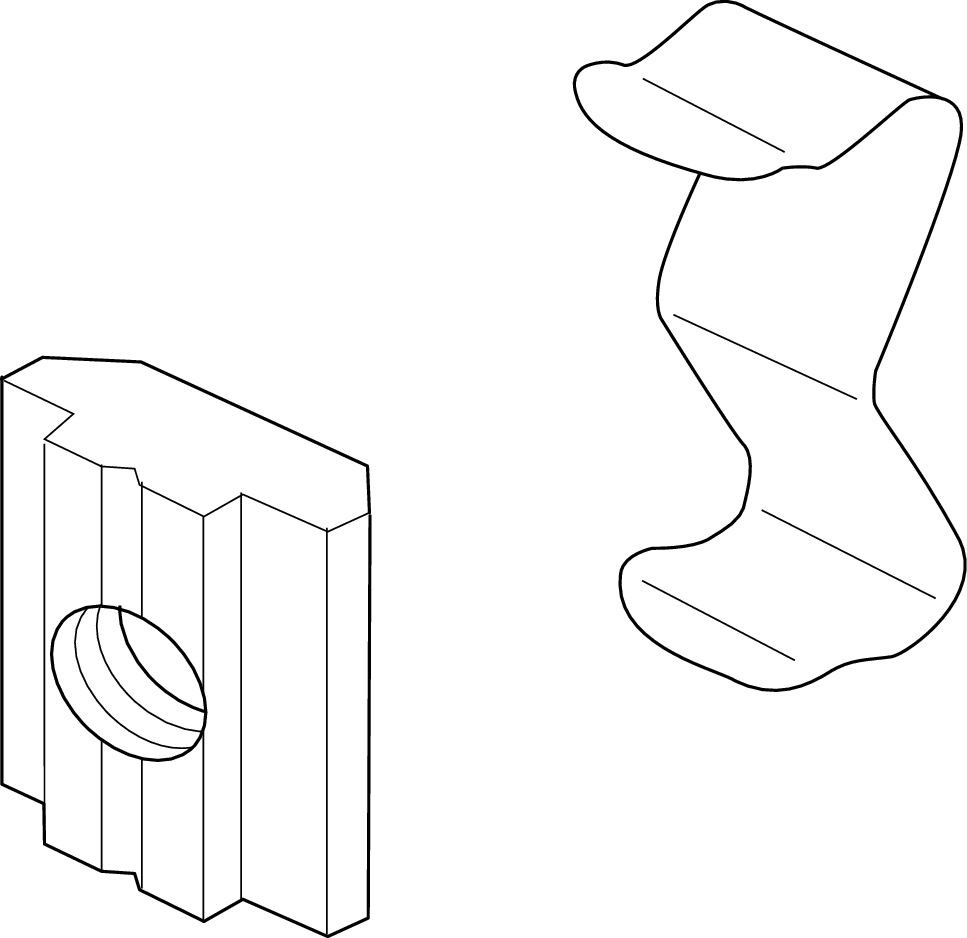

Bosch Rexroth Bosch Rexroth SLOTT. BLOCK STRIP M8 &

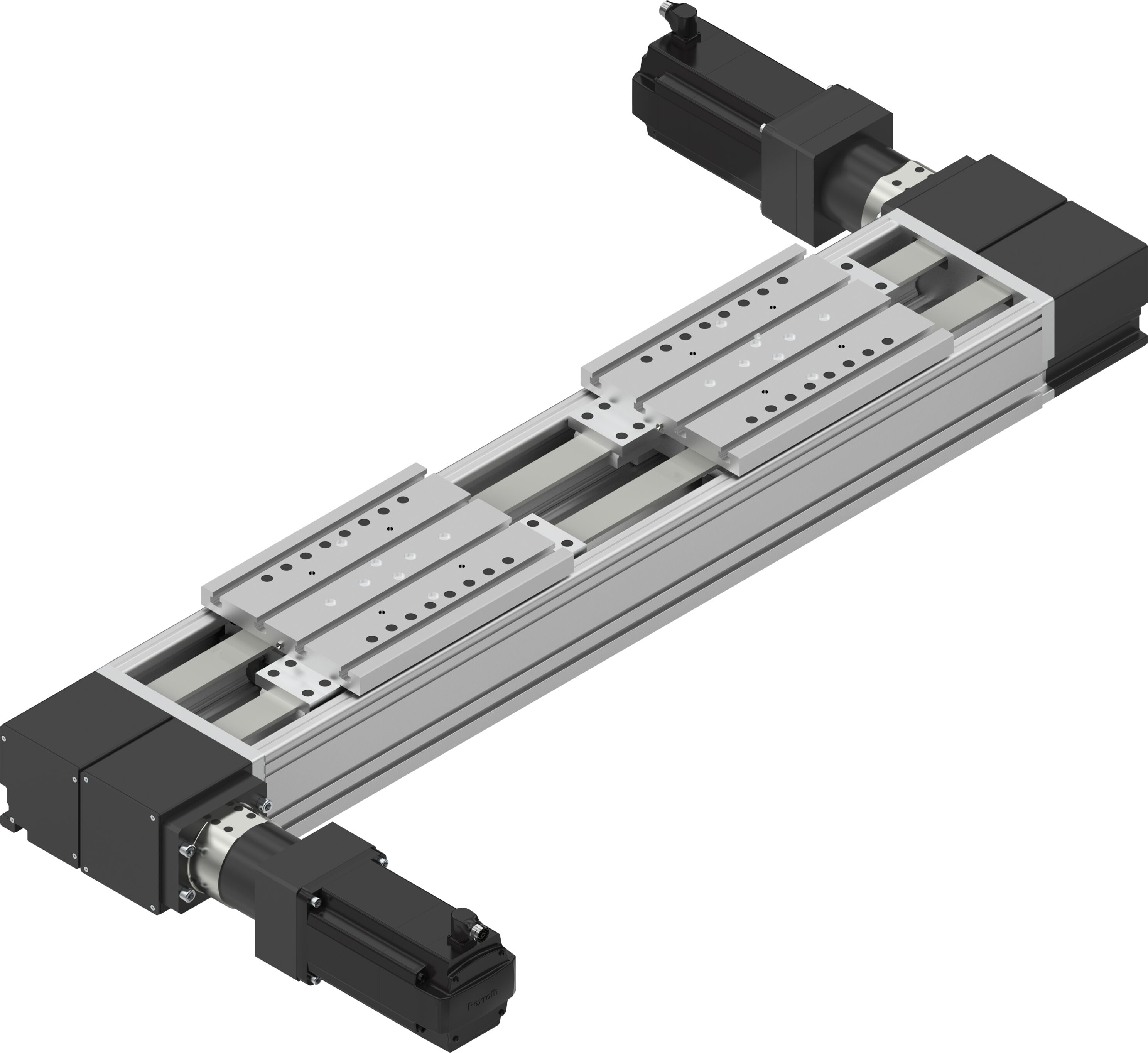

Bosch Rexroth Bosch Rexroth SLOTT. BLOCK STRIP N10X50 2XM8 (10/30/10)
Bosch Rexroth Bosch Rexroth MINIATURE RUNNER BLOCK RESIST NRII MWA-012-BLS-C1-P-3

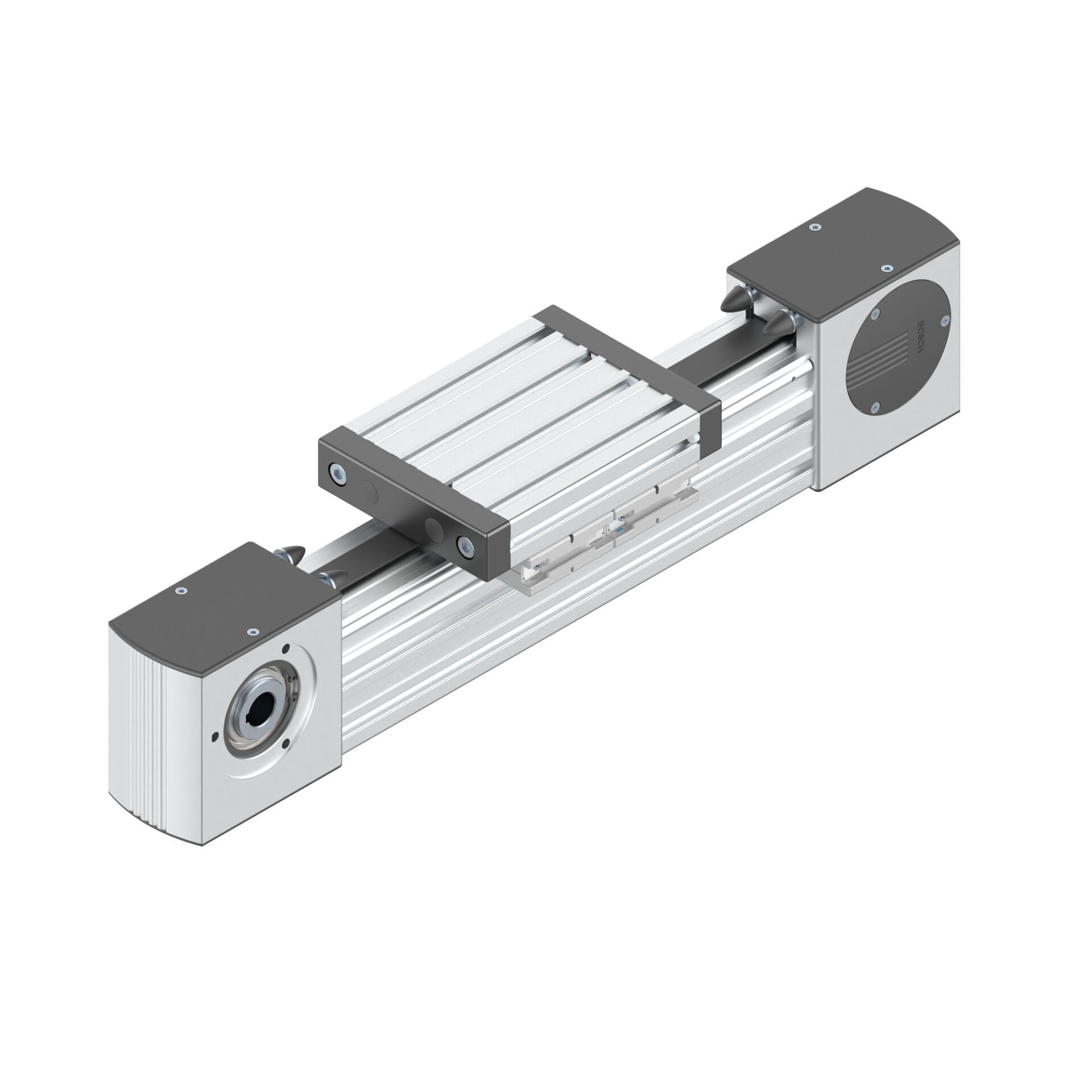

Bosch Rexroth Bosch Rexroth LINEAR GUIDE LF 12C

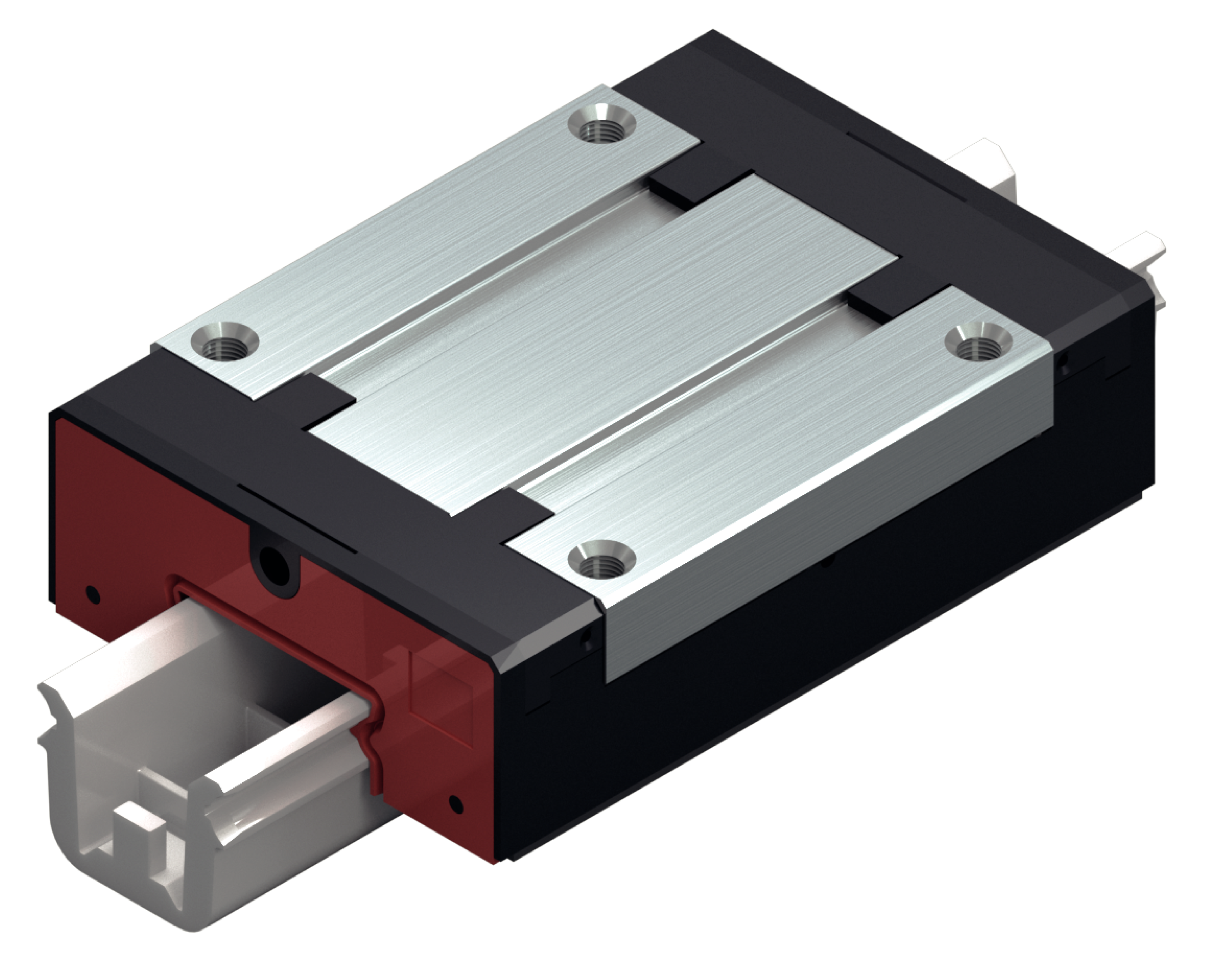

Bosch Rexroth Bosch Rexroth MINIATURE RUNNER BLOCK RESIST NRII MWA-020-SNS-C1-H-3
