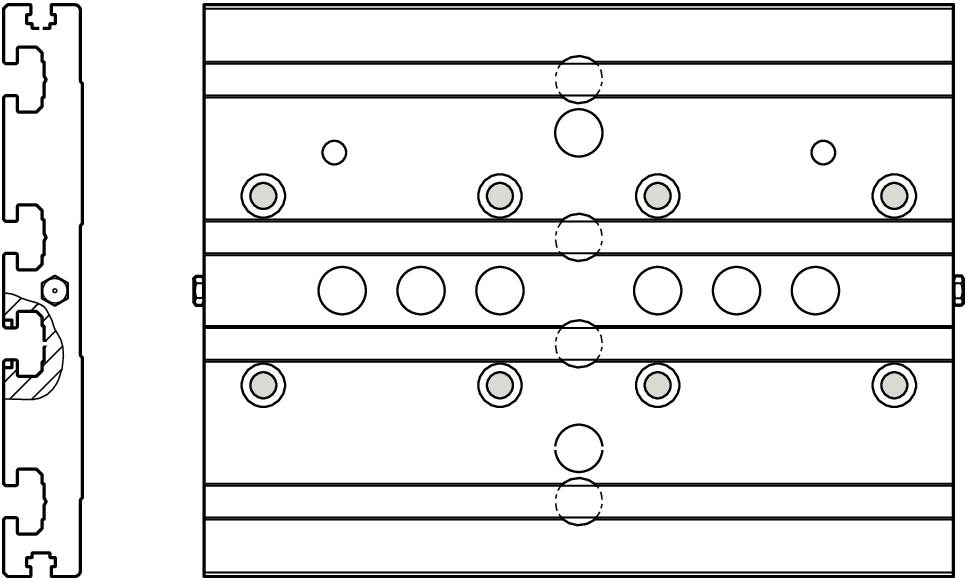

Bosch Rexroth CONNECTING PLATE CKR 25-200 BG
Bosch Rexroth R037560011 - Assembly Technology - Weight (Kg): 3.7; Lubrication Type: LCF, LCO; Dimension [c] [mm]: 27.
The Bosch Rexroth R037560011 is part of the Assembly Technology range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 3.7 and Lubrication Type: LCF, LCO.
Key manufacturer data on file for this item includes Dimension [c] [mm]: 27; Nominal size [mm]: 200; Mechanical accessories for linear axes: Connection plates; Length of the carriage Lca [mm]: 305; Dimension A (profiled rail systems) [mm]: 200; Dimension D1 [mm]: 40; Dimension D2 [mm]: 40; Dimension E H7 [mm]: 16; Dimension E H7 thread depth [mm]: 3.1; Dimension E H7 thread depth (text): deep; Dimension E H7 with thread depth: 16 mm ‒ 3.1 mm deep; Dimension E2 [mm]: 20. The complete technical table is shown in the Specifications tab on this page.
| Dimension [c] [mm] | 27 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 200 |
| Dimension D1 [mm] | 40 |
| Dimension D2 [mm] | 40 |
| Dimension E H7 [mm] | 16 |
| Dimension E H7 thread depth (text) | deep |
| Dimension E H7 thread depth [mm] | 3.1 |
| Dimension E H7 with thread depth | 16 mm ‒ 3.1 mm deep |
| Dimension E2 [mm] | 20 |
| Dimension E2 tolerance [mm] | ±0.01 |
| Dimension E3 (profiled rail systems) [mm] | 20 |
| Dimension E3 tolerance [mm] | ±0.01 |
| Dimension F H7 [mm] | 8 |
| Dimension F H7 thread depth (text) | deep |
| Dimension F H7 thread depth [mm] | 16 |
| Dimension F H7 with thread depth | 8 mm ‒ 16 mm deep |
| Dimension F1 [mm] | 59.5 |
| Dimension F1 tolerance [mm] | ±0.01 |
| Dimension F2 [mm] | 41 |
| Dimension F2 tolerance [mm] | ±0.01 |
| Dimension H1 (profiled rail systems) [mm] | 10 |
| Dimension H2 (profiled rail systems) [mm] | 20.1 |
| Dimension H3 [mm] | 6 |
| Dimension H4 [mm] | 12.5 |
| Dimension H5 [mm] | 55 |
| Dimension H6 [mm] | 12.5 |
| Length of the carriage Lca [mm] | 305 |
| Lubrication Type | LCF, LCO |
| Mechanical accessories for linear axes | Connection plates |
| Nominal size [mm] | 200 |
| Weight (Kg) | 3.7 |
Frequently Asked Questions
How do I get pricing for R037560011?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R037560011?
R037560011 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R037560011?
Key specifications include Dimension [c] [mm]: 27; Dimension A (profiled rail systems) [mm]: 200; Dimension D1 [mm]: 40; Dimension D2 [mm]: 40. The full specification table on this page lists every published attribute for this part.
How quickly can R037560011 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth CONNECTING PLATE CKK 25-200 L BG

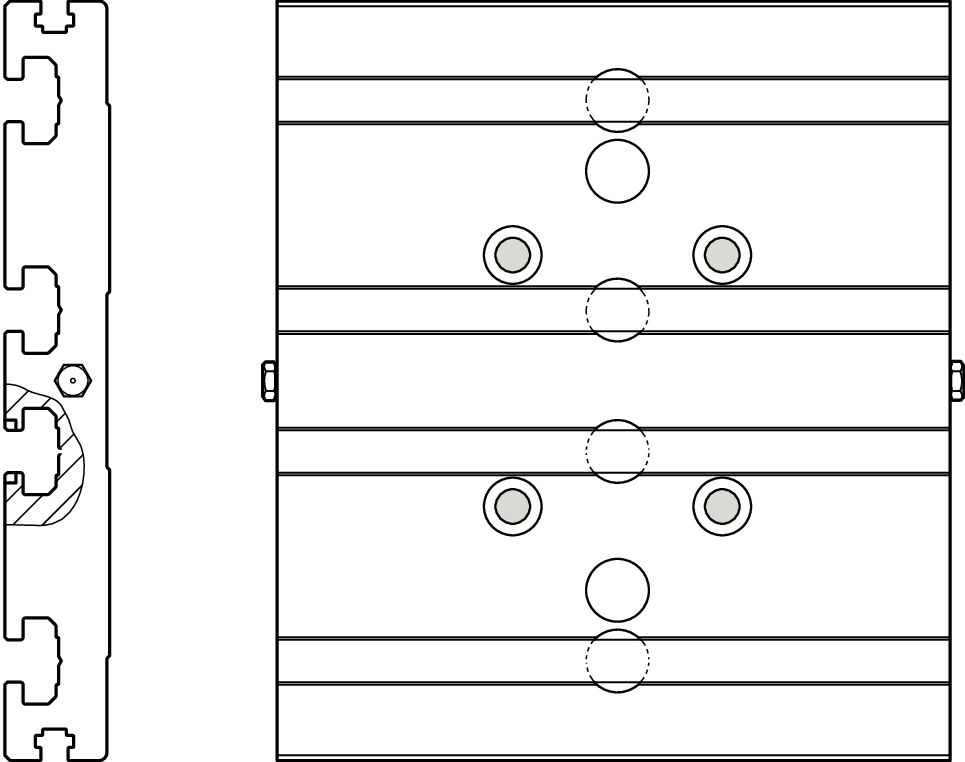

Bosch Rexroth Bosch Rexroth CONNECTING PLATE CKR 15-110 K BG

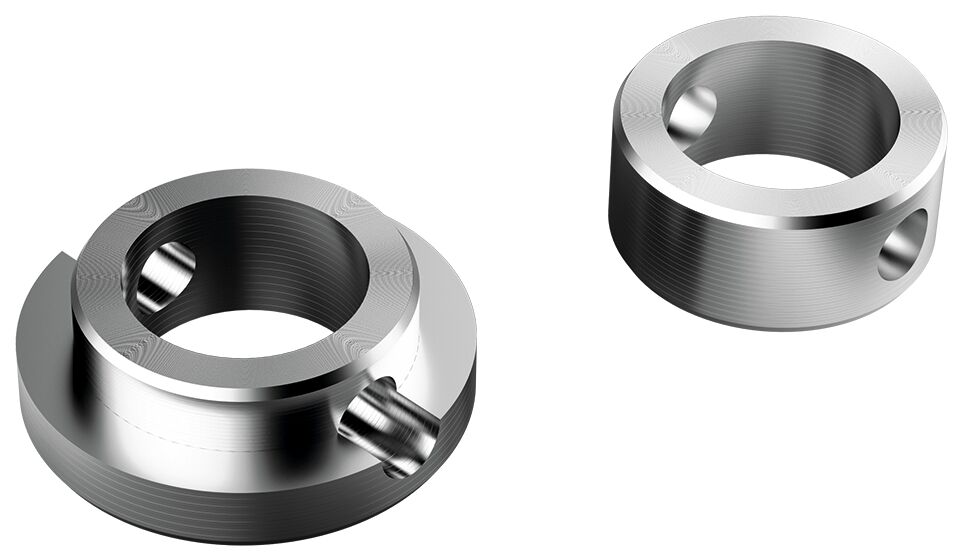

Bosch Rexroth Bosch Rexroth LOCATING RING D=9/7 &
Bosch Rexroth Bosch Rexroth CONNECTING PLATE CKR 15-110 BG

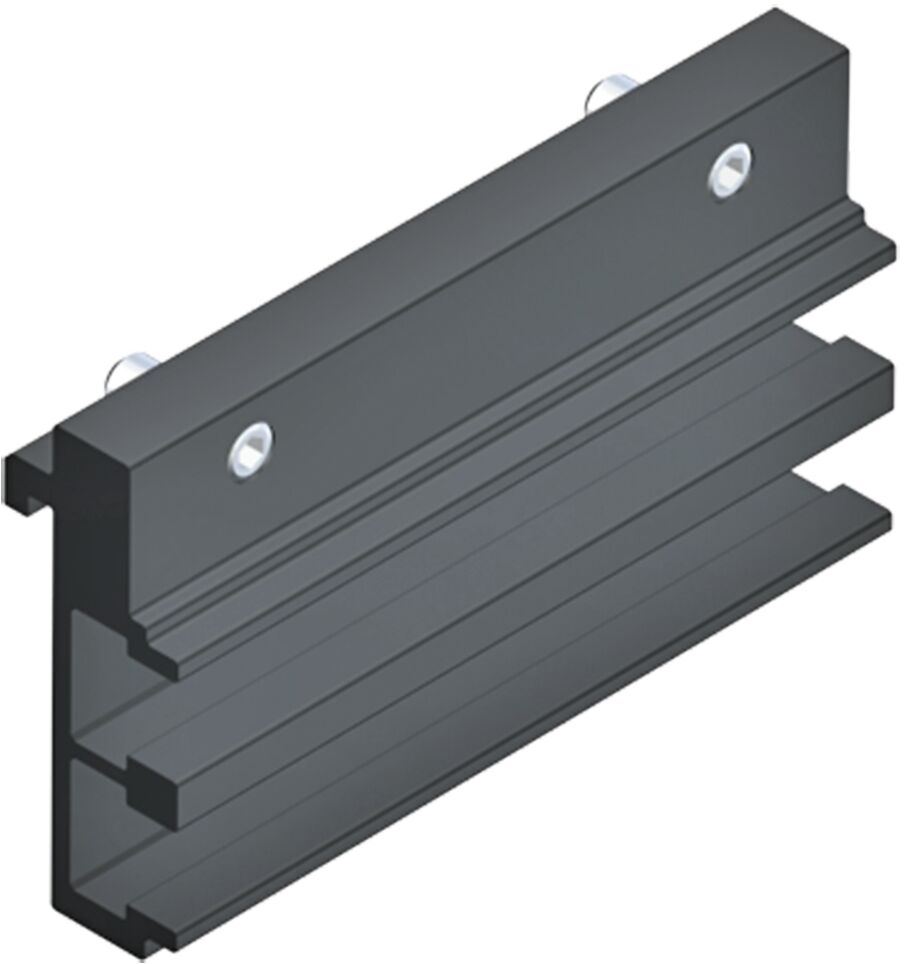

Bosch Rexroth Bosch Rexroth SWITCH PLATE BG
