Bosch Rexroth CONNECTING PLATE CKK 20-145 K BG
Bosch Rexroth R037550015 - Assembly Technology - Weight (Kg): 0.5; Dimension [c] [mm]: 20; Nominal size [mm]: 145.
The R037550015 from Bosch Rexroth is listed under Assembly Technology in our catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.5 and Dimension [c] [mm]: 20.
Published specifications for this part include Nominal size [mm]: 145; Mechanical accessories for linear axes: Connection plates; Length of the carriage Lca [mm]: 80; Dimension A (profiled rail systems) [mm]: 145; Dimension D1 [mm]: 27; Dimension D2 [mm]: 40; Dimension E H7 [mm]: 12; Dimension E H7 thread depth [mm]: 2.1; Dimension E H7 thread depth (text): deep; Dimension E H7 with thread depth: 12 mm ‒ 2.1 mm deep; Dimension E3 (profiled rail systems) [mm]: 20; Dimension E3 tolerance [mm]: ±0.01. See the Specifications tab on this page for the full technical table.
| Dimension [c] [mm] | 20 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 145 |
| Dimension D1 [mm] | 27 |
| Dimension D2 [mm] | 40 |
| Dimension E H7 [mm] | 12 |
| Dimension E H7 thread depth (text) | deep |
| Dimension E H7 thread depth [mm] | 2.1 |
| Dimension E H7 with thread depth | 12 mm ‒ 2.1 mm deep |
| Dimension E1 [mm] | 40 |
| Dimension E1 tolerance [mm] | ±0.01 |
| Dimension E3 (profiled rail systems) [mm] | 20 |
| Dimension E3 tolerance [mm] | ±0.01 |
| Dimension G1 [mm] | 9.5 |
| Dimension G2 [mm] | 5.2 |
| Dimension G3 [mm] | 7.3 |
| Dimension G4 [mm] | 2.5 |
| Dimension G5 [mm] | 4.8 |
| Dimension H1 (profiled rail systems) [mm] | 8 |
| Dimension H2 (profiled rail systems) [mm] | 16.5 |
| Dimension H3 [mm] | 3.5 |
| Dimension H4 [mm] | 9.8 |
| Length of the carriage Lca [mm] | 80 |
| Mechanical accessories for linear axes | Connection plates |
| Nominal size [mm] | 145 |
| Weight (Kg) | 0.5 |
Frequently Asked Questions
How do I get pricing for R037550015?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R037550015?
R037550015 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R037550015?
Key specifications include Dimension [c] [mm]: 20; Dimension A (profiled rail systems) [mm]: 145; Dimension D1 [mm]: 27; Dimension D2 [mm]: 40. The full specification table on this page lists every published attribute for this part.
How quickly can R037550015 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth COVER CKR 20-145 BG
Bosch Rexroth Bosch Rexroth CONNECTING PLATE CKK 15-110 K BG
Bosch Rexroth Bosch Rexroth COVER CKR 15-110 BG

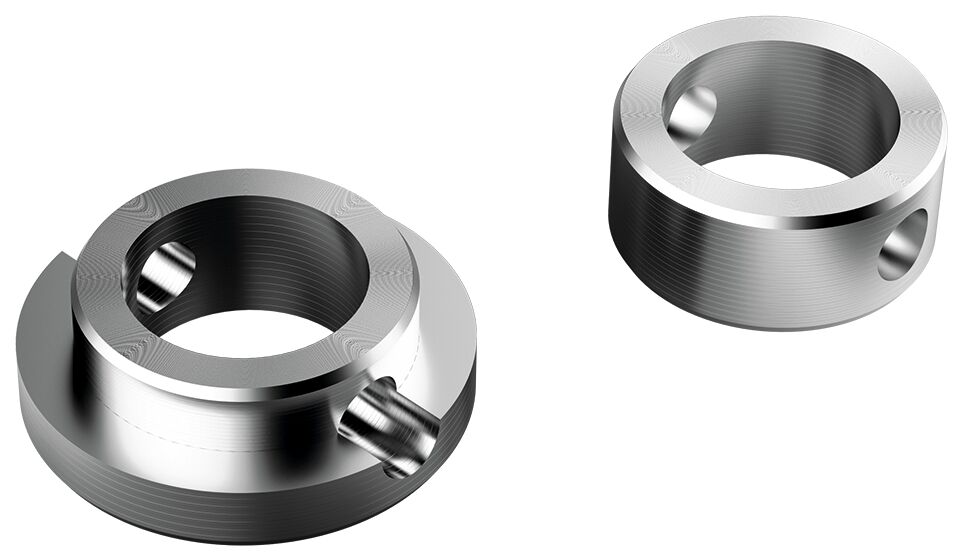

Bosch Rexroth Bosch Rexroth LOCATING RING D=12/7 &
