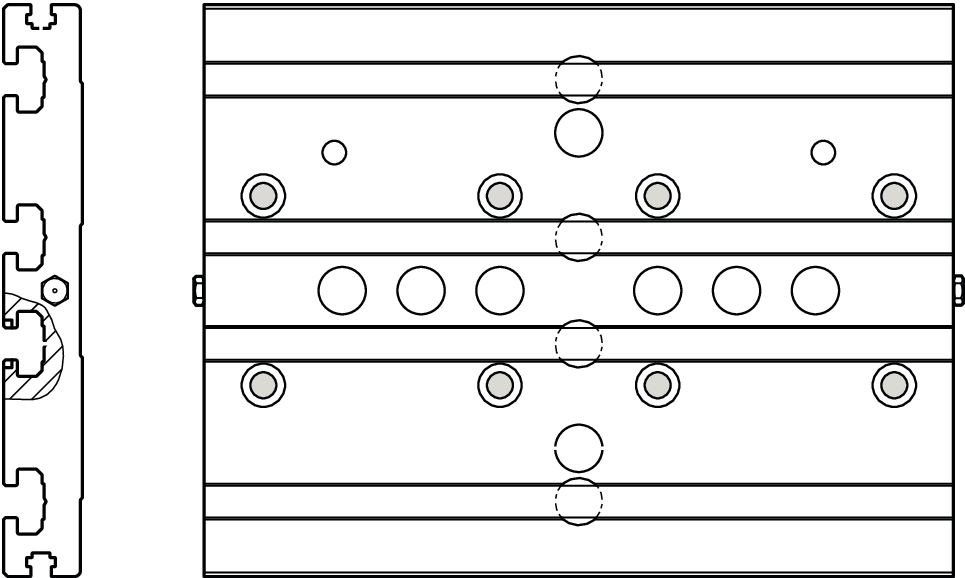

Bosch Rexroth CONNECTING PLATE CKK 15-110 L BG
Bosch Rexroth R037540010 - Assembly Technology - Weight (Kg): 0.58; Lubrication Type: LCF, LCO; Dimension [c] [mm]: 16.
This listing covers the Bosch Rexroth R037540010, a part number in the Assembly Technology category. The manufacturer's published data for this part number specifies Weight (Kg): 0.58 and Lubrication Type: LCF, LCO.
Key manufacturer data on file for this item includes Dimension [c] [mm]: 16; Dimension [d] [mm]: 8.5; Nominal size [mm]: 110; Mechanical accessories for linear axes: Connection plates; Length of the carriage Lca [mm]: 155; Dimension A (profiled rail systems) [mm]: 110; Dimension D1 [mm]: 20; Dimension D2 [mm]: 20; Dimension E H7 [mm]: 9; Dimension E H7 thread depth [mm]: 2.1; Dimension E H7 thread depth (text): deep; Dimension E H7 with thread depth: 9 mm ‒ 2.1 mm deep. The complete technical table is shown in the Specifications tab on this page.
| Dimension [c] [mm] | 16 |
|---|---|
| Dimension [d] [mm] | 8.5 |
| Dimension A (profiled rail systems) [mm] | 110 |
| Dimension D1 [mm] | 20 |
| Dimension D2 [mm] | 20 |
| Dimension E H7 [mm] | 9 |
| Dimension E H7 thread depth (text) | deep |
| Dimension E H7 thread depth [mm] | 2.1 |
| Dimension E H7 with thread depth | 9 mm ‒ 2.1 mm deep |
| Dimension E2 [mm] | 10 |
| Dimension E2 tolerance [mm] | ±0.01 |
| Dimension E3 (profiled rail systems) [mm] | 20 |
| Dimension E3 tolerance [mm] | ±0.01 |
| Dimension F H7 [mm] | 5 |
| Dimension F H7 thread depth (text) | deep |
| Dimension F H7 thread depth [mm] | 6.5 |
| Dimension F H7 with thread depth | 5 mm ‒ 6.5 mm deep |
| Dimension F1 [mm] | 46 |
| Dimension F1 tolerance [mm] | ±0.01 |
| Dimension F2 [mm] | 42 |
| Dimension F2 tolerance [mm] | ±0.01 |
| Dimension G1 [mm] | 9.5 |
| Dimension G2 [mm] | 5.2 |
| Dimension G3 [mm] | 7.3 |
| Dimension G4 [mm] | 2.5 |
| Dimension G5 [mm] | 4.8 |
| Dimension H1 (profiled rail systems) [mm] | 6 |
| Dimension H2 (profiled rail systems) [mm] | 12 |
| Dimension H3 [mm] | 3.5 |
| Dimension H4 [mm] | 7.7 |
| Dimension H5 [mm] | 20 |
| Dimension H6 [mm] | 12.5 |
| Dimension H8 [mm] | 3 |
| Length of the carriage Lca [mm] | 155 |
| Lubrication Type | LCF, LCO |
| Mechanical accessories for linear axes | Connection plates |
| Nominal size [mm] | 110 |
| Weight (Kg) | 0.58 |
Frequently Asked Questions
How do I get pricing for R037540010?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R037540010?
R037540010 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R037540010?
Key specifications include Dimension [c] [mm]: 16; Dimension [d] [mm]: 8.5; Dimension A (profiled rail systems) [mm]: 110; Dimension D1 [mm]: 20. The full specification table on this page lists every published attribute for this part.
How quickly can R037540010 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

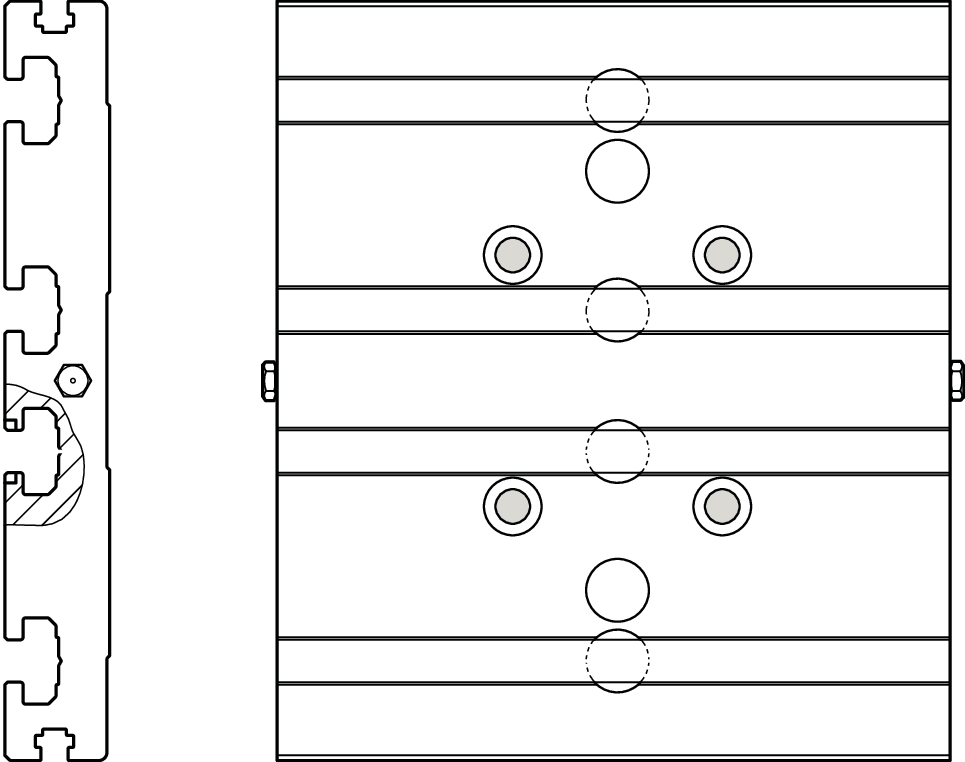

Bosch Rexroth Bosch Rexroth CONNECTING PLATE CKR 20-145 K BG

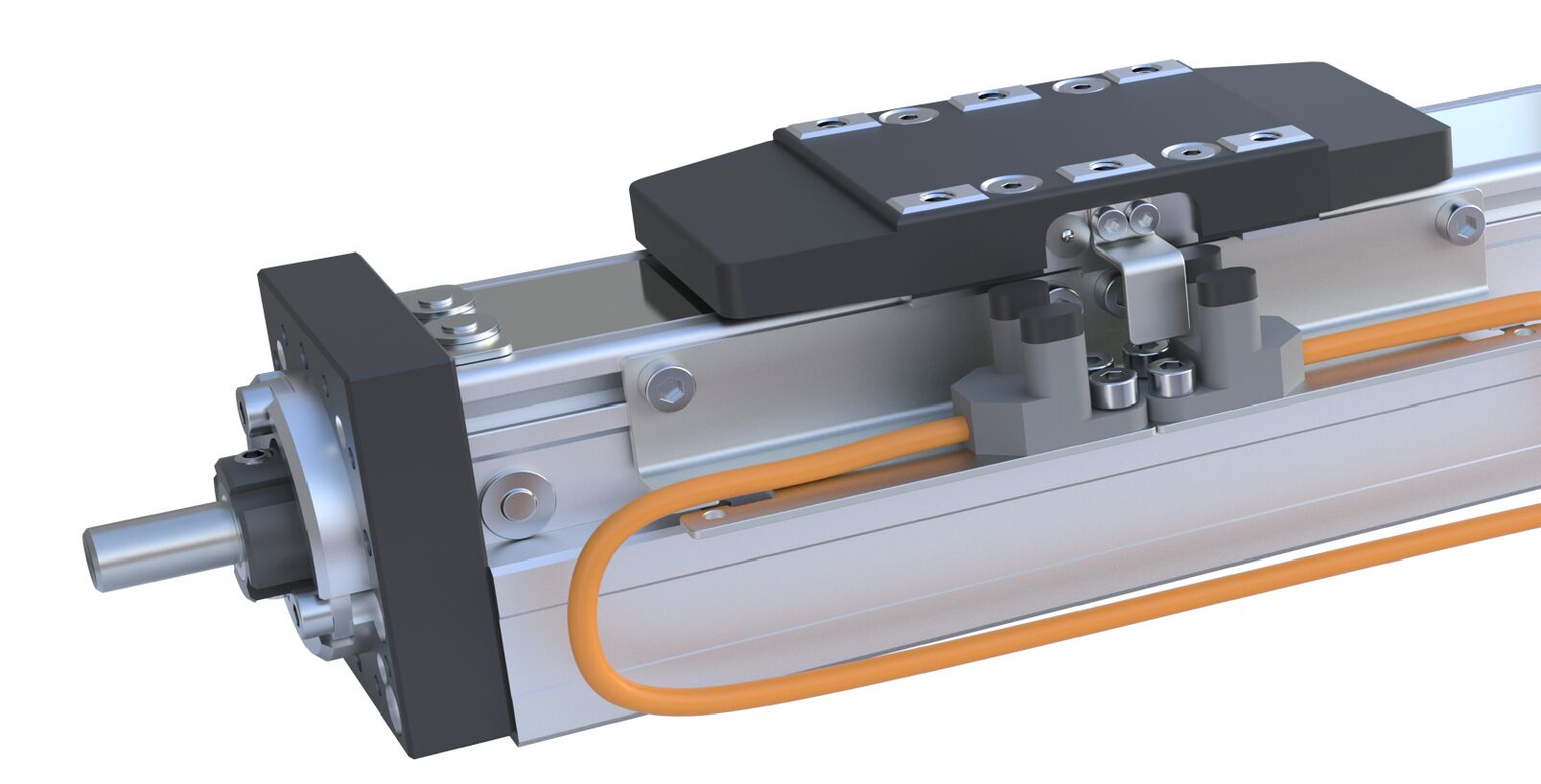

Bosch Rexroth Bosch Rexroth SWITCH BRACKET SWITCH_MOUNT_SMS050
Bosch Rexroth Bosch Rexroth CONNECTING PLATE CKR 25-200 K BG
Bosch Rexroth Bosch Rexroth SWITCH BRACKET SWITCH_MOUNT_SMS030

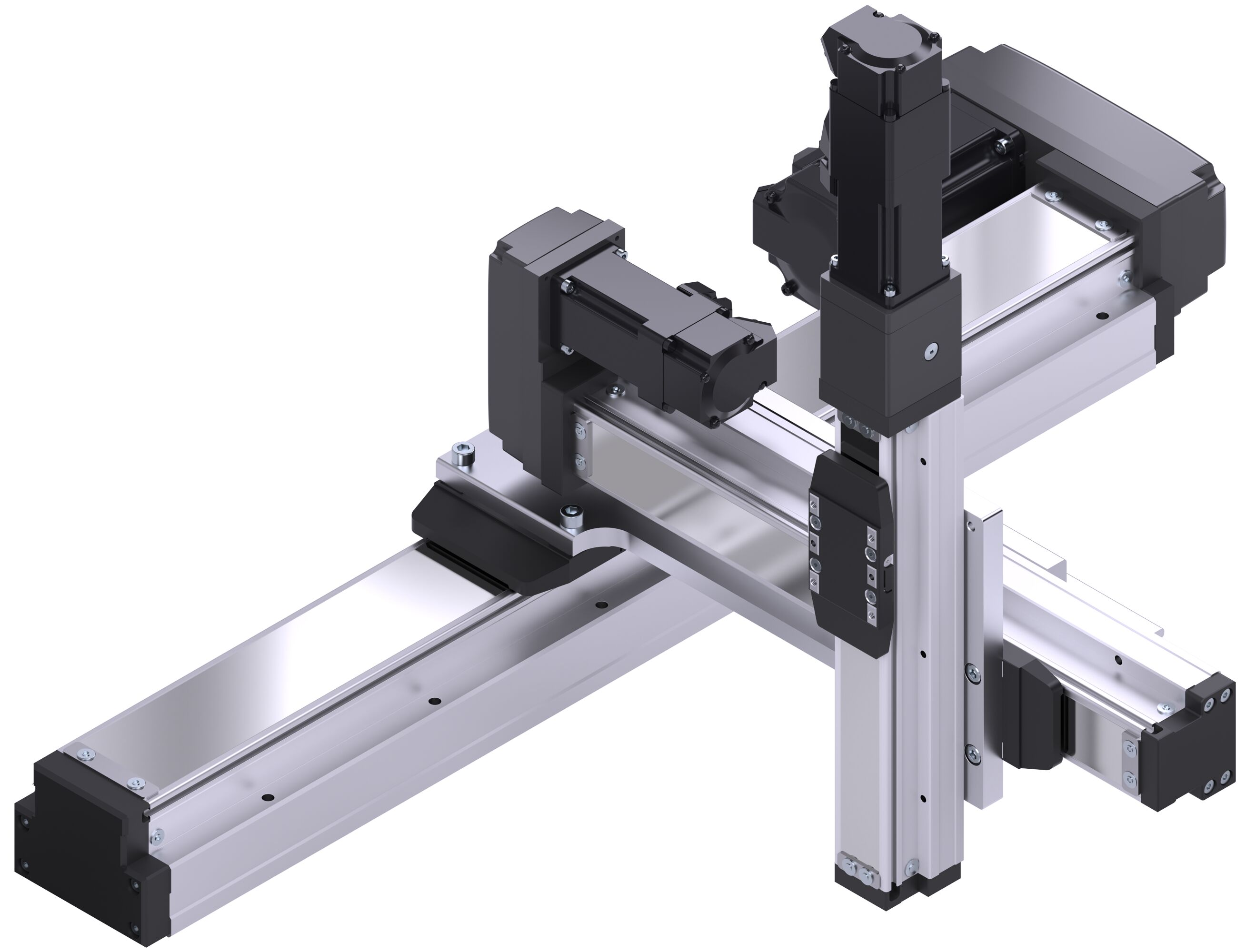

Bosch Rexroth Bosch Rexroth CONNECTING PLATE 3D1
