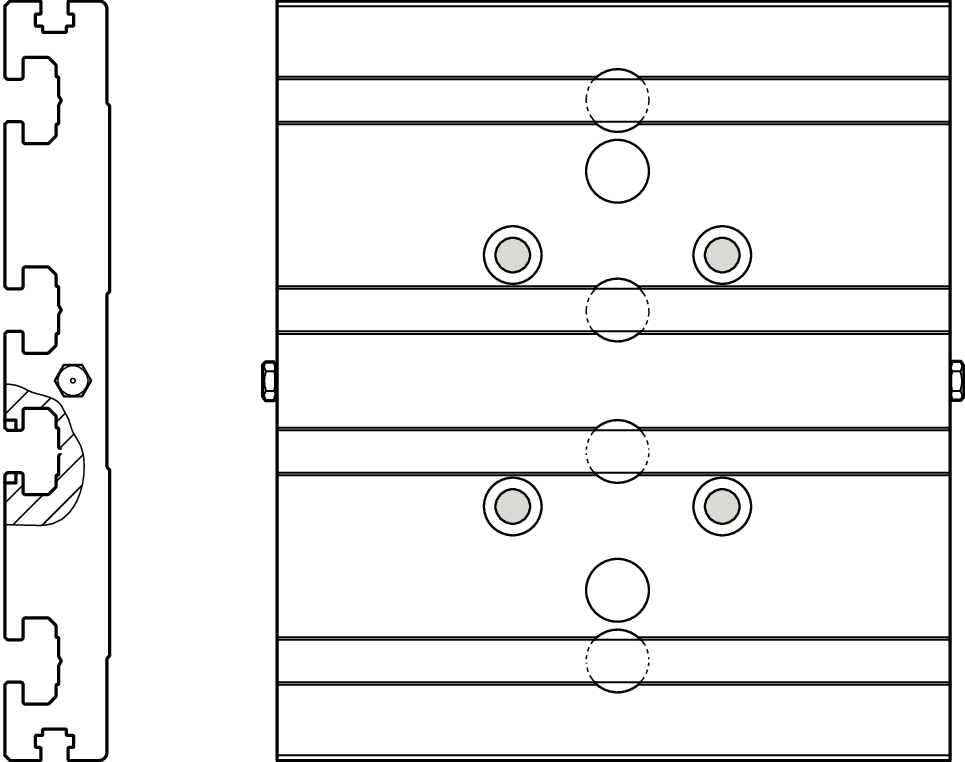

Bosch Rexroth CONNECTING PLATE CKK 12-90 K BG
Bosch Rexroth R037530015 - Assembly Technology - Weight (Kg): 0.18; Dimension [c] [mm]: 16; Nominal size [mm]: 090.
The Bosch Rexroth R037530015 is part of the Assembly Technology range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.18 and Dimension [c] [mm]: 16.
Key manufacturer data on file for this item includes Nominal size [mm]: 090; Mechanical accessories for linear axes: Connection plates; Length of the carriage Lca [mm]: 60; Dimension A (profiled rail systems) [mm]: 90; Dimension D1 [mm]: 20; Dimension D2 [mm]: 20; Dimension E H7 [mm]: 9; Dimension E H7 thread depth [mm]: 2.1; Dimension E H7 thread depth (text): deep; Dimension E H7 with thread depth: 9 mm ‒ 2.1 mm deep; Dimension E3 (profiled rail systems) [mm]: 20; Dimension E3 tolerance [mm]: ±0.01. See the Specifications tab on this page for the full technical table.
| Dimension [c] [mm] | 16 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 90 |
| Dimension D1 [mm] | 20 |
| Dimension D2 [mm] | 20 |
| Dimension E H7 [mm] | 9 |
| Dimension E H7 thread depth (text) | deep |
| Dimension E H7 thread depth [mm] | 2.1 |
| Dimension E H7 with thread depth | 9 mm ‒ 2.1 mm deep |
| Dimension E3 (profiled rail systems) [mm] | 20 |
| Dimension E3 tolerance [mm] | ±0.01 |
| Dimension G1 [mm] | 7.6 |
| Dimension G2 [mm] | 4.2 |
| Dimension G3 [mm] | 7.3 |
| Dimension G4 [mm] | 2 |
| Dimension G5 [mm] | 4.3 |
| Dimension H1 (profiled rail systems) [mm] | 6 |
| Dimension H2 (profiled rail systems) [mm] | 12 |
| Dimension H3 [mm] | 3.5 |
| Dimension H4 [mm] | 7.7 |
| Length of the carriage Lca [mm] | 60 |
| Mechanical accessories for linear axes | Connection plates |
| Nominal size [mm] | 090 |
| Weight (Kg) | 0.18 |
Frequently Asked Questions
How do I get pricing for R037530015?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R037530015?
R037530015 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R037530015?
Key specifications include Dimension [c] [mm]: 16; Dimension A (profiled rail systems) [mm]: 90; Dimension D1 [mm]: 20; Dimension D2 [mm]: 20. The full specification table on this page lists every published attribute for this part.
How quickly can R037530015 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

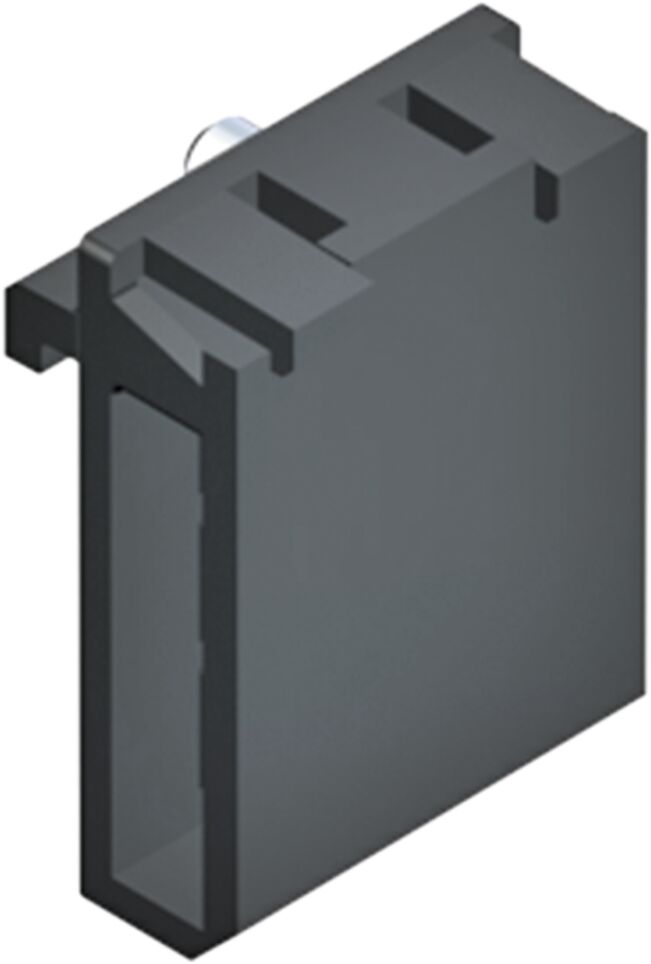

Bosch Rexroth Bosch Rexroth CABLE CLAMP BG

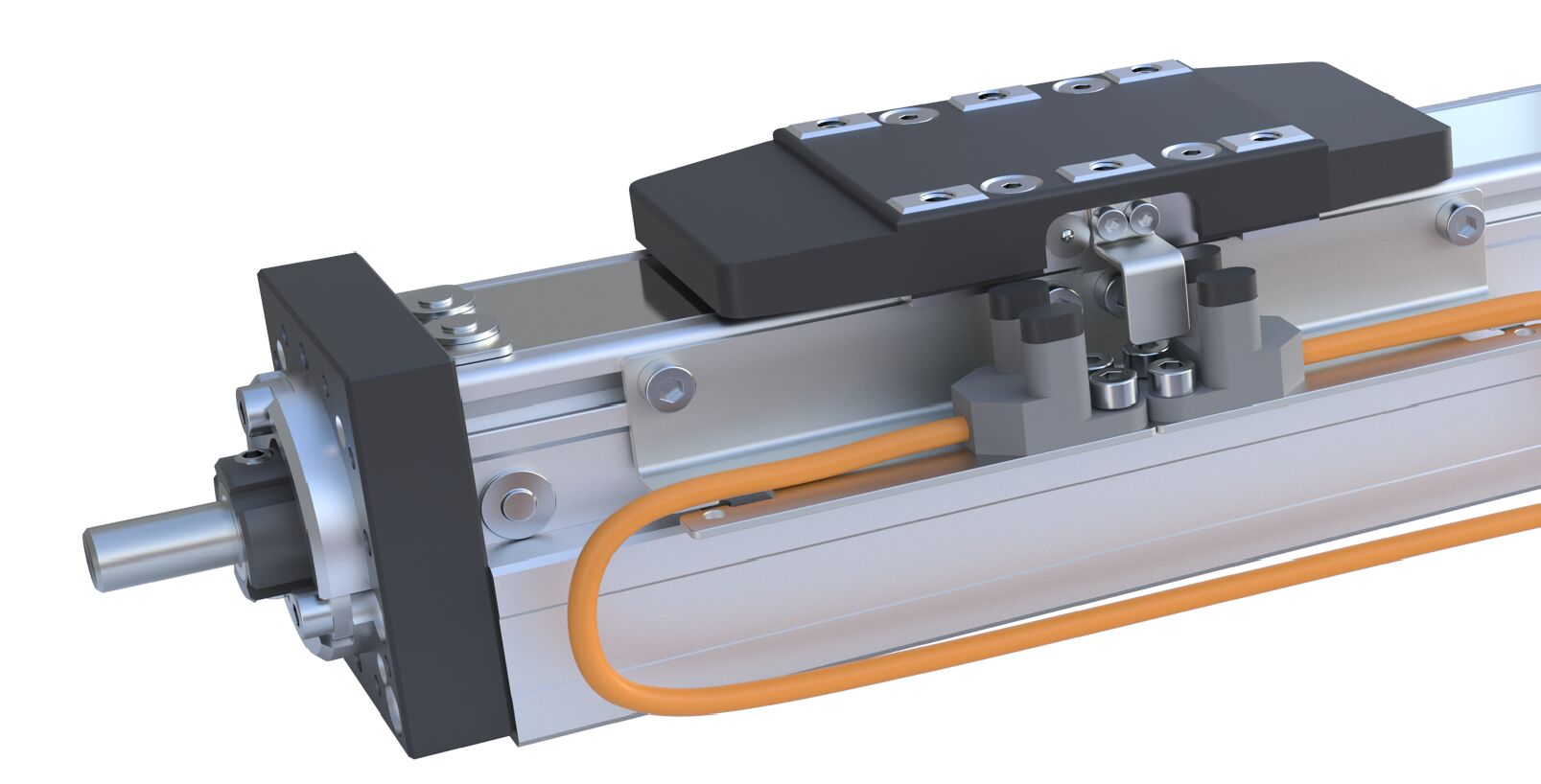

Bosch Rexroth Bosch Rexroth SWITCH BRACKET SWITCH_MOUNT_SMS080
Bosch Rexroth Bosch Rexroth COVER CKR 15-110 BG
Bosch Rexroth Bosch Rexroth CONNECTING PLATE CKK 15-110 K BG

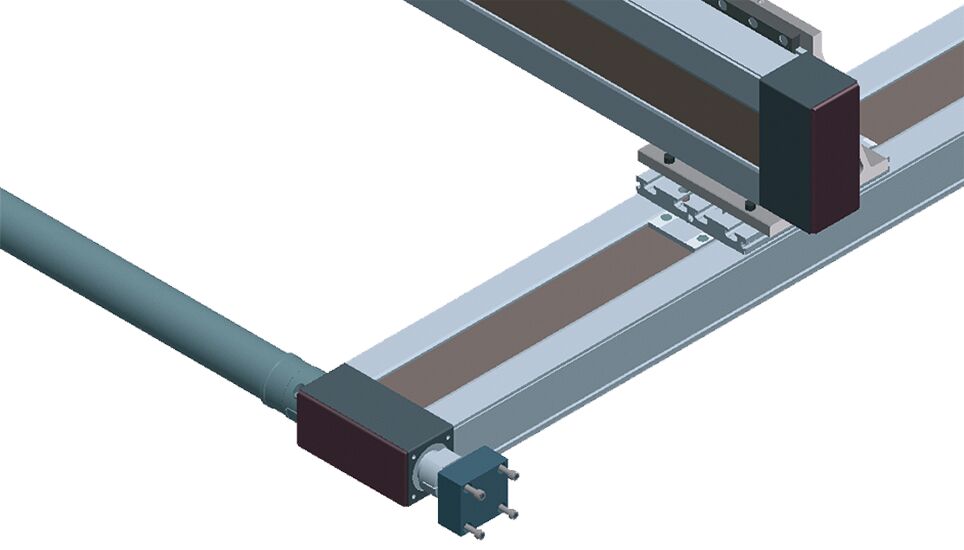

Bosch Rexroth Bosch Rexroth COVER CKR 20-145 BG
