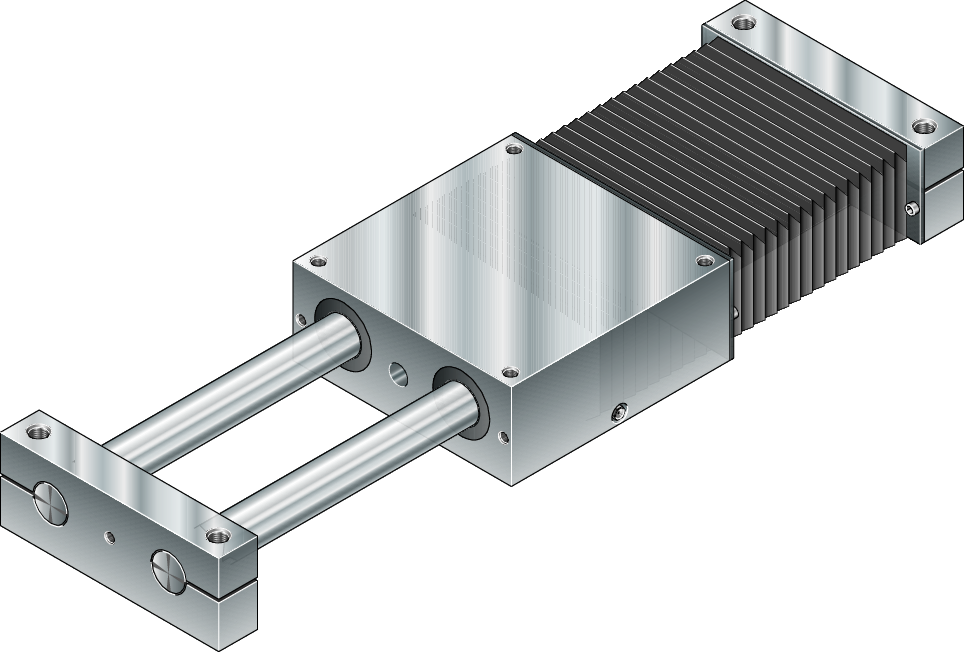

Bosch Rexroth LINEAR SLIDE SGO-160-NN-1
Bosch Rexroth R026030000 - Linear Motion & Guides - Weight (Kg): 0; Nominal size [mm]: SGO-160; Linear axes variant: Closed without drive.
This listing covers the Bosch Rexroth R026030000, a part number in the Linear Motion & Guides category. The manufacturer's published data for this part number specifies Weight (Kg): 0 and Nominal size [mm]: SGO-160.
Key manufacturer data on file for this item includes Linear axes variant: Closed without drive; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 3.0; Max. length Lmax [mm]: 3000.0; Dynamic load capacity, guideway Cgw [N]: 12830; Dynamic torsional moment load capacity Mt [Nm]: 564.0; Dynamic longitudinal moment load capacity ML [Nm]: 596.0; Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]: 192; Maximum permissible dynamic torsional moment about the y-axis My max [Nm]: 203; Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]: 203; Maximum dynamic load in y-direction Fy max [N]: 4360; Permissible ambient temperature with Rexroth servo motor (min. ... max.): 0 °C ... 40 °C. The complete technical table is shown in the Specifications tab on this page.
| Dynamic load capacity, guideway Cgw [N] | 12830 |
|---|---|
| Dynamic longitudinal moment load capacity ML [Nm] | 596.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 564.0 |
| Linear axes variant | Closed without drive |
| Max. length Lmax [mm] | 3000.0 |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum dynamic load in y-direction Fy max [N] | 4360 |
| Maximum dynamic load in z-direction Fz max [N] | 4360 |
| Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm] | 192 |
| Maximum permissible dynamic torsional moment about the y-axis My max [Nm] | 203 |
| Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm] | 203 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Nominal size [mm] | SGO-160 |
| Note: Max. acceleration amax | For linear motion slides without drive SGO/SOO, unlike the SGK/SOK, there is no ball screw assembly |
| Note: maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by the increased wear of the plastic parts. |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | No dropping below dew point |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R026030000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R026030000?
R026030000 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R026030000?
Key specifications include Dynamic load capacity, guideway Cgw [N]: 12830; Dynamic longitudinal moment load capacity ML [Nm]: 596.0; Dynamic torsional moment load capacity Mt [Nm]: 564.0; Linear axes variant: Closed without drive. The full specification table on this page lists every published attribute for this part.
How quickly can R026030000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth LINEAR SLIDE SGO-180-NN-1

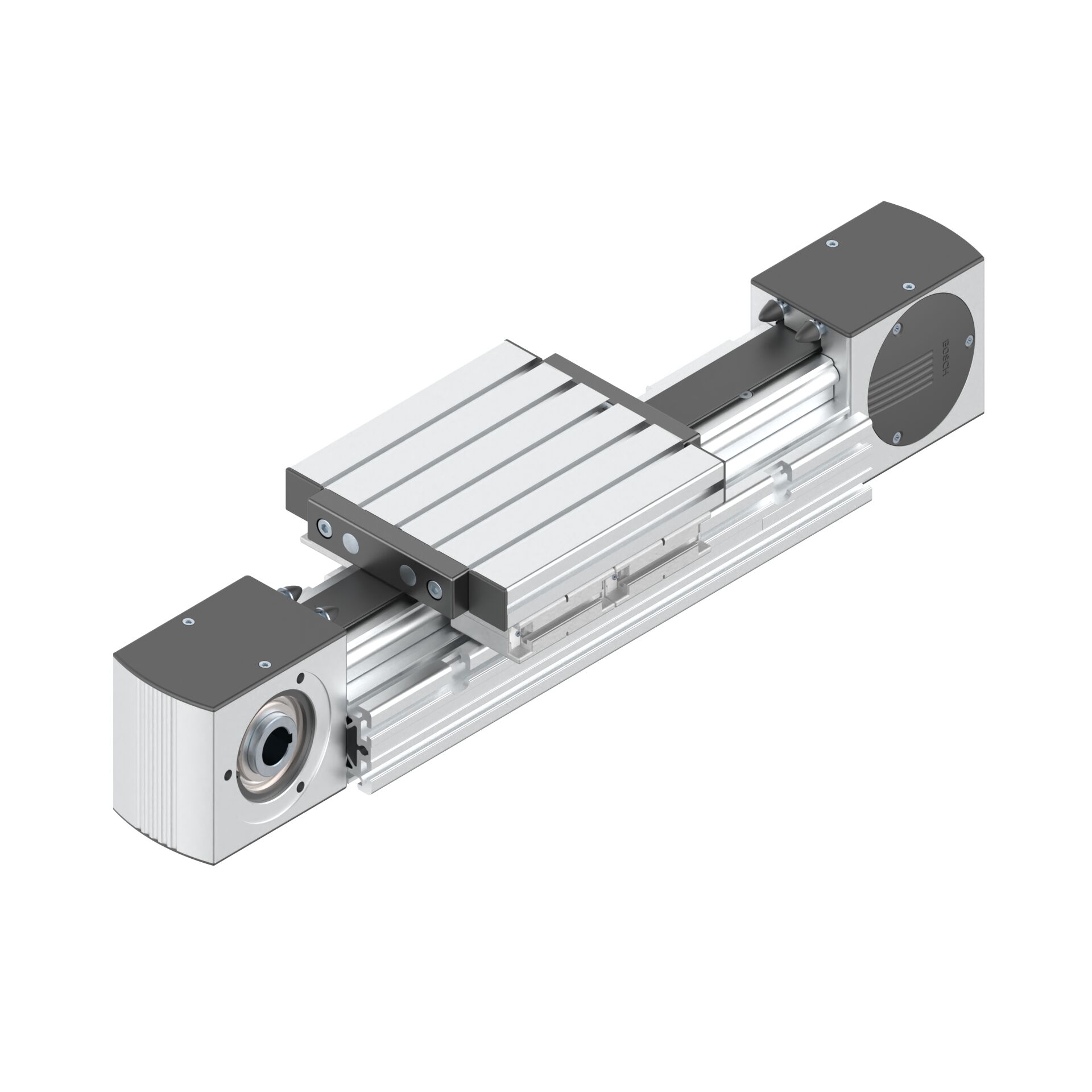

Bosch Rexroth Bosch Rexroth LINEAR GUIDE LF 20S

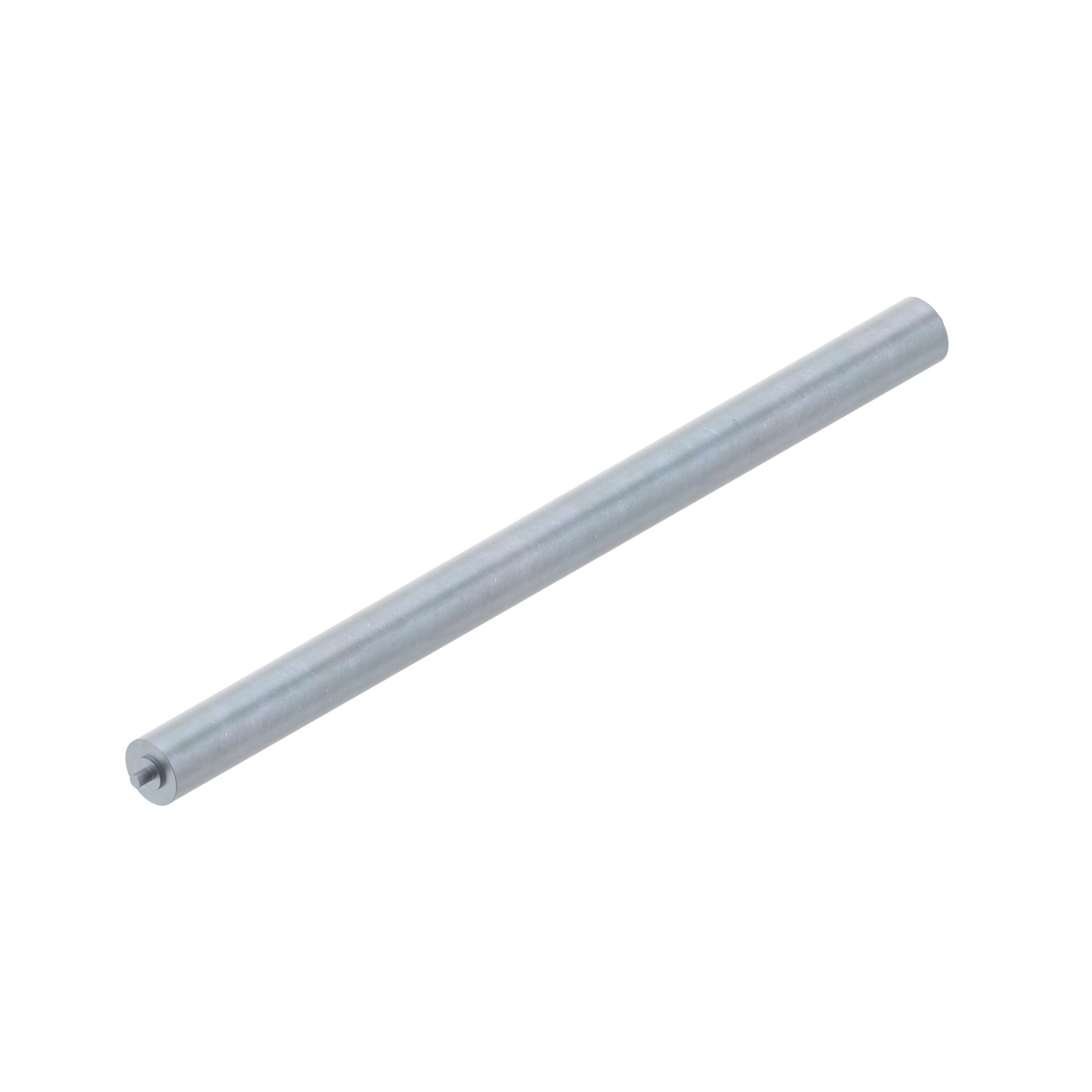

Bosch Rexroth Bosch Rexroth IDLE ROLLER ECO FLOW VARIABEL ST

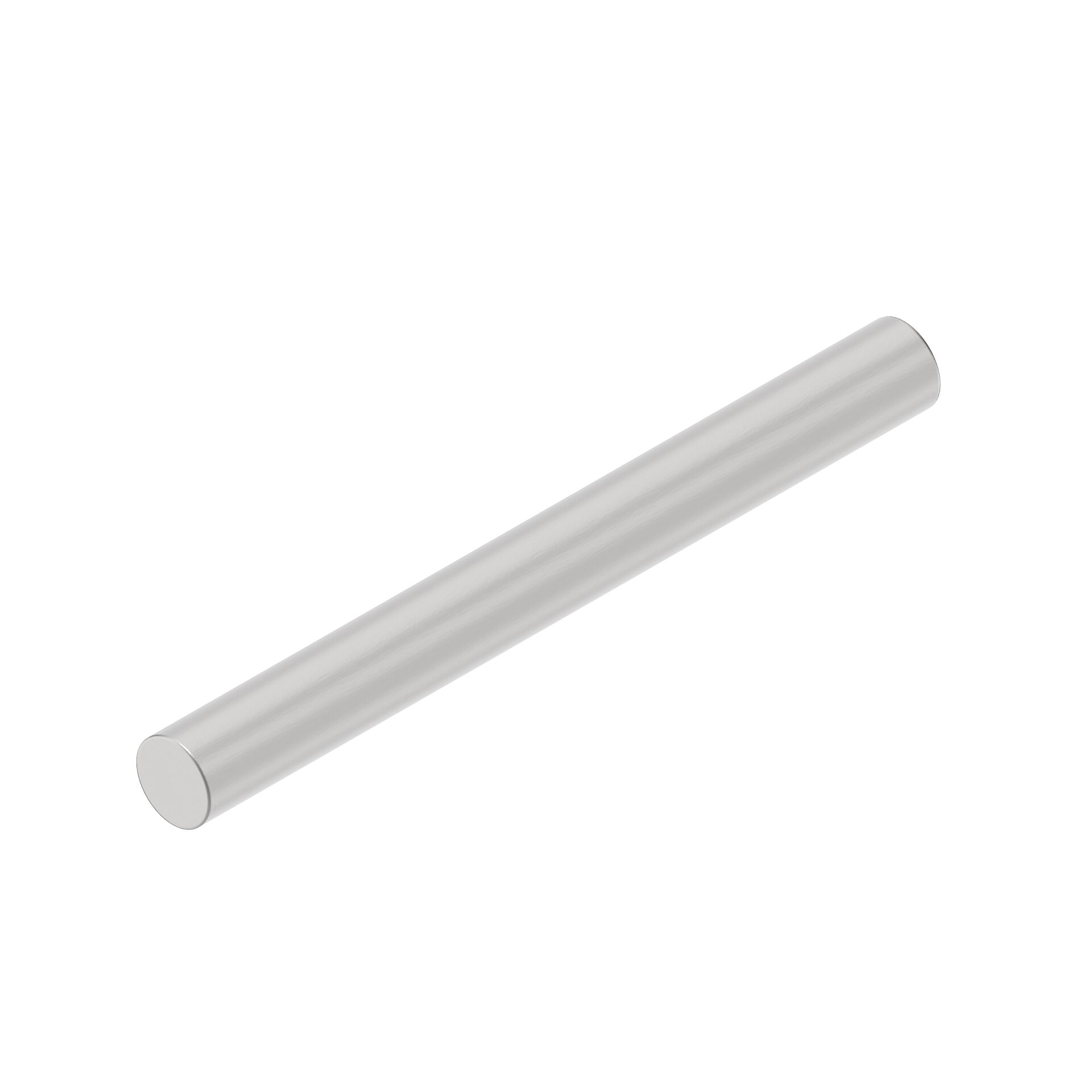

Bosch Rexroth Bosch Rexroth GUIDE ROD LF12 VA

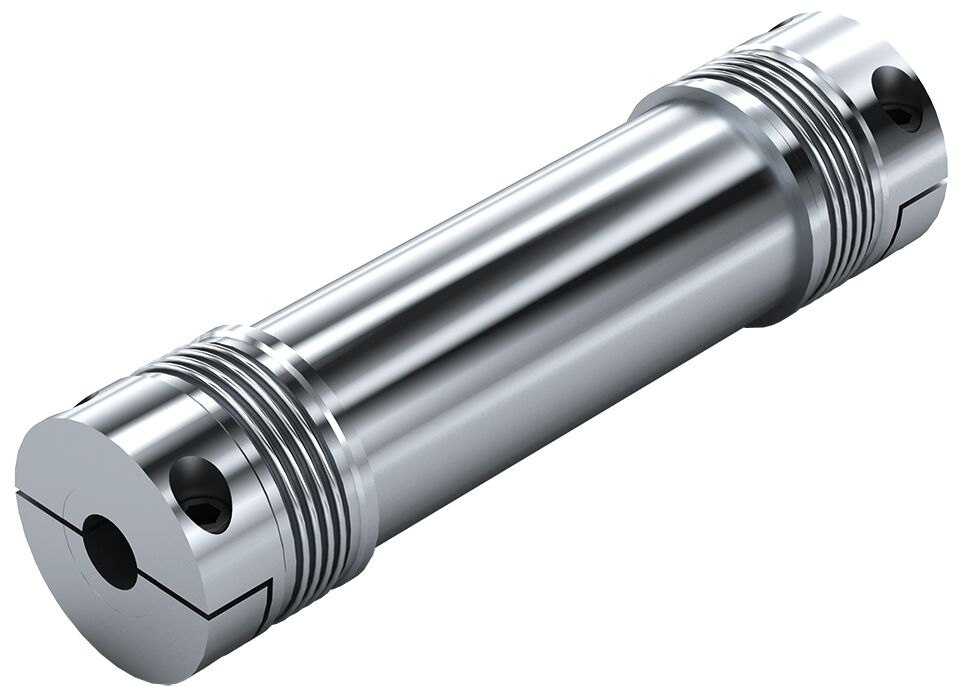

Bosch Rexroth Bosch Rexroth CONNECTING SHAFT MKR-110/-145/MLR-110
