Bosch Rexroth STRUT PROFILE 80X80L 4NVS Q&E
Strut profile 80x80L 4NVS Q&E
| Area moment of inertia in x-direction [lx] [cm⁴] | 142.5 |
|---|---|
| Area moment of inertia in y-direction [ly] [cm⁴] | 142.5 |
| Color | Natural |
| Condition on delivery | Profile finishing |
| Cross-section | 80x80L 4NVS |
| Customized profile finishing | DI / DIS / MT / MTS / MI / MIS / DG |
| Dimensions | 80x80 |
| ESD | Yes |
| Individual profile finishing [L max i] [mm] | 5400 |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 50 |
| Mass [m] [kg] | 5.2 |
| Material | Aluminum, anodized |
| Modular dimension [mm] | 40 |
| Moment of resistance in the x-direction [Wx] [cm³] | 35.6 |
| Moment of resistance in the y-direction [Wy] [cm³] | 35.6 |
| Moment of torsion resistance [Wt] [cm³] | 16.8 |
| Notice | DGmax = 45°, Lmin1 / Lmin2 = 439/578mm |
| Open slots | 4.0 |
| Packaging unit | 1 |
| Profile slot | 10 |
| Profile surface [A] [cm²] | 19.3 |
| Profile type | 4NVS |
| Recommended accessories | Cover cap 80x80, signal gray |
| Standard profile finishing | M12 / D9.8 / D17 / DB17 |
| Standard profile finishing [L max] [mm] | 6000 |
| Standard profile finishing minimum length | Observe minimum length |
| Torsional moment of inertia [It] [cm⁴] | 92.0 |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for 3842993758?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 3842993758?
3842993758 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 3842993758?
Key specifications include Area moment of inertia in x-direction [lx] [cm⁴]: 142.5; Area moment of inertia in y-direction [ly] [cm⁴]: 142.5; Color: Natural; Condition on delivery: Profile finishing. The full specification table on this page lists every published attribute for this part.
How quickly can 3842993758 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

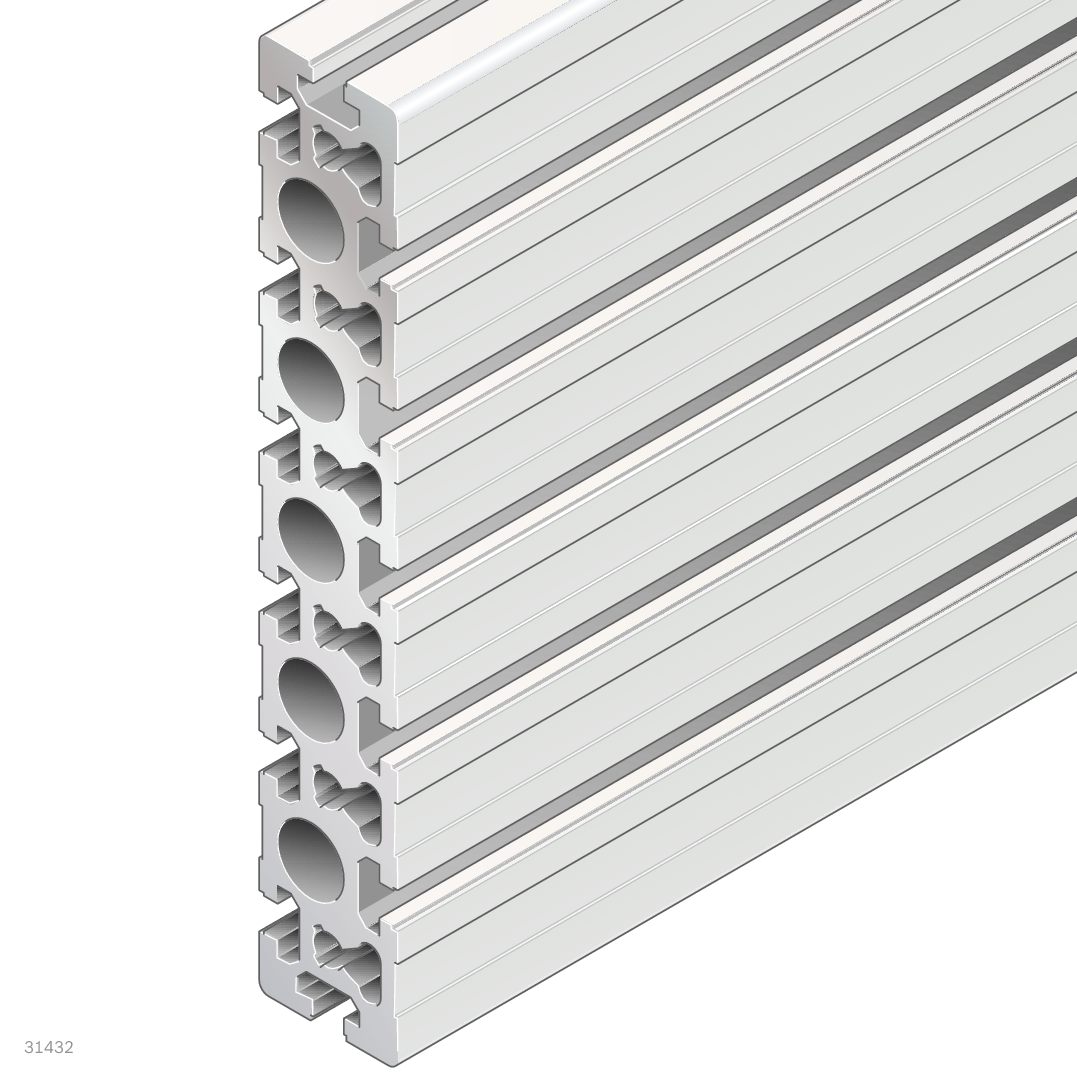

Bosch Rexroth Bosch Rexroth STRUT PROFILE 45X270 Q&E
Bosch Rexroth Bosch Rexroth CARRYING PLATE WT5 / 845X1040X19,05

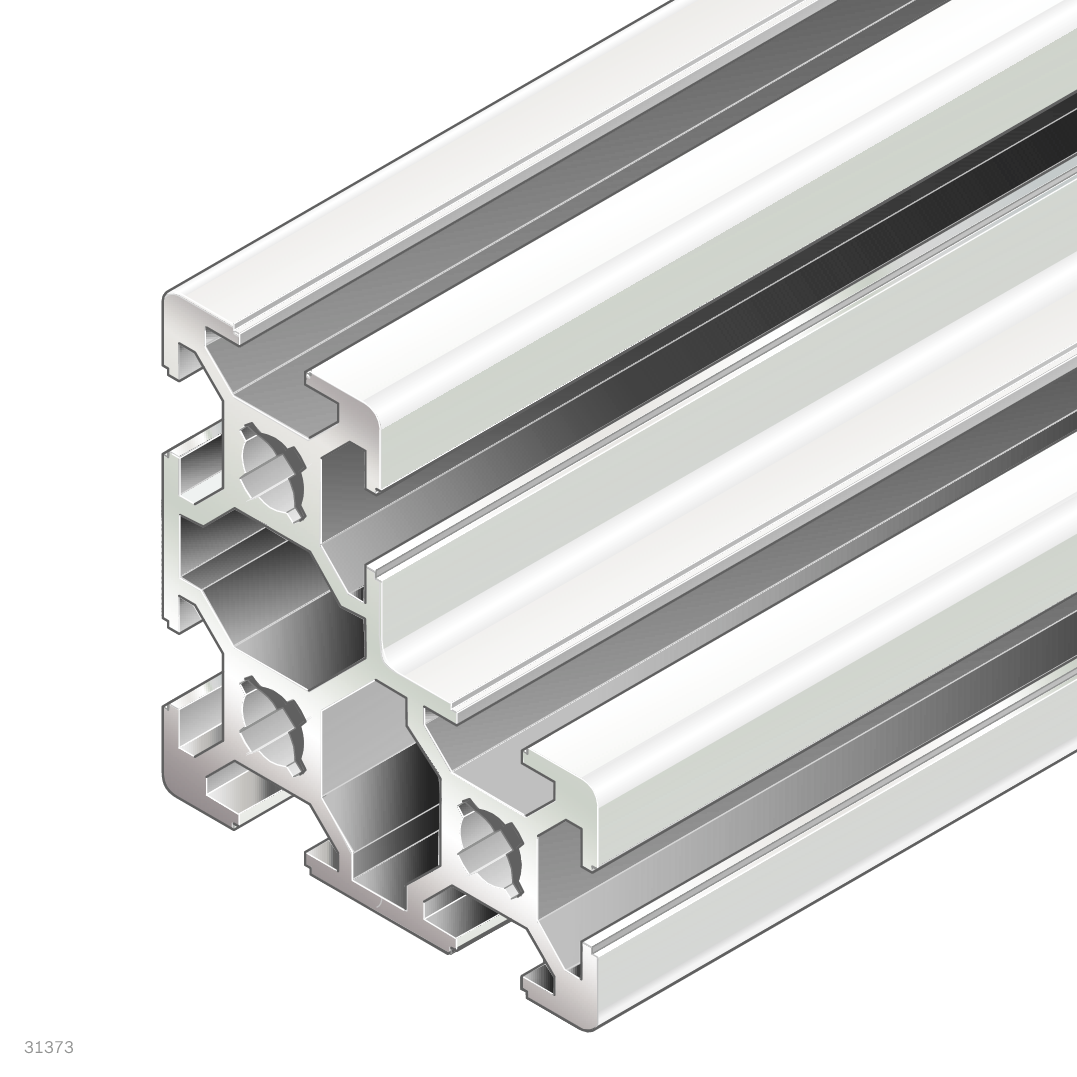

Bosch Rexroth Bosch Rexroth STRUT PROFILE 20X40X40 Q&E

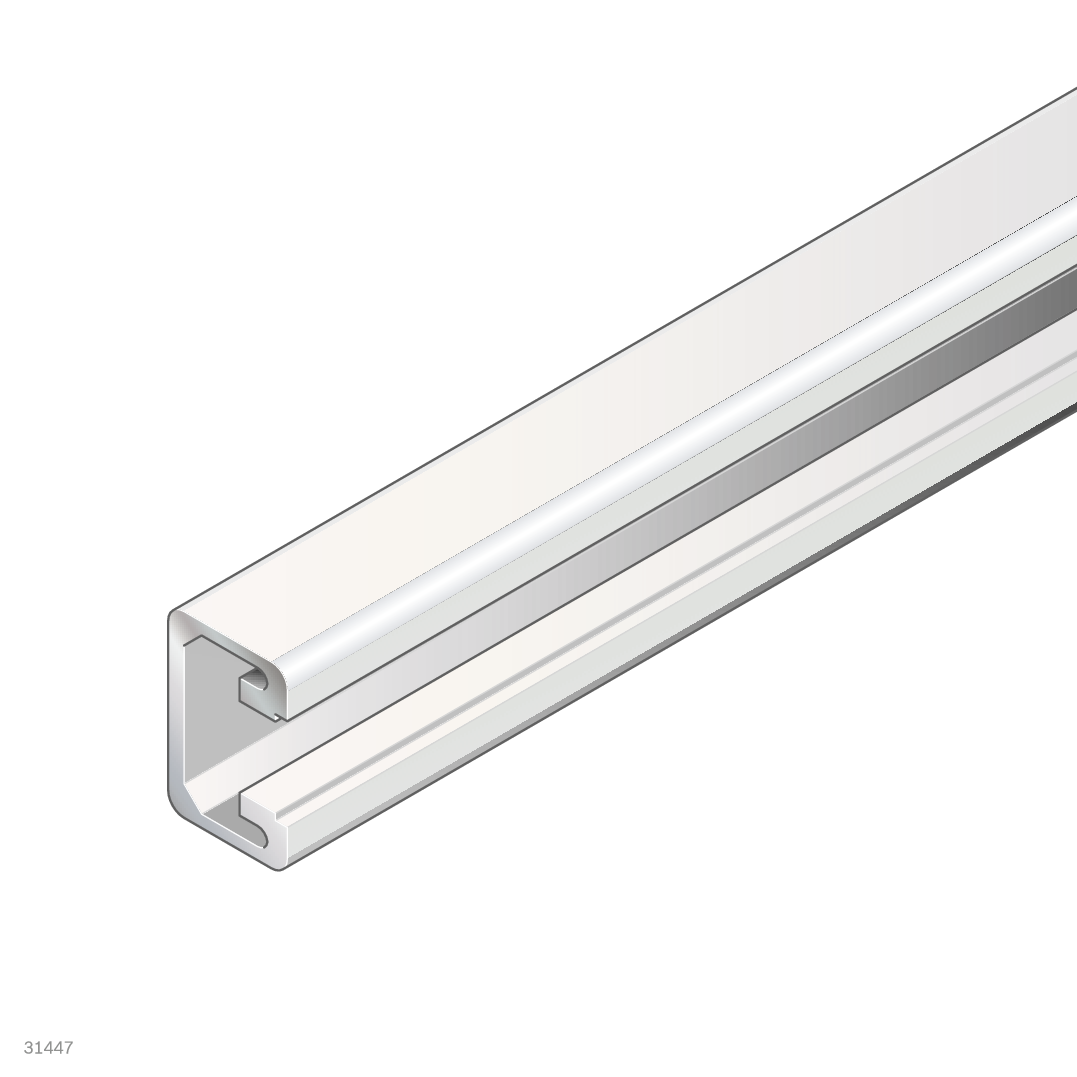

Bosch Rexroth Bosch Rexroth STRUT PROFILE 15X22,5 Q&E
