Bosch Rexroth STRUT PROFILE 20X60 Q&E
Bosch Rexroth 3842993698 - Assembly Technology - Material: Aluminum, anodized; Color: Natural; Dimensions: 20x60.
Bosch Rexroth 3842993698 is a Assembly Technology catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Material: Aluminum, anodized and Color: Natural.
The specification set recorded for this part number covers Dimensions: 20x60; Weight (Kg): 0; Packaging unit: 1; Notice: DGmax = 45°, Lmin1 / Lmin2 = 404/508mm; Condition on delivery: Profile finishing; Profile slot: 6; Cross-section: 20x60; Modular dimension [mm]: 20; Profile type: Standard; Mass [m] [kg]: 0.9; Area moment of inertia in x-direction [lx] [cm⁴]: 14.2; Area moment of inertia in y-direction [ly] [cm⁴]: 1.7. The complete technical table is shown in the Specifications tab on this page.
| Area moment of inertia in x-direction [lx] [cm⁴] | 14.2 |
|---|---|
| Area moment of inertia in y-direction [ly] [cm⁴] | 1.7 |
| Color | Natural |
| Condition on delivery | Profile finishing |
| Cross-section | 20x60 |
| Dimensions | 20x60 |
| Individual profile finishing [L max i] [mm] | 2300 |
| Length max [L max] [mm] | 3000 |
| Length min [L min] [mm] | 50 |
| Mass [m] [kg] | 0.9 |
| Material | Aluminum, anodized |
| Modular dimension [mm] | 20 |
| Moment of resistance in the x-direction [Wx] [cm³] | 4.7 |
| Moment of resistance in the y-direction [Wy] [cm³] | 1.7 |
| Moment of torsion resistance [Wt] [cm³] | 2.0 |
| Notice | DGmax = 45°, Lmin1 / Lmin2 = 404/508mm |
| Open slots | 6.0 |
| Packaging unit | 1 |
| Profile slot | 6 |
| Profile surface [A] [cm²] | 3.5 |
| Profile type | Standard |
| Recommended accessories | Cover cap 20x60, black |
| Standard profile finishing minimum length | Observe minimum length |
| Torsional moment of inertia [It] [cm⁴] | 2.3 |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for 3842993698?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 3842993698?
3842993698 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 3842993698?
Key specifications include Area moment of inertia in x-direction [lx] [cm⁴]: 14.2; Area moment of inertia in y-direction [ly] [cm⁴]: 1.7; Color: Natural; Condition on delivery: Profile finishing. The full specification table on this page lists every published attribute for this part.
How quickly can 3842993698 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth STRUT PROFILE 20X20 Q&E
Bosch Rexroth Bosch Rexroth STRUT PROFILE 22,5X45 Q&E

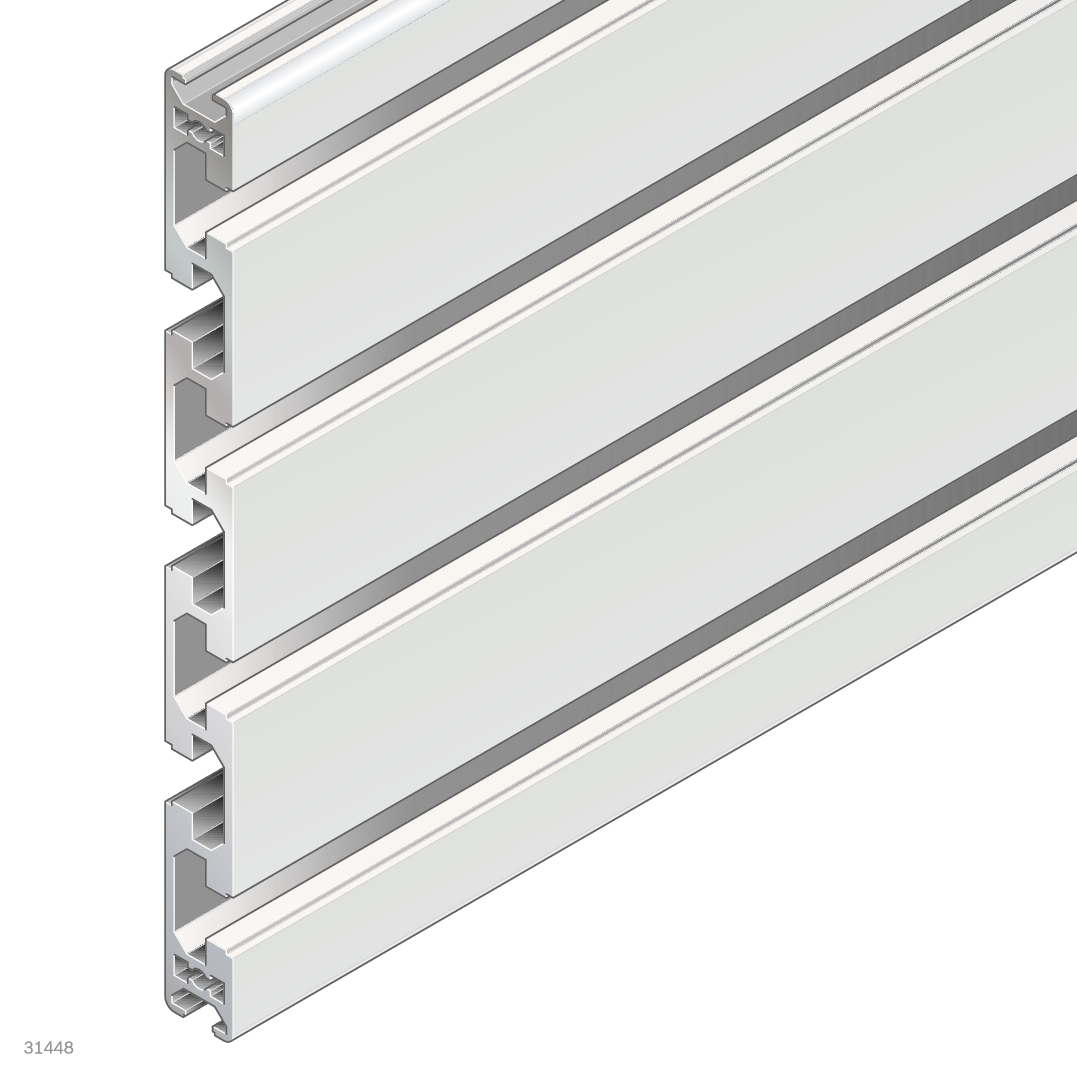

Bosch Rexroth Bosch Rexroth STRUT PROFILE NUTENPL.15X180 Q&E
Bosch Rexroth Bosch Rexroth STRUT PROFILE 30X30 1N Q&E

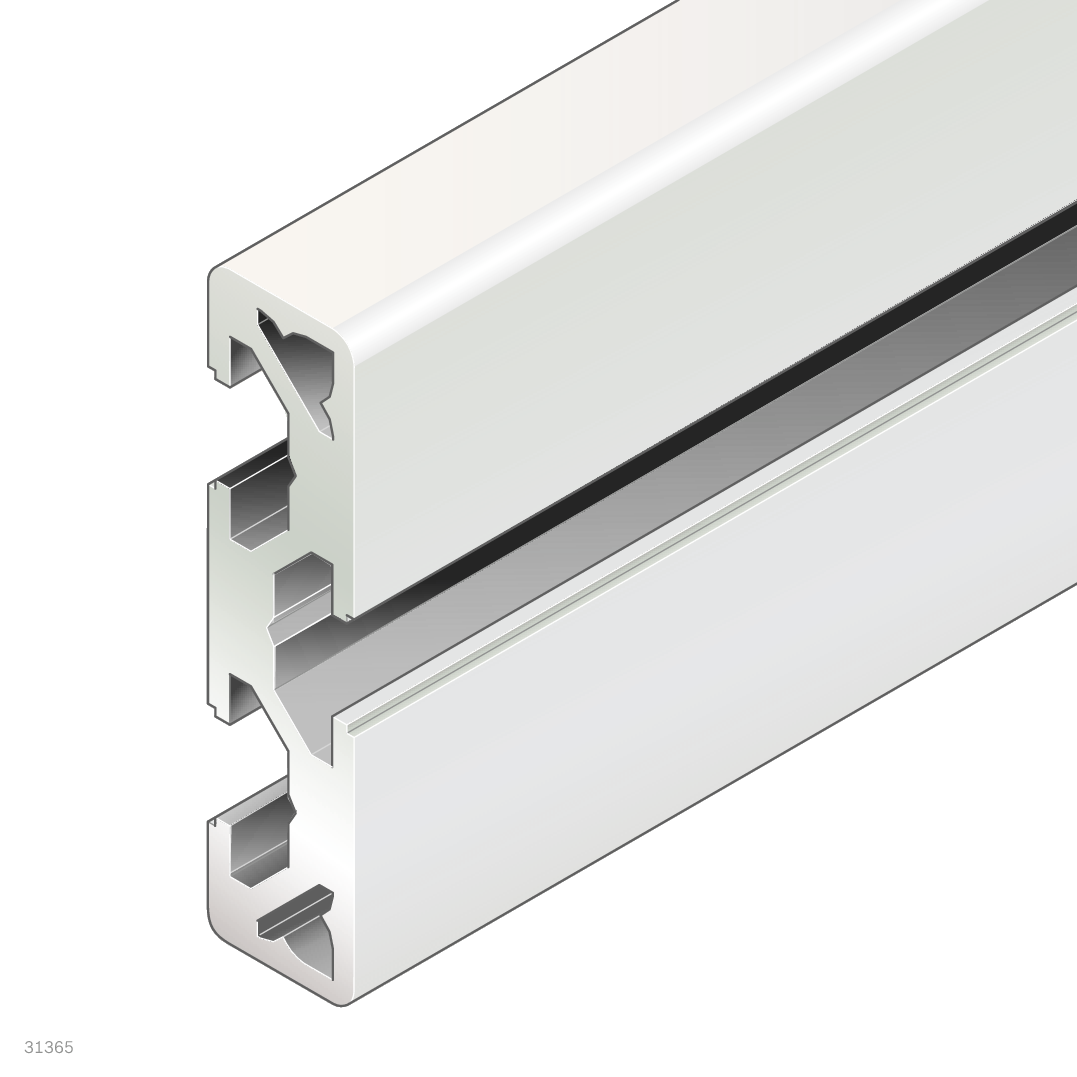

Bosch Rexroth Bosch Rexroth STRUT PROFILE GROOVED PLATE 10X40 Q&E
