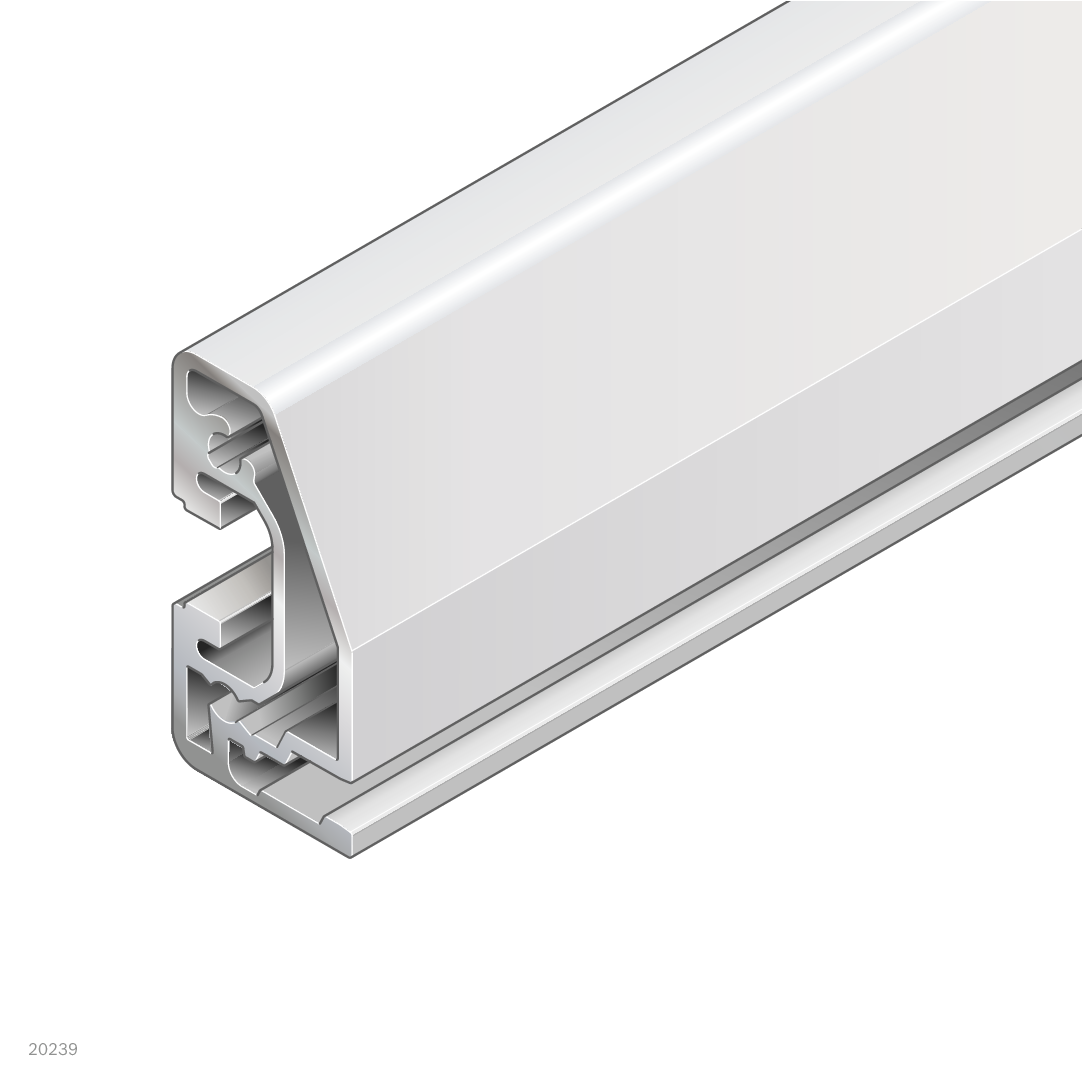

Bosch Rexroth FRAME PROFILE 22,5X45
Bosch Rexroth 3842992411 - Assembly Technology - Material: Aluminum, anodized; Weight (Kg): 0; Condition on delivery: Variable length.
The Bosch Rexroth 3842992411 is part of the Assembly Technology range in our industrial catalog. The manufacturer's published data for this part number specifies Material: Aluminum, anodized and Weight (Kg): 0.
The specification set recorded for this part number covers Condition on delivery: Variable length; Profile slot: 10; Delivery unit: 1; Mass [m] [kg]: 0.9; Area moment of inertia in x-direction [lx] [cm⁴]: 6.7; Area moment of inertia in y-direction [ly] [cm⁴]: 1.7; Profile surface [A] [cm²]: 3.4; Moment of resistance in the x-direction [Wx] [cm³]: 2.8; Moment of resistance in the y-direction [Wy] [cm³]: 1.3; Recommended accessories: Bracket set; Length max [L max] [mm]: 6070; Length min [L min] [mm]: 50. The complete technical table is shown in the Specifications tab on this page.
| Area moment of inertia in x-direction [lx] [cm⁴] | 6.7 |
|---|---|
| Area moment of inertia in y-direction [ly] [cm⁴] | 1.7 |
| Condition on delivery | Variable length |
| Delivery unit | 1 |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 50 |
| Mass [m] [kg] | 0.9 |
| Material | Aluminum, anodized |
| Moment of resistance in the x-direction [Wx] [cm³] | 2.8 |
| Moment of resistance in the y-direction [Wy] [cm³] | 1.3 |
| Profile slot | 10 |
| Profile surface [A] [cm²] | 3.4 |
| Recommended accessories | Bracket set |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for 3842992411?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 3842992411?
3842992411 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 3842992411?
Key specifications include Area moment of inertia in x-direction [lx] [cm⁴]: 6.7; Area moment of inertia in y-direction [ly] [cm⁴]: 1.7; Condition on delivery: Variable length; Delivery unit: 1. The full specification table on this page lists every published attribute for this part.
How quickly can 3842992411 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

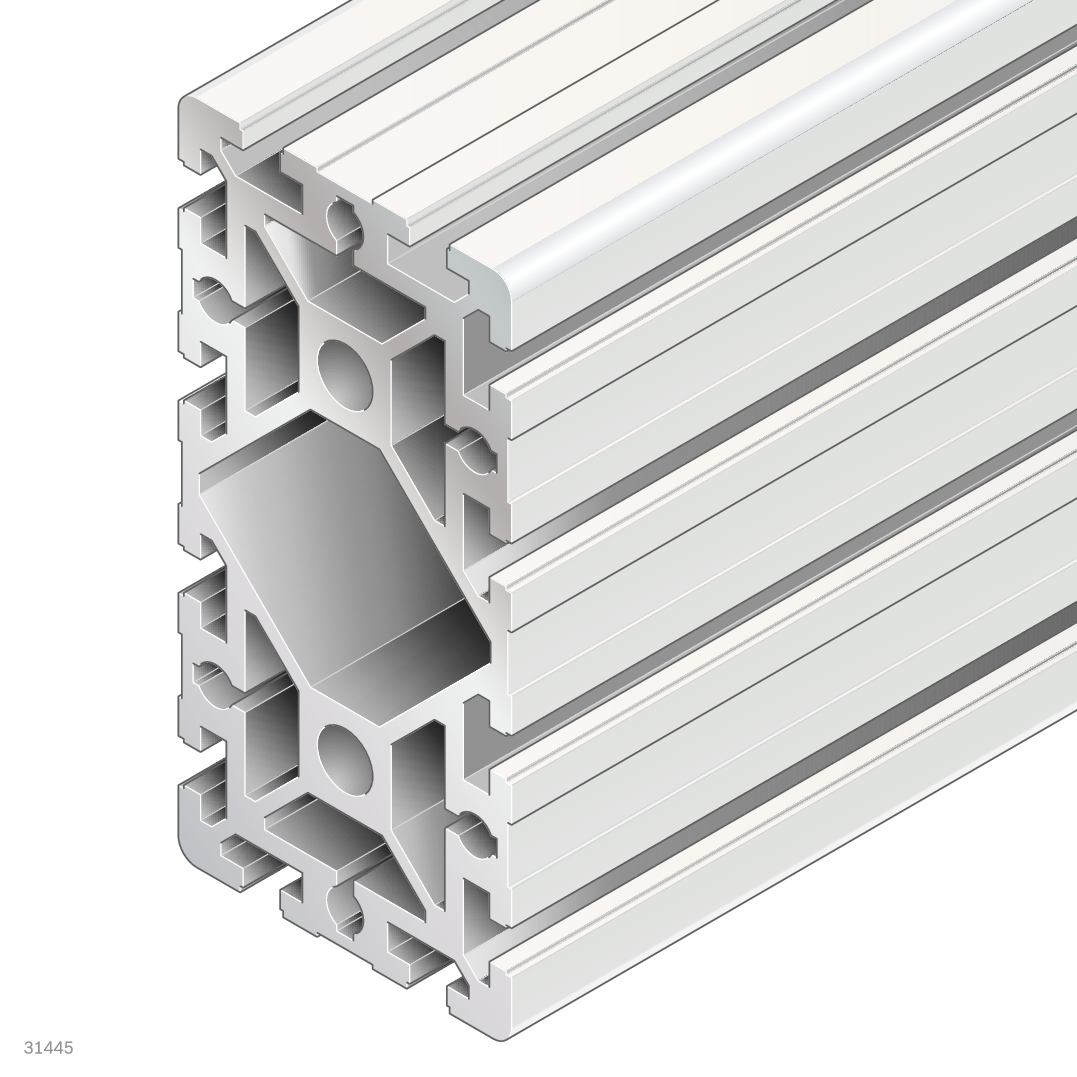

Bosch Rexroth Bosch Rexroth STRUT PROFILE 90X180 D17V/D17V

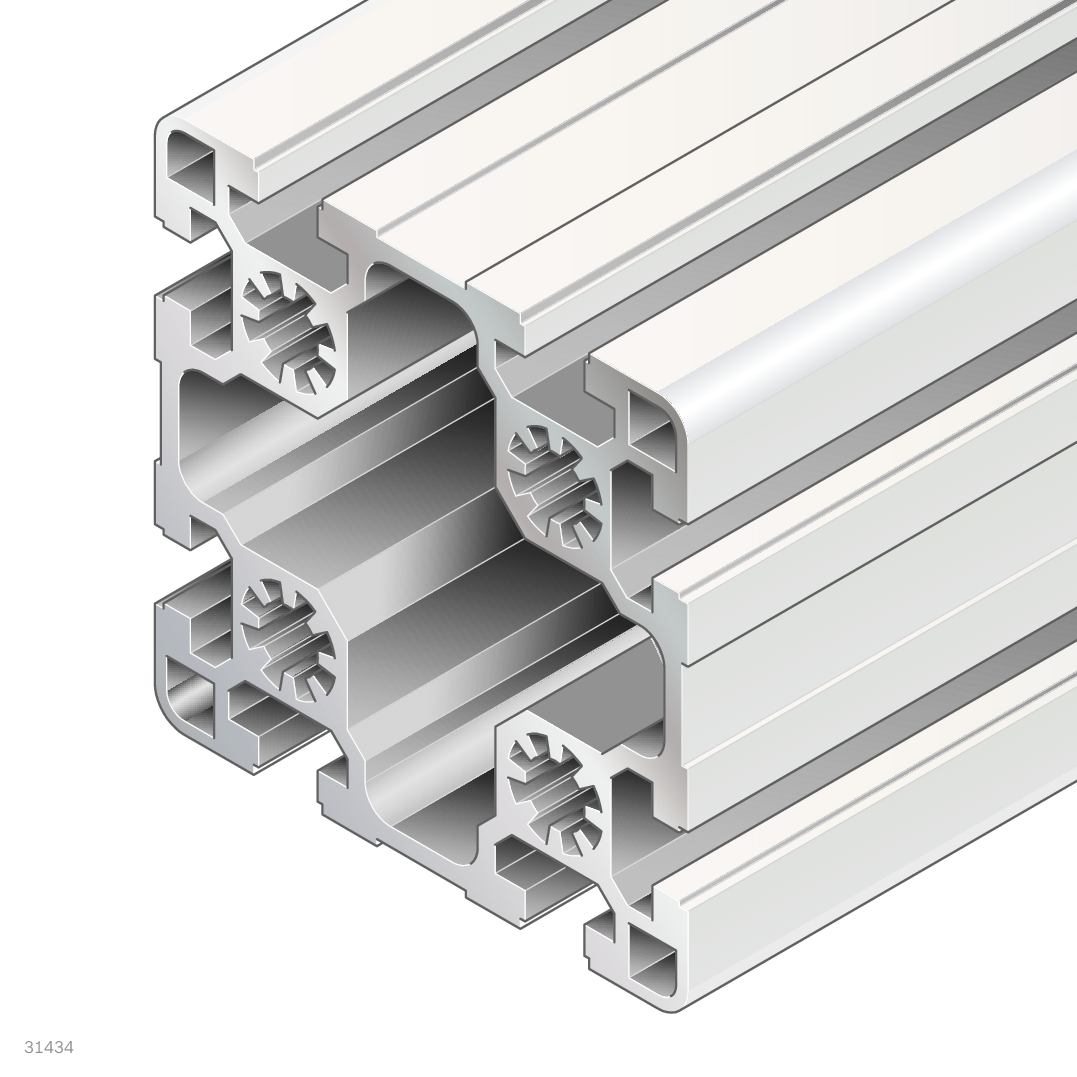

Bosch Rexroth Bosch Rexroth STRUT PROFILE 90X90L

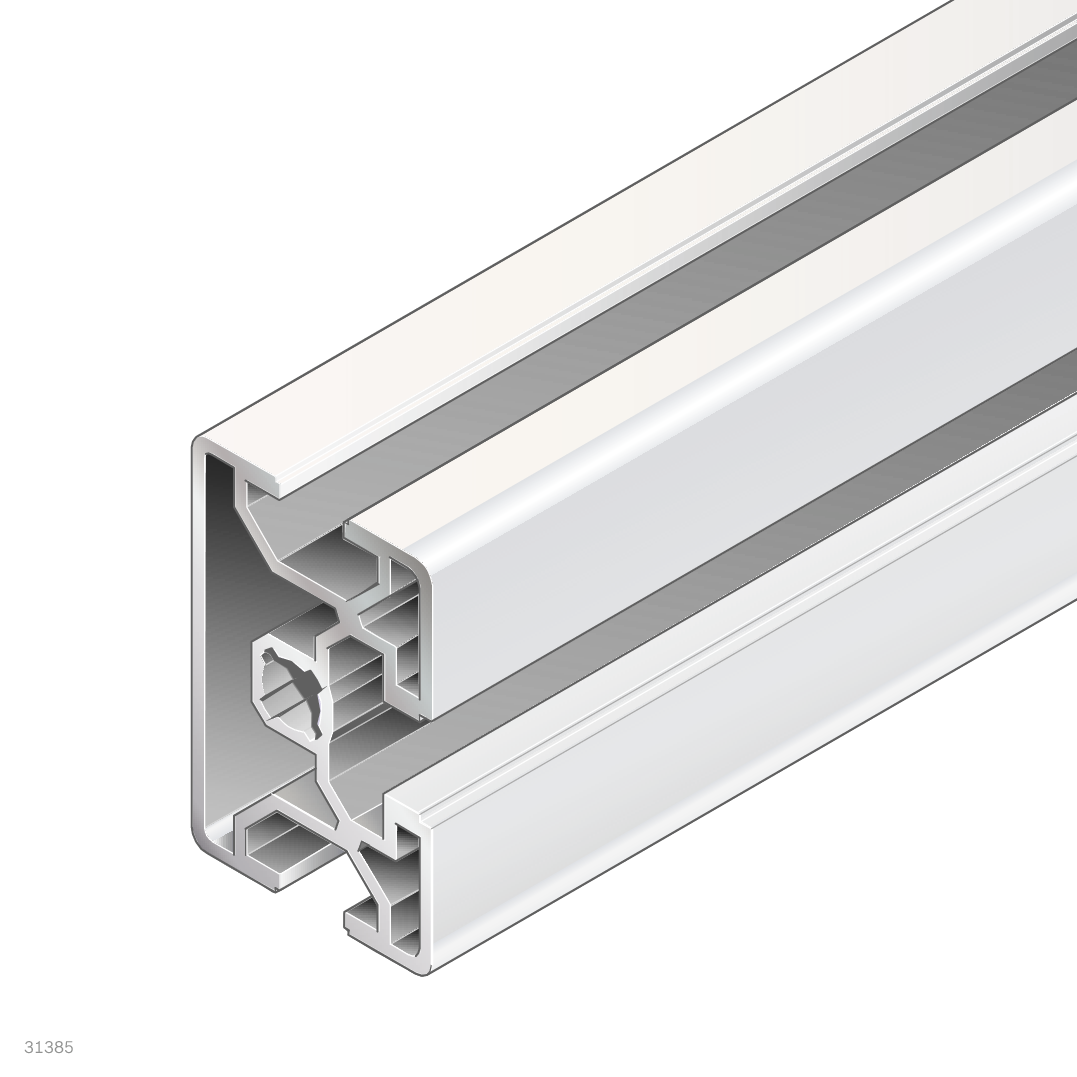

Bosch Rexroth Bosch Rexroth STRUT PROFILE 30X45
Bosch Rexroth Bosch Rexroth STRUT PROFILE 45X60 D17V/-

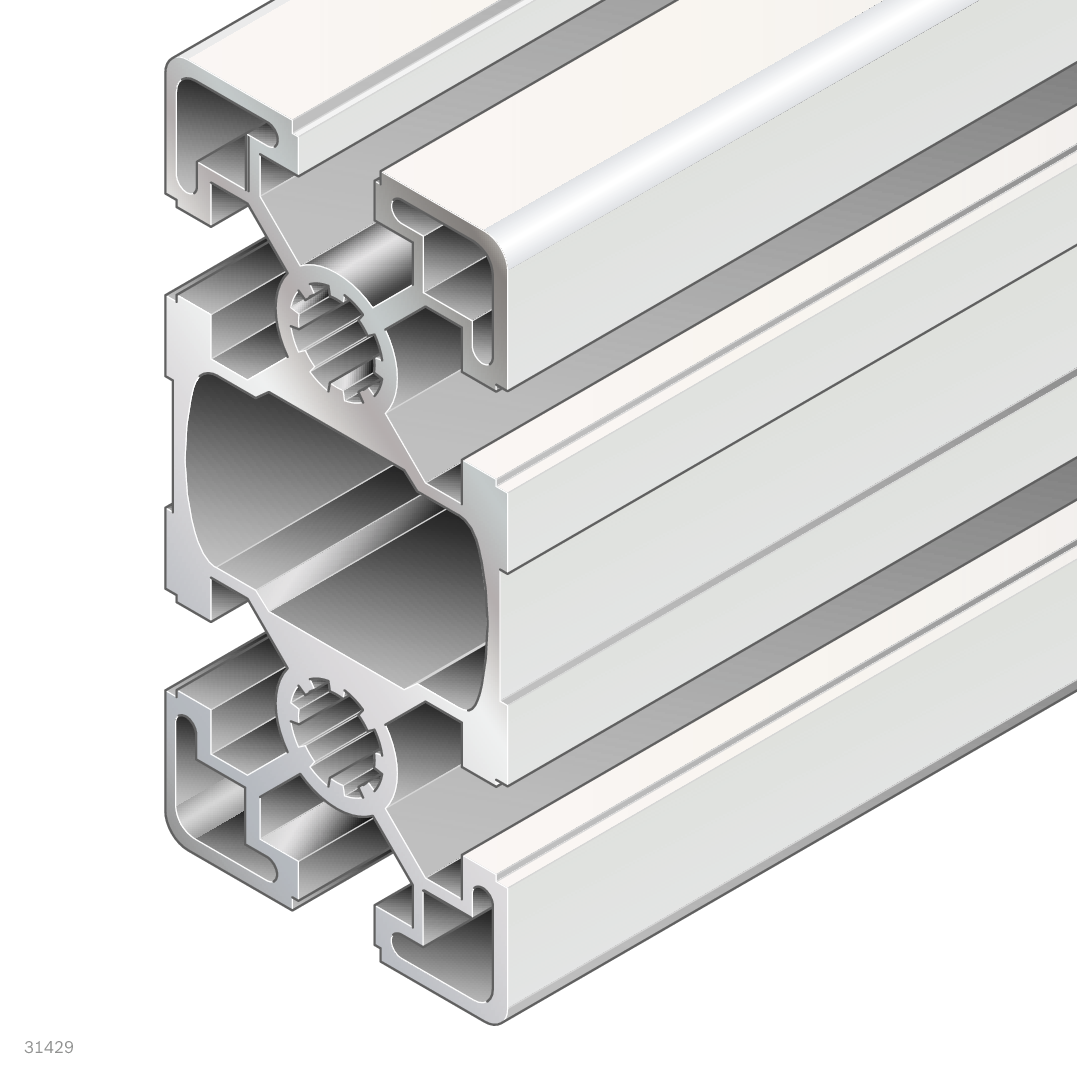

Bosch Rexroth Bosch Rexroth STRUT PROFILE 45X90L D17V/D17V
