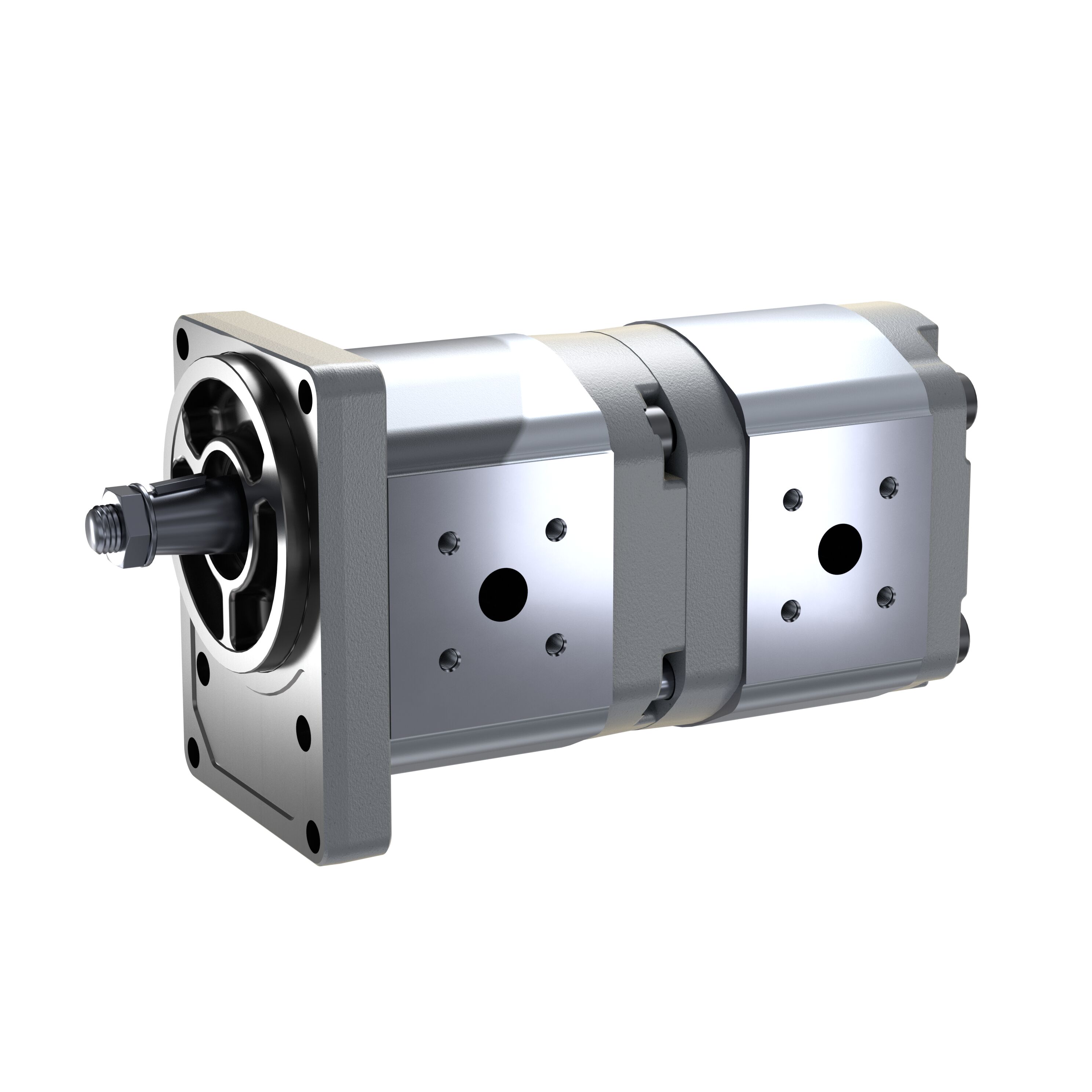

Bosch Rexroth HYDRAULIC GEAR PUMP AZPGG-22-032/022RCB2020MB
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology
| Direction of rotation | clockwise rotation |
|---|---|
| Drive shaft | Conical 1:5 |
| Front cover | Rectangular flange Ø 105 mm |
| Function | Pump |
| Housing material | Aluminum |
| Max. flow PU2 [l/min] | 61.6 |
| Max. intermittent pressure pump unit 1 [bar] | 280.0 |
| Max. intermittent pressure pump unit 2 [bar] | 280.0 |
| Maximum rotational speed [rpm] | 2800.0 |
| Model | Model G (22.5 ... 56 cm³/rev) |
| Model pump unit 2 | Model G (22.5 ... 56 cm³/rev) |
| Noise level | Standard noise level |
| Nominal size [cm³/rev] | 32.0 |
| Port connection | Rectangular flange for fitting ISO8434-1 |
| Port connection pump unit 2 | Rectangular flange for fitting ISO8434-1 |
| Product | External gear unit |
| Rear cover | Standard |
| Sealing material | NBR |
| Series | Bearing diameter Ø 26mm |
| Size pump unit 2 [cm³/rev] | 22.0 |
| Version | corrosion-resistant, pinned |
| Weight (Kg) | 18.4 |
Frequently Asked Questions
How do I get pricing for 0510767079?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 0510767079?
0510767079 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 0510767079?
Key specifications include Direction of rotation: clockwise rotation; Drive shaft: Conical 1:5; Front cover: Rectangular flange Ø 105 mm; Function: Pump. The full specification table on this page lists every published attribute for this part.
How quickly can 0510767079 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

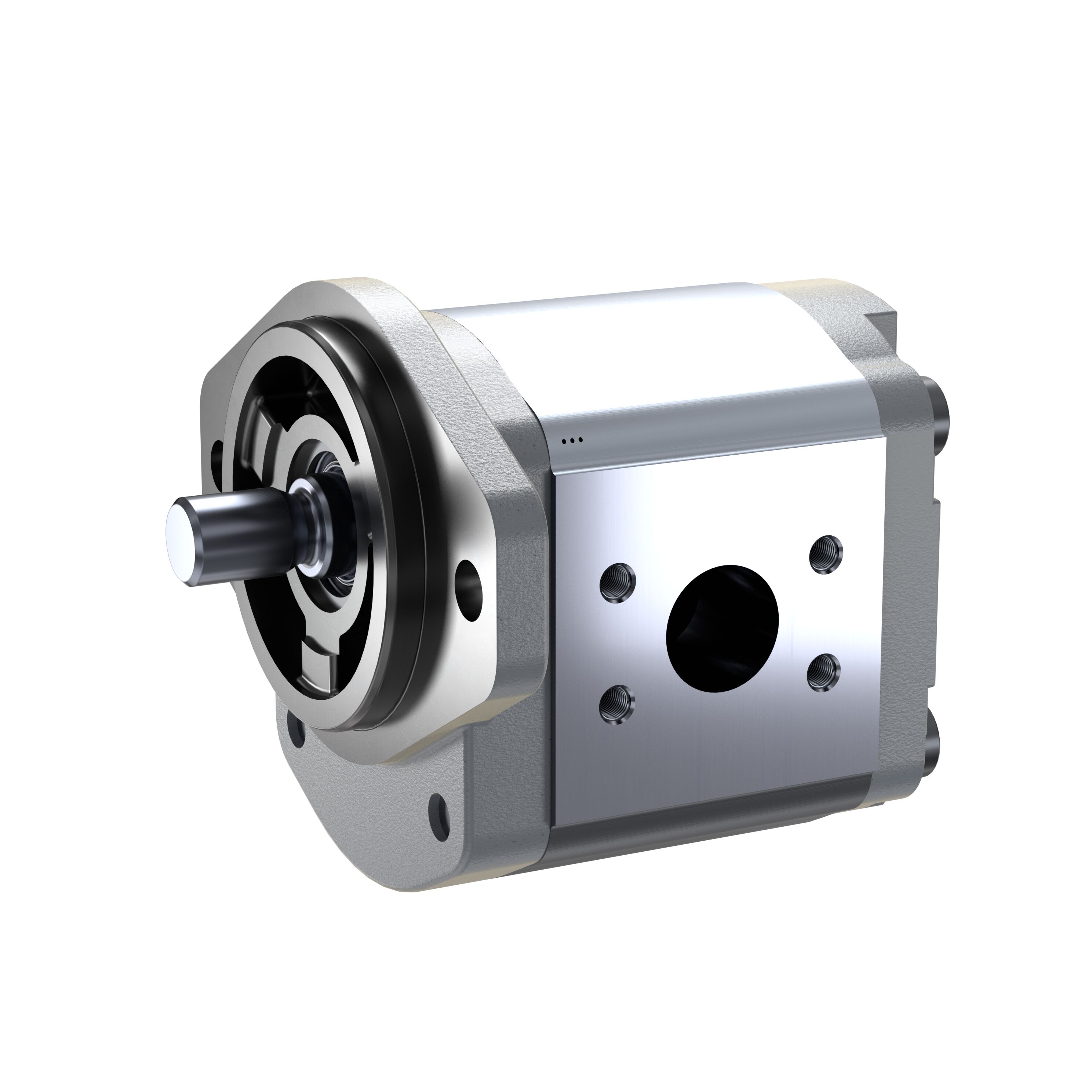

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPG-22-040RDC07KB-S0081

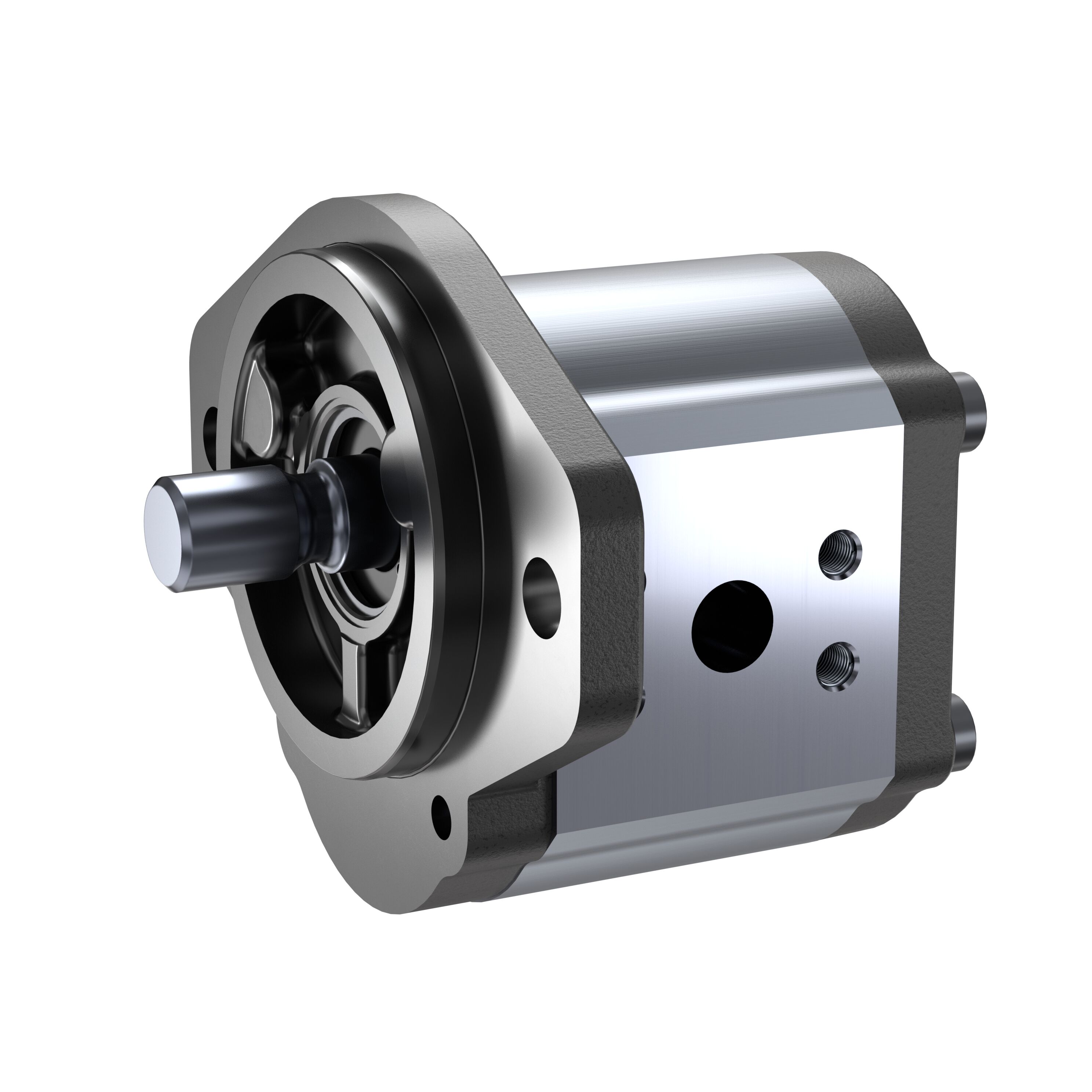

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPN-11-032RDC07KB-S0081
