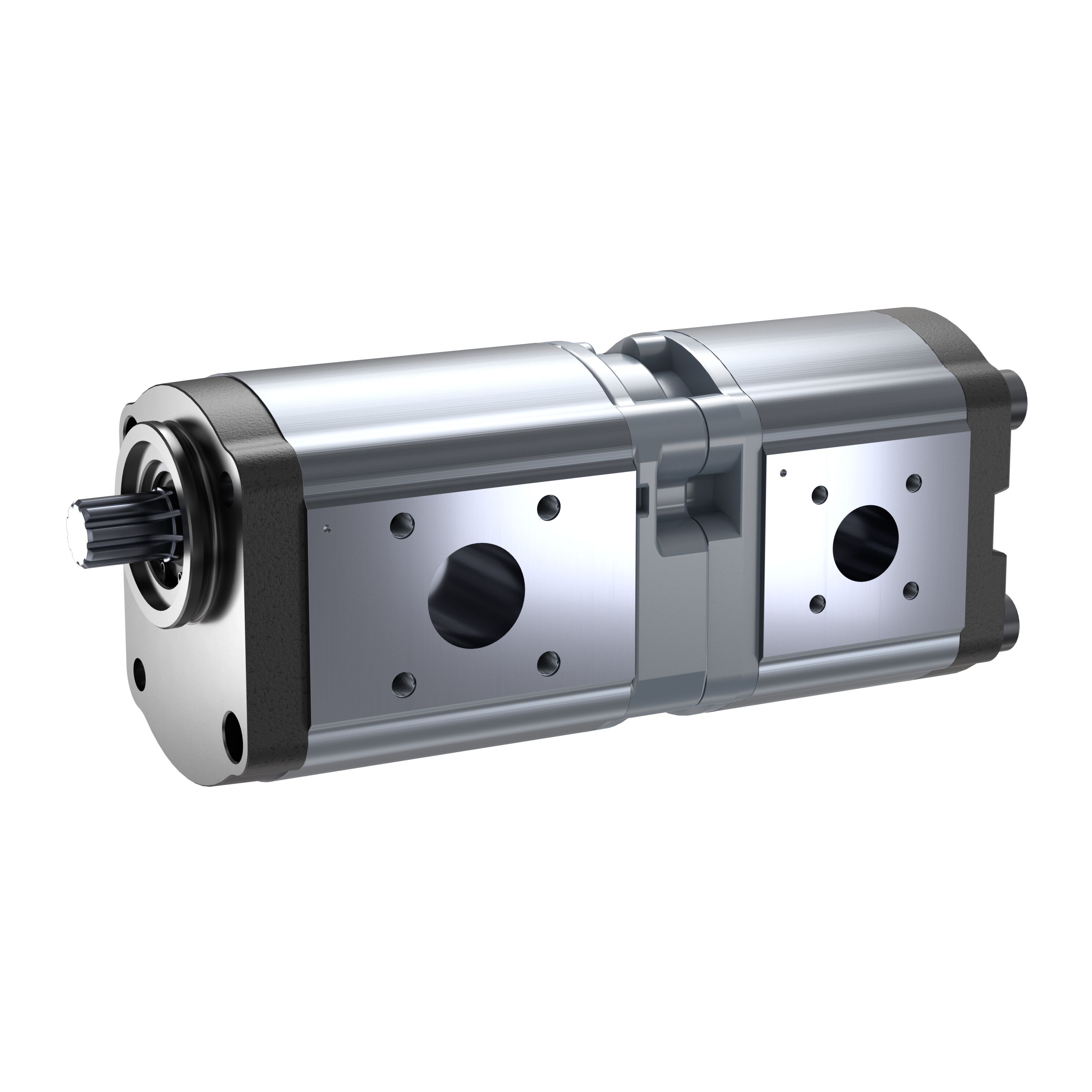

Bosch Rexroth HYDRAULIC GEAR PUMP AZPFF-10-022/014LFP2020MB-S0040
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology
| Direction of rotation | anti clockwise rotation |
|---|---|
| Drive shaft | Splined shaft DIN 5482 B17x14 |
| Front cover | 2-hole mounting Ø 50 mm (K H D) |
| Function | Pump |
| Housing material | Aluminum |
| Max. flow PU2 [l/min] | 42.0 |
| Max. intermittent pressure pump unit 1 [bar] | 230.0 |
| Max. intermittent pressure pump unit 2 [bar] | 250.0 |
| Maximum rotational speed [rpm] | 3000.0 |
| Model | Model F (4 ... 28 cm³/rev) |
| Model pump unit 2 | Model F (4 ... 28 cm³/rev) |
| Noise level | Standard noise level |
| Nominal size [cm³/rev] | 22.0 |
| Non-standard version | Deviations from catalogue standards, see drawing |
| Port connection | Square flange DIN 3901/3902 |
| Port connection pump unit 2 | Square flange DIN 3901/3902 |
| Product | External gear unit |
| Rear cover | Standard |
| Sealing material | NBR |
| Series | Bearing diameter Ø 18mm |
| Size pump unit 2 [cm³/rev] | 14.0 |
| Version | Phosphated |
| Weight (Kg) | 5.65 |
Frequently Asked Questions
How do I get pricing for 0510765315?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 0510765315?
0510765315 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 0510765315?
Key specifications include Direction of rotation: anti clockwise rotation; Drive shaft: Splined shaft DIN 5482 B17x14; Front cover: 2-hole mounting Ø 50 mm (K H D); Function: Pump. The full specification table on this page lists every published attribute for this part.
How quickly can 0510765315 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

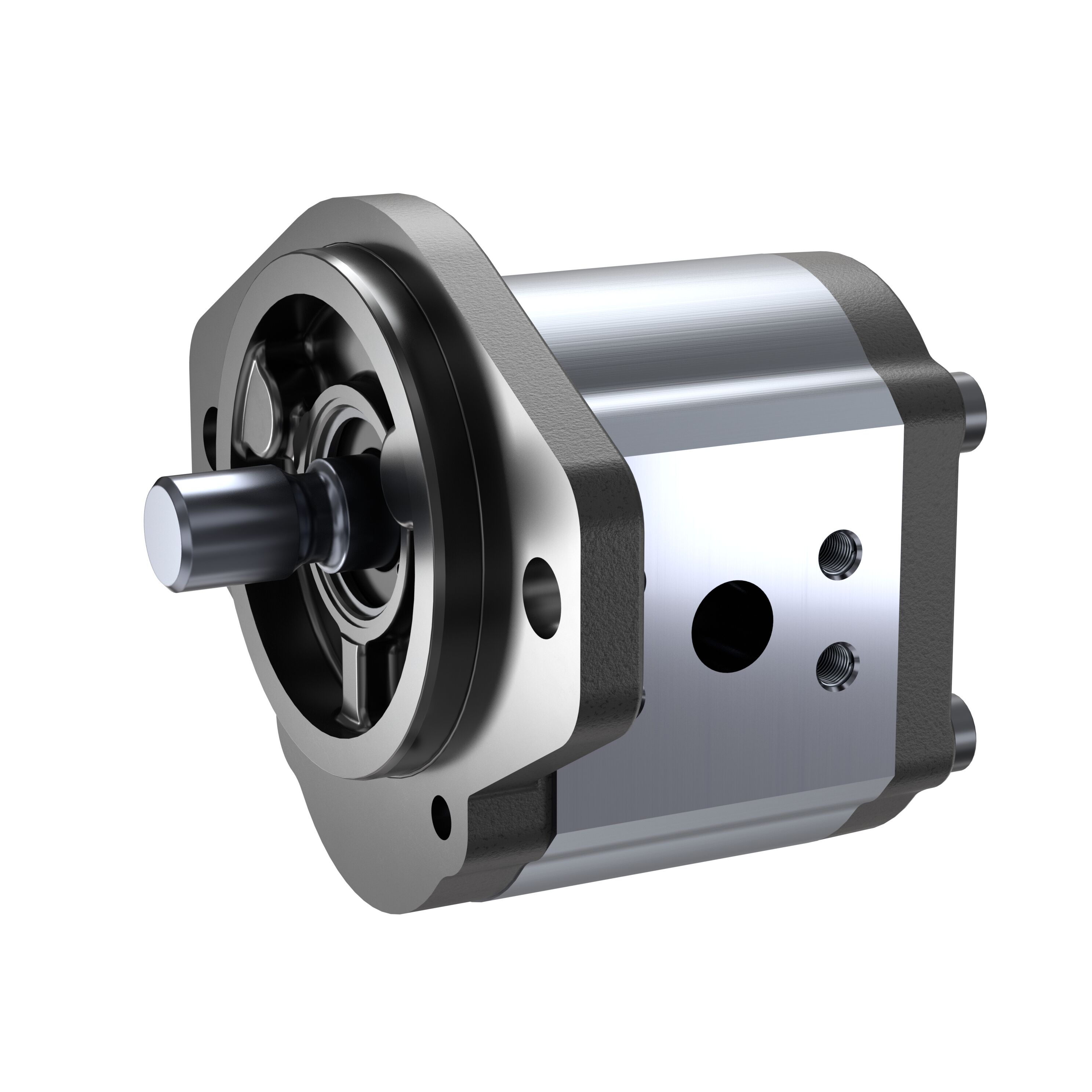

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPN-11-025LDC07KB-S0081

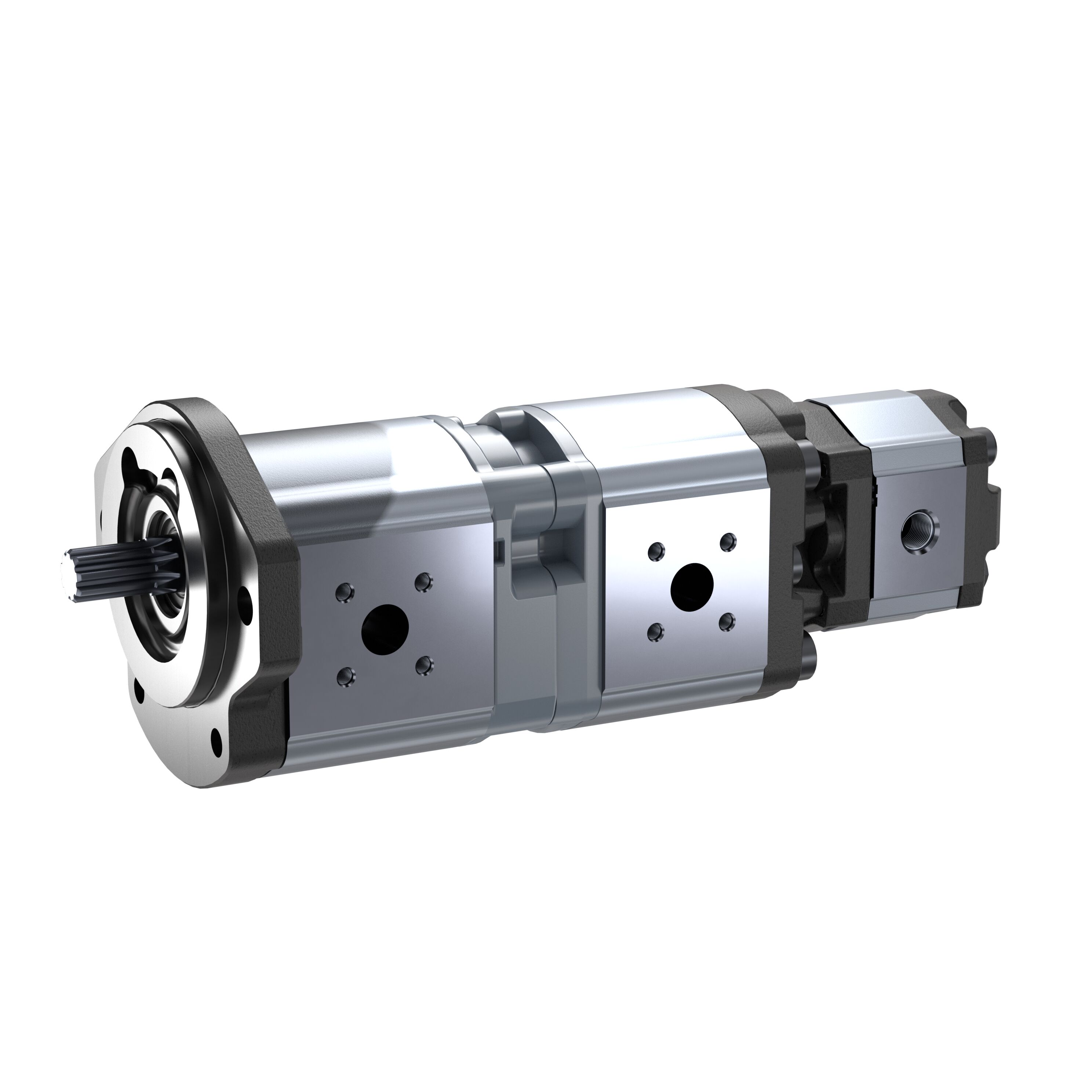

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPFFB-11-016/011/2.0RRR202002MB

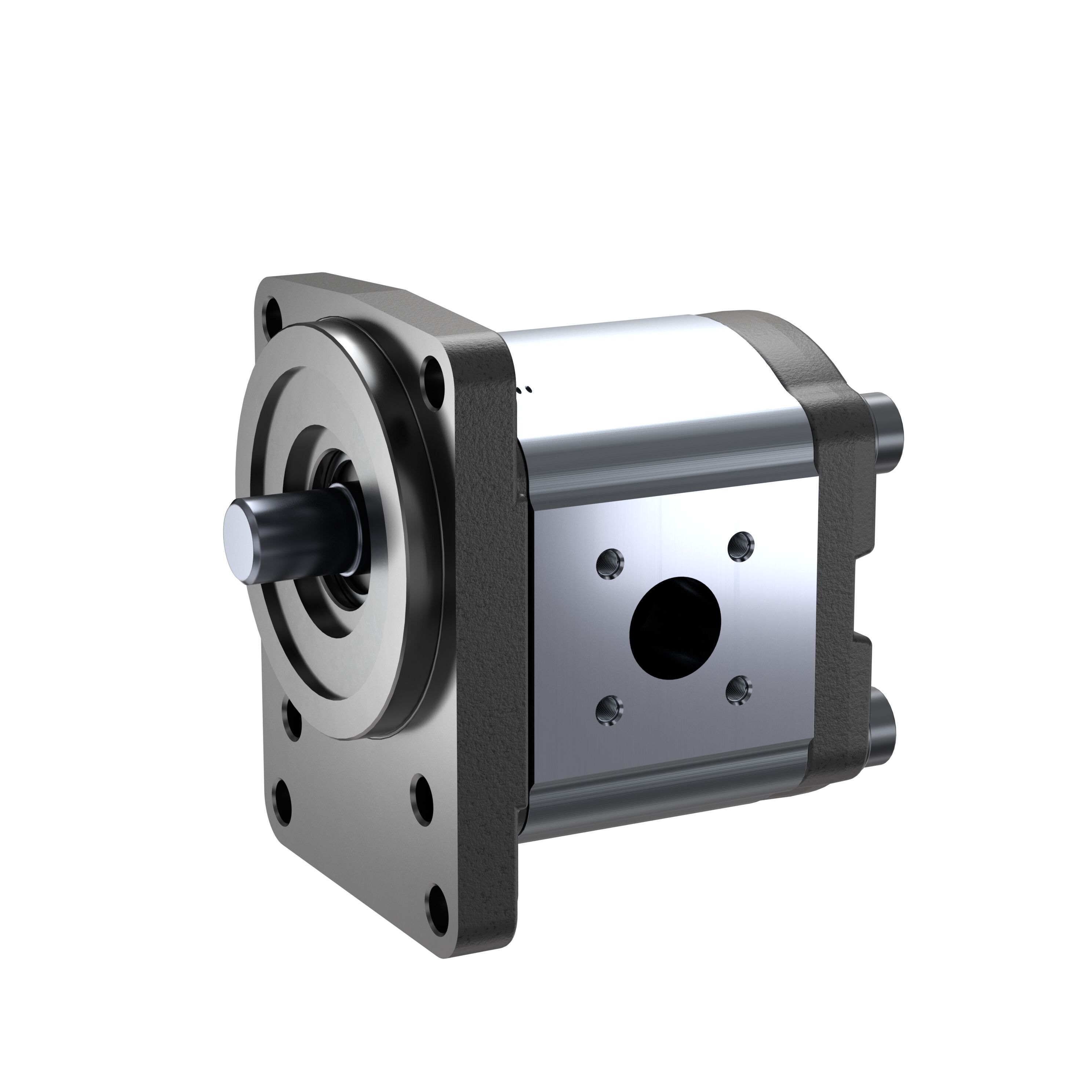

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPF-11-019LFB20MB

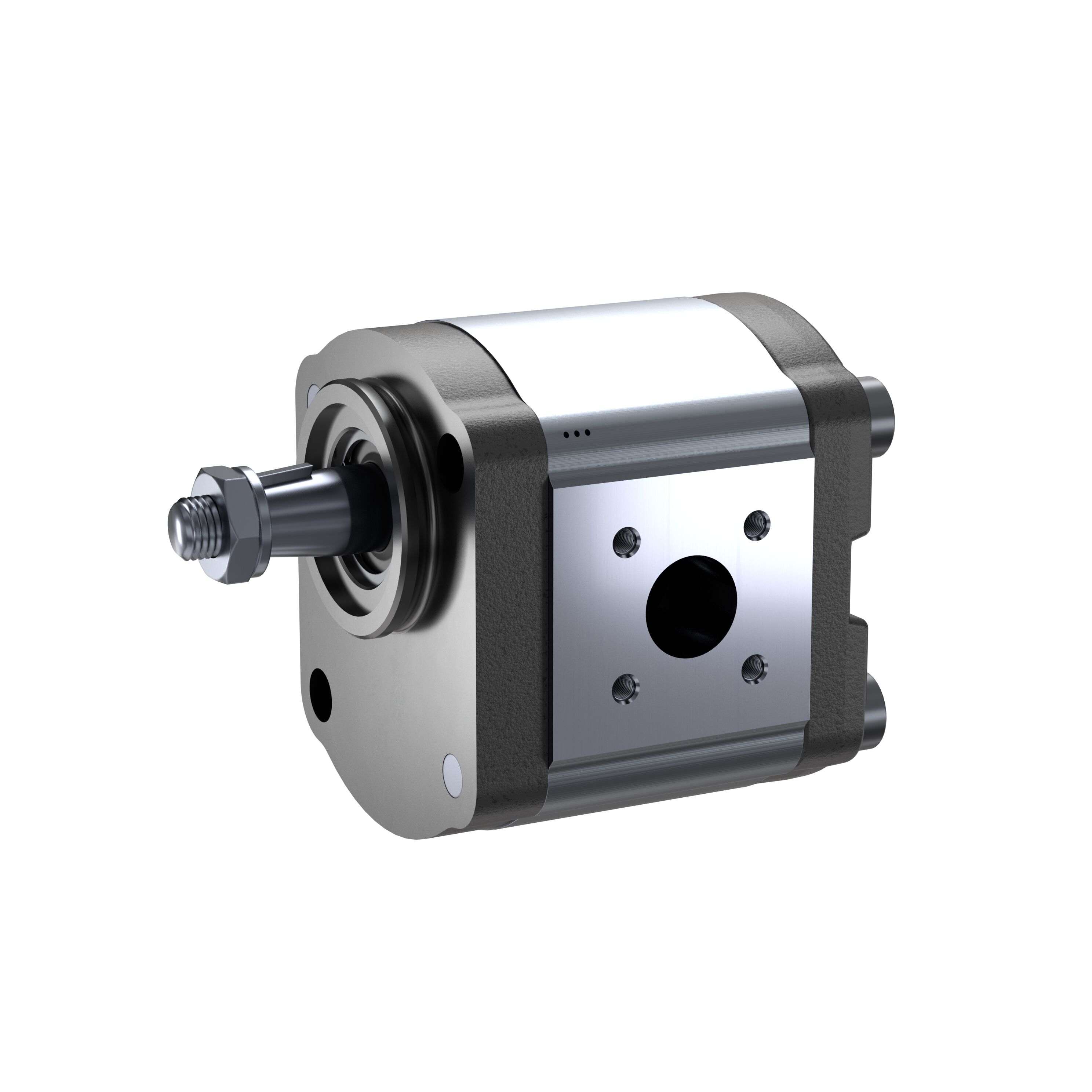

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPF-11-016LCN20MB

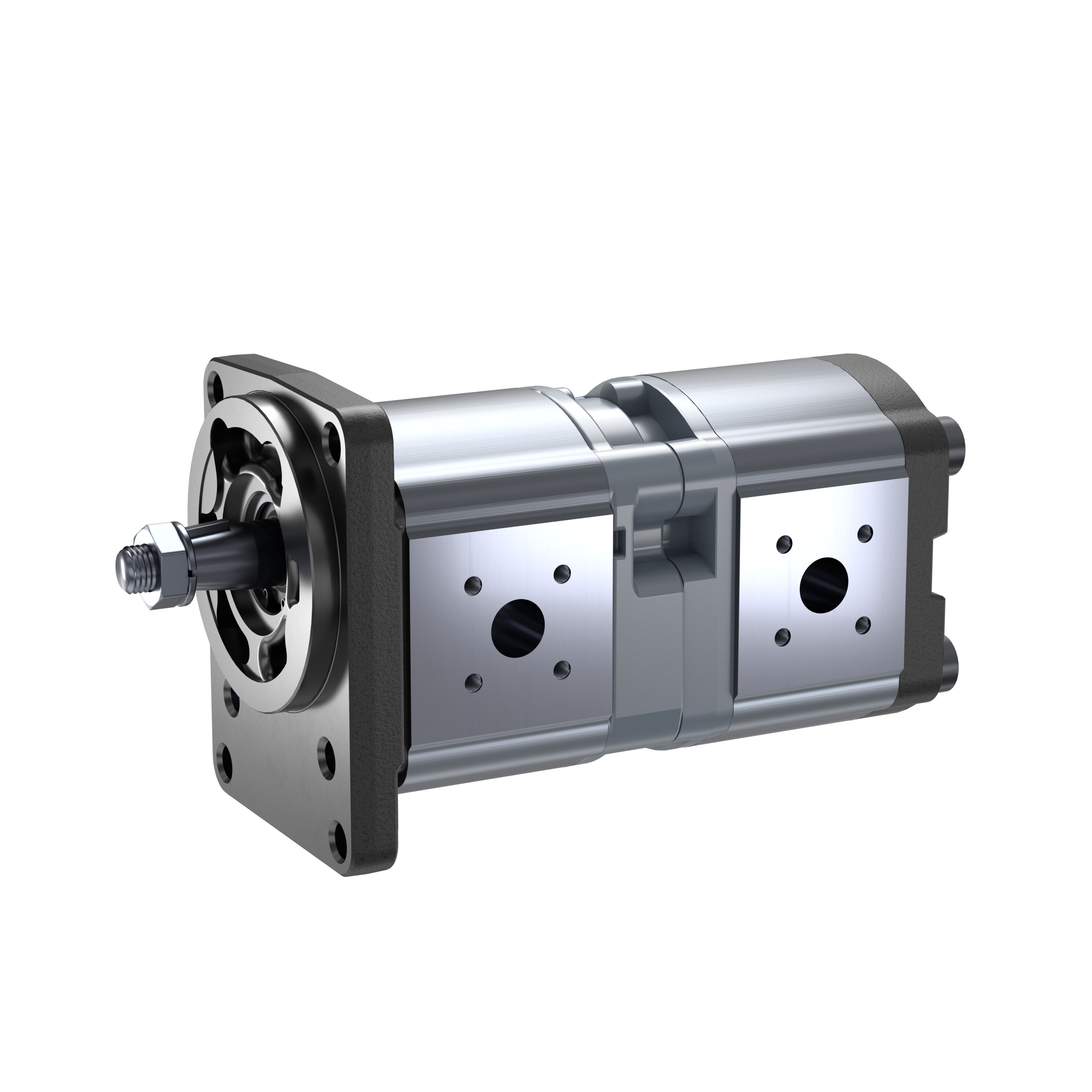

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPFF-11-011/008RCB2020KB
