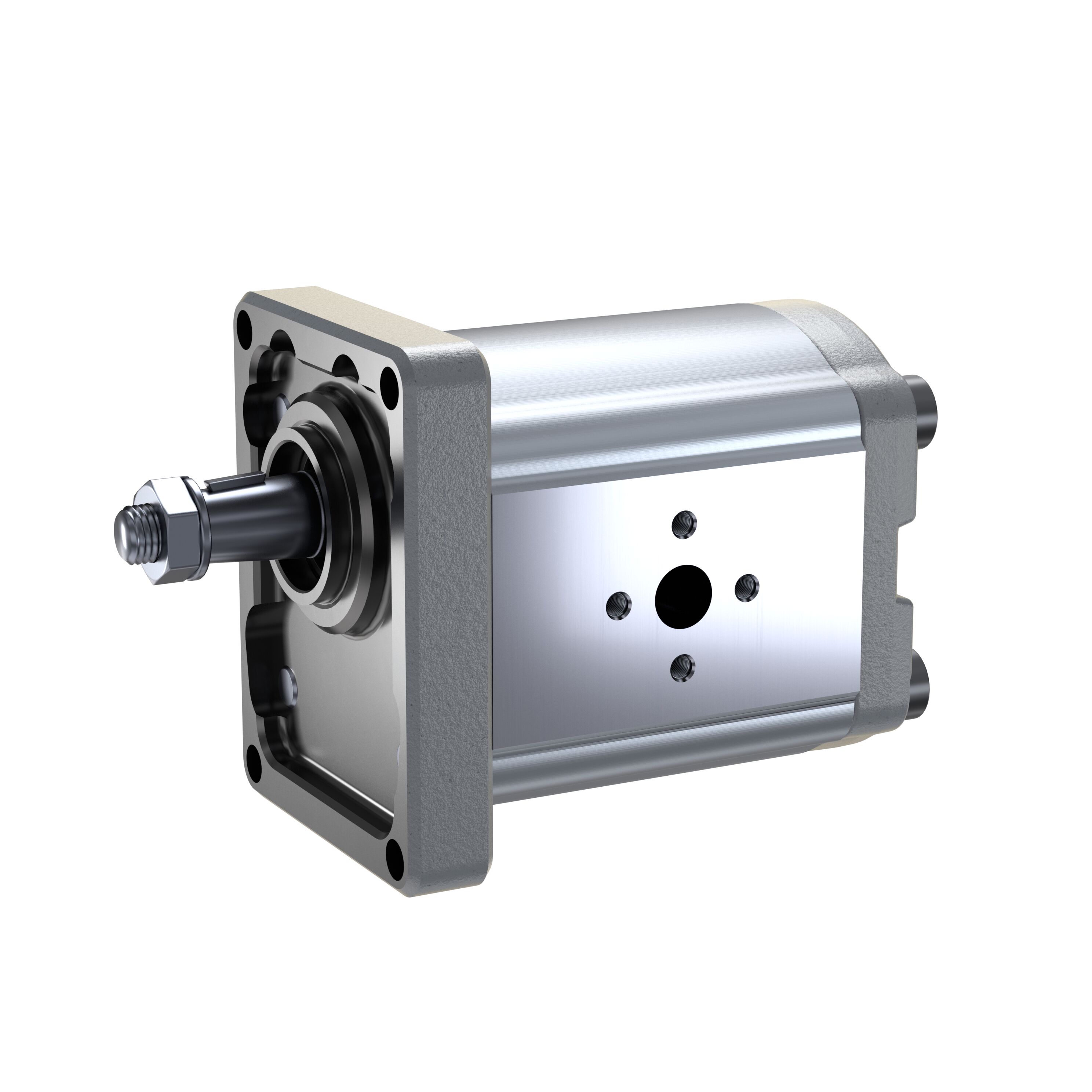

Bosch Rexroth HYDRAULIC GEAR PUMP AZPF-22-028RHO30KB
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology
| Direction of rotation | clockwise rotation |
|---|---|
| Drive shaft | Conical 1:5 |
| Front cover | Rectangular flange Ø 36.47 mm (M8) |
| Function | Pump |
| Housing material | Aluminum |
| Max.intermittent pressure [bar] | 200.0 |
| Maximum rotational speed [rpm] | 3000.0 |
| Model | Model F (4 ... 28 cm³/rev) |
| Noise level | Standard noise level |
| Nominal size [cm³/rev] | 28.0 |
| Port connection | Square flange (Italian version) |
| Product | External gear unit |
| Rear cover | Standard |
| Sealing material | NBR, WDR in FKM |
| Series | housing width 110 mm |
| Version | corrosion-resistant, pinned |
| Weight (Kg) | 4.5 |
Frequently Asked Questions
How do I get pricing for 0510725114?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 0510725114?
0510725114 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 0510725114?
Key specifications include Direction of rotation: clockwise rotation; Drive shaft: Conical 1:5; Front cover: Rectangular flange Ø 36.47 mm (M8); Function: Pump. The full specification table on this page lists every published attribute for this part.
How quickly can 0510725114 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

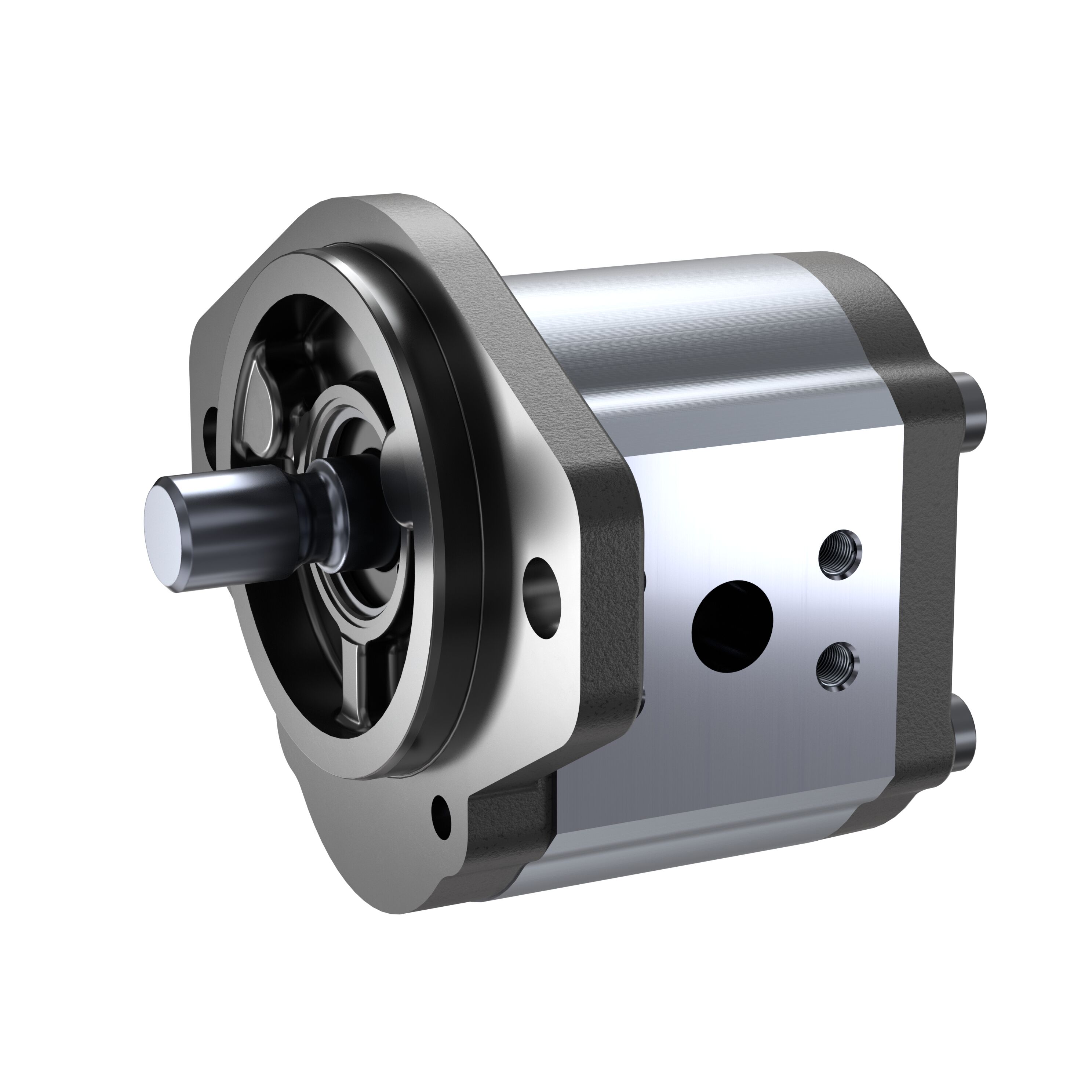

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPN-11-028RDC07KB-S0081

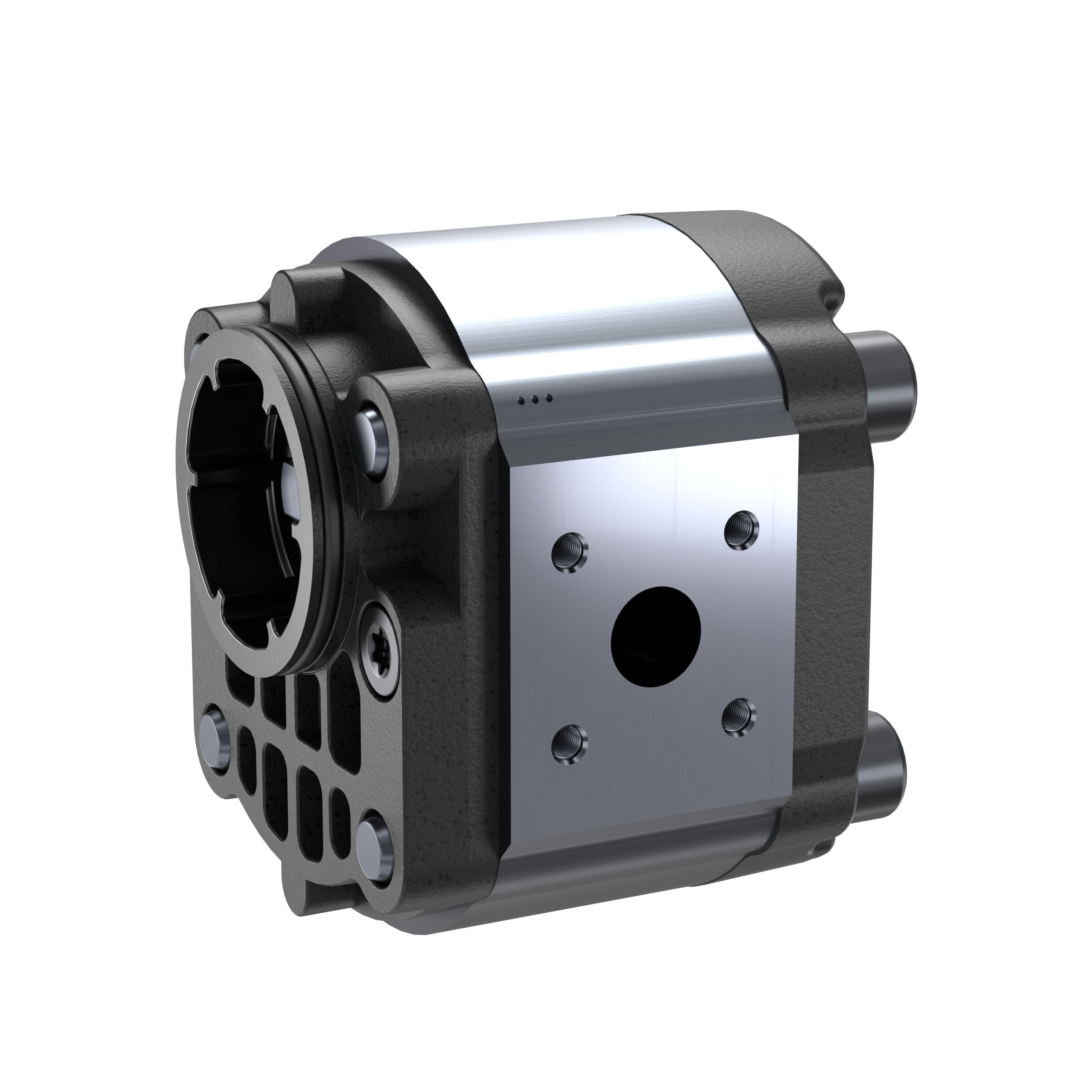

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPS-11-011LNT20MB-S0002

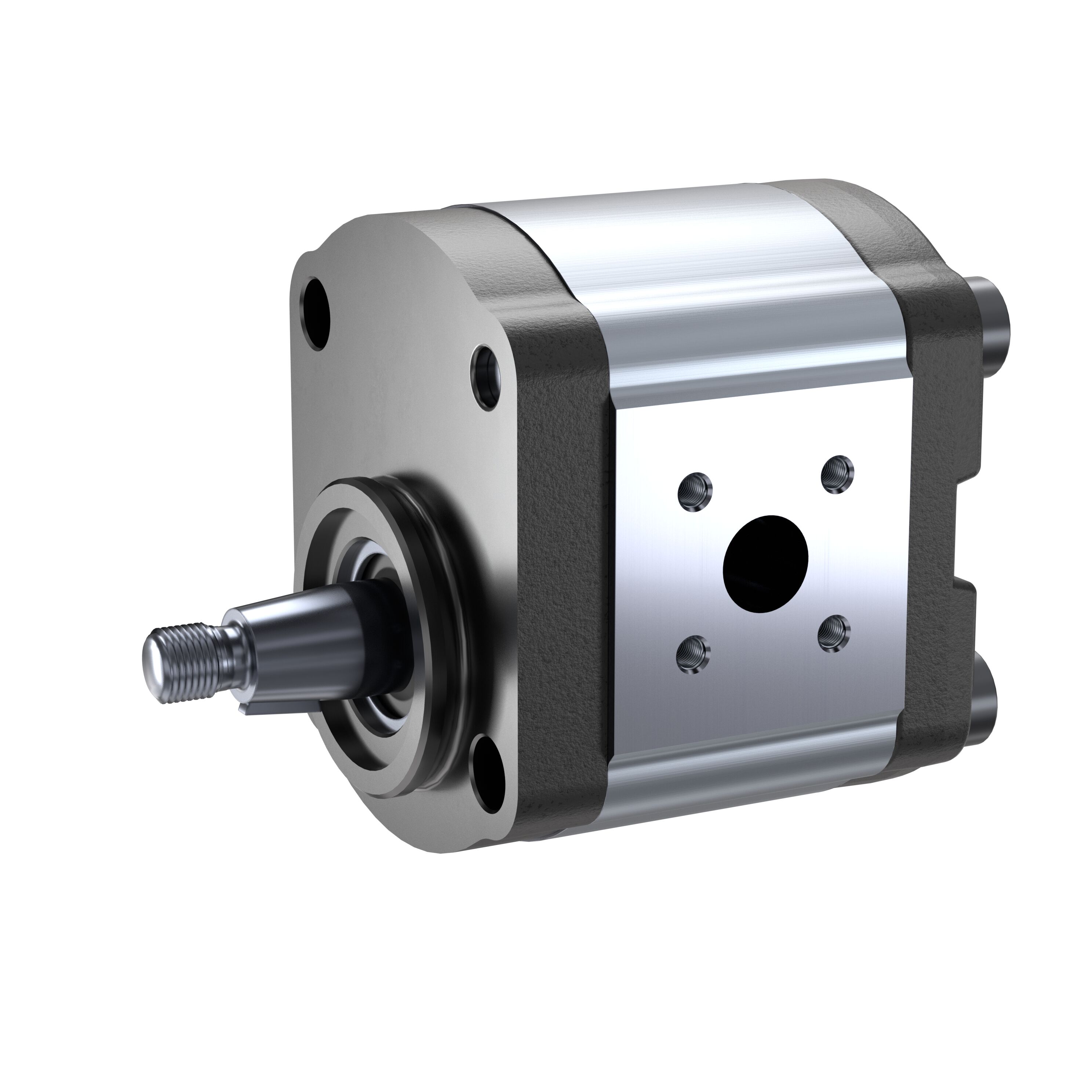

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPF-22-019LCP20MB-S0007

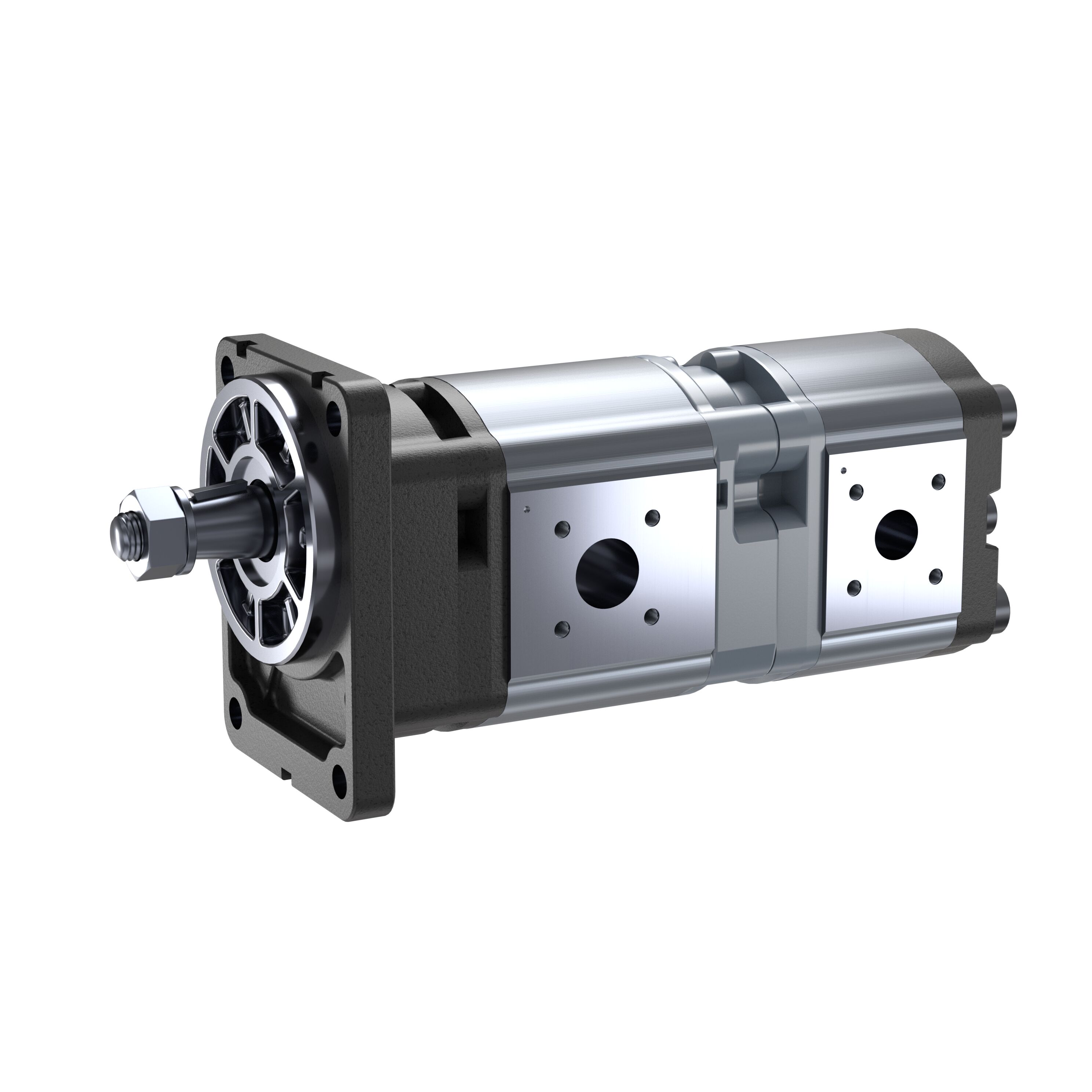

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPFF-10-011/005RSA2020MB
