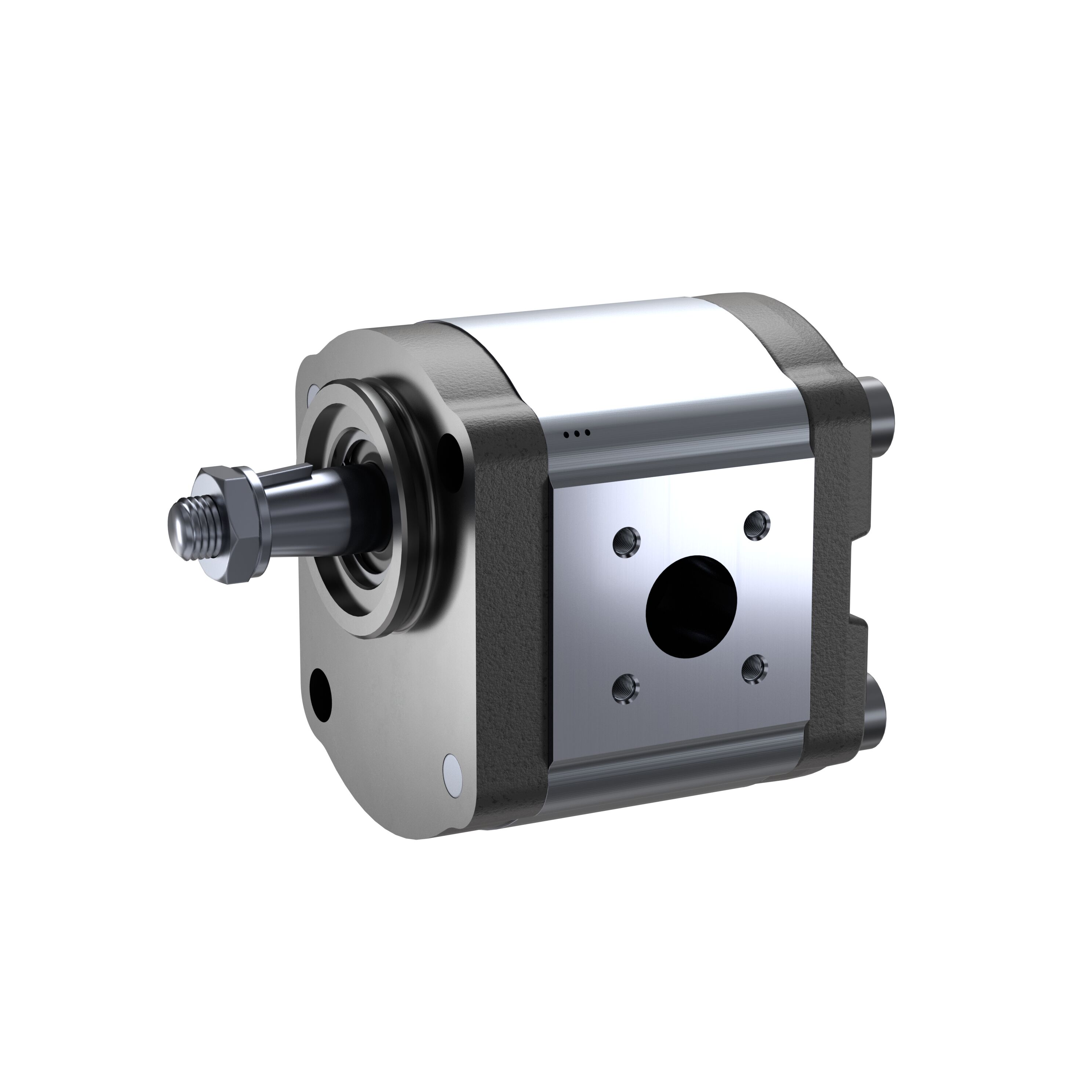

Bosch Rexroth HYDRAULIC GEAR PUMP AZPF-11-005RCN20MB
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology
| Direction of rotation | Clockwise rotation |
|---|---|
| Drive shaft | Tapered keyed 1:5 |
| Front cover | 2-bolt dia. 50 mm (option 1) |
| Function | Pump |
| Housing material | Aluminum |
| Max.intermittent pressure [bar] | 280.0 |
| Maximum rotational speed [rpm] | 4000.0 |
| Model | High perf (F) (4..28 cm³/rev) |
| Noise level | Standard noise level |
| Nominal size [cm³/rev] | 55.0 |
| Non-standard version | Deviations from catalogue standards, see drawing |
| Port connection | Square flange (German version) |
| Product | External gear unit |
| Rear cover | Standard (cast iron) |
| Sealing material | NBR |
| Series | Bearing diameter 18 mm |
| Version | Phosphated, aligned covers |
| Weight (Kg) | 2.7 |
Frequently Asked Questions
How do I get pricing for 0510315004?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 0510315004?
0510315004 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 0510315004?
Key specifications include Direction of rotation: Clockwise rotation; Drive shaft: Tapered keyed 1:5; Front cover: 2-bolt dia. 50 mm (option 1); Function: Pump. The full specification table on this page lists every published attribute for this part.
How quickly can 0510315004 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth SCREW-IN CARTRIDGE VALVE RV08-20H-0-N-33/34
Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPF-11-008RCN20MB
Bosch Rexroth Bosch Rexroth SCREW-IN CARTRIDGE VALVE RV10-22H-0-N-35/32

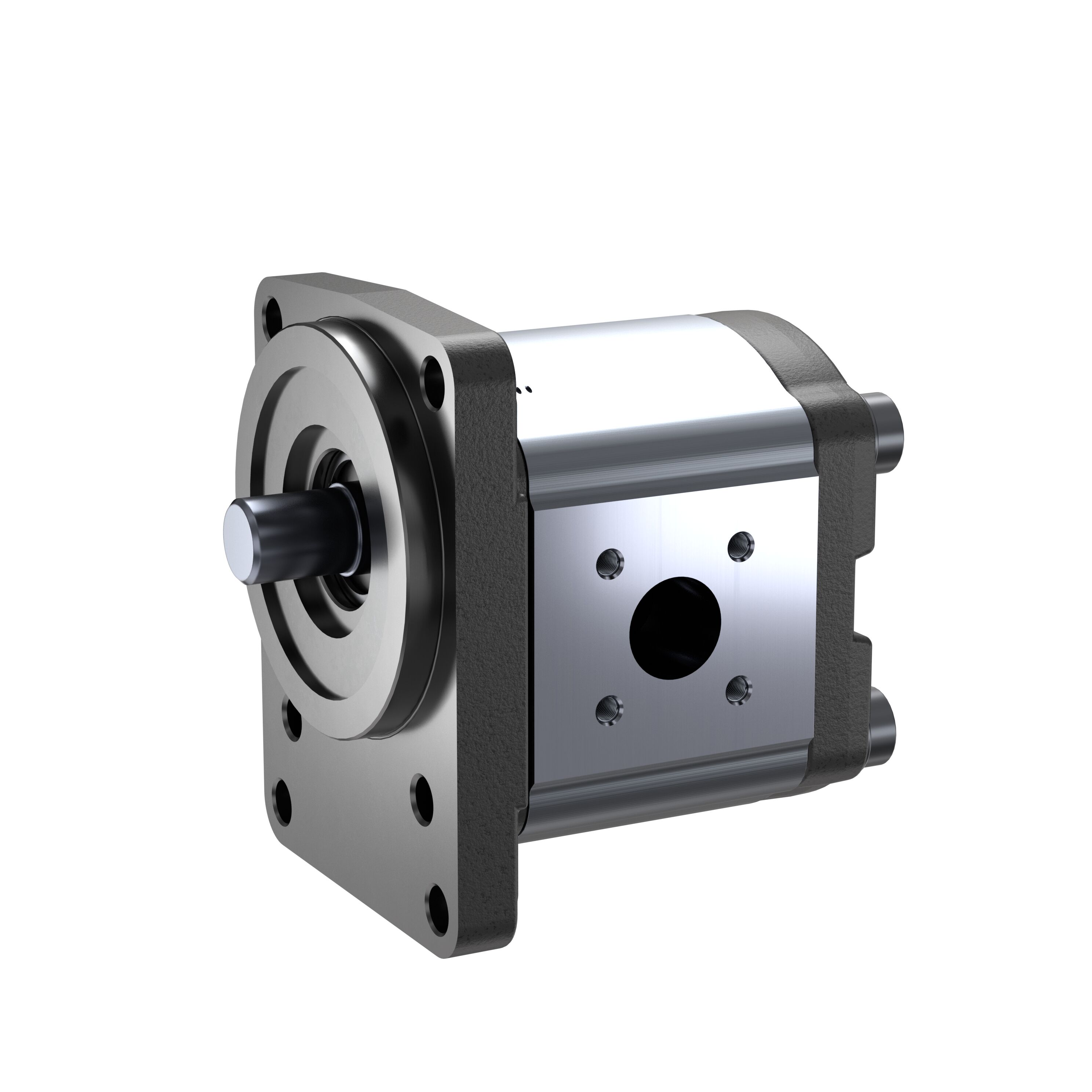

Bosch Rexroth Bosch Rexroth HYDRAULIC GEAR PUMP AZPF-11-008LFB20MB

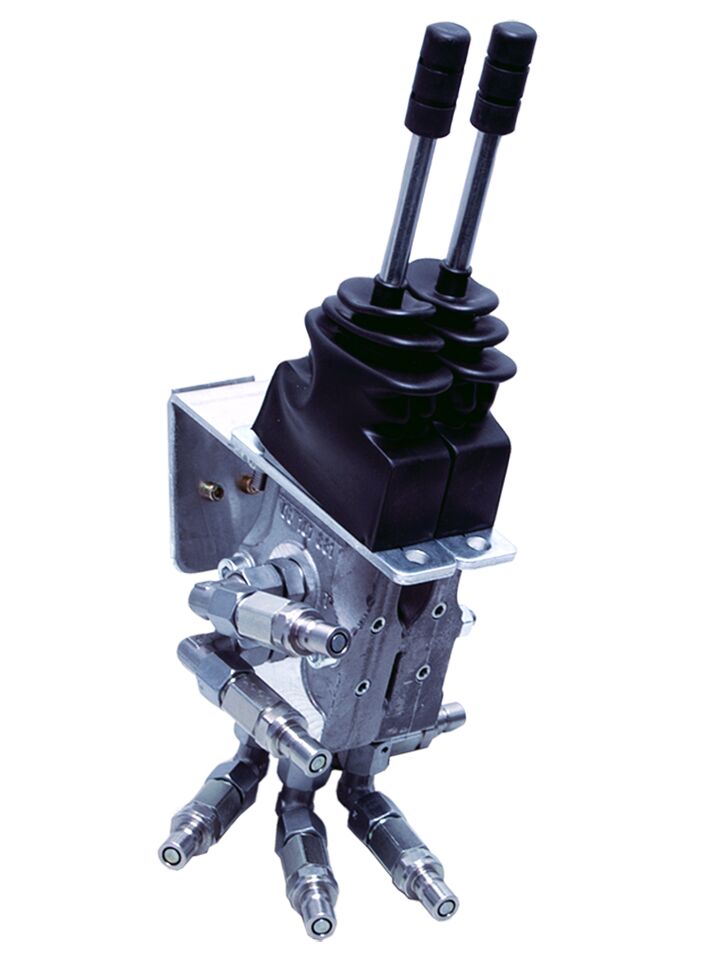

Bosch Rexroth Bosch Rexroth JOYSTICK VALVE TS-HC-2-2 TH6 L70-10/L70-M 01
