Beckhoff EL2202 — EtherCAT Terminals
The EL2202/EL2202-0100 digital output terminal connects the binary control signals from the automation device on to the actuators at the process level with electrical isolation. This terminal benefits from very small output delay and is therefore
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
|---|---|
| Bit width in the process image | 2 x 2 bit output |
| Configuration | no address or configuration setting |
| Connection technology | 4-wire |
| Current consumption E-bus | typ. 130 mA |
| Current consumption power contacts | typ. 30 mA + load |
| Distributed clocks | – |
| Electrical isolation | 500 V (E-bus/field potential) |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A (short-circuit proof in push operation) per channel |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| Operating Temperature | -25…+55°C |
| Output stage | push-pull, high-ohmic |
| Pluggable wiring level | for all ESxxxx terminals |
| Protect. rating/installation pos. | IP20/variable |
| Relative Humidity | 95%, no condensation |
| Reverse polarity protection | yes |
| Short-circuit current | typ. 4 A/150 µs |
| Special Features | can be converted to DC version EL2202-0100, outputs connectable in high-resistance mode |
| Storage Temperature | -40…+85°C |
| Switching times | typ. TON: OFF: < 1 µs |
| Switching-off energy | < 150 mJ/channel |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Weight | approx. 60 g |
Frequently Asked Questions
How do I get pricing for EL2202?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EL2202?
EL2202 is a Beckhoff part. KKM Solutions sources Beckhoff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of EL2202?
Key specifications include Approvals/markings: CE, CCC, UL, ATEX, IECEx; Bit width in the process image: 2 x 2 bit output; Configuration: no address or configuration setting; Connection technology: 4-wire. The full specification table on this page lists every published attribute for this part.
How quickly can EL2202 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

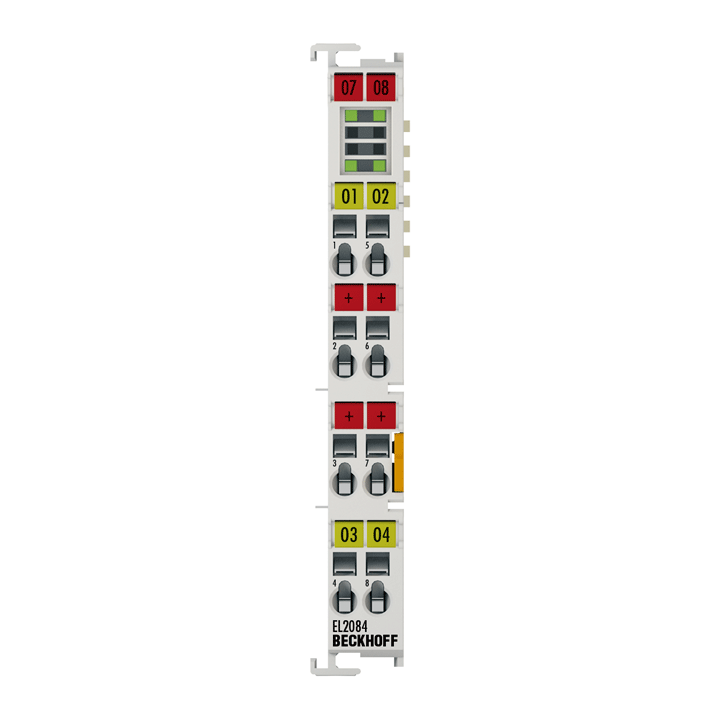

Beckhoff Beckhoff EtherCAT Terminal, 4-channel digital output, 5 V DC,…
Beckhoff Beckhoff EtherCAT Terminal, 2-channel digital output, 24 V DC,…

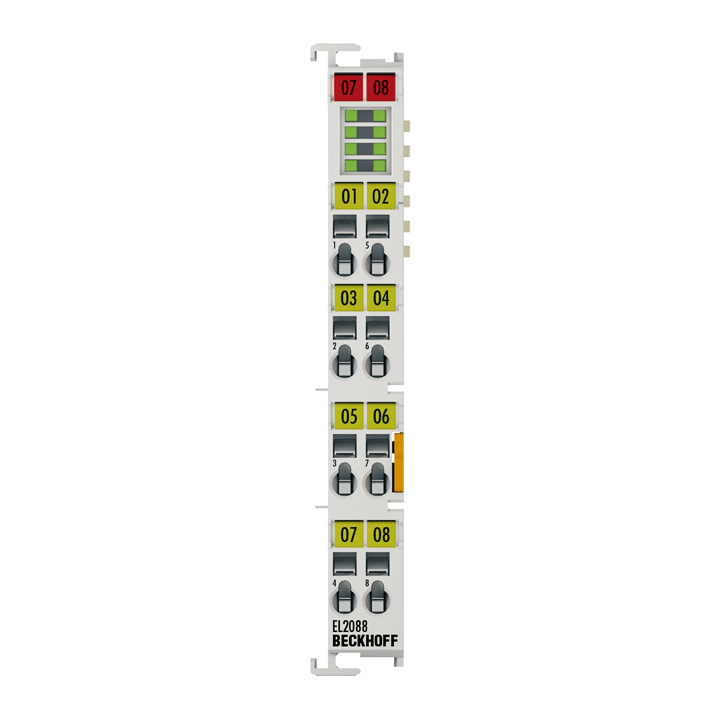

Beckhoff Beckhoff EtherCAT Terminal, 8-channel digital output, 24 V DC,…
Beckhoff Beckhoff EtherCAT Terminal, 2-channel digital output, 24 V DC,…

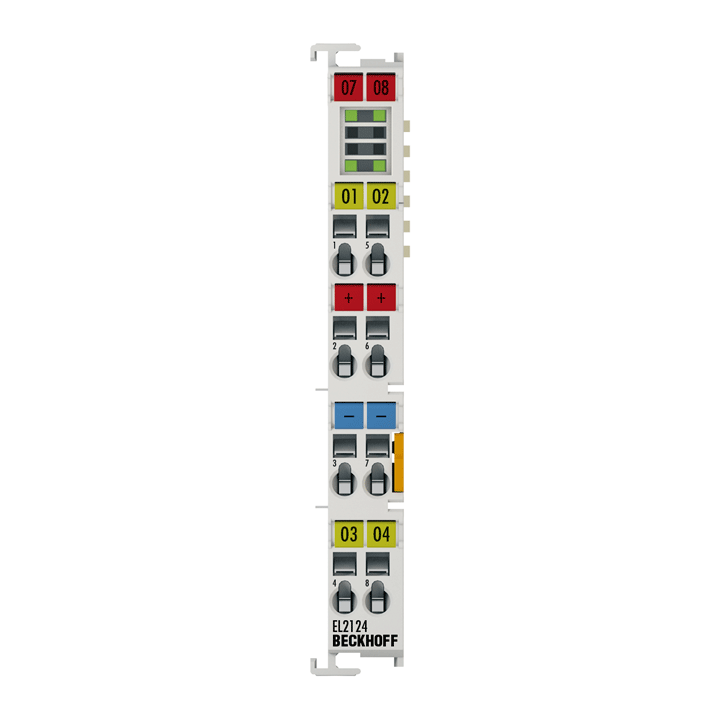

Beckhoff Beckhoff EtherCAT Terminal, 4-channel digital output, 24 V DC,…
