Balluff BOS 18M-NA-LD20-S4
BOS01R3 (BOS 18M-NA-LD20-S4) - Diffuse sensors - List price USA: 225.62 USD - Series: 18M, Dimension: Ø 18 x 75 mm, Interface: NPN Normally open (NO), NPN Normally closed (NC), Principle of operation: Photoelectric sensor, Principle of optical operation: Diffuse sensor, (energetic), Beam characteristic: Focus, typical at 400 mm, Light type: Laser Red light, Light spot size: Ø 2 mm at 250 mm, Range: 1...250 mm, Connection: Connector, M12x1-Male, 4-pin, Housing material: Brass, nickel-plated, Material sensing surface: Glass, Operating voltage Ub: 10...30 VDC, Approval/Conformity: cULus, CE, UKCA, WEEE - BALLUFF USA
| Approval/Conformity | cULus, CE, UKCA, WEEE |
|---|---|
| Beam characteristic | Focus, typical at 400 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Dimension | Ø 18 x 75 mm |
| Housing material | Brass, nickel-plated |
| Interface | NPN Normally open (NO), NPN Normally closed (NC) |
| Light spot size | Ø 2 mm at 250 mm |
| Light type | Laser Red light |
| Material sensing surface | Glass |
| Operating voltage Ub | 10...30 VDC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, (energetic) |
| Range | 1...250 mm |
| Series | 18M |
Frequently Asked Questions
How do I get pricing for BOS01R3?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BOS01R3?
BOS01R3 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BOS01R3?
Key specifications include Approval/Conformity: cULus, CE, UKCA, WEEE; Beam characteristic: Focus, typical at 400 mm; Connection: Connector, M12x1-Male, 4-pin; Dimension: Ø 18 x 75 mm. The full specification table on this page lists every published attribute for this part.
How quickly can BOS01R3 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BOS 18M-PS-LD20-S4

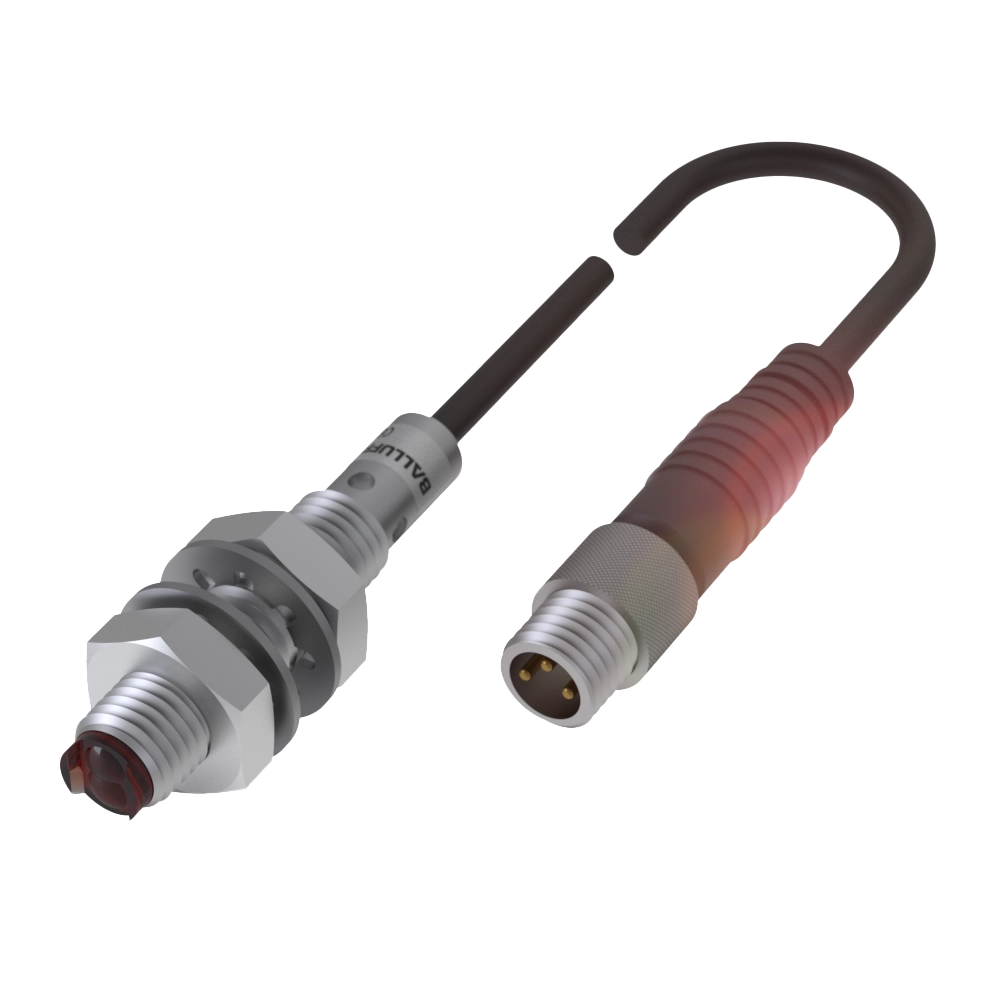

Balluff Balluff BOS 08E-PS-KD20-00,2-S49

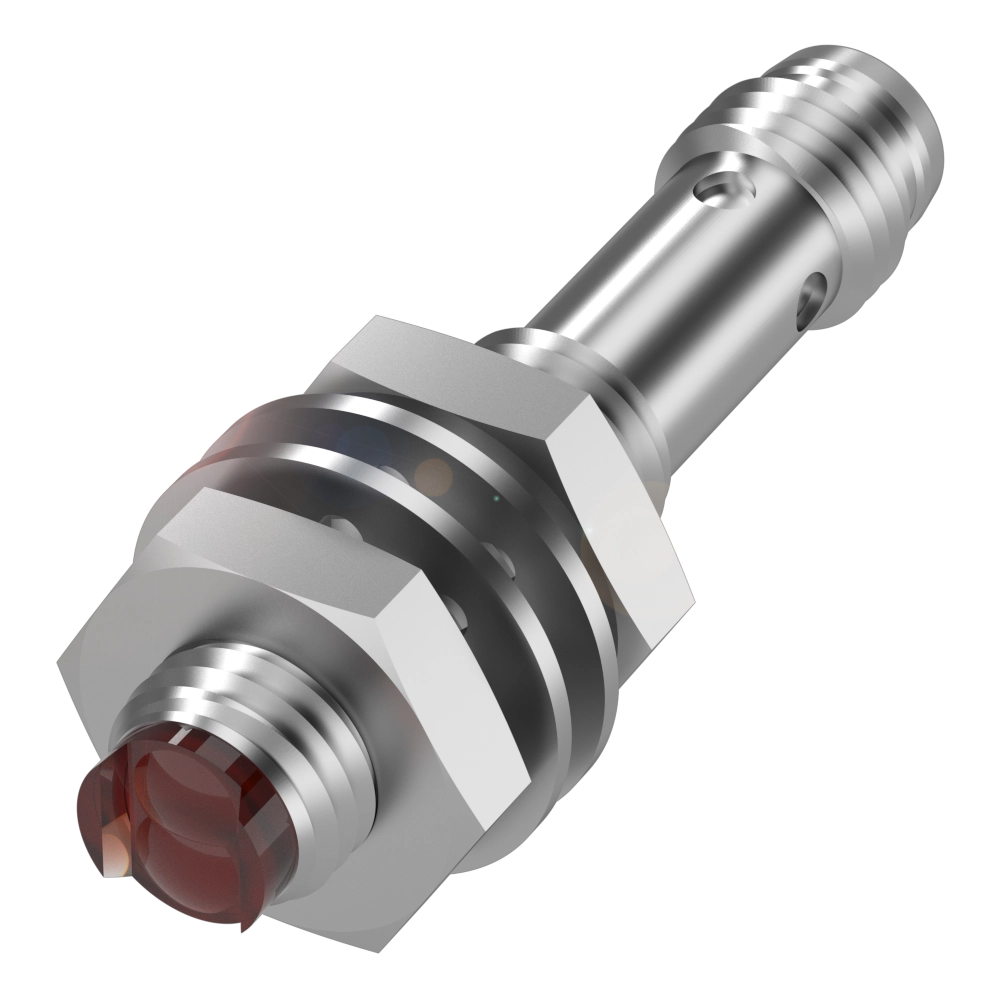

Balluff Balluff BOS 08E-PO-KD20-S49
Balluff Balluff BOS 08E-PS-KD20-S49

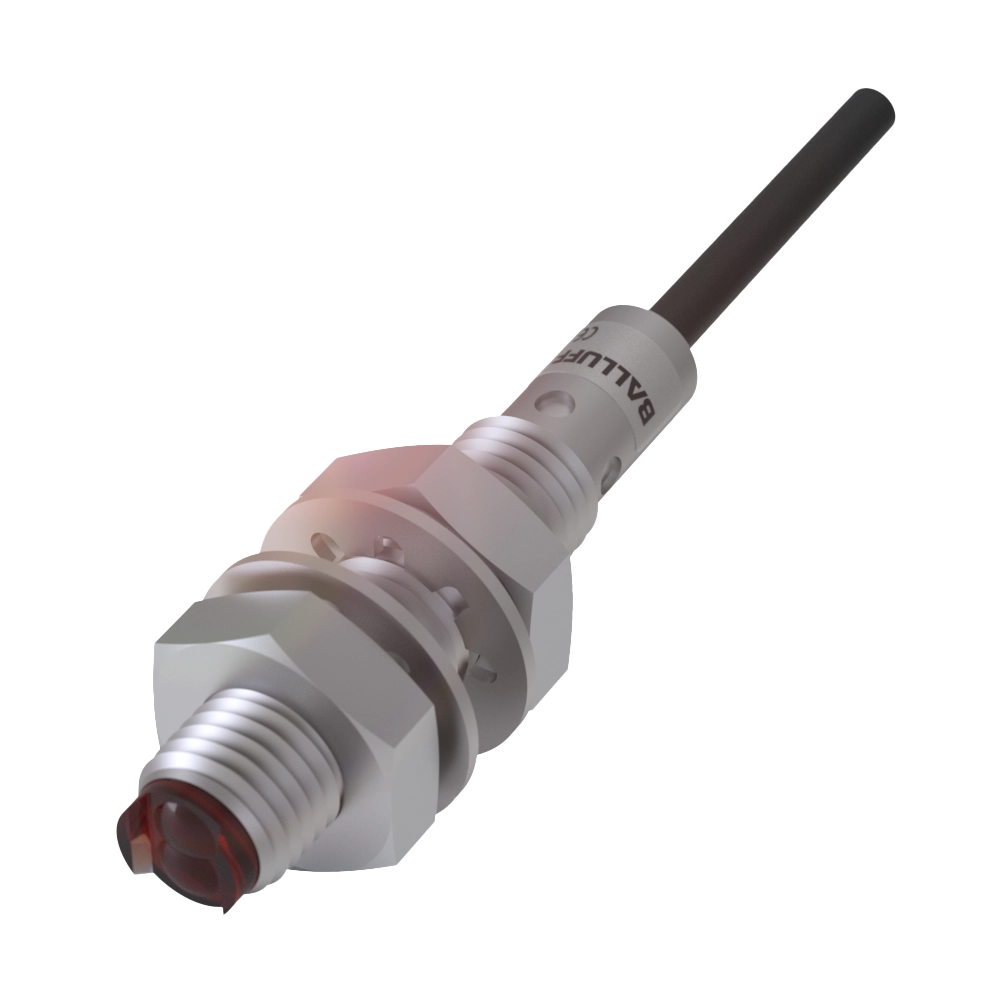

Balluff Balluff BOS 08E-PS-KD20-02
