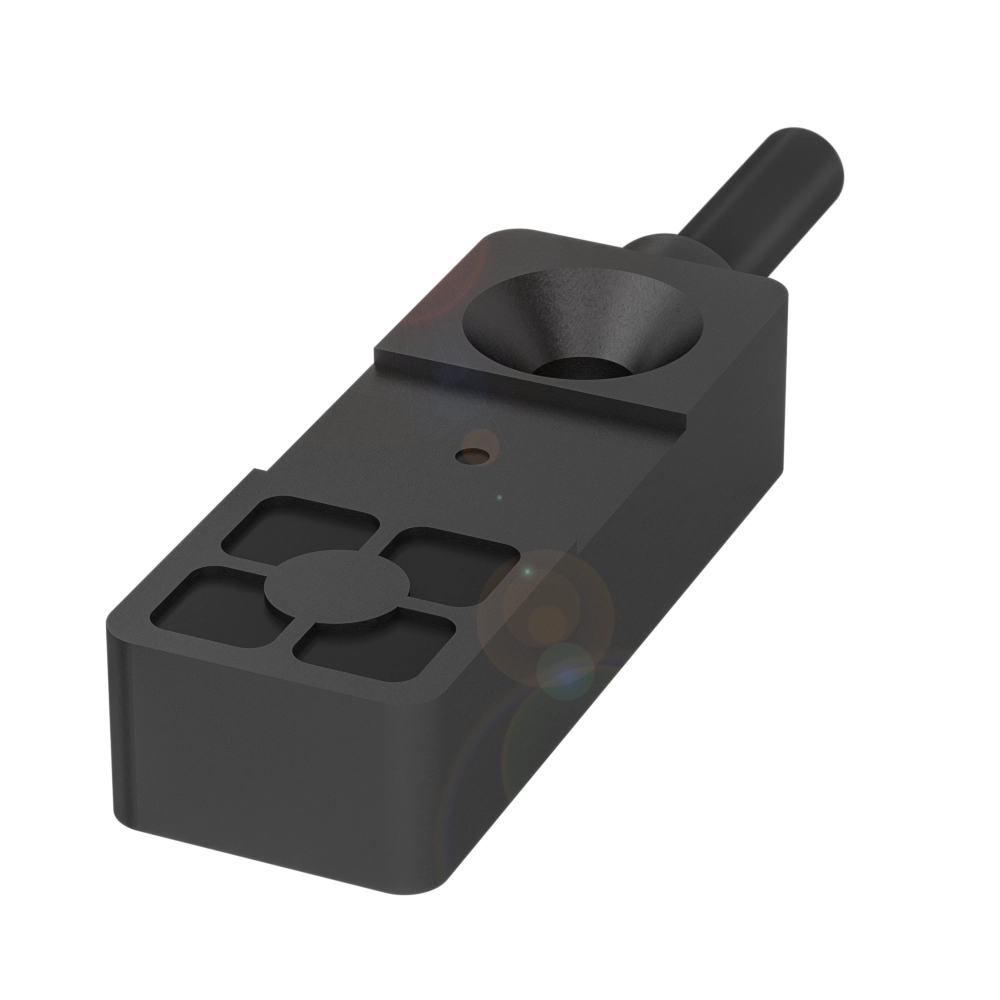

Balluff BES R03KC-PSC30B-BP00,75-GS04
BES05M8 (BES R03KC-PSC30B-BP00,75-GS04) - Inductive proximity switches and proximity sensors - List price USA: 144.43 USD - Dimension: 30 x 10 x 6 mm, Style Housing: 30x10x6, Installation: for flush mounting, Range: 3 mm, Switching output: PNP Normally open (NO), Switching frequency: 3000 Hz, Housing material: PA 6, GF30, Material sensing surface: PA 6, GF30/black, Connection: Cable with connector, M12x1-Male, 3-pin, 0.75 m, TPU, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, WEEE - BALLUFF USA
| Ambient temperature | -25...70 °C |
|---|---|
| Connection | Cable with connector, M12x1-Male, 3-pin, 0.75 m, TPU |
| Dimension | 30 x 10 x 6 mm |
| Housing material | PA 6, GF30 |
| Installation | for flush mounting |
| IP Rating | IP67 |
| Material sensing surface | PA 6, GF30/black |
| Operating voltage Ub | 10...30 VDC |
| Range | 3 mm |
| Style Housing | 30x10x6 |
| Switching frequency | 3000 Hz |
| Switching output | PNP Normally open (NO) |
Frequently Asked Questions
How do I get pricing for BES05M8?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES05M8?
BES05M8 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BES05M8?
Key specifications include Ambient temperature: -25...70 °C; Connection: Cable with connector, M12x1-Male, 3-pin, 0.75 m, TPU; Dimension: 30 x 10 x 6 mm; Housing material: PA 6, GF30. The full specification table on this page lists every published attribute for this part.
How quickly can BES05M8 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

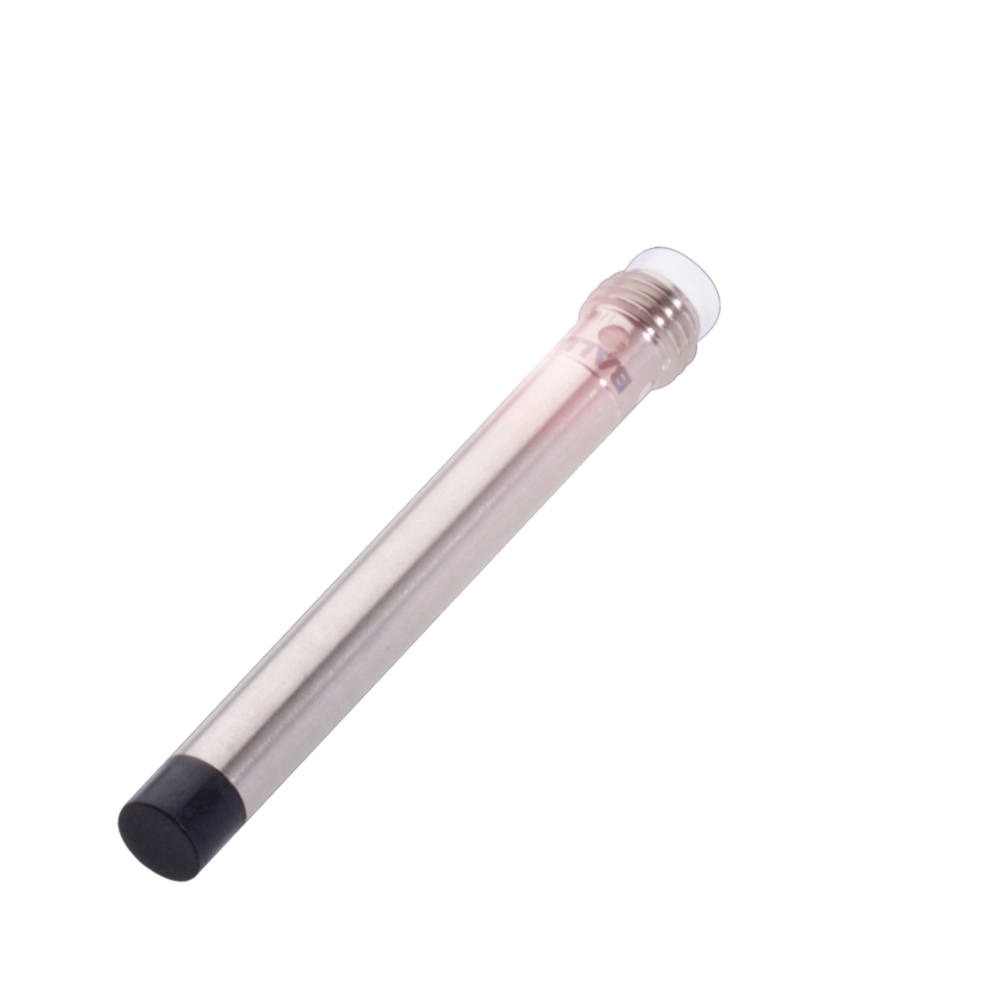

Balluff Balluff BES G06EH-PSC40F-S49G

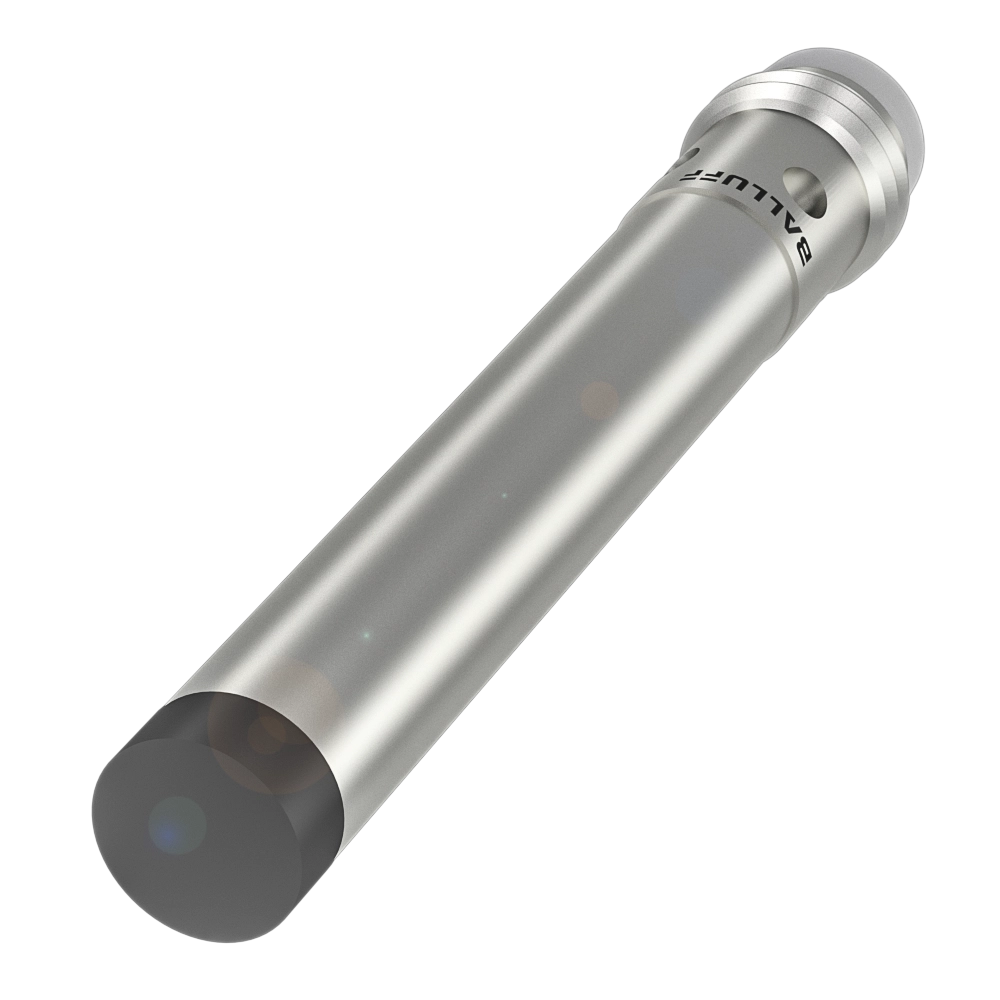

Balluff Balluff BES G06EF-PSC40F-S49G

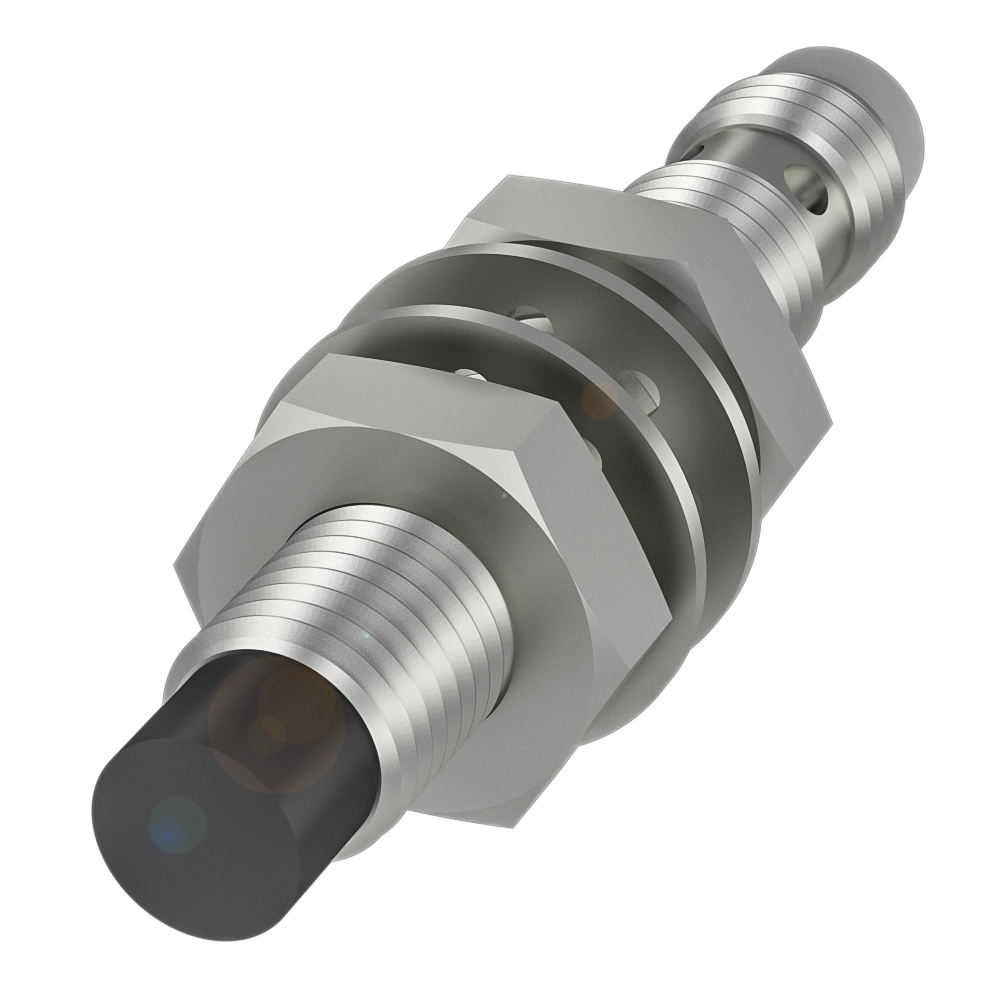

Balluff Balluff BES M08EF-PSC40F-S49G

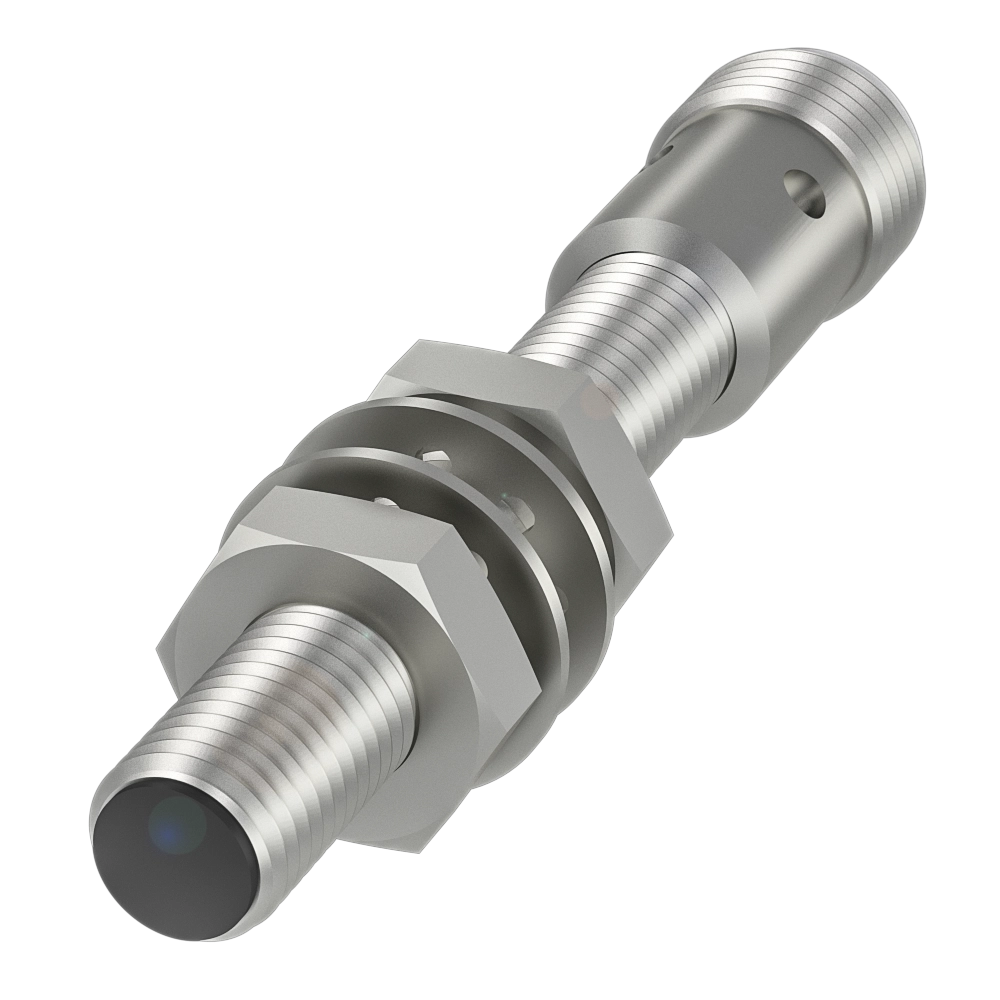

Balluff Balluff BES M08MH1-NSC20B-S04G

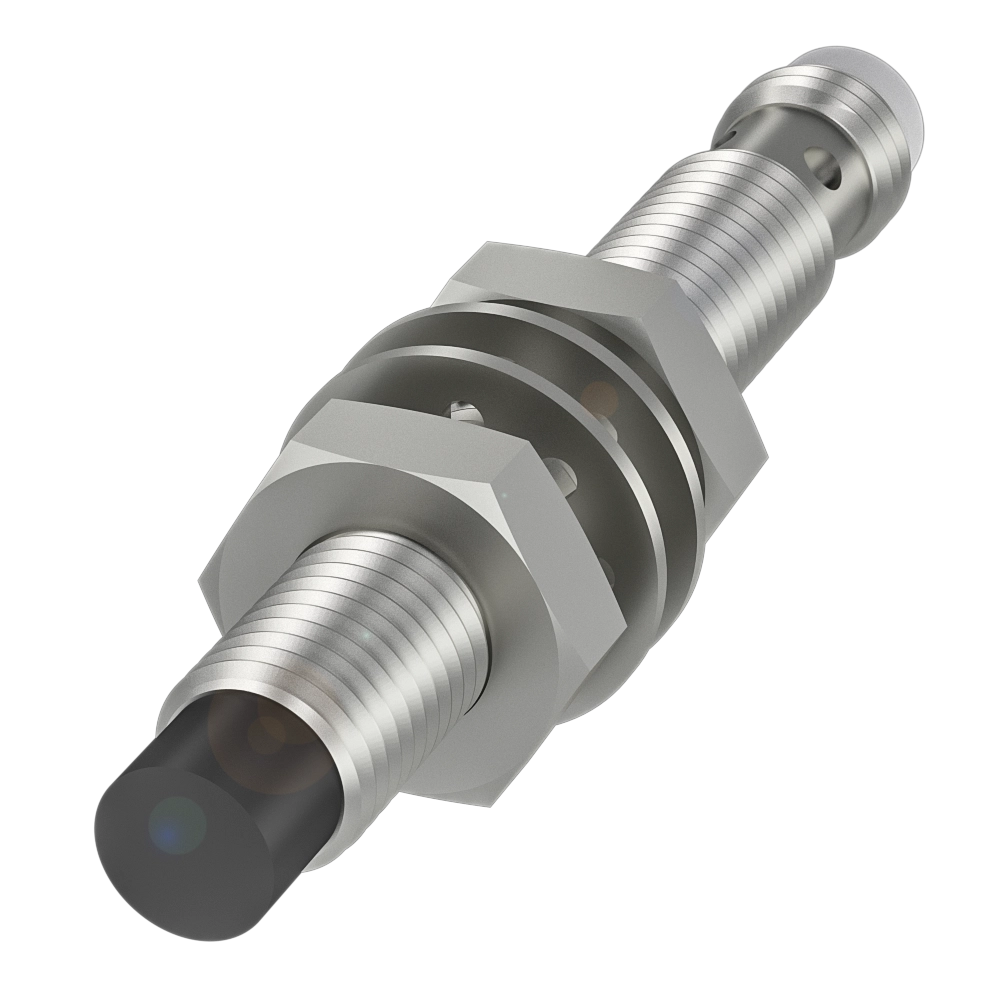

Balluff Balluff BES M08EH-PSC40F-S49G
