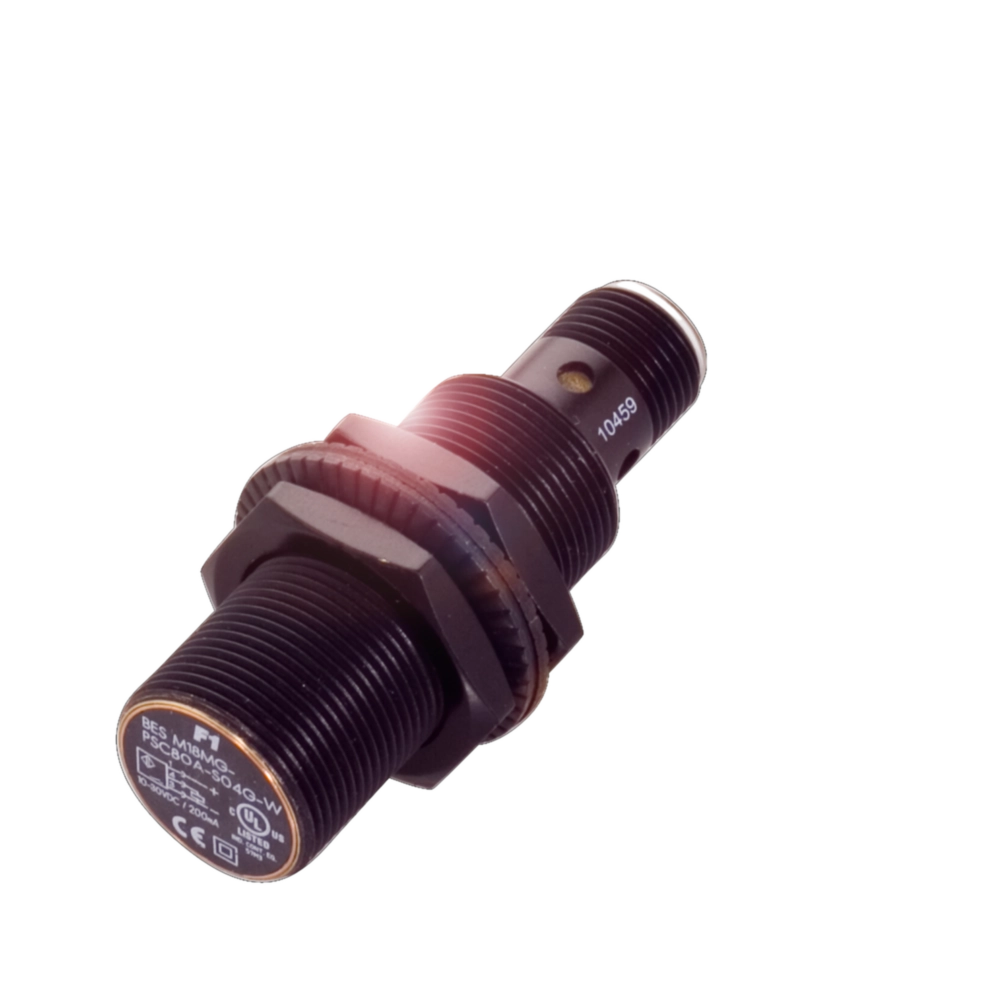

Balluff BES M18MG-PSC80A-S04G-W
BES03YT (BES M18MG-PSC80A-S04G-W) - Weld-immune inductive sensors - Dimension: Ø 18 x 55 mm, Style Housing: M18x1, Installation: for flush mounting, Range: 8 mm, Switching output: PNP Normally open (NO), Switching frequency: 600 Hz, Housing material: Brass, PTFE coated, Material sensing surface: PPS, Connection: Connector, M12x1-Male, 3-pin, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, Magnetic field immune: magnetic field immune (AC/DC), IP rating: IP67, Approval/Conformity: CE, cULus, WEEE, Additional features: Factor 1, Weld immune - BALLUFF USA
| Ambient temperature | -25...70 °C |
|---|---|
| Connection | Connector, M12x1-Male, 3-pin |
| Dimension | Ø 18 x 55 mm |
| Housing material | Brass, PTFE coated |
| Installation | for flush mounting |
| IP Rating | IP67 |
| Magnetic field immune | magnetic field immune (AC/DC) |
| Material sensing surface | PPS |
| Operating voltage Ub | 10...30 VDC |
| Range | 8 mm |
| Style Housing | M18x1 |
| Switching frequency | 600 Hz |
| Switching output | PNP Normally open (NO) |
Frequently Asked Questions
How do I get pricing for BES03YT?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES03YT?
BES03YT is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BES03YT?
Key specifications include Ambient temperature: -25...70 °C; Connection: Connector, M12x1-Male, 3-pin; Dimension: Ø 18 x 55 mm; Housing material: Brass, PTFE coated. The full specification table on this page lists every published attribute for this part.
How quickly can BES03YT ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
