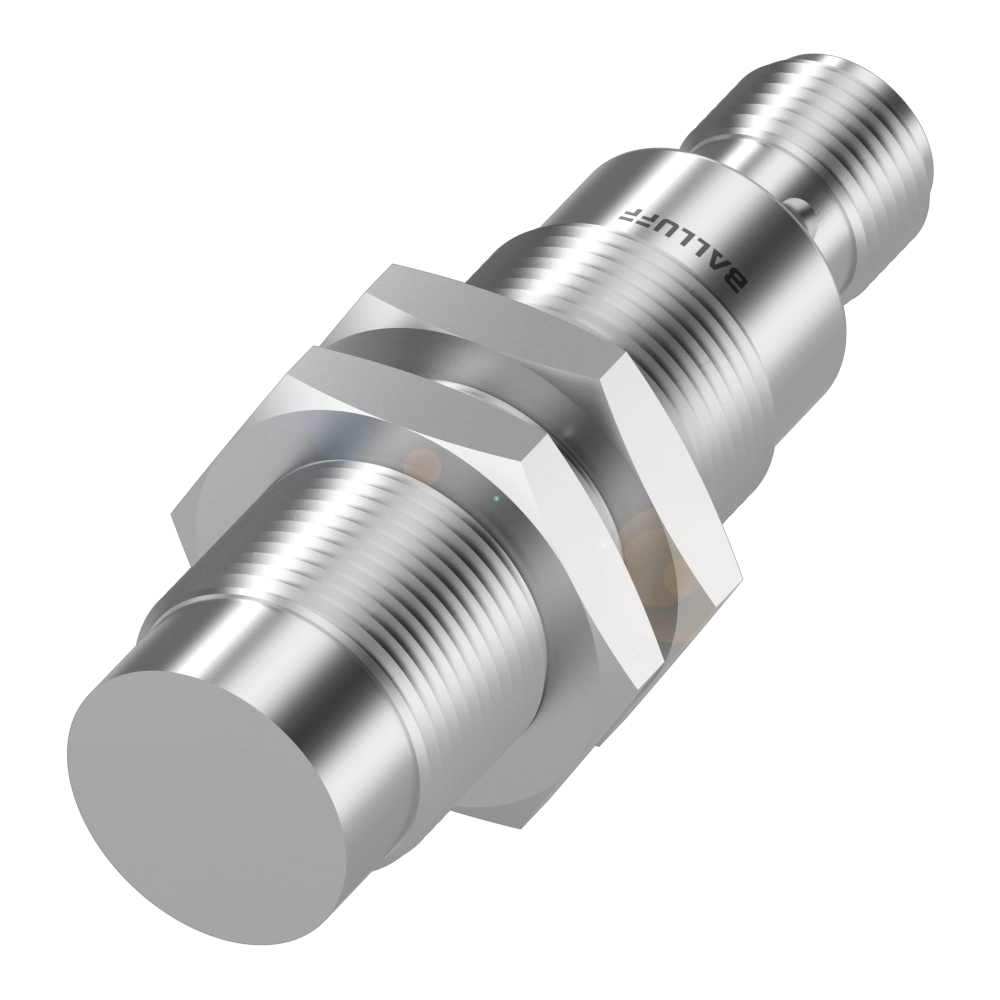

Balluff BES M18EF1-NSC20F-S04G-S
BES02Y0 (BES M18EF1-NSC20F-S04G-S) - Pressure-rated inductive sensors - List price USA: 140.83 USD - Dimension: Ø 18 x 63.5 mm, Style Housing: M18x1, Installation: non-flush, Range: 20 mm, Switching output: NPN Normally open (NO), Switching frequency: 200 Hz, Housing material: 1.4305 stainless steel, Material sensing surface: 1.4305 stainless steel, Connection: Connector, M12x1-Male, 4-pin, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, Pressure rating max.: 60 bar, IP rating: IP67, Approval/Conformity: CE, cULus, WEEE - BALLUFF USA
| Ambient temperature | -25...70 °C |
|---|---|
| Approval/Conformity | CE, cULus, WEEE |
| Connection | Connector, M12x1-Male, 4-pin |
| Dimension | Ø 18 x 63.5 mm |
| Housing material | 1.4305 stainless steel |
| Installation | non-flush |
| IP Rating | IP67 |
| Material sensing surface | 1.4305 stainless steel |
| Operating voltage Ub | 10...30 VDC |
| Pressure rating max. | 60 bar |
| Range | 20 mm |
| Style Housing | M18x1 |
| Switching frequency | 200 Hz |
| Switching output | NPN Normally open (NO) |
Frequently Asked Questions
How do I get pricing for BES02Y0?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES02Y0?
BES02Y0 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BES02Y0?
Key specifications include Ambient temperature: -25...70 °C; Approval/Conformity: CE, cULus, WEEE; Connection: Connector, M12x1-Male, 4-pin; Dimension: Ø 18 x 63.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can BES02Y0 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BES M12EG1-PSC60Z-S04G-S11
Balluff Balluff BES M18EF1-PSC20F-S04G-S

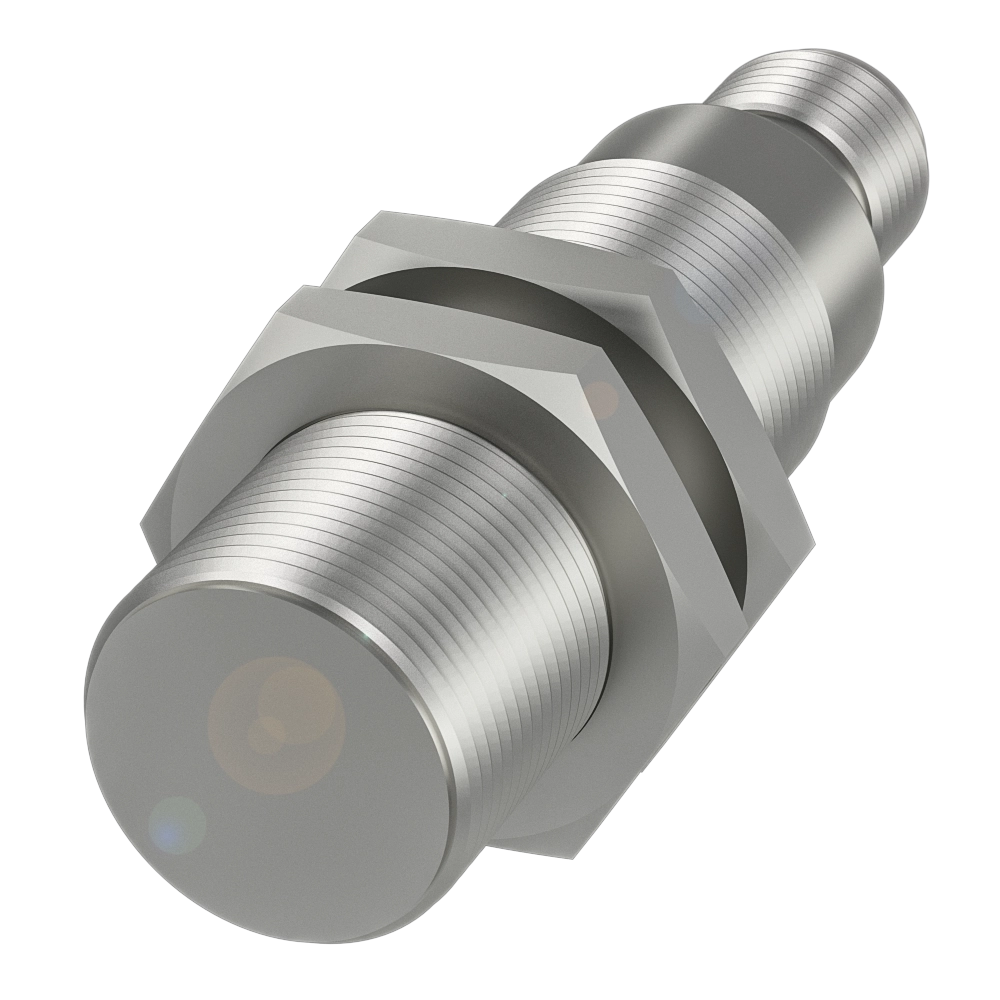

Balluff Balluff BES M18EG1-NSC10Z-S04G-S11

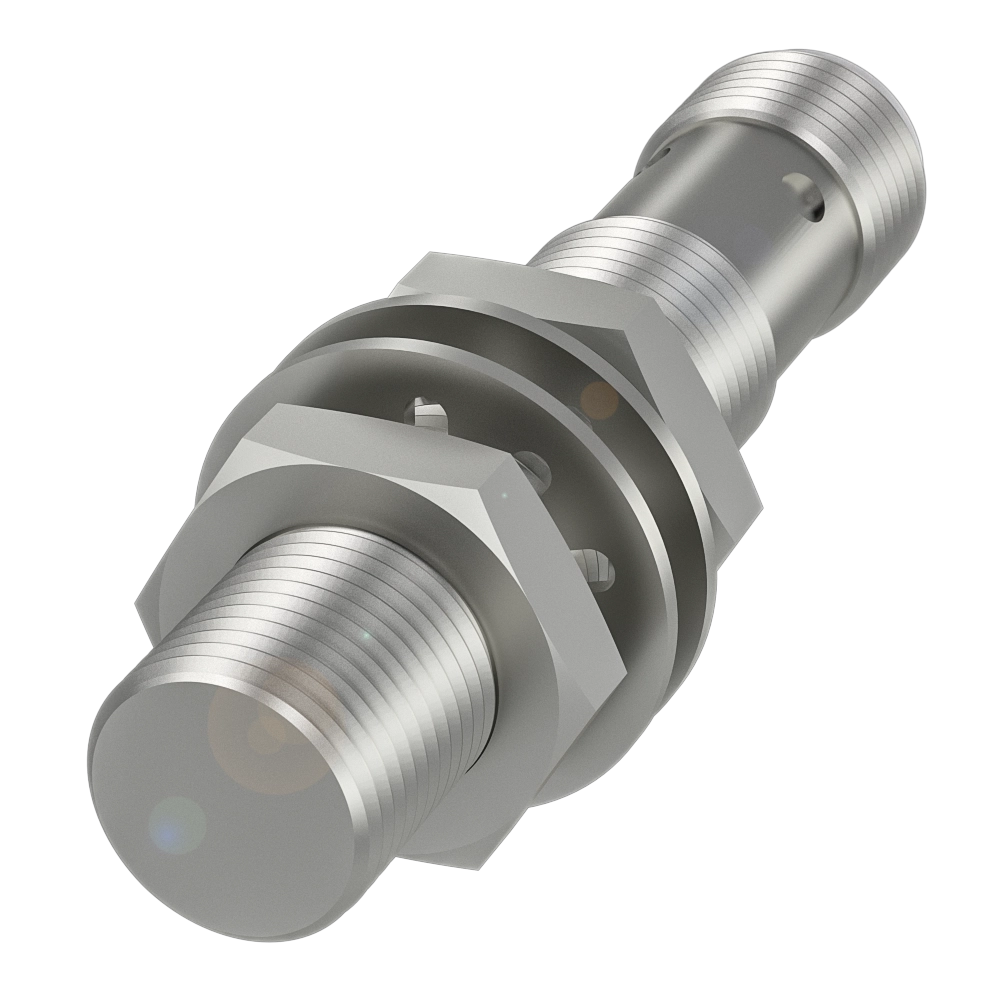

Balluff Balluff BES M12EG1-NSC60Z-S04G-S11
