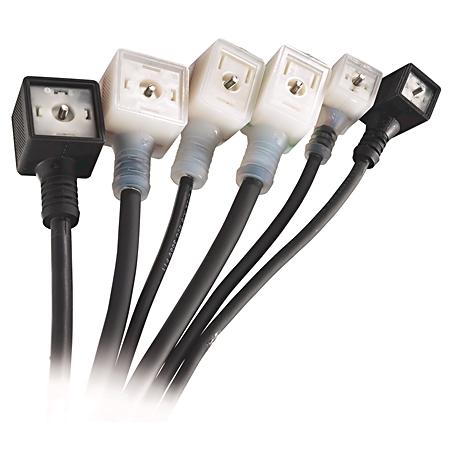

Allen-Bradley 11 mm B Style Valve 889W-LA2GBE-2
Allen-Bradley 889W-LA2GBE-2 - industrial components - Material: Housing: molded oil-resistant PUR (non LED version: black, LED version: clear), gasket: Nitrile, contact: Tin plated copper; Operating Temperature: -25 °C; Cable length: 2 m.
This listing covers the Allen-Bradley 889W-LA2GBE-2, a part number in the industrial components category. The manufacturer's published data for this part number specifies Material: Housing: molded oil-resistant PUR (non LED version: black, LED version: clear), gasket: Nitrile, contact: Tin plated copper and Operating Temperature: -25 °C.
Published specifications for this part include Cable length: 2 m; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 2; Cable rating: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant; Cable type: PVC cable, black, 18 AWG; Material housing: Plastic; Enclosure type rating: IP67, NEMA 6; Rated voltage: 115V; Degree of protection (IP), mounted: IP67; Material of contact surface: Tin. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Cable diameter | Cable 3 conductor, 18 AWG: 5.5 mm (0.216 in), cable 4 conductor, 18 AWG: 6 mm (0.235 in) |
| Cable length | 2 m |
| Cable rating | UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant |
| Cable type | PVC cable, black, 18 AWG |
| Degree of protection (IP), mounted | IP67 |
| Enclosure type rating | IP67, NEMA 6 |
| First end connector style | LED right angle female |
| Homerun connection, min | 10 x diam |
| Lifecycle Status | Active |
| Material | Housing: molded oil-resistant PUR (non LED version: black, LED version: clear), gasket: Nitrile, contact: Tin plated copper |
| Material housing | Plastic |
| Material of contact surface | Tin |
| Mounting screw | 18-8 stainless steel |
| Number of poles | 2 |
| Operating Temperature | -25 °C |
| Pole count and orientation | 2 pole + ground (towards cable exit) |
| Rated current | 10 A |
| Rated voltage | 115V |
| Repair Options Available | No |
| Second end termination | No s end connector |
| Wiring | LED and varistor surge suppression |
| With status indication | true |
Frequently Asked Questions
How do I get pricing for 889W-LA2GBE-2?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889W-LA2GBE-2?
889W-LA2GBE-2 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889W-LA2GBE-2?
Key specifications include Build America, Buy America: No; Cable diameter: Cable 3 conductor, 18 AWG: 5.5 mm (0.216 in), cable 4 conductor, 18 AWG: 6 mm (0.235 in); Cable length: 2 m; Cable rating: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant. The full specification table on this page lists every published attribute for this part.
How quickly can 889W-LA2GBE-2 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

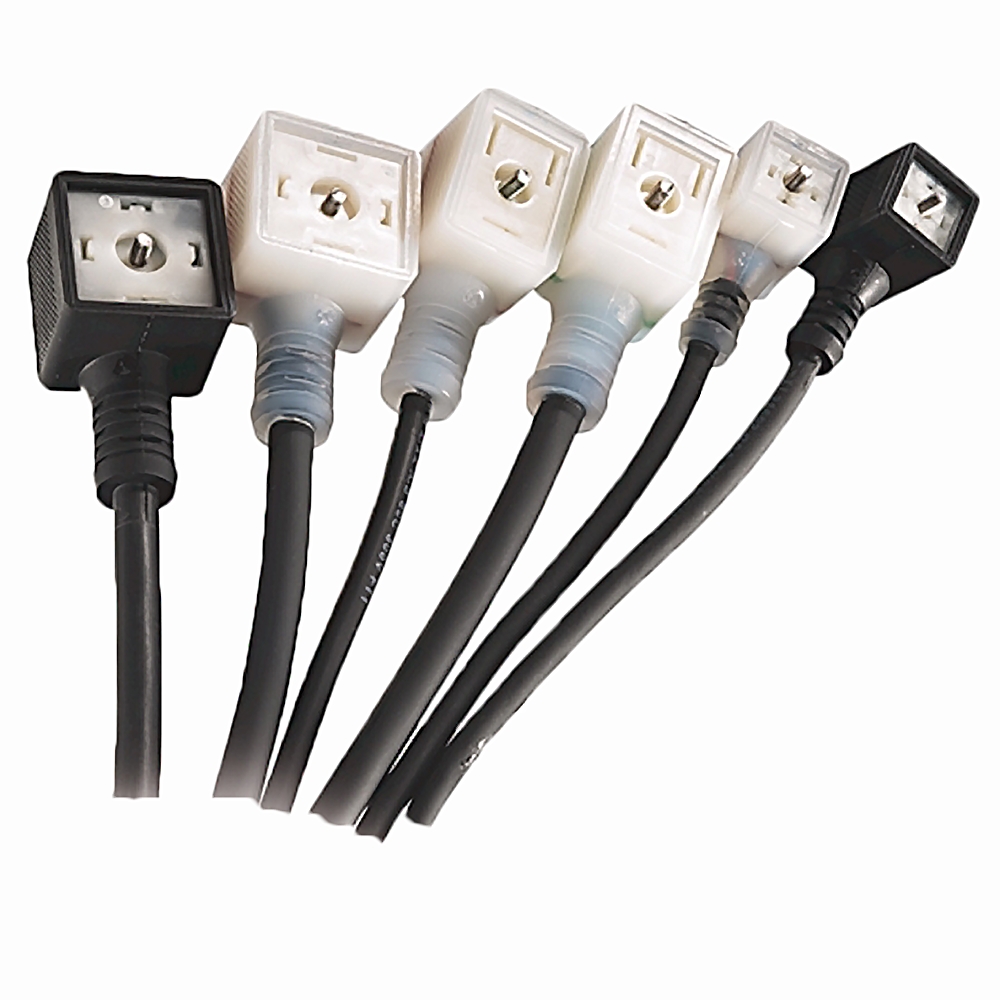

Allen-Bradley Allen-Bradley 11 mm B Style Valve 889W-RZ2GBE-10
