Allen-Bradley 889 AC Micro Cable 889R-R3UERM-5
Allen-Bradley 889R-R3UERM-5 - industrial components - Material: Molding oil-resistant PVC, Contact: Gold over Nickel-plated Brass; Length: Connector: 31.8 mm ft; Height: Connector: 31.8 mm mm.
The Allen-Bradley 889R-R3UERM-5 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Material: Molding oil-resistant PVC, Contact: Gold over Nickel-plated Brass and Length: Connector: 31.8 mm ft.
Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin
Key manufacturer data on file for this item includes Height: Connector: 31.8 mm mm; Operating Temperature: -20 °C; Cable length: 5000 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Cable rating: UL AWM, UV, oil and water resistant, 18 AWG, Flex rated to 5 mon cycles; Cable type: PUR cable, yellow, 18 AWG; Description: AC micro cordset or patchcord; Rated voltage: 250 V; Mounting method: Freely positionable; Assembly rating: 250V @ 4A. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 250V @ 4A |
|---|---|
| Build America, Buy America | No |
| Cable length | 5000 mm |
| Cable rating | UL AWM, UV, oil and water resistant, 18 AWG, Flex rated to 5 mon cycles |
| Cable type | PUR cable, yellow, 18 AWG |
| Degree of protection (IP), mounted | IP69K |
| Description | AC micro cordset or patchcord |
| Diameter | Connector: 14 mm |
| First end connector style | Female, right angle (internal threads) |
| Height | Connector: 31.8 mm mm |
| Length | Connector: 31.8 mm ft |
| Lifecycle Status | Active |
| List of degrees of protection (IP), mounted | IP67 and IP69K |
| Material | Molding oil-resistant PVC, Contact: Gold over Nickel-plated Brass |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 3-pin |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 4 A |
| Rated voltage | 250 V |
| Repair Options Available | No |
| Second end conductors | Same as first end |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | AC micro dual key |
| Type of plug-in contact, inner side | Female (bus) |
| With shield connection | false |
Frequently Asked Questions
How do I get pricing for 889R-R3UERM-5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889R-R3UERM-5?
889R-R3UERM-5 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889R-R3UERM-5?
Key specifications include Assembly rating: 250V @ 4A; Build America, Buy America: No; Cable length: 5000 mm; Cable rating: UL AWM, UV, oil and water resistant, 18 AWG, Flex rated to 5 mon cycles. The full specification table on this page lists every published attribute for this part.
How quickly can 889R-R3UERM-5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 889 AC Micro Cable 889R-R3UERM-1
Allen-Bradley Allen-Bradley 889 AC Micro Cable 889R-R3WEC-10
Allen-Bradley Allen-Bradley 889 AC Micro Cable 889R-R3UEA-5

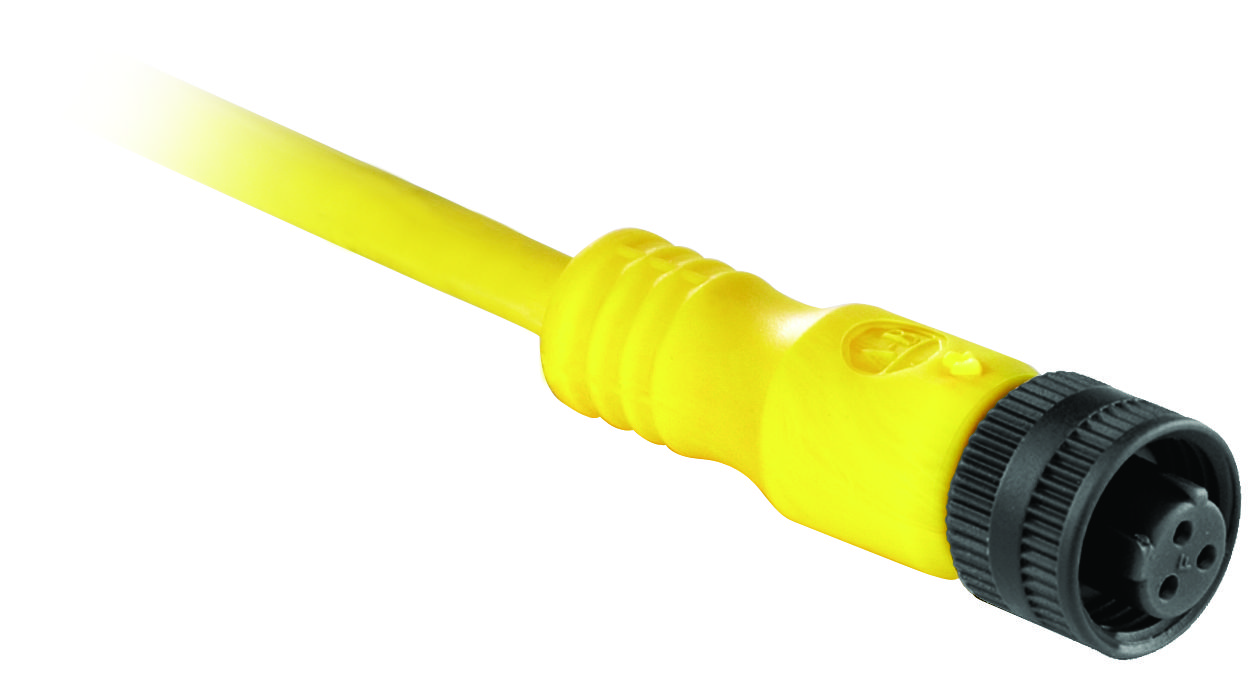

Allen-Bradley Allen-Bradley 889 AC Micro Cable 889R-R4AEA-60

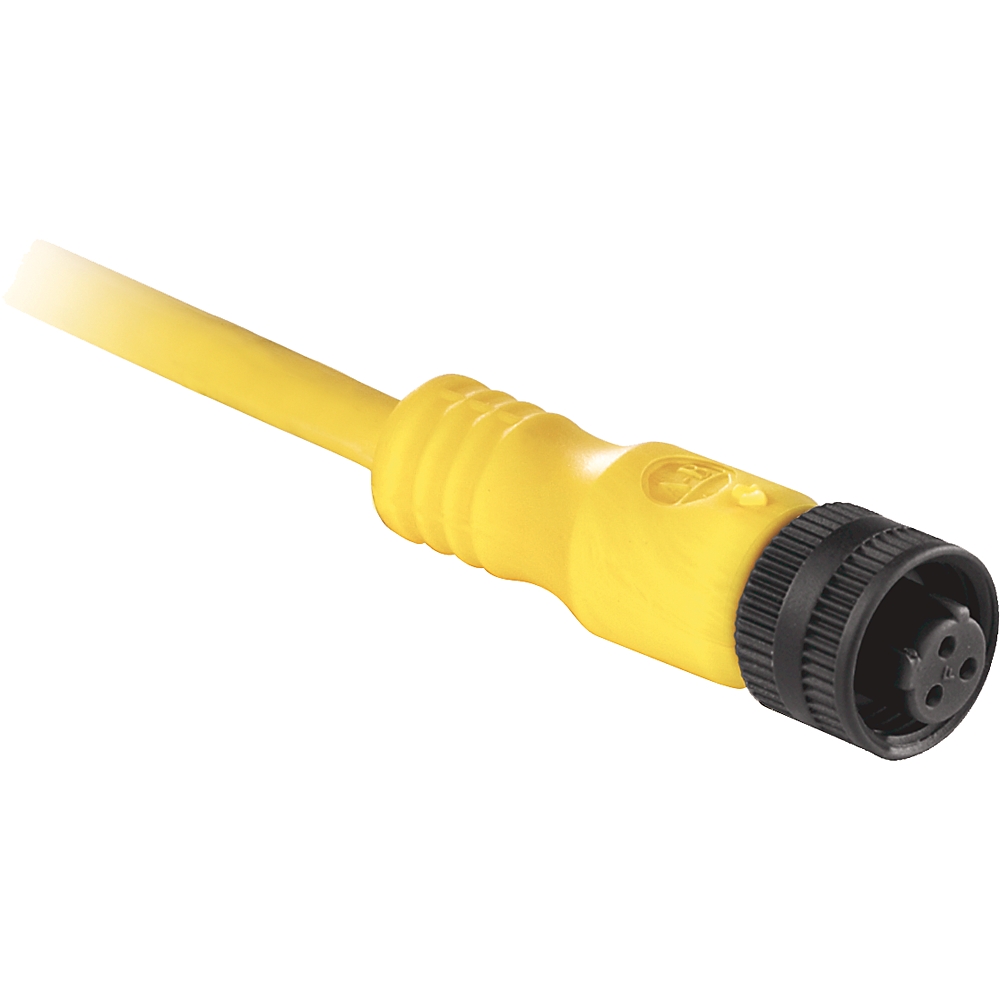

Allen-Bradley Allen-Bradley 889 AC Micro Cable 889R-R4ECA-5
