Allen-Bradley 889 AC Micro Cable 889R-F6ECRM-30
Allen-Bradley 889R-F6ECRM-30 - industrial components - Material: Coupling nut: Epoxy-coated Zinc, Connector: molded oil-resistant Polyurethane body, Contact: Gold over Nickel-plated Brass; Length: Connector: 47 mm ft; Height: Connector: 31.8 mm mm.
Allen-Bradley 889R-F6ECRM-30 is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Material: Coupling nut: Epoxy-coated Zinc, Connector: molded oil-resistant Polyurethane body, Contact: Gold over Nickel-plated Brass and Length: Connector: 47 mm ft.
Published specifications for this part include Height: Connector: 31.8 mm mm; Operating Temperature: -20 °C; Cable length: 30000 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Cable rating: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant; Cable type: PVC cable, yellow, shielded, 22 AWG; Description: AC micro cordset or patchcord; Rated voltage: 250 V; Mounting method: Freely positionable; Product Type Feature: Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin. See the Specifications tab on this page for the full technical table.
| Assembly rating | 250V @ 4A |
|---|---|
| Bend radius | 10 x diam |
| Braiding | Shield aluminum mylar stranding 26 x #36 AWG) (braided cable models only) |
| Build America, Buy America | No |
| Cable length | 30000 mm |
| Cable rating | UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant |
| Cable type | PVC cable, yellow, shielded, 22 AWG |
| Degree of protection (IP), mounted | IP69K |
| Description | AC micro cordset or patchcord |
| Diameter | Connector: 14 mm |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| Height | Connector: 31.8 mm mm |
| Length | Connector: 47 mm ft |
| Lifecycle Status | Active |
| List of degrees of protection (IP), mounted | IP67 and IP69K |
| Material | Coupling nut: Epoxy-coated Zinc, Connector: molded oil-resistant Polyurethane body, Contact: Gold over Nickel-plated Brass |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 6-pin |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 4 A |
| Rated voltage | 250 V |
| Repair Options Available | No |
| Second end conductors | Same as first end |
| Second End Connection | Male, Straight (ext. threads),AC Micro,Straight, Male(Ext. Threads),AC Micro (Dual Key) |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | AC micro dual key |
| Type of plug-in contact, inner side | Female (bus) |
| With shield connection | true |
Frequently Asked Questions
How do I get pricing for 889R-F6ECRM-30?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889R-F6ECRM-30?
889R-F6ECRM-30 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889R-F6ECRM-30?
Key specifications include Assembly rating: 250V @ 4A; Bend radius: 10 x diam; Braiding: Shield aluminum mylar stranding 26 x #36 AWG) (braided cable models only); Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 889R-F6ECRM-30 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

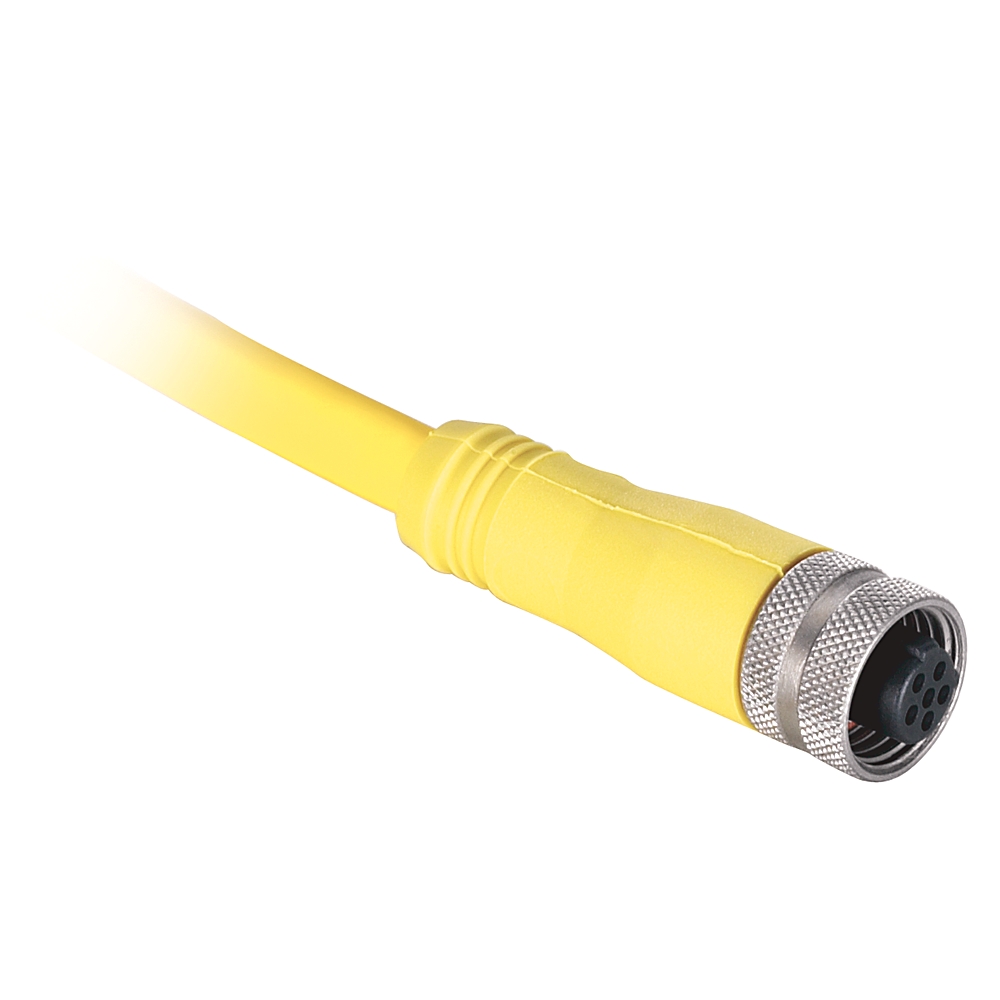

Allen-Bradley Allen-Bradley 889 AC Micro Cable 889R-F6ECRM-6
Allen-Bradley Allen-Bradley 889 AC Micro Cable 889R-F6ECRE-5

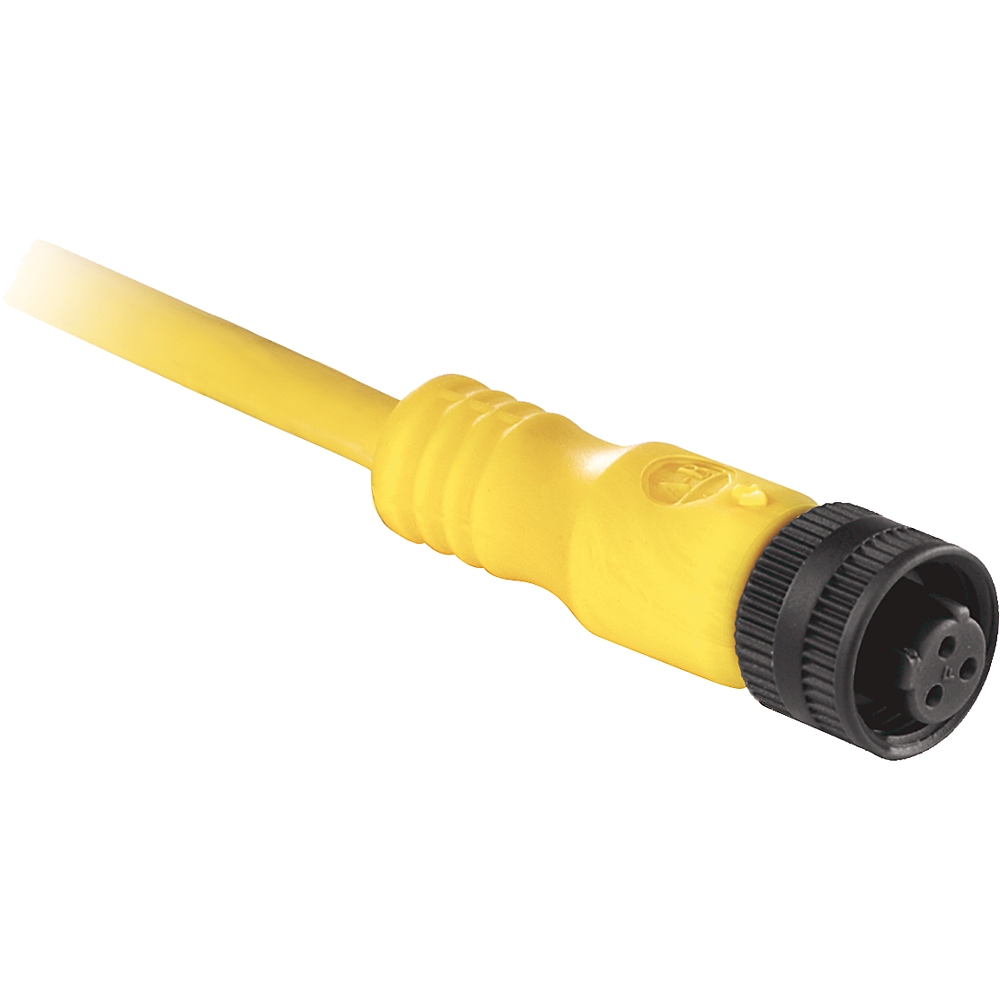

Allen-Bradley Allen-Bradley 889 AC Micro Cable 889R-R3AERM-5
