Allen-Bradley 889 Mini Cable 889N-F3HJNM-18
Allen-Bradley 889N-F3HJNM-18 - industrial components - Material: Coupling nut: Epoxy-coated Zinc, housing: molded oil-resistant TPE, Contact: Gold-plated Palladium/Nickel; Length: Connector: 61.8 mm ft; Operating Temperature: -50 °C.
This listing covers the Allen-Bradley 889N-F3HJNM-18, a part number in the industrial components category. The manufacturer's published data for this part number specifies Material: Coupling nut: Epoxy-coated Zinc, housing: molded oil-resistant TPE, Contact: Gold-plated Palladium/Nickel and Length: Connector: 61.8 mm ft.
Key manufacturer data on file for this item includes Operating Temperature: -50 °C; Cable length: 18000 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 3; Cable rating: UL AWM style 20327 VW-1 105°C @ 300V, CSA AWM A/B I/II 105°C @ 300V FT1, UV oil and water resistant; Cable type: TPE cable, unshielded 18 AWG flex rated; Special characteristic: Standard; Material housing: Plastic; Enclosure type rating: NEMA 4, 6P, 12, 13, 1200 psi washdown; Wire size: 18 AWG, flex rated. The complete technical table is shown in the Specifications tab on this page.
| Bend radius | 10 x diam |
|---|---|
| Build America, Buy America | No |
| Cable diameter | 3 core cable: 6 mm, 4 core cable: 7 mm, 5 core cable: 8 mm |
| Cable length | 18000 mm |
| Cable rating | UL AWM style 20327 VW-1 105°C @ 300V, CSA AWM A/B I/II 105°C @ 300V FT1, UV oil and water resistant |
| Cable type | TPE cable, unshielded 18 AWG flex rated |
| Enclosure type rating | NEMA 4, 6P, 12, 13, 1200 psi washdown |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Number of pins | 3-pin |
| Jacket | TPE Cbl, UnShld,TPE Cable, 18 AWG Flex |
| Length | Connector: 61.8 mm ft |
| Lifecycle Status | Active |
| List of degrees of protection | IP67 and IP69K |
| Material | Coupling nut: Epoxy-coated Zinc, housing: molded oil-resistant TPE, Contact: Gold-plated Palladium/Nickel |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number of poles | 3 |
| Operating Temperature | -50 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated brass for pico, Standard-aluminum with clear sealant for mini QD with 7-12 pin |
| Rated voltage | 300 V |
| Repair Options Available | No |
| Second end conductors | Same as first end |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | Mini |
| Special characteristic | Standard |
| Type of plug-in contact, inner side | Female (bus) |
| Wire size | 18 AWG, flex rated |
| With shield connection | false |
Frequently Asked Questions
How do I get pricing for 889N-F3HJNM-18?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889N-F3HJNM-18?
889N-F3HJNM-18 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889N-F3HJNM-18?
Key specifications include Bend radius: 10 x diam; Build America, Buy America: No; Cable diameter: 3 core cable: 6 mm, 4 core cable: 7 mm, 5 core cable: 8 mm; Cable length: 18000 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 889N-F3HJNM-18 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 889 Mini Cable 889N-F3HFNV-10F
Allen-Bradley Allen-Bradley 889 Mini Cable 889N-F4AE-150F
Allen-Bradley Allen-Bradley 889 Mini Cable 889N-F3AFNU-7F
Allen-Bradley Allen-Bradley 889 Mini Cable 889N-F4AF-32F

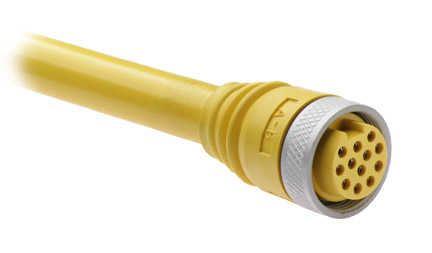

Allen-Bradley Allen-Bradley 889 Mini Cable 889N-F4AF-33F
