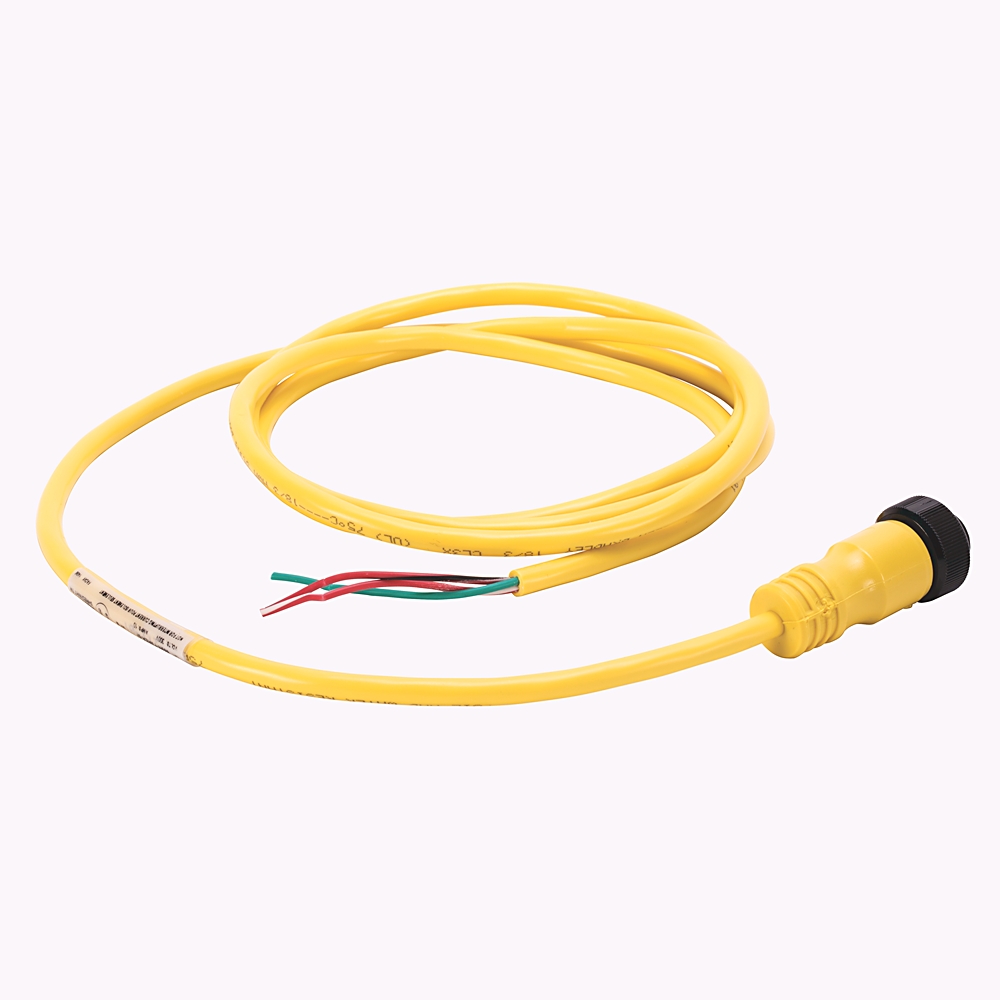

Allen-Bradley 889 Mini Cable 889N-F3GEC-30F
Allen-Bradley 889N-F3GEC-30F - industrial components - Material: Coupling nut: Epoxy-coated Zinc, housing: molded oil-resistant TPE, contact: Gold over Nickel-plated brass; Length: Connector: 61.8 mm ft; Operating Temperature: -20 °C.
The Allen-Bradley 889N-F3GEC-30F is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Material: Coupling nut: Epoxy-coated Zinc, housing: molded oil-resistant TPE, contact: Gold over Nickel-plated brass and Length: Connector: 61.8 mm ft.
The specification set recorded for this part number covers Operating Temperature: -20 °C; Cable length: 9144 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 3; Cable rating: UL PLTC AWM Style 2661VW-1 105C @ 300V, CSA AWM A/B 1/II 80C; Cable type: PVC cable, grey, unshielded, 18 AWG; Special characteristic: Standard; Material housing: Plastic; Enclosure type rating: NEMA 4, 6P, 12, 13, 1200 psi washdown; Wire size: 18 AWG. See the Specifications tab on this page for the full technical table.
| Assembly rating | 4-pin: 300V @ 7A, 5-pin: 300V @ 5.6A, 6-pin: 300V @ 5.6A |
|---|---|
| Bend radius | 10 x diam |
| Build America, Buy America | No |
| Cable length | 9144 mm |
| Cable rating | UL PLTC AWM Style 2661VW-1 105C @ 300V, CSA AWM A/B 1/II 80C |
| Cable type | PVC cable, grey, unshielded, 18 AWG |
| Diameter | 2-pin cable: 6.0 mm, 3-pin cable: 6.6 mm, 4-pin cable: 6.6 mm, 5-pin cable: 7.6 mm, 6-pin cable: 8.1 mm |
| Enclosure type rating | NEMA 4, 6P, 12, 13, 1200 psi washdown |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Number of pins | 3-pin |
| Jacket | PVC Cbl, Grey, UnShld,GE |
| Length | Connector: 61.8 mm ft |
| Lifecycle Status | Active |
| List of degrees of protection | IP67 and IP69K |
| Material | Coupling nut: Epoxy-coated Zinc, housing: molded oil-resistant TPE, contact: Gold over Nickel-plated brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number of poles | 3 |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated brass for pico, Standard-aluminum with clear sealant for mini QD with 7-12 pin |
| Repair Options Available | No |
| Second end conductors | Same as first end |
| Second End Connection | No Connector,Cable,No Connector,Cable - U.S. Color Code |
| Second end termination style | No connector |
| Second End Termination Type | Cable - U.S. industry standard color coded |
| Special characteristic | Standard |
| Type of plug-in contact, inner side | Female (bus) |
| Wire size | 18 AWG |
| With shield connection | false |
