Allen-Bradley 889 M23 Cable 889M-F19RM-5
Allen-Bradley 889M-F19RM-5 - industrial components - Material: Coupling nut: Nickel-plated Brass, Connector: molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass; Operating Temperature: -20 °C; Cable length: 5000 mm.
This listing covers the Allen-Bradley 889M-F19RM-5, a part number in the industrial components category. The manufacturer's published data for this part number specifies Material: Coupling nut: Nickel-plated Brass, Connector: molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass and Operating Temperature: -20 °C.
Key manufacturer data on file for this item includes Cable length: 5000 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 19; Number of Conductors: 19; Cable rating: 300V; Cable type: PUR cable, black, unshielded, 3 power wires 18 AWG rest of wires 22 AWG; Length, approx: Connector: 85 mm; Material housing: Plastic; Wire size: 3 AWG & rest/22 AWG; Mounting method: Freely positionable. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 18 AWG-8A @ 22 AWG-2 A |
|---|---|
| Bend radius | 10 x diam |
| Build America, Buy America | No |
| Cable length | 5000 mm |
| Cable rating | 300V |
| Cable type | PUR cable, black, unshielded, 3 power wires 18 AWG rest of wires 22 AWG |
| Connector Type | 19-pin |
| Degree of protection (IP), mounted | IP68 |
| Diameter | Cable: 12.1 mm |
| Diameter, approx | Connector: 26.2 mm |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Number of pins | 19-pin |
| Jacket | PUR Cbl, Black, UnShld,PUR Cbl, Black, 3/18 rst 22 AWG |
| Length, approx | Connector: 85 mm |
| Lifecycle Status | Active |
| List of degrees of protection (IP), mounted | IP68/IP67 |
| Material | Coupling nut: Nickel-plated Brass, Connector: molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number of Conductors | 19 |
| Number of poles | 19 |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 8 A |
| Repair Options Available | No |
| Second end conductors | Same as first end |
| Second End Connection | No Connector,Cable,No Connector,Cable - IEC Stndrd Color Code |
| Second end termination style | No connector |
| Second End Termination Type | Cable - IEC standard color code |
| Type of plug-in contact, inner side | Female (bus) |
| Wire size | 3 AWG & rest/22 AWG |
| With shield connection | false |
Frequently Asked Questions
How do I get pricing for 889M-F19RM-5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889M-F19RM-5?
889M-F19RM-5 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889M-F19RM-5?
Key specifications include Assembly rating: 18 AWG-8A @ 22 AWG-2 A; Bend radius: 10 x diam; Build America, Buy America: No; Cable length: 5000 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 889M-F19RM-5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 889 M23 Cable 889M-F19RM-30

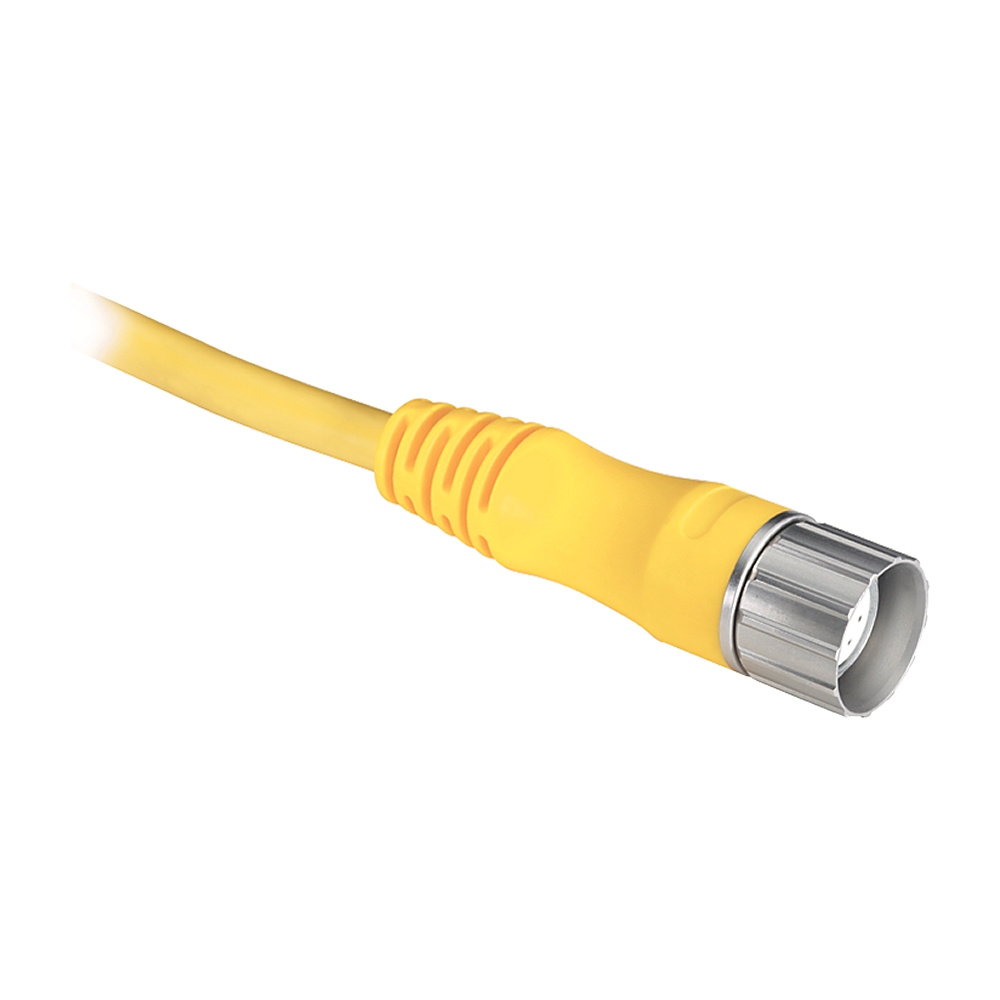

Allen-Bradley Allen-Bradley 889 M23 Cable 889M-R19RM-2

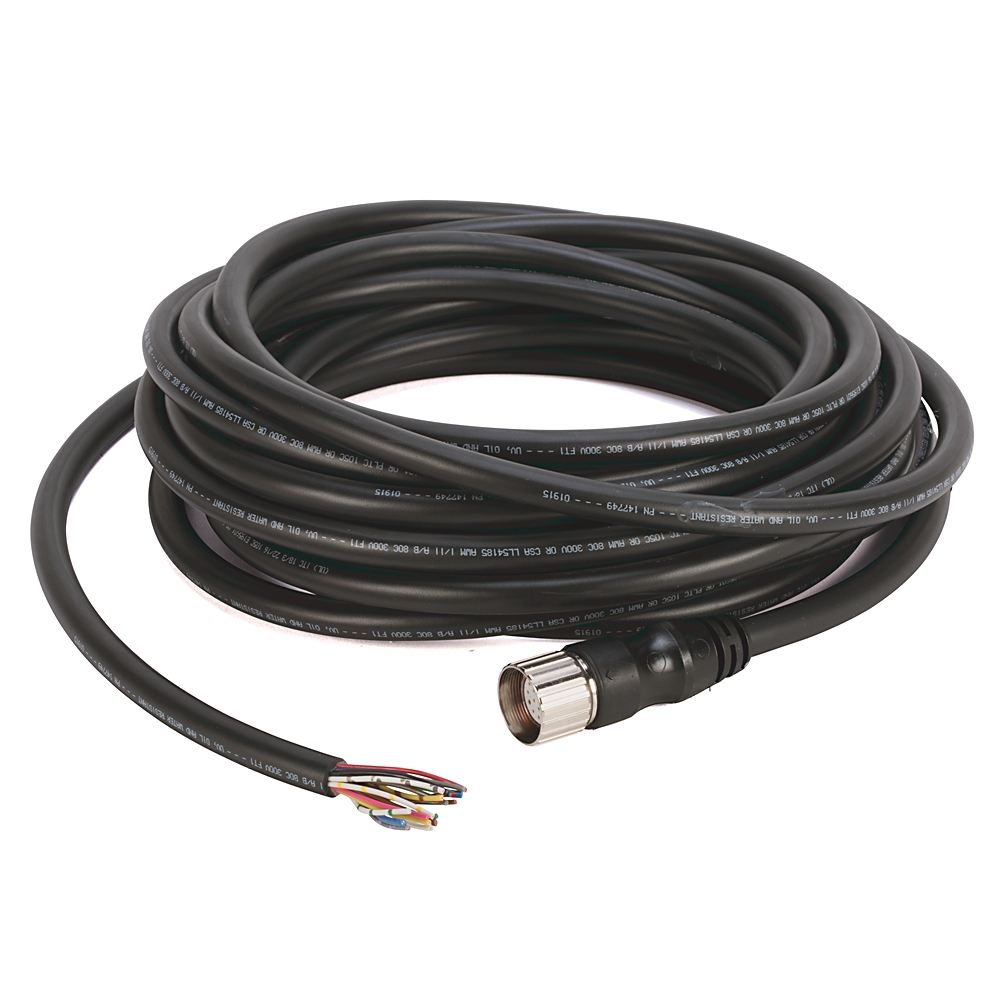

Allen-Bradley Allen-Bradley 889 M23 Cable 889M-F19RM-10
