Allen-Bradley 889 DC Micro Cable 889D-R4BBP3M-V2
Allen-Bradley 889D-R4BBP3M-V2 - Circular Connection Cables - Cable length: 2000 mm; Lifecycle Status: Active; Build America, Buy America: No.
The 889D-R4BBP3M-V2 from Allen-Bradley is listed under Circular Connection Cables in our catalog. The manufacturer's published data for this part number specifies Cable length: 2000 mm and Lifecycle Status: Active.
Published specifications for this part include Build America, Buy America: No; Repair Options Available: No; Number of poles: 4; Cable type: PVC cable, black, unshielded, 24 AWG; Length, approx: Connector: 50.8 mm (2.0 in) @ straight male; Special characteristic: Reverse wiring (D.O. MaXum); Material housing: Plastic; Height, approx: Connector: 31.8 mm (1.25 in) @ right angle male; Mounting method: Freely positionable; Product Type Feature: Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin; Material of contact surface: Gold; Number Of Pins: 4-pin. See the Specifications tab on this page for the full technical table.
| Bend radius | 10 x diam |
|---|---|
| Build America, Buy America | No |
| Cable length | 2000 mm |
| Cable type | PVC cable, black, unshielded, 24 AWG |
| Diameter, approx | Connector: 14 mm (0.56 in) @ straight male |
| First End Connection | Female, Right Angle (int threa,Female, Rt Angle (Int Threads) |
| First end connector style | Female, right angle (internal threads) |
| First End Number of pins | 3-pin |
| Height, approx | Connector: 31.8 mm (1.25 in) @ right angle male |
| Length, approx | Connector: 50.8 mm (2.0 in) @ straight male |
| Lifecycle Status | Active |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 4-pin |
| Number of poles | 4 |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Repair Options Available | No |
| Screw-in thread | M8 |
| Second end conductors | 3-pin |
| Second End Connection | Male, Straight (ext. threads),Pico,Straight, Male(Ext. Threads),Pico (M8) |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | Pico M8 |
| Special characteristic | Reverse wiring (D.O. MaXum) |
| Type of plug-in contact, inner side | Female (bus) |
Frequently Asked Questions
How do I get pricing for 889D-R4BBP3M-V2?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889D-R4BBP3M-V2?
889D-R4BBP3M-V2 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889D-R4BBP3M-V2?
Key specifications include Bend radius: 10 x diam; Build America, Buy America: No; Cable length: 2000 mm; Cable type: PVC cable, black, unshielded, 24 AWG. The full specification table on this page lists every published attribute for this part.
How quickly can 889D-R4BBP3M-V2 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

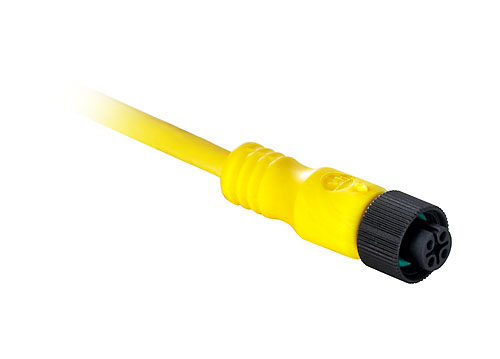

Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-R4BB-2
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-R4BC-1

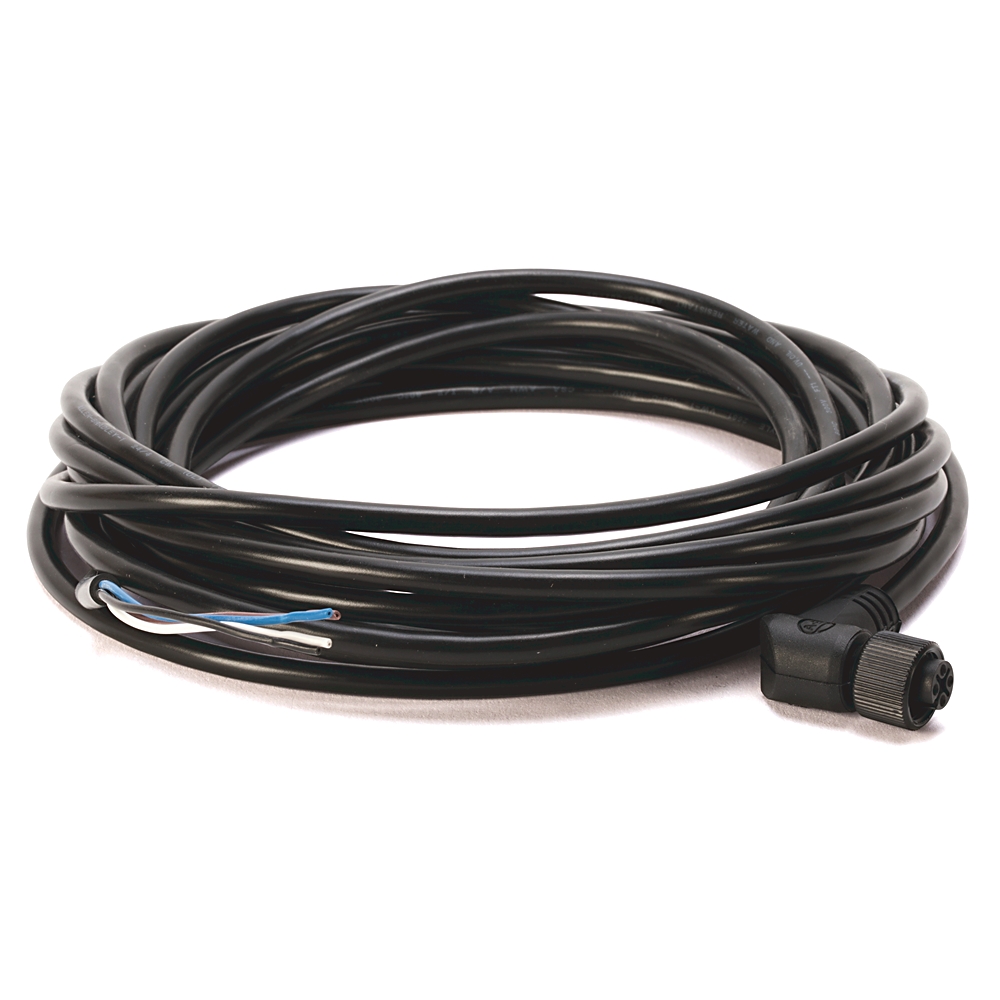

Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-R4BB-10
