Allen-Bradley 889 DC Micro Cable 889D-P4BC-15
Allen-Bradley 889D-P4BC-15 - Circular Connection Cables - Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PVC, Contact: Gold over Nickel-plated Brass; Operating Temperature: -20 °C; Cable length: 15000 mm.
This listing covers the Allen-Bradley 889D-P4BC-15, a part number in the Circular Connection Cables category. The manufacturer's published data for this part number specifies Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PVC, Contact: Gold over Nickel-plated Brass and Operating Temperature: -20 °C.
The specification set recorded for this part number covers Cable length: 15000 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 4; Cable rating: LED models: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant; Cable type: PVC cable, black, unshielded, 22 AWG; Length, approx: Connector: 42 mm (1.2 in) @ Straight female; Material housing: Plastic; Height, approx: Connector: 43 mm (1.7 in) @ right angle female; Enclosure type rating: IP67, NEMA 6P; Wire size: 22 AWG. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 4A @ 30V |
|---|---|
| Bend radius | 10 x diam |
| Build America, Buy America | No |
| Cable diameter | LED: 5 mm (0.2 in), Coiled: 7.1 mm (0.28 in) |
| Cable length | 15000 mm |
| Cable rating | LED models: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant |
| Cable type | PVC cable, black, unshielded, 22 AWG |
| Degree of protection (IP), mounted | IP67 |
| Diameter, approx | Connector: 15 mm (0.59 in) @ straight female |
| Enclosure type rating | IP67, NEMA 6P |
| First End Connection | Female, Right Angle, LED-PNP,Female, Rt Angle, LED-PNP |
| First end connector style | Female, right angle, LED-PNP |
| First End Number of pins | 4-pin |
| Height, approx | Connector: 43 mm (1.7 in) @ right angle female |
| Jacket | PVC Cbl, Black, UnShld,PVC Cable, Black, 22 AWG |
| Length, approx | Connector: 42 mm (1.2 in) @ Straight female |
| Lifecycle Status | Active |
| Material | Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PVC, Contact: Gold over Nickel-plated Brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 4-pin |
| Number of poles | 4 |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 4 A |
| Rated voltage | 30 V |
| Repair Options Available | No |
| Second end conductors | Same as first end |
| Second End Connection | No Connector,Cable,No Connector,Cable - IEC Stndrd Color Code |
| Second end termination style | No connector |
| Second End Termination Type | Cable - IEC standard color code |
| Type of plug-in contact, inner side | Female (bus) |
| Wire size | 22 AWG |
| With shield connection | false |
Frequently Asked Questions
How do I get pricing for 889D-P4BC-15?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889D-P4BC-15?
889D-P4BC-15 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889D-P4BC-15?
Key specifications include Assembly rating: 4A @ 30V; Bend radius: 10 x diam; Build America, Buy America: No; Cable diameter: LED: 5 mm (0.2 in), Coiled: 7.1 mm (0.28 in). The full specification table on this page lists every published attribute for this part.
How quickly can 889D-P4BC-15 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-R2AC-10
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-P4ABDE-2
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-R2ACDE-2

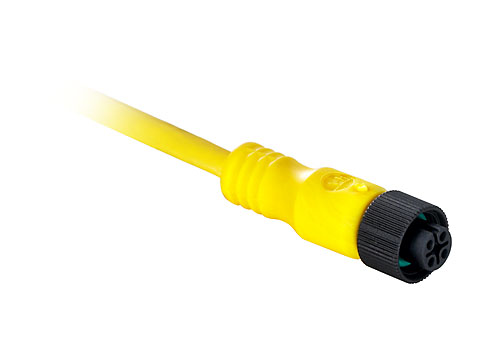

Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-P4AB-2

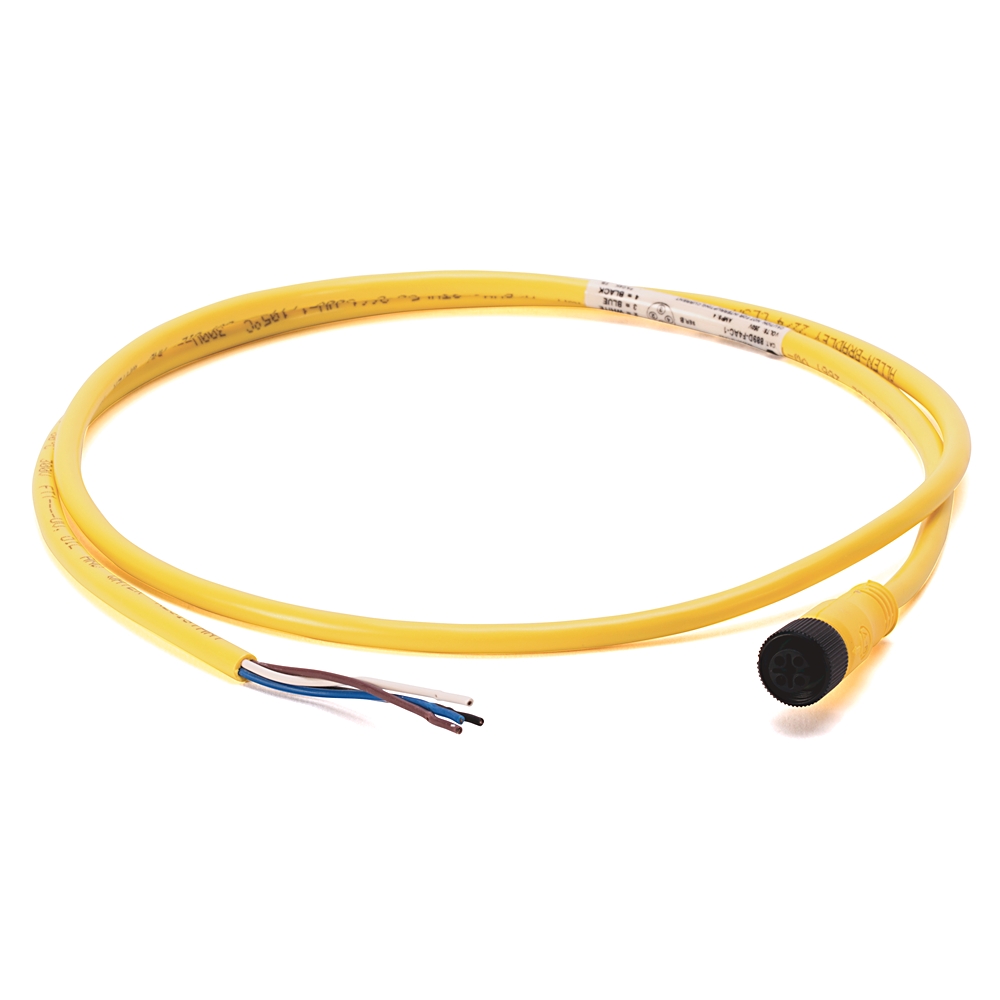

Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-R3AC-2
