Allen-Bradley 889 DC Micro Cable 889D-F8ABDM-7M5
Allen-Bradley 889D-F8ABDM-7M5 - Circular Connection Cables - Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass; Cable length: 7500 mm; Lifecycle Status: Active.
This listing covers the Allen-Bradley 889D-F8ABDM-7M5, a part number in the Circular Connection Cables category. The manufacturer's published data for this part number specifies Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass and Cable length: 7500 mm.
Published specifications for this part include Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 8; Cable rating: 4 & 5 core (PUR): UL AWM style 20866 VW-1 80°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant 300V, 8 core (PUR): UL AWM style 20866 90°C @ 300V, CSA II A 90°C @ 300V, TPE: UL AWM style 20327 VW-1 105°C @ 300V, CSA AWM A/B I/II 105 °C 300; Cable type: Oil-resistant PVC jacket, 18 and 22 AWG or 24 AWG conductors, 300V; Length, approx: Connector: 47 mm (1.85 in) @ straight female; Material housing: Plastic; Enclosure type rating: IP67, NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K; Rated voltage: 36 V; Mounting method: Freely positionable; Product Type Feature: Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 1.5A @ 30V AC/36V DC |
|---|---|
| Bend radius | 10 x diam |
| Build America, Buy America | No |
| Cable length | 7500 mm |
| Cable rating | 4 & 5 core (PUR): UL AWM style 20866 VW-1 80°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant 300V, 8 core (PUR): UL AWM style 20866 90°C @ 300V, CSA II A 90°C @ 300V, TPE: UL AWM style 20327 VW-1 105°C @ 300V, CSA AWM A/B I/II 105 °C 300 |
| Cable type | Oil-resistant PVC jacket, 18 and 22 AWG or 24 AWG conductors, 300V |
| Degree of protection (IP), mounted | IP69K |
| Diameter | 4 core cable (PUR): 5 mm (0.21 in), 4 core cable (18 AWG TPE): 7 mm (0.28 in), 4 core cable (22 AWG TPE): 4.9 mm (0.19 in), 5 core cable: 6.5 mm (0.25 in), 7 core cable: 7.4 mm (0.29 in), 8 core cable: 7.4 mm (0.29 in) |
| Diameter, approx | Connector: 14 mm (0.56 in) @ straight female |
| Enclosure type rating | IP67, NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| Length, approx | Connector: 47 mm (1.85 in) @ straight female |
| Lifecycle Status | Active |
| Material | Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 8-pin |
| Number of poles | 8 |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 1.5 A |
| Rated voltage | 36 V |
| Repair Options Available | No |
| Screw-in thread | M12 |
| Second end conductors | Same as first end |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | DC micro (M12) |
| Type of plug-in contact, inner side | Female (bus) |
| With shield connection | false |
Frequently Asked Questions
How do I get pricing for 889D-F8ABDM-7M5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889D-F8ABDM-7M5?
889D-F8ABDM-7M5 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889D-F8ABDM-7M5?
Key specifications include Assembly rating: 1.5A @ 30V AC/36V DC; Bend radius: 10 x diam; Build America, Buy America: No; Cable length: 7500 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 889D-F8ABDM-7M5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F8AC-10
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F8ABDM-5
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F8FB-30

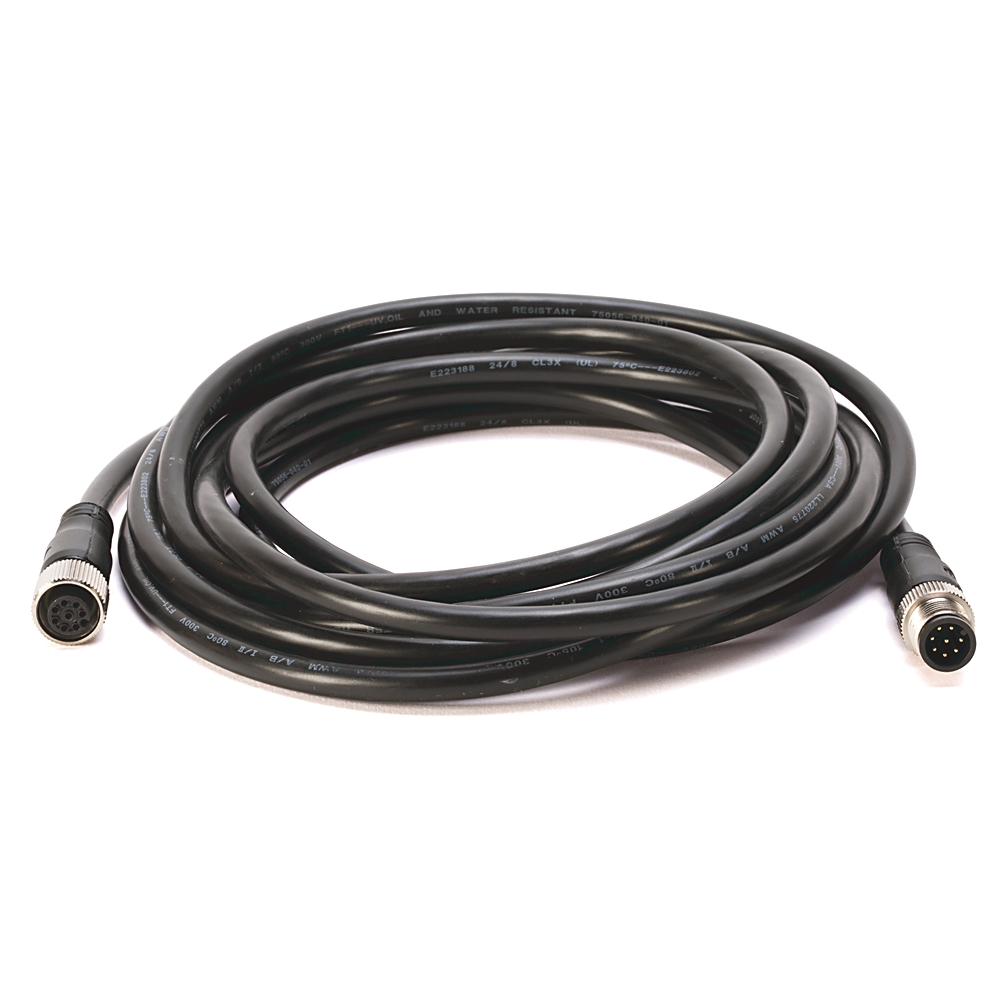

Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F8ABDM-30
