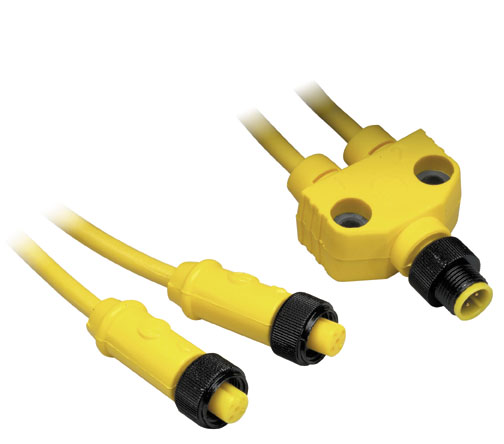

Allen-Bradley V Cable or Y Cable Splitter 879D-F4ACTM-0M6
Allen-Bradley 879D-F4ACTM-0M6 - industrial components - Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass; Operating Temperature: -20 °C; Cable length: 600 mm.
The Allen-Bradley 879D-F4ACTM-0M6 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass and Operating Temperature: -20 °C.
Key manufacturer data on file for this item includes Cable length: 600 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Cable rating: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant; Cable type: Oil-resistant yellow PVC or TPE jacket, 22 AWG conductors, 300V; Special characteristic: Standard; Enclosure type rating: IP67, NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K; Description: V-cable or Y-cable splitter; Material core insulation: Polyvinyl chloride (PVC); Rated voltage: 250 V; Product Type Feature: Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 250V @ 4A |
|---|---|
| Build America, Buy America | No |
| Cable length | 600 mm |
| Cable rating | UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant |
| Cable type | Oil-resistant yellow PVC or TPE jacket, 22 AWG conductors, 300V |
| Degree of protection (IP), mounted | IP69K |
| Description | V-cable or Y-cable splitter |
| Enclosure type rating | IP67, NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Connector Type | DC micro (M12) |
| Lifecycle Status | Active |
| Material | Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass |
| Material core insulation | Polyvinyl chloride (PVC) |
| Material of contact surface | Gold |
| Number Of Pins | 4-pin |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 4 A |
| Rated voltage | 250 V |
| Repair Options Available | No |
| Second end cable length | Same length as female end |
| Second end conductors | Same as first end |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | Y-cable male DC micro (M12) |
| Special characteristic | Standard |
| Type of plug-in contact, inner side | Female (bus) |
| Wiring | Standard |
| With shield connection | false |
