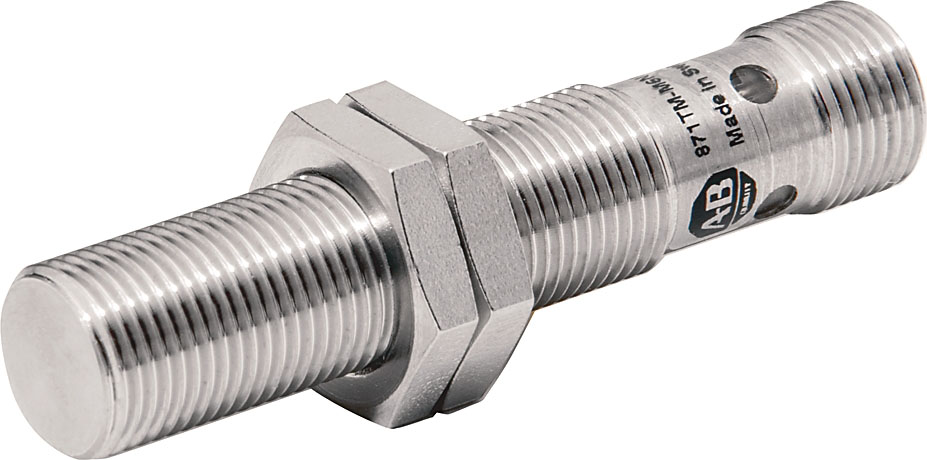

Allen-Bradley Metal Face Inductive Sensor 871TM-DH4NP12-N4
Allen-Bradley 871TM-DH4NP12-N4 - 18mm Tubular Inductive Proximity Sensors - Sensing Distance: 4 mm mm; Operating Temperature: -25 °C; Housing material: Stainless steel face and barrel.
The Allen-Bradley 871TM-DH4NP12-N4 is part of the 18mm Tubular Inductive Proximity Sensors range in our industrial catalog. The manufacturer's published data for this part number specifies Sensing Distance: 4 mm mm and Operating Temperature: -25 °C.
The specification set recorded for this part number covers Housing material: Stainless steel face and barrel; Type: Inductive Sensor; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Degree of protection (NEMA): 13; Rated control supply voltage at DC: 10 V; Material housing: Metal; Shock: 30 G (1.06 oz), 11 ms; Vibration: 55 Hz, 1 mm Alitude, 3 planes; Connection type: Mini QD DC; Product type: Metal face. The complete technical table is shown in the Specifications tab on this page.
| + output | Normally open |
|---|---|
| Build America, Buy America | No |
| Capacitive load | ≤1 µF |
| Connection style | Cable: 2 m length, A2 - 3-conductor PVC, C2 - 3-conductor #22 AWG-toughlink, H2 - 3-conductor #18 AWG toughlink, Quick disconnect: 4 pin mini style, 4 pin micro style |
| Connection type | Mini QD DC |
| Correction factor | Steel: 1 |
| Degree of protection (NEMA) | 13 |
| Description | Metal face inductive sensor |
| Diameter sensor | 12 mm |
| Enclosure type rating | NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, IP67 (IEC529) all models, 1200 psi washdown, toughlink and micro connector versions are also rated IP69K (IEC 529) |
| Housing material | Stainless steel face and barrel |
| Hysteresis | 10% typical |
| Leakage Current | ≤0.9 mA |
| Lifecycle Status | Discontinued |
| Load current | ≤200 mA |
| Material housing | Metal |
| Nominal sensing distance | 2 mm |
| Operating Temperature | -25 °C |
| Output configuration | Normally open sourcing DC |
| Product type | Metal face |
| Protection type | False pulse, transient noise, reverse polarity, short circuit (trigger at 340 mA typical), overload |
| Rated control supply voltage at DC | 10 V |
| Repair Options Available | No |
| Repeatability | ≤10% at constant temperature |
| Sensing Distance | 4 mm mm |
| Shock | 30 G (1.06 oz), 11 ms |
| Special Feature | Short barrel |
| Status indicator | Red: Output energized, Green: Power/short circuit (flashing)-18 mm models only |
| Switching frequency | 70 Hz |
| Type | Inductive Sensor |
| Type of actuation | Metallic Target |
| Type of electric connection | Plug-in connection |
| Vibration | 55 Hz, 1 mm Alitude, 3 planes |
| Voltage drop | ≤8V |
| Voltage type | DC |
Frequently Asked Questions
How do I get pricing for 871TM-DH4NP12-N4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 871TM-DH4NP12-N4?
871TM-DH4NP12-N4 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 871TM-DH4NP12-N4?
Key specifications include + output: Normally open; Build America, Buy America: No; Capacitive load: ≤1 µF; Connection style: Cable: 2 m length, A2 - 3-conductor PVC, C2 - 3-conductor #22 AWG-toughlink, H2 - 3-conductor #18 AWG toughlink, Quick disconnect: 4 pin mini style, 4 pin micro style. The full specification table on this page lists every published attribute for this part.
How quickly can 871TM-DH4NP12-N4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

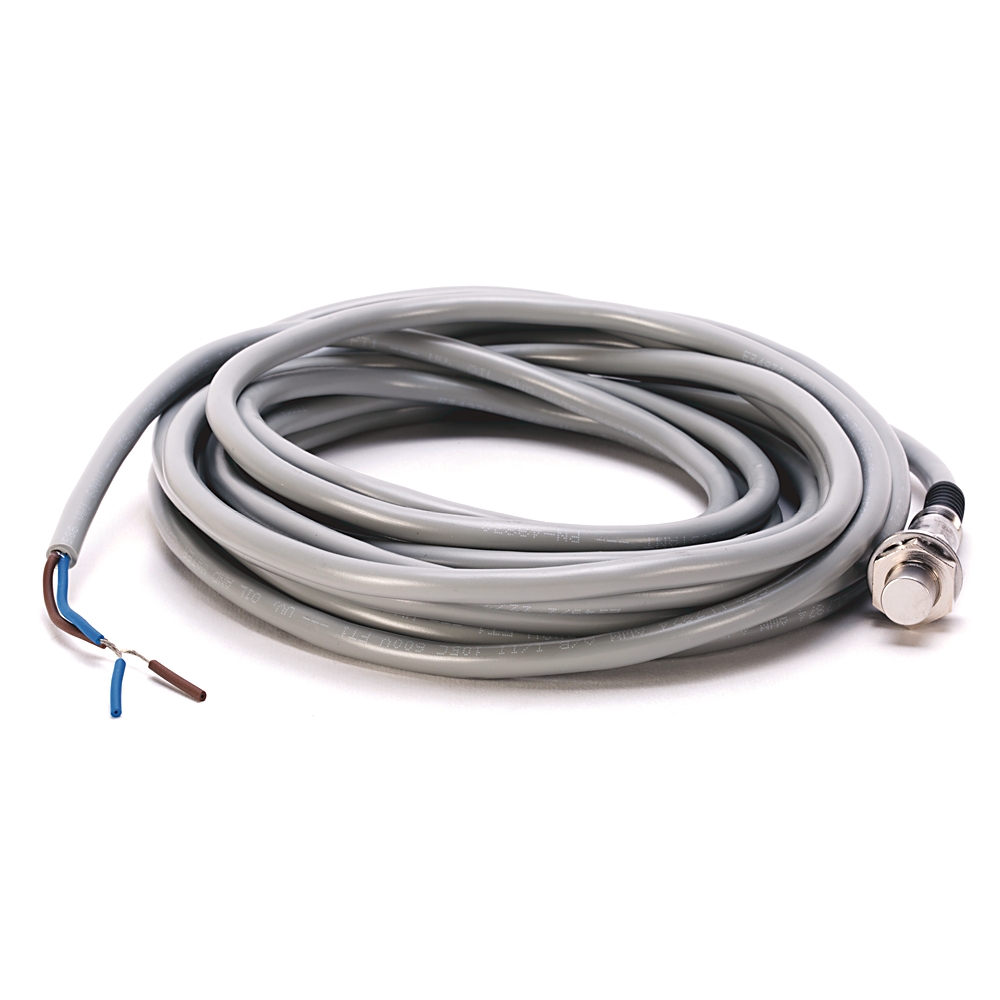

Allen-Bradley Allen-Bradley Metal Face Inductive Sensor 871TM-DH4NP12-D4

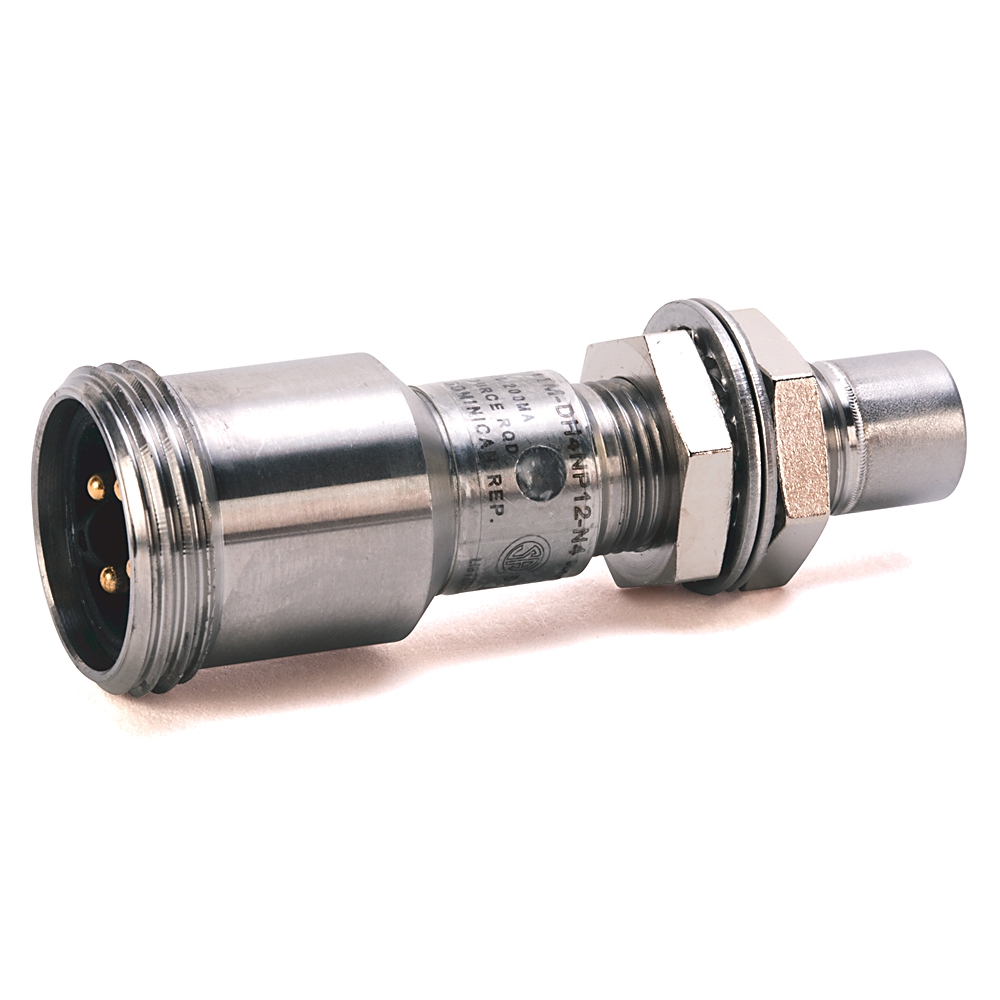

Allen-Bradley Allen-Bradley Metal Face Inductive Sensor 871TM-DH8NE18-H2
