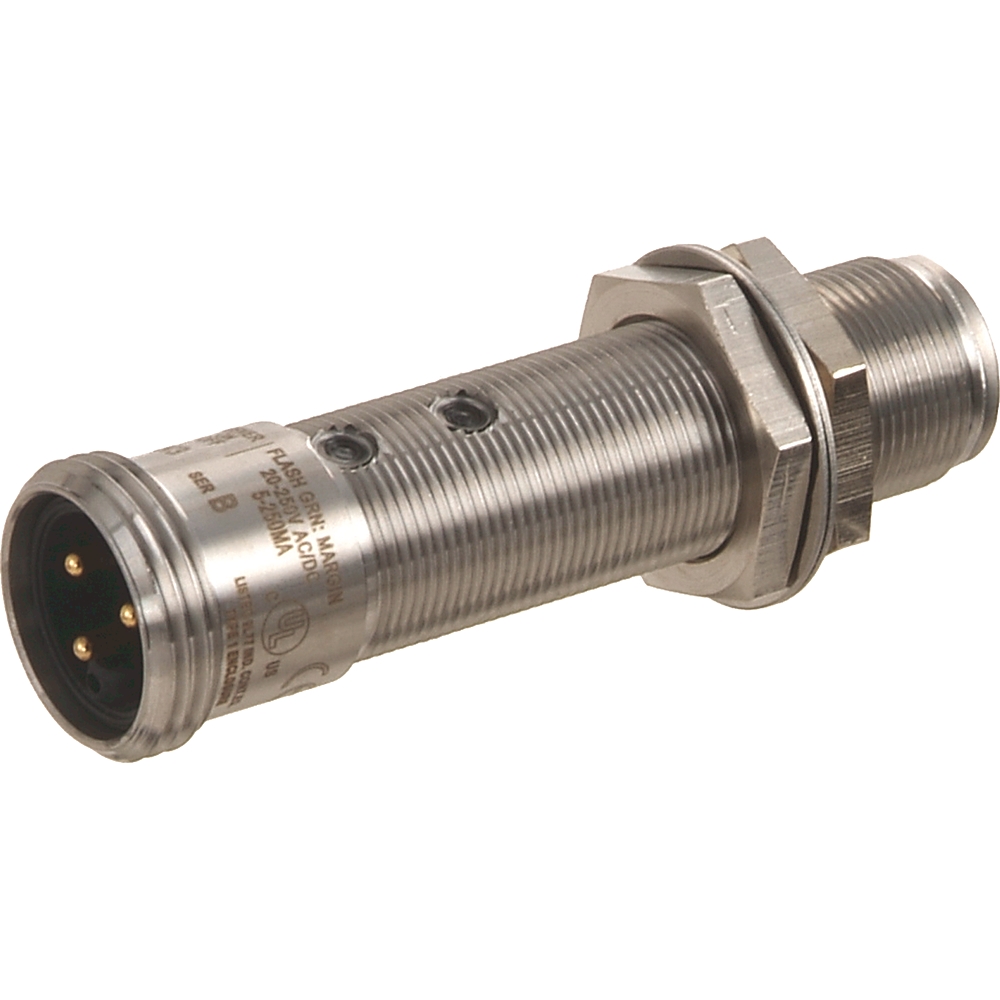

Allen-Bradley Metal Face Inductive Sensor 871TM-B5C18-N3
Allen-Bradley 871TM-B5C18-N3 - 18mm Tubular Inductive Proximity Sensors - Sensing Distance: 5 mm mm; Operating Temperature: -25 °C; Housing material: Stainless steel face and barrel.
The Allen-Bradley 871TM-B5C18-N3 is part of the 18mm Tubular Inductive Proximity Sensors range in our industrial catalog. The manufacturer's published data for this part number specifies Sensing Distance: 5 mm mm and Operating Temperature: -25 °C.
Key manufacturer data on file for this item includes Housing material: Stainless steel face and barrel; Type: Inductive Sensor; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (NEMA): 13; Material housing: Metal; Shock: 30 G (1.06 oz), 11 ms; Vibration: 55 Hz, 1 mm Alitude, 3 planes; Connection type: Mini QD AC; Product type: Metal face; Enclosure type rating: NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, IP67 (IEC529) all models, 1200 psi washdown, toughlink and micro connector versions are also rated IP69K (IEC 529). The complete technical table is shown in the Specifications tab on this page.
| + output | AC Normally Closed |
|---|---|
| Build America, Buy America | No |
| Connection style | Cable: 2 m length, A2 - 2-conductor #22 AWG PVC, C2 - 2-conductor #22 AWG toughlink, H2 - 2-conductor #18 AWG toughlink, Quick disconnect: 3 pin mini style, 3 pin micro style, 4 pin EAC micro style |
| Connection type | Mini QD AC |
| Correction factor | Steel: 1 |
| Degree of protection (NEMA) | 13 |
| Description | Metal face inductive sensor |
| Diameter sensor | 18 mm |
| Enclosure type rating | NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, IP67 (IEC529) all models, 1200 psi washdown, toughlink and micro connector versions are also rated IP69K (IEC 529) |
| Housing material | Stainless steel face and barrel |
| Hysteresis | 7% typical |
| Inrush current | ≤4 A (one cycle) |
| Leakage Current | ≤1.9mA @ 120V AC |
| Lifecycle Status | Active |
| Load current | 5 mA |
| Material housing | Metal |
| Nominal sensing distance | 5 mm |
| Operating Temperature | -25 °C |
| Operating voltage | 20…250V AC/DC |
| Output configuration | Normally closed AC |
| Product type | Metal face |
| Protection type | False pulse, transient noise, short circuit (trigger @ 8 A typical) and overload (trigger @ 320 mA typical) |
| Repair Options Available | No |
| Repeatability | ≤10% at constant temperature |
| Sensing Distance | 5 mm mm |
| Shock | 30 G (1.06 oz), 11 ms |
| Special Feature | Short barrel |
| Status indicator | Red: Output energized, Green: Power, Short circuit: Red and green flashing |
| Type | Inductive Sensor |
| Type of actuation | Metallic Target |
| Type of electric connection | Plug-in connection |
| Vibration | 55 Hz, 1 mm Alitude, 3 planes |
| Voltage drop | ≤10V @ 5...250mA |
| Voltage type | AC/DC |
Frequently Asked Questions
How do I get pricing for 871TM-B5C18-N3?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 871TM-B5C18-N3?
871TM-B5C18-N3 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 871TM-B5C18-N3?
Key specifications include + output: AC Normally Closed; Build America, Buy America: No; Connection style: Cable: 2 m length, A2 - 2-conductor #22 AWG PVC, C2 - 2-conductor #22 AWG toughlink, H2 - 2-conductor #18 AWG toughlink, Quick disconnect: 3 pin mini style, 3 pin micro style, 4 pin EAC micro style; Connection type: Mini QD AC. The full specification table on this page lists every published attribute for this part.
How quickly can 871TM-B5C18-N3 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

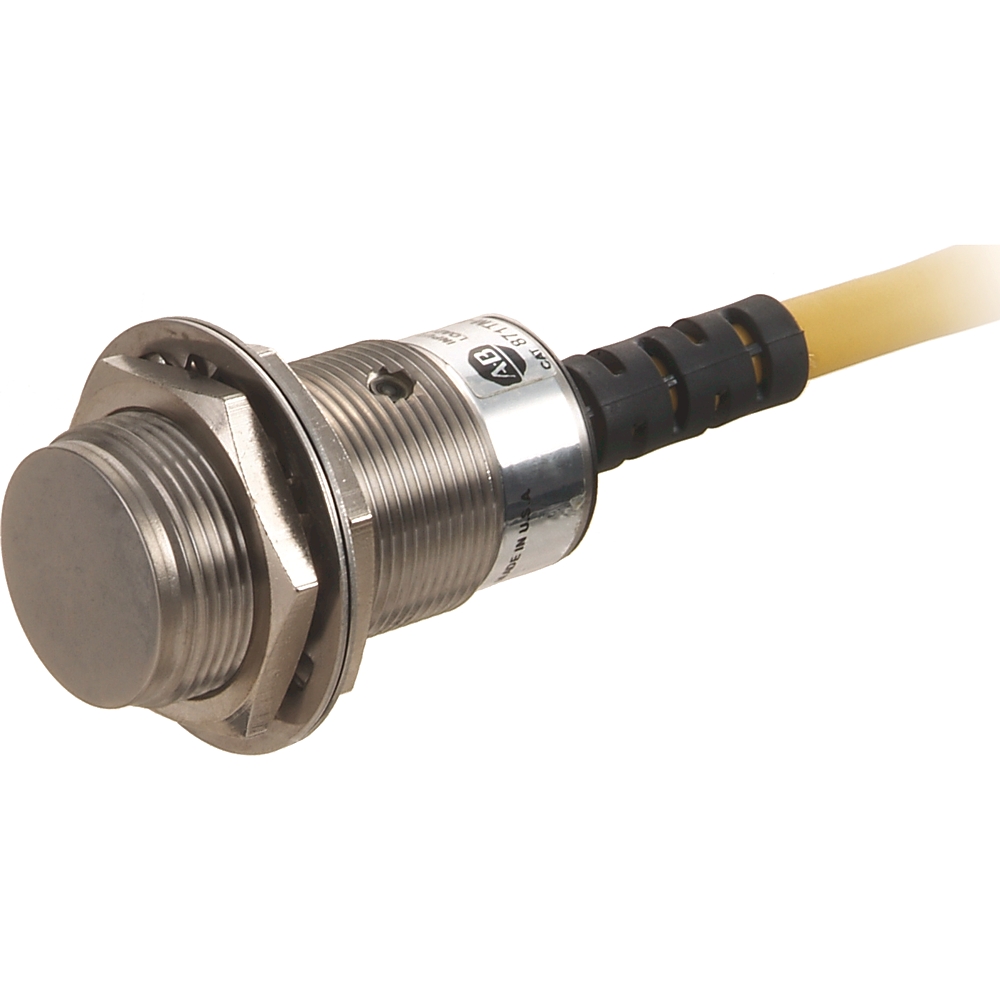

Allen-Bradley Allen-Bradley Metal Face Inductive Sensor 871TM-B5C18-A2

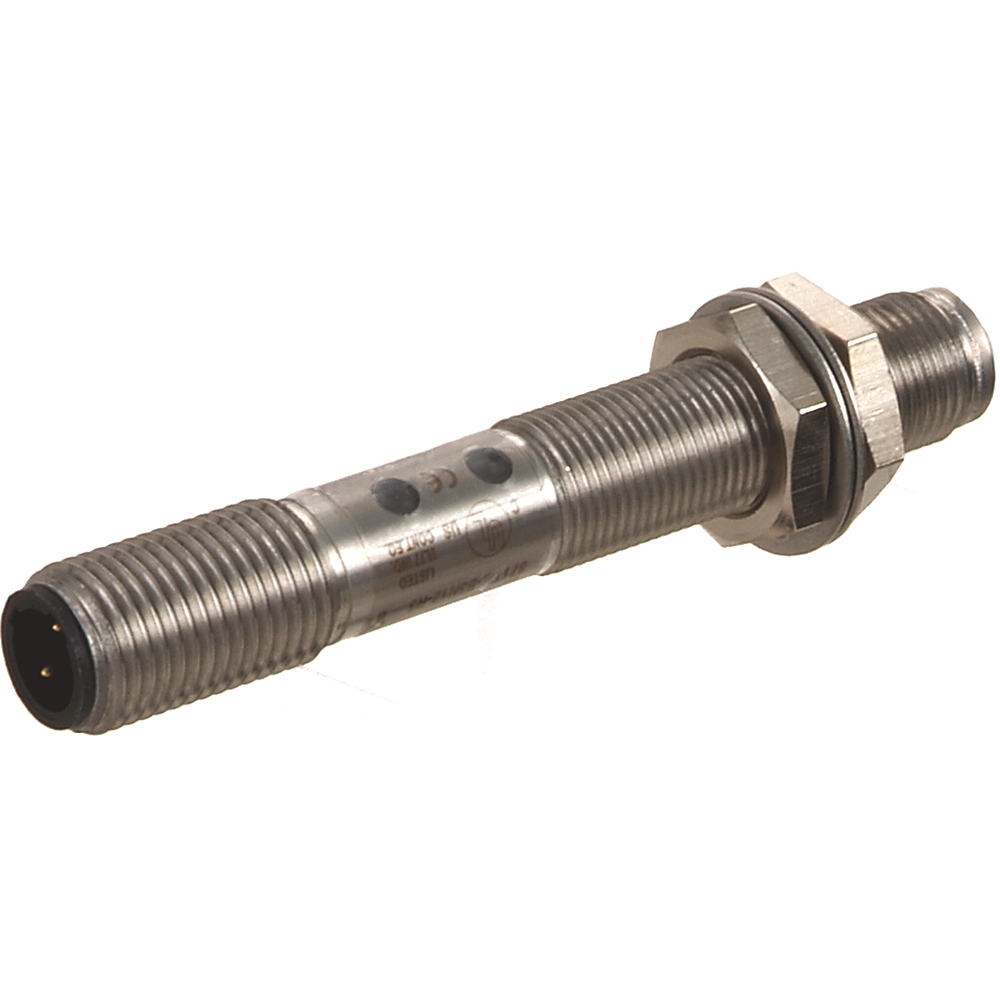

Allen-Bradley Allen-Bradley Metal Face Inductive Sensor 871TM-B5C18-R3
Allen-Bradley Allen-Bradley Metal Face Inductive Sensor 871TM-B4N12-C2
Allen-Bradley Allen-Bradley Metal Face Inductive Sensor 871TM-B5N18-A2

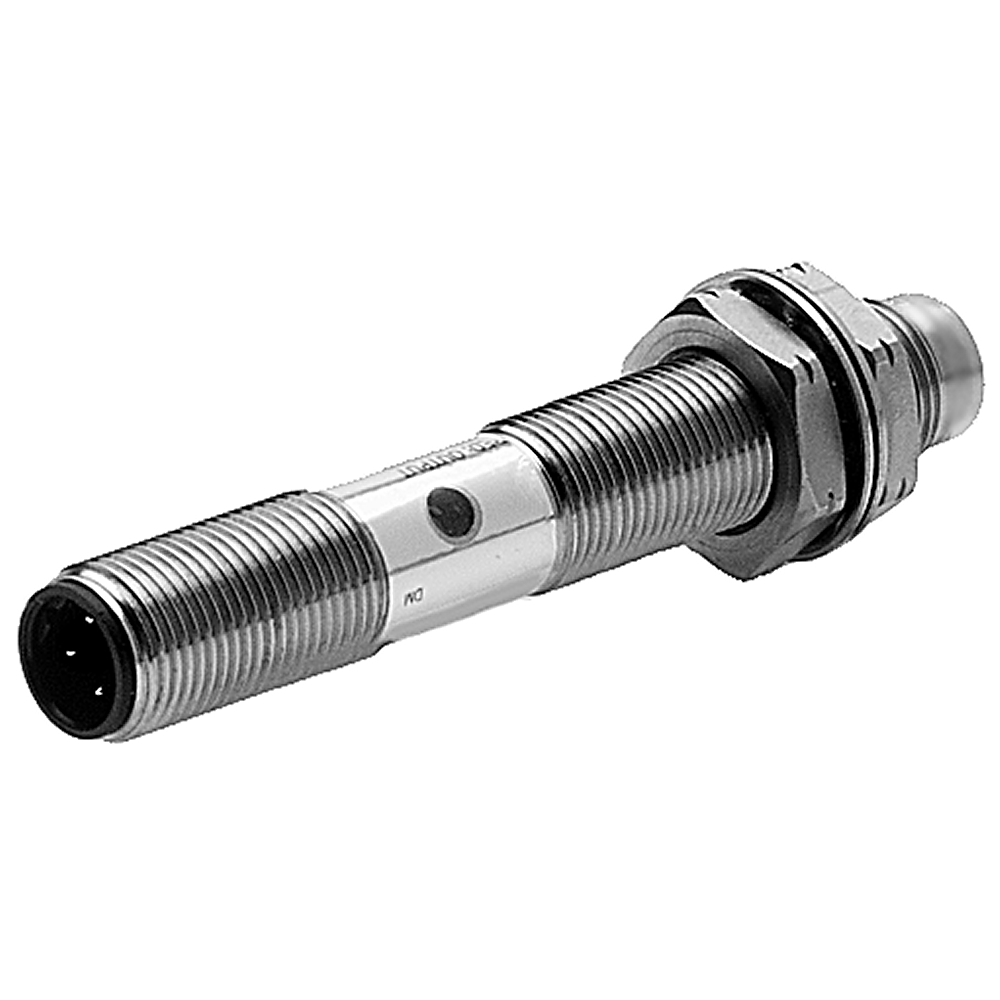

Allen-Bradley Allen-Bradley Metal Face Inductive Sensor 871TM-B4N12-B4
