Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-G24L4L5
Allen-Bradley 855W-G24L4L5 - industrial components - Operating Temperature: -25 °C; Storage Temperature: -25 °C; Lifecycle Status: Discontinued.
The 855W-G24L4L5 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -25 °C.
Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70
The specification set recorded for this part number covers Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Voltage type for actuating: AC/DC; Frequency: Flashing LED, level-2 module: 2 Hz; Rated operating voltage Ue: 24 V; Operating voltage: 24V AC/DC (±10%); Housing Color: Grey; Mounting Type: Wall mount; Current consumption, max: Steady or flashing LED per channel: 43mA @ 24V AC/DC. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Current consumption, max | Steady or flashing LED per channel: 43mA @ 24V AC/DC |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Design life rating | Steady or flashing LED: 30000...50000 hr |
| Flashing light | true |
| Frequency | Flashing LED, level-2 module: 2 Hz |
| Function flashlight | true |
| Housing Color | Grey |
| Leakage current impact | All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
| Level-1 lens color | Red |
| Level-2 lens color | Amber |
| Level-3 lens color | No module |
| Level-3 module type | No module |
| Level-4 lens color | No module |
| Level-4 module type | No module |
| Level-5 lens color | No module |
| Level-5 module type | No module |
| Lifecycle Status | Discontinued |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Material | Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70 |
| Mounting Type | Wall mount |
| Network option | No network option |
| Operating Temperature | -25 °C |
| Operating voltage | 24V AC/DC (±10%) |
| Optical signal type | Flash light |
| Rated operating voltage Ue | 24 V |
| Repair Options Available | No |
| Sound option | No sound |
| Storage Temperature | -25 °C |
| Type of lamp | LED |
| Voltage type for actuating | AC/DC |
Frequently Asked Questions
How do I get pricing for 855W-G24L4L5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855W-G24L4L5?
855W-G24L4L5 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855W-G24L4L5?
Key specifications include Build America, Buy America: No; Current consumption, max: Steady or flashing LED per channel: 43mA @ 24V AC/DC; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X. The full specification table on this page lists every published attribute for this part.
How quickly can 855W-G24L4L5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-G24L4L3

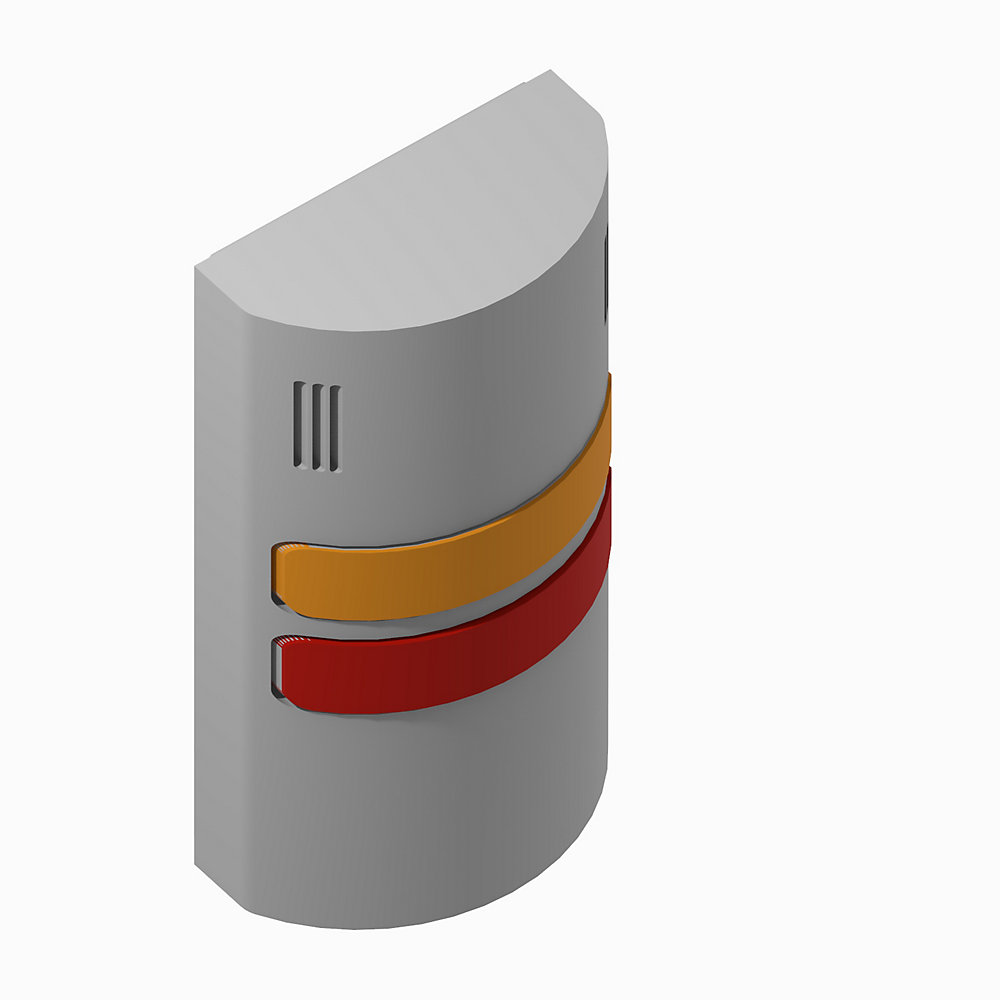

Allen-Bradley Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-G24L4L5P1

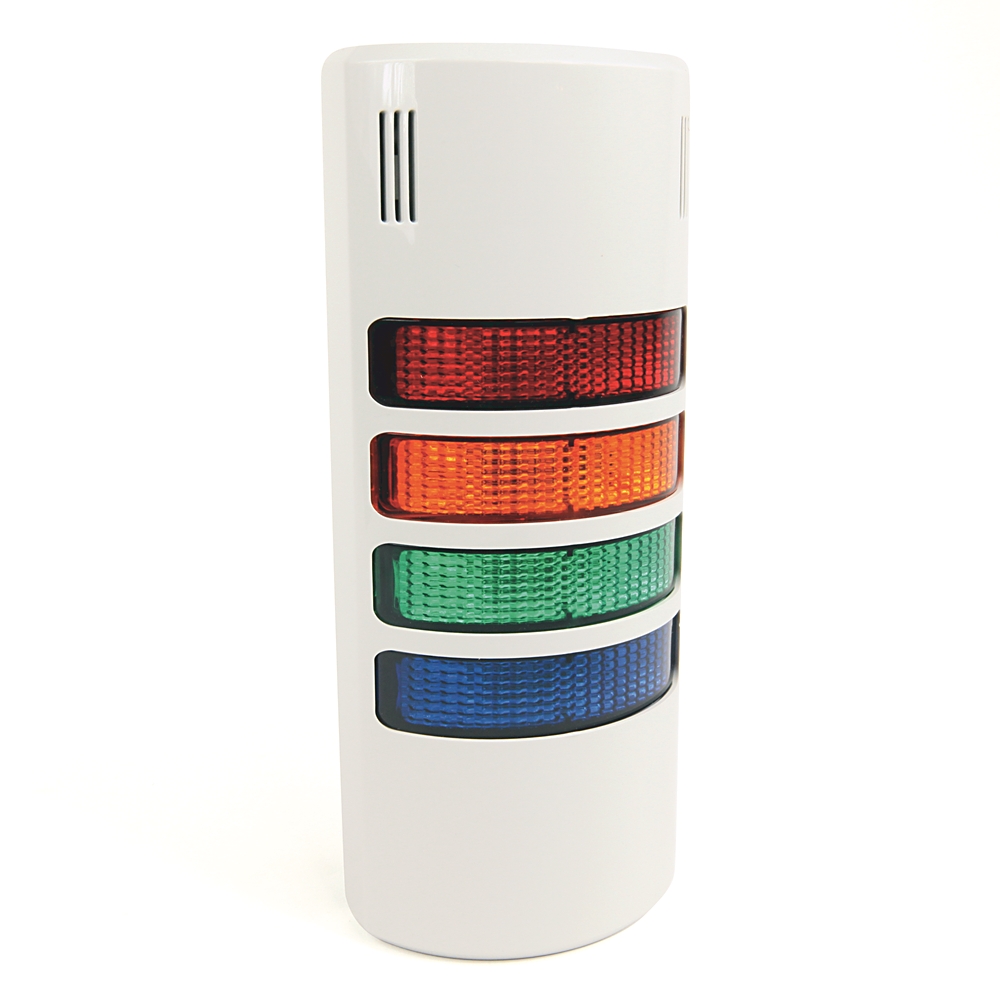

Allen-Bradley Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-G24L3L7L6L5L4P1

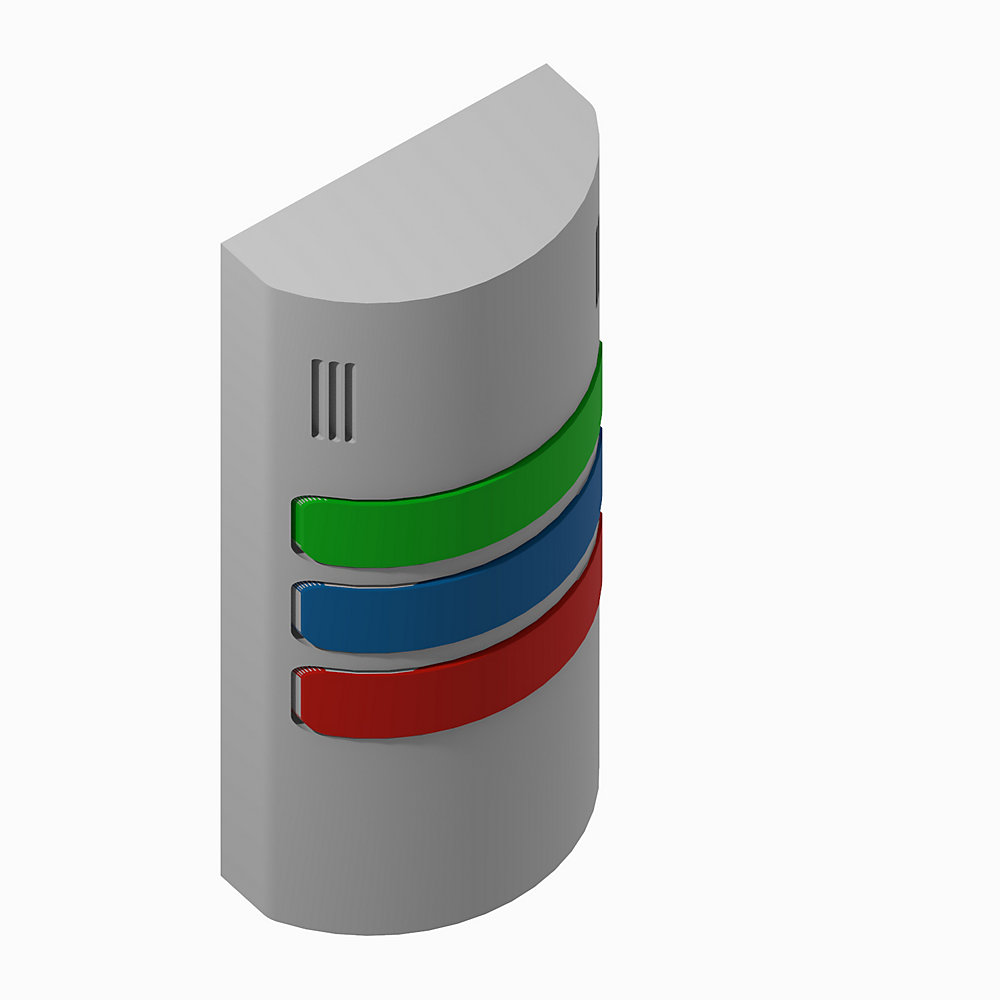

Allen-Bradley Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-G24L4L6Y3P1

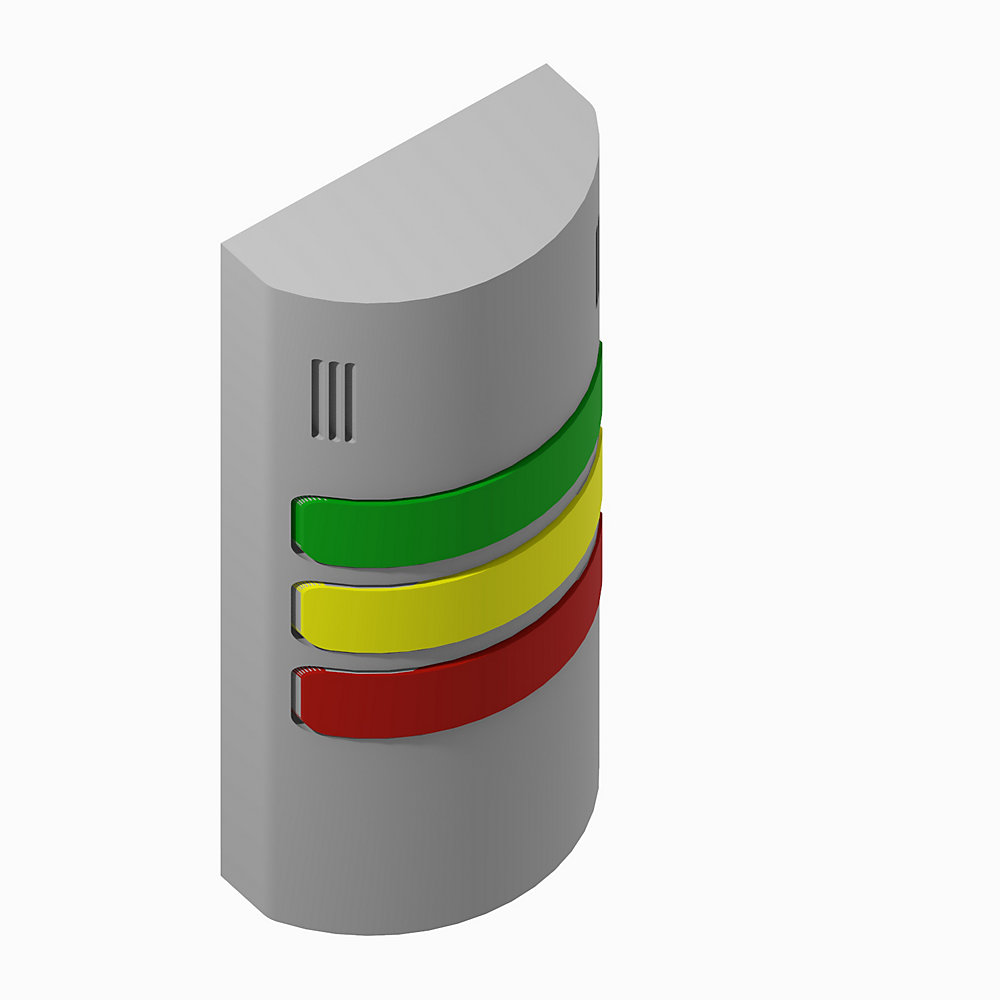

Allen-Bradley Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-G24L4L8L3P1
