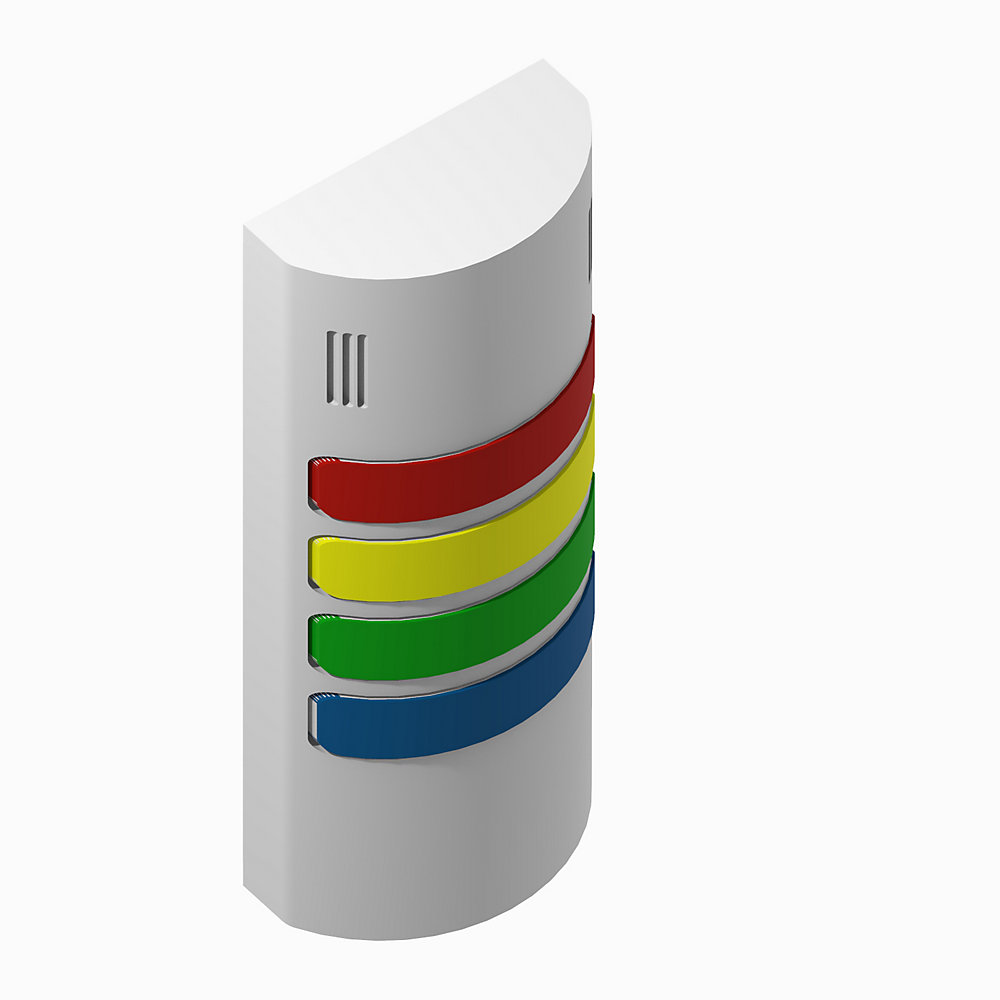

Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-C24Y6Y3Y8Y4P1
Allen-Bradley 855W-C24Y6Y3Y8Y4P1 - industrial components - Operating Temperature: -25 °C; Storage Temperature: -25 °C; Lifecycle Status: Active.
The Allen-Bradley 855W-C24Y6Y3Y8Y4P1 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -25 °C.
Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70
Published specifications for this part include Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Voltage type for actuating: AC/DC; Rated operating voltage Ue: 24 V; Operating voltage: 24V AC/DC (±10%); Current consumption: Piezo sounder: 62mA @ 24V AC/DC; Housing Color: Chrome; Mounting Type: Wall mount; Current consumption, max: Steady or flashing LED per channel: 43mA @ 24V AC/DC. The complete technical table is shown in the Specifications tab on this page.
| Acoustic signal device type | Piezo sounder |
|---|---|
| Acoustic signal type | Pulse tone/continuous tone |
| Build America, Buy America | No |
| Current consumption | Piezo sounder: 62mA @ 24V AC/DC |
| Current consumption, max | Steady or flashing LED per channel: 43mA @ 24V AC/DC |
| Decibel rating | Piezo sounder: 90 dBa (potentiom adjustable down to 70 dBa), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Design life rating | Steady or flashing LED: 30000...50000 hr |
| Function acoustic | true |
| Function continuous light | true |
| Housing Color | Chrome |
| Leakage current impact | All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
| Level-1 lens color | Blue |
| Level-2 lens color | Green |
| Level-3 lens color | Yellow |
| Level-4 lens color | Red |
| Level-5 lens color | No module |
| Level-5 module type | No module |
| Lifecycle Status | Active |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Loudness | 90 dBb |
| Material | Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70 |
| Mounting Type | Wall mount |
| Network option | No network option |
| Operating Temperature | -25 °C |
| Operating voltage | 24V AC/DC (±10%) |
| Optical signal type | Continuous light |
| Rated operating voltage Ue | 24 V |
| Repair Options Available | No |
| Sound option | 90 dB piezo sounder, selectable continuous or pulsing 90 dBa max with volume adjust of -20 dB |
| Storage Temperature | -25 °C |
| Type of lamp | LED |
| Voltage type for actuating | AC/DC |
Frequently Asked Questions
How do I get pricing for 855W-C24Y6Y3Y8Y4P1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855W-C24Y6Y3Y8Y4P1?
855W-C24Y6Y3Y8Y4P1 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855W-C24Y6Y3Y8Y4P1?
Key specifications include Acoustic signal device type: Piezo sounder; Acoustic signal type: Pulse tone/continuous tone; Build America, Buy America: No; Current consumption: Piezo sounder: 62mA @ 24V AC/DC. The full specification table on this page lists every published attribute for this part.
How quickly can 855W-C24Y6Y3Y8Y4P1 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

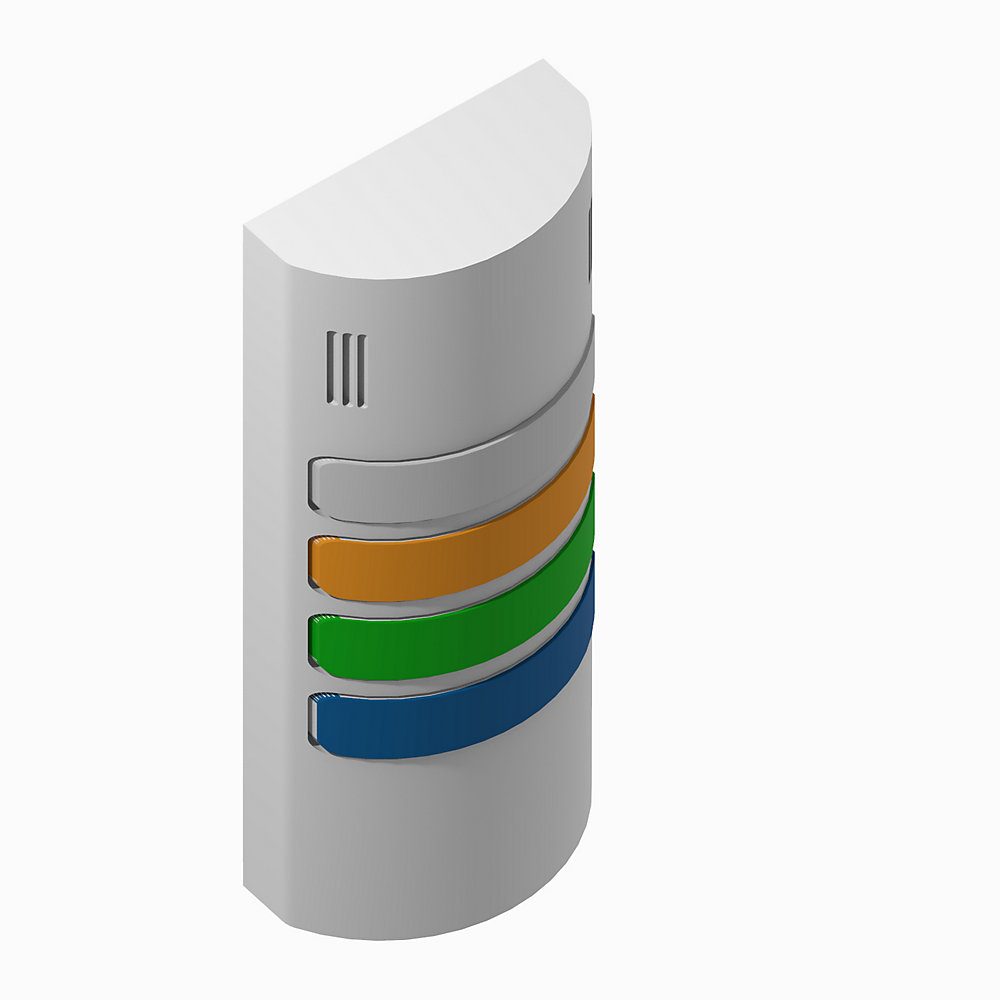

Allen-Bradley Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-C24Y6Y3Y5Y7
Allen-Bradley Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-C24Y6Y5Y4
Allen-Bradley Allen-Bradley 855W 120V AC Wall Mount Signal Light 855W-G10Y3L8L4

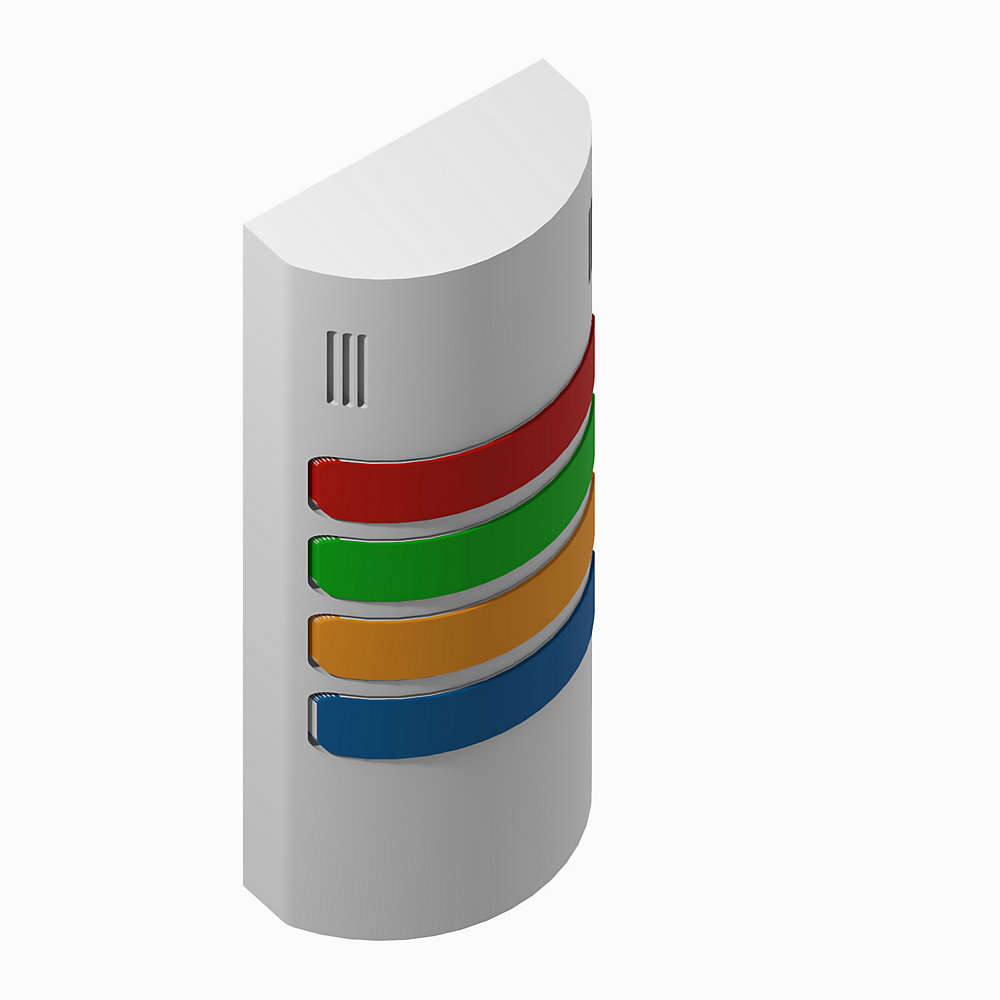

Allen-Bradley Allen-Bradley 855W 24V AC/DC Wall Mount Signal Light 855W-C24Y6L5Y3Y4P1
