Allen-Bradley Signaling Device 855TX-B24Y8Y6Y3Y4
Allen-Bradley 855TX-B24Y8Y6Y3Y4 - industrial components - Outer Diameter: 70 mm mm; Voltage: 24V AC/DC full voltage V; Operating Temperature: -25 °C.
This listing covers the Allen-Bradley 855TX-B24Y8Y6Y3Y4, a part number in the industrial components category. The manufacturer's published data for this part number specifies Outer Diameter: 70 mm mm and Voltage: 24V AC/DC full voltage V.
Key manufacturer data on file for this item includes Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Voltage type for actuating: AC/DC; Shock: 5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base); Vibration: 5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base); Rated operating voltage Ue: 24 V; Operating voltage: 24V (±10%) @ AC/DC. The complete technical table is shown in the Specifications tab on this page.
| Base type | Modules only (no base, cannot select network option) |
|---|---|
| Build America, Buy America | No |
| Communication rate options | 125K, 250K, 500K, autobaud |
| Current consumption | Level-4 module: 42mA @ 12V AC/DC |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Function continuous light | true |
| Housing Color | Black |
| Lamp life rating | Level-4 LED module: 10000 h |
| Leakage current impact | can absorb up to 3 mA of leakage current from solid-state outputs without module activation. |
| Level-1 lens color | Yellow |
| Level-1 module type | Steady LED lA module |
| Level-2 lens color | Blue |
| Level-2 module type | Steady LED lA module |
| Level-3 lens color | Green |
| Level-3 module type | Steady LED lA module |
| Level-4 lens color | Red |
| Level-4 module type | Steady LED lA module |
| Level-5 lens color | No module |
| Level-5 module type | No module |
| Lifecycle Status | Discontinued |
| Light output | Level-4 module, Yellow LED: 900...1800 mcd |
| Materials | Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate |
| Network option | Standard |
| Operating Temperature | -25 °C |
| Operating voltage | 24V (±10%) @ AC/DC |
| Outer Diameter | 70 mm mm |
| Rated operating voltage Ue | 24 V |
| Recommended terminal torque | 0.8 Nm |
| Recommended wire size | 0.5 mm² |
| Repair Options Available | No |
| Shock | 5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base) |
| Storage Temperature | -40 °C |
| Vibration | 5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base) |
| Voltage | 24V AC/DC full voltage V |
| Voltage type for actuating | AC/DC |
Frequently Asked Questions
How do I get pricing for 855TX-B24Y8Y6Y3Y4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855TX-B24Y8Y6Y3Y4?
855TX-B24Y8Y6Y3Y4 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855TX-B24Y8Y6Y3Y4?
Key specifications include Base type: Modules only (no base, cannot select network option); Build America, Buy America: No; Communication rate options: 125K, 250K, 500K, autobaud; Current consumption: Level-4 module: 42mA @ 12V AC/DC. The full specification table on this page lists every published attribute for this part.
How quickly can 855TX-B24Y8Y6Y3Y4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

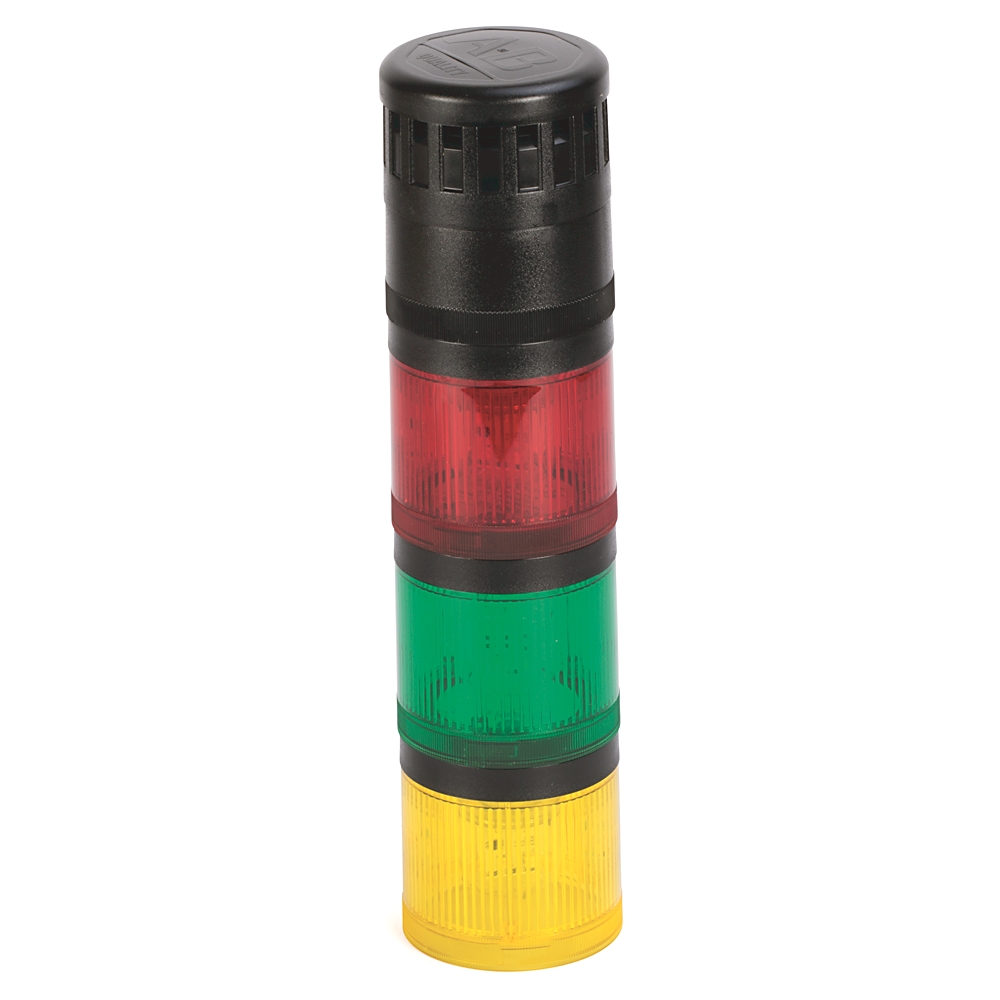

Allen-Bradley Allen-Bradley Signaling Device 855TX-B24Y8Y3Y4K1
Allen-Bradley Allen-Bradley Signaling Device 855TX-B24Y8Y6Y3Y4K1
Allen-Bradley Allen-Bradley Signaling Device 855TX-B24Y6Y3Y5Y4A1

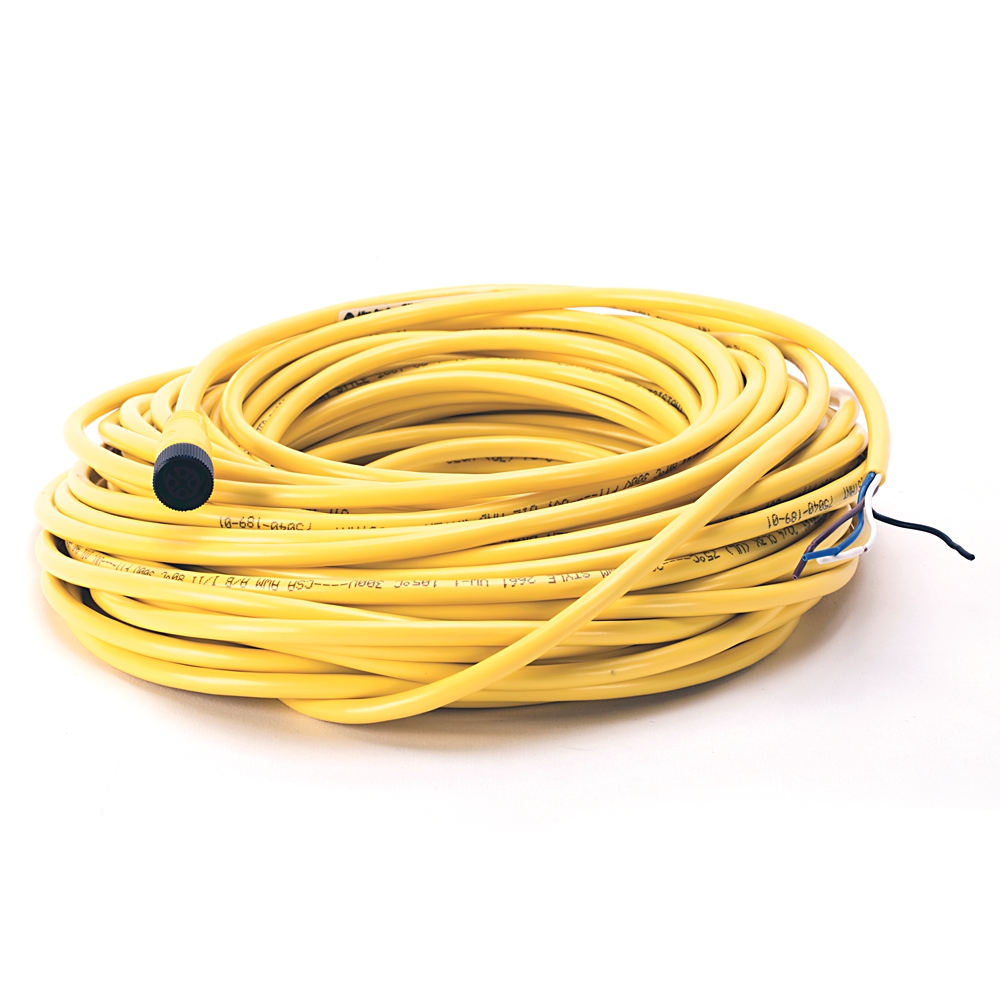

Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F4AC-25

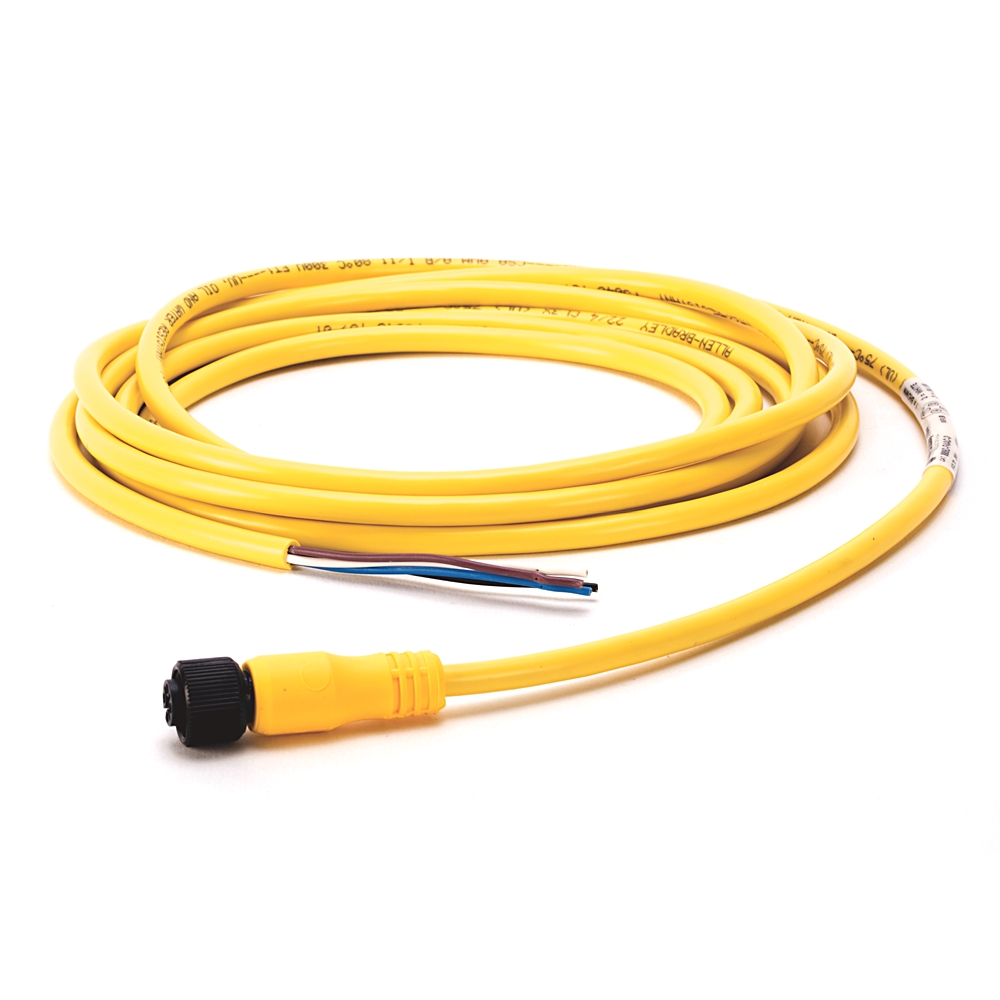

Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F4AC-3
