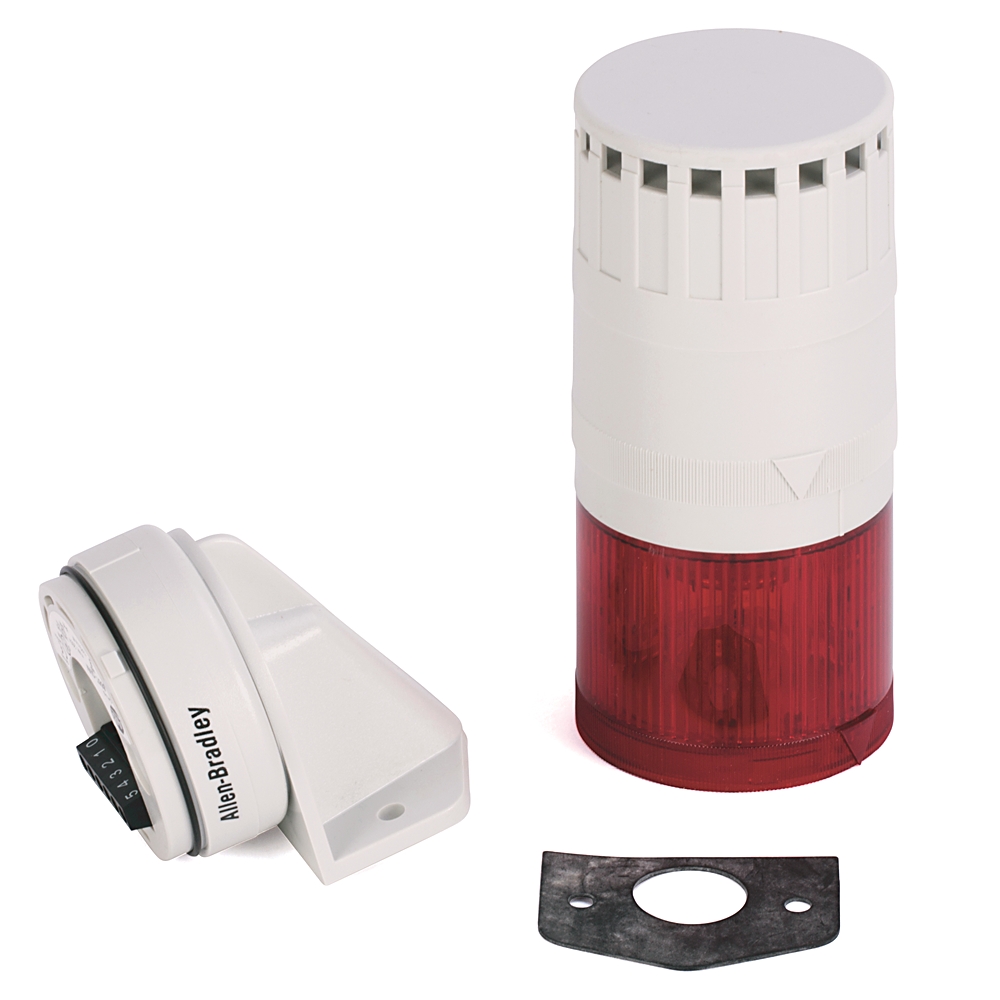

Allen-Bradley Configured Stack Light Signaling Device 855TV-G24L4P1
Allen-Bradley 855TV-G24L4P1 - industrial components - Outer Diameter: 70 mm mm; Voltage: 24V AC/DC full voltage V; Operating Temperature: -25 °C.
The 855TV-G24L4P1 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Outer Diameter: 70 mm mm and Voltage: 24V AC/DC full voltage V.
Published specifications for this part include Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Voltage type for actuating: AC/DC; Shock: 5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base); Vibration: 5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base); Rated operating voltage Ue: 24 V; Operating voltage: 24V (±10%) @ AC/DC. See the Specifications tab on this page for the full technical table.
| Base type | Vertical mount (includes cap) |
|---|---|
| Build America, Buy America | No |
| Communication rate options | 125K, 250K, 500K, autobaud |
| Current consumption | Level-2 module: 45mA @ 24V AC/DC |
| Decibel rating | Piezo sound module: high 107 dB/low 95 dB, selectable via DIP switch (determined at a distance of 1 m from the sound module) |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Flashing frequency for flashing LED modules | Level-1 module: 1.5 Hz, time ON/time OFF = 1:1 |
| Flashing light | true |
| Function flashlight | true |
| Housing Color | Grey |
| Lamp life rating | Level-1 LED module: 10000 h |
| Leakage current impact | can absorb up to 3 mA of leakage current from solid-state outputs without module activation. |
| Level-1 lens color | Red |
| Level-1 module type | Flashing LED lA |
| Level-2 lens color | None (sound only) |
| Level-2 module type | Single circuit piezo alarm IP65, Type 4/4X/13 |
| Level-3 lens color | No module |
| Level-3 module type | No module |
| Level-4 lens color | No module |
| Level-4 module type | No module |
| Level-5 lens color | No module |
| Level-5 module type | No module |
| Lifecycle Status | Discontinued |
| Light output | Level-1 module, Yellow LED: 900...1800 mcd |
| Materials | Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate |
| Network option | Standard |
| Operating Temperature | -25 °C |
| Operating voltage | 24V (±10%) @ AC/DC |
| Outer Diameter | 70 mm mm |
| Rated operating voltage Ue | 24 V |
| Recommended terminal torque | 0.8 Nm |
| Recommended wire size | 0.5 mm² |
| Repair Options Available | No |
| Shock | 5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base) |
| Sound module rating | Level-2 sound module: 20000 h |
| Storage Temperature | -40 °C |
| Vibration | 5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base) |
| Voltage | 24V AC/DC full voltage V |
| Voltage type for actuating | AC/DC |
Frequently Asked Questions
How do I get pricing for 855TV-G24L4P1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855TV-G24L4P1?
855TV-G24L4P1 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855TV-G24L4P1?
Key specifications include Base type: Vertical mount (includes cap); Build America, Buy America: No; Communication rate options: 125K, 250K, 500K, autobaud; Current consumption: Level-2 module: 45mA @ 24V AC/DC. The full specification table on this page lists every published attribute for this part.
How quickly can 855TV-G24L4P1 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Vertical Mount Signaling Device 855TV-G24L4
Allen-Bradley Allen-Bradley Configured Stack Light Signaling Device 855TX-B24Y3Y4K1

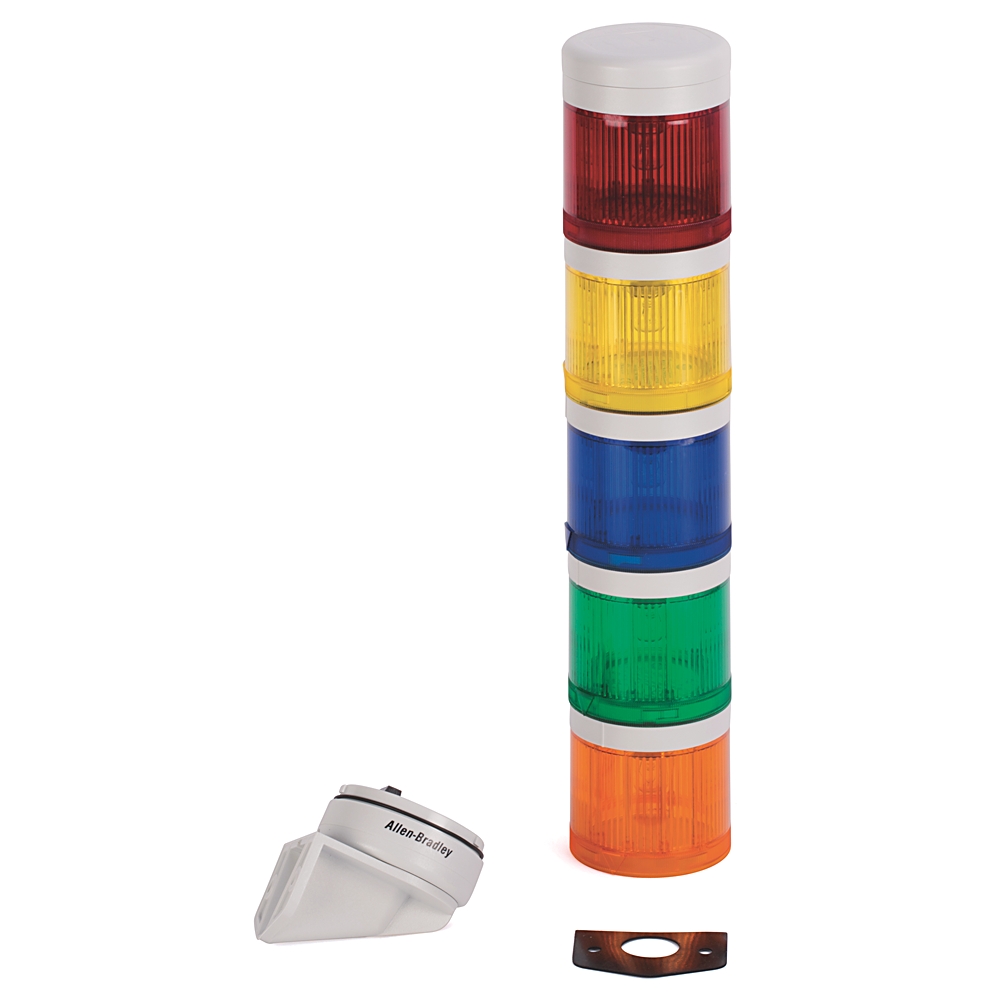

Allen-Bradley Allen-Bradley Vertical Mount Signaling Device 855TV-G24D6
