Allen-Bradley 70 mm Stack Lights 855T-B12TL8
Allen-Bradley 855T-B12TL8 - industrial components - Outer Diameter: 70 mm mm; Operating Temperature: -25 °C; Storage Temperature: -40 °C.
The 855T-B12TL8 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Outer Diameter: 70 mm mm and Operating Temperature: -25 °C.
The specification set recorded for this part number covers Storage Temperature: -40 °C; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Voltage type for actuating: AC/DC; Shock: 5 module stack: 35 G (Surface-mount base or 10 cm aluminum pole base); Vibration: 5 module stack: 0.75 G (Surface-mount base or 10 cm aluminum pole base); Rated operating voltage Ue: 12 V; Operating voltage: 12V (±10%) @ AC/DC; Current consumption: 42mA @ 12V AC/DC. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Current consumption | 42mA @ 12V AC/DC |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Function acoustic | false |
| Function continuous light | true |
| Housing Color | Black |
| Lamp life rating | LED module: 100000 h |
| Leakage current impact | All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
| Lens color | Yellow |
| Lifecycle Status | Discontinued |
| Light output | 900...1800 mcd |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Materials | Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate |
| Module type | Steady LED lA module |
| Operating Temperature | -25 °C |
| Operating voltage | 12V (±10%) @ AC/DC |
| Outer Diameter | 70 mm mm |
| Rated operating voltage Ue | 12 V |
| Recommended terminal torque | 0.8 Nm |
| Recommended wire size | 0.5 mm² |
| Repair Options Available | No |
| Shock | 5 module stack: 35 G (Surface-mount base or 10 cm aluminum pole base) |
| Storage Temperature | -40 °C |
| Vibration | 5 module stack: 0.75 G (Surface-mount base or 10 cm aluminum pole base) |
| Voltage type for actuating | AC/DC |
Frequently Asked Questions
How do I get pricing for 855T-B12TL8?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855T-B12TL8?
855T-B12TL8 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855T-B12TL8?
Key specifications include Build America, Buy America: No; Current consumption: 42mA @ 12V AC/DC; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X. The full specification table on this page lists every published attribute for this part.
How quickly can 855T-B12TL8 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

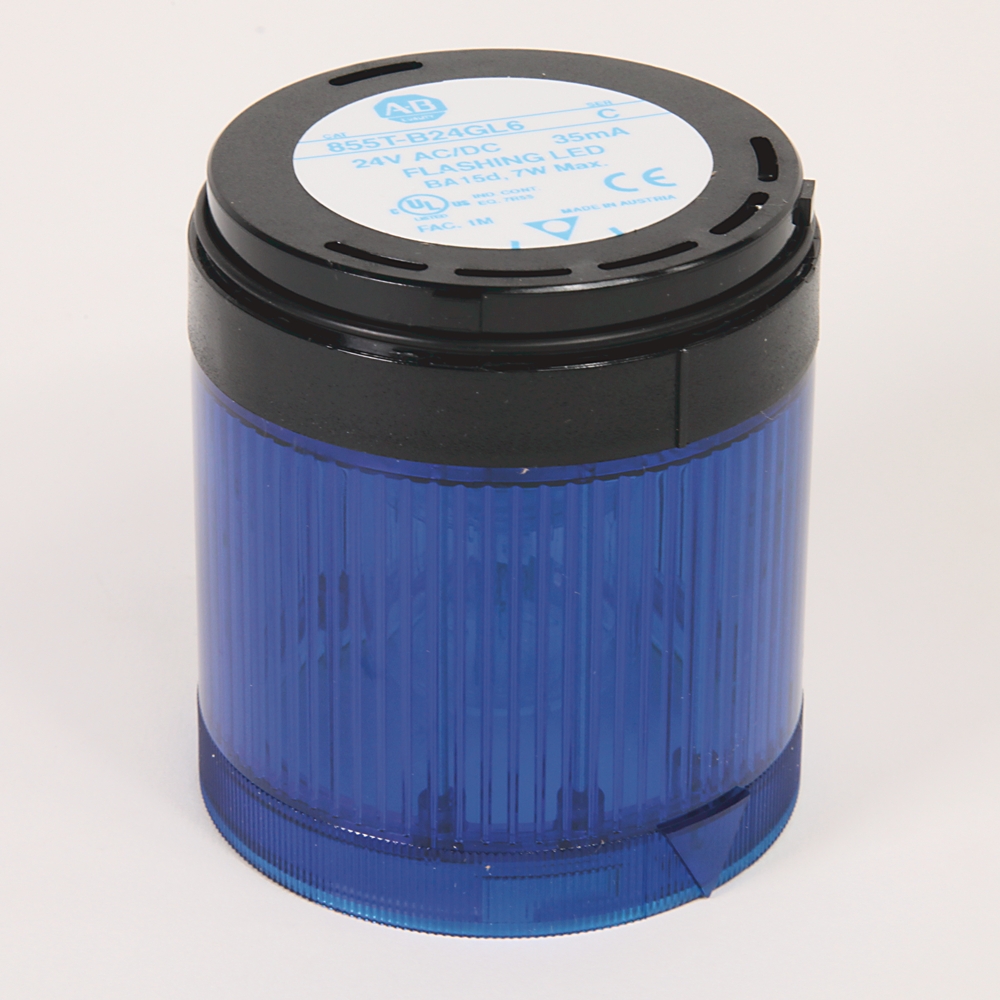

Allen-Bradley Allen-Bradley 70 mm Stack Lights 855T-B20BC5
