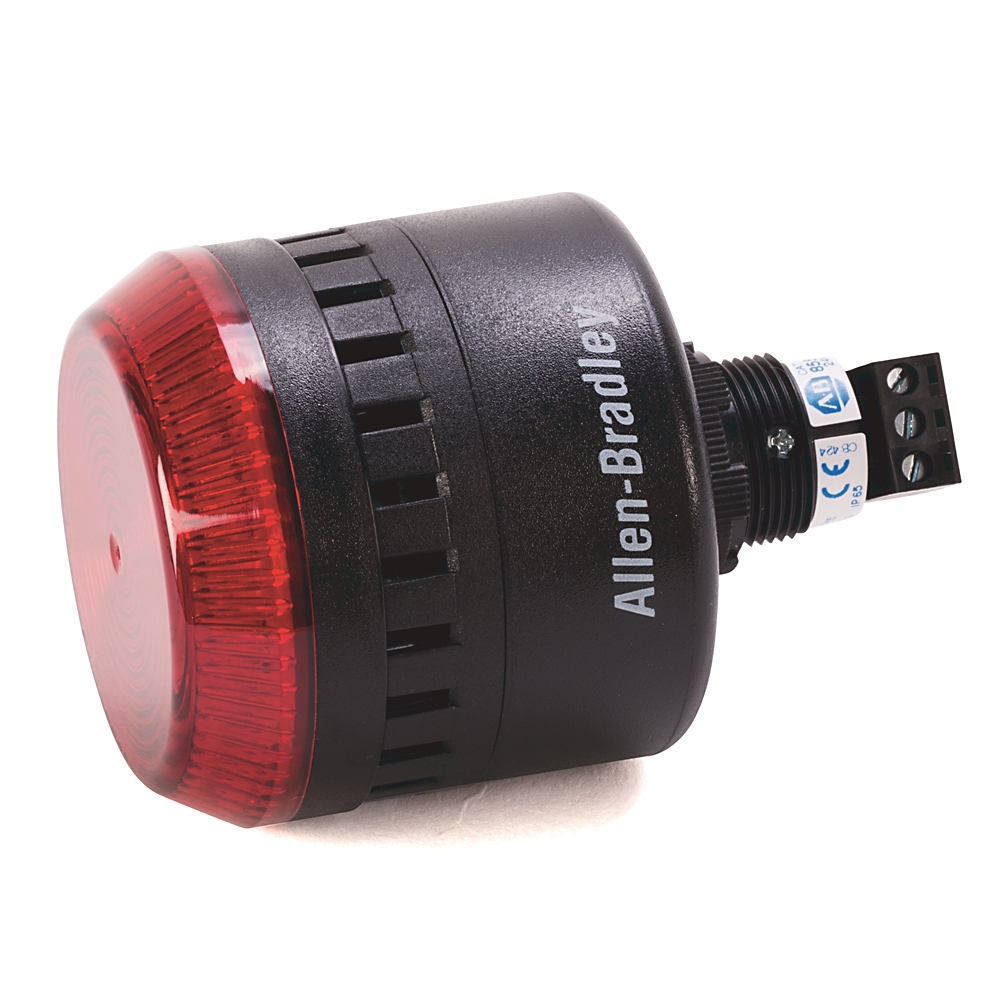

Allen-Bradley Light and sound comb Alarm Light and sou 855PC-B24LE822
Allen-Bradley 855PC-B24LE822 - industrial components - Height: 82 mm mm; Weight: 85 g; Operating Temperature: -25 °C.
Allen-Bradley 855PC-B24LE822 is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Height: 82 mm mm and Weight: 85 g.
The specification set recorded for this part number covers Operating Temperature: -25 °C; Storage Temperature: -25 °C; Nominal current: 73mA @ 24V AC/DC, 50/60 Hz; Size: 65 mm diam sounder and LED; Housing material: Polycarbonate, black; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Terminals: Plug-in terminal block, up to 2.5 mm2 AWG), IP2X; Mounting: Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Colour housing | Black |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Frequency sound signal | 3.3 khz |
| Height | 82 mm mm |
| Housing Color | Black |
| Housing material | Polycarbonate, black |
| Lamp type | LED |
| Lens color | Yellow |
| Lens Material | Polycarbonate |
| Lifecycle Status | Active |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Loudness | 103 dBb |
| Mounting | Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit |
| Mounting nut torque | 1.7 nm |
| Nominal current | 73mA @ 24V AC/DC, 50/60 Hz |
| Nominal Voltage | 24 V |
| Operating Temperature | -25 °C |
| Repair Options Available | No |
| Size | 65 mm diam sounder and LED |
| Sound level adjustment | Stepless |
| Sound level, min | <85 dB |
| Sound main frequency | 3300 Hz |
| Sound selection | Externally by terminal connection |
| Sound type | Pulsing: yes |
| Storage Temperature | -25 °C |
| Supply voltage range | ±10% |
| Terminals | Plug-in terminal block, up to 2.5 mm2 AWG), IP2X |
| Turn-ON leakage current | ≥3 mA |
| Type of acoustic signal | Pulse tone/continuous tone |
| Type of current | AC/DC |
| Weight | 85 g |
Frequently Asked Questions
How do I get pricing for 855PC-B24LE822?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855PC-B24LE822?
855PC-B24LE822 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855PC-B24LE822?
Key specifications include Build America, Buy America: No; Colour housing: Black; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X. The full specification table on this page lists every published attribute for this part.
How quickly can 855PC-B24LE822 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
